Forged Steel Globe Valve DN15 PN16 A105N EN1092-1 B
Key Specifications / Features
Model No.: Hits: 0

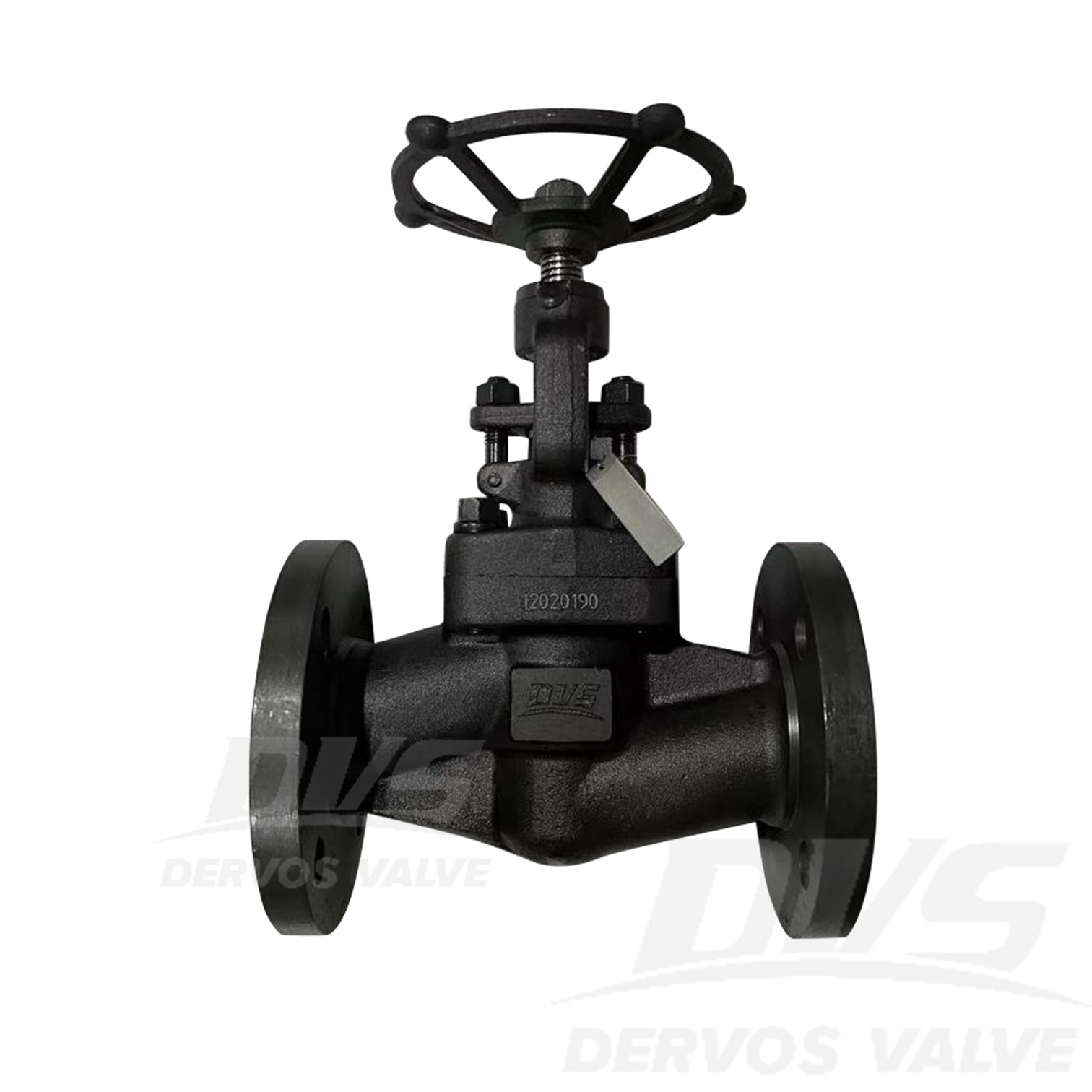

DN15 PN16 Forged Steel Globe Valve is made according to BS 5352 standard. The valve body is made of A105N. It has the structural characteristics of Bolted cover, plug-type disc, straight-through pattern. Its connection mode is EN1092-1 B. And it has Hand Wheel operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Forged Steel Globe Valve |
| Size | DN15 |
| Pressure | PN16 |
| Connection | EN1092-1 B |
| Operation | Hand Wheel |
| Body Material | A105N+13CR |
| Design Norm | BS 5352 |
| Face to face | EN 558 |
| Flange dimension | EN 1092 |
| Test & Inspection Code | EN 12266 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. The A105N forged steel body provides excellent strength, toughness, and durability for industrial flow-control applications.2. The DN15 PN16 design with EN 1092-1 Type B flanged ends ensures secure installation and reliable throttling performance.

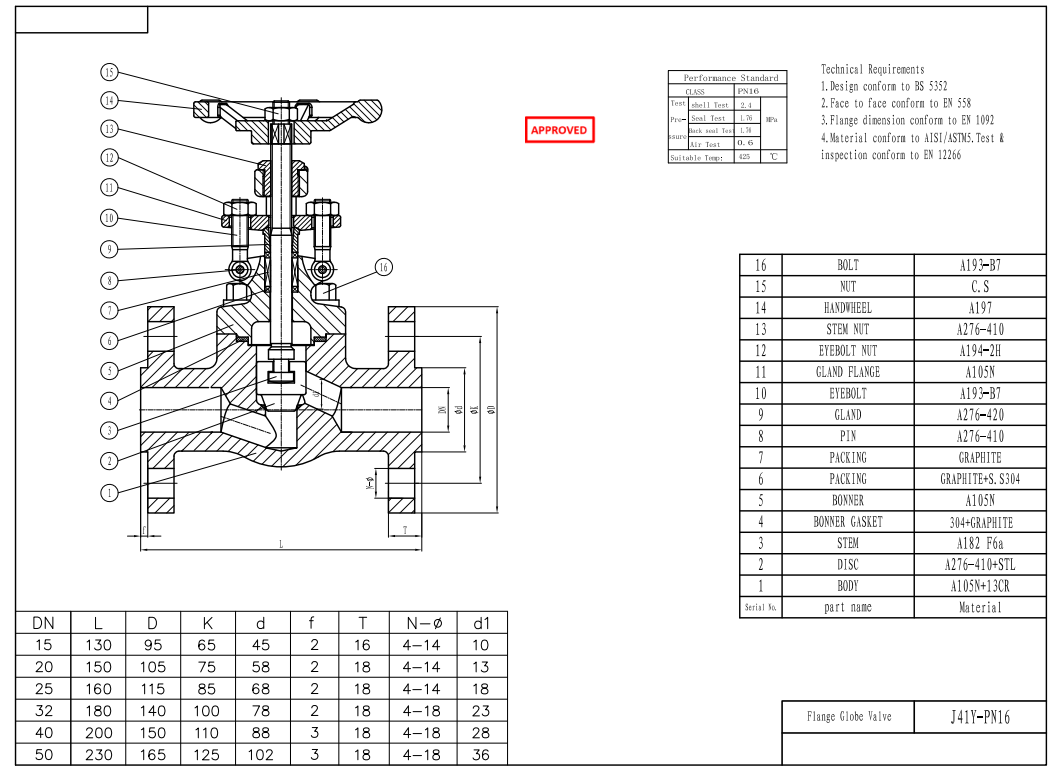

Technical Drawing

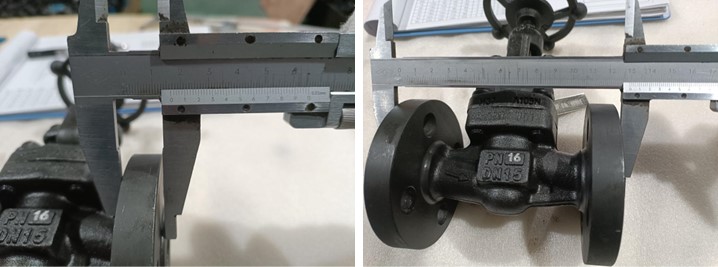

Dimension Checking

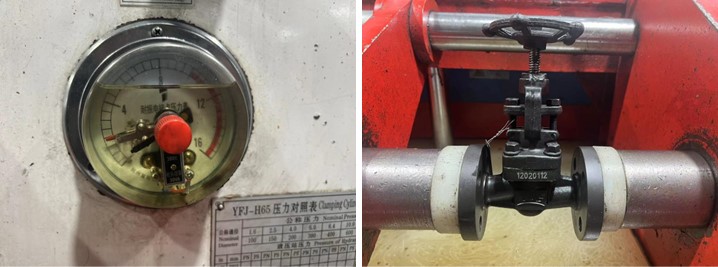

Pressure Testing
Painting
Spectrum

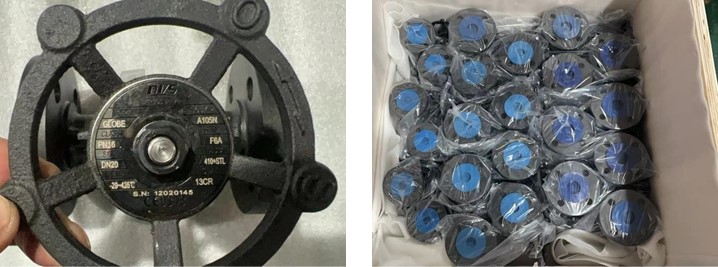

Nameplate & Packing

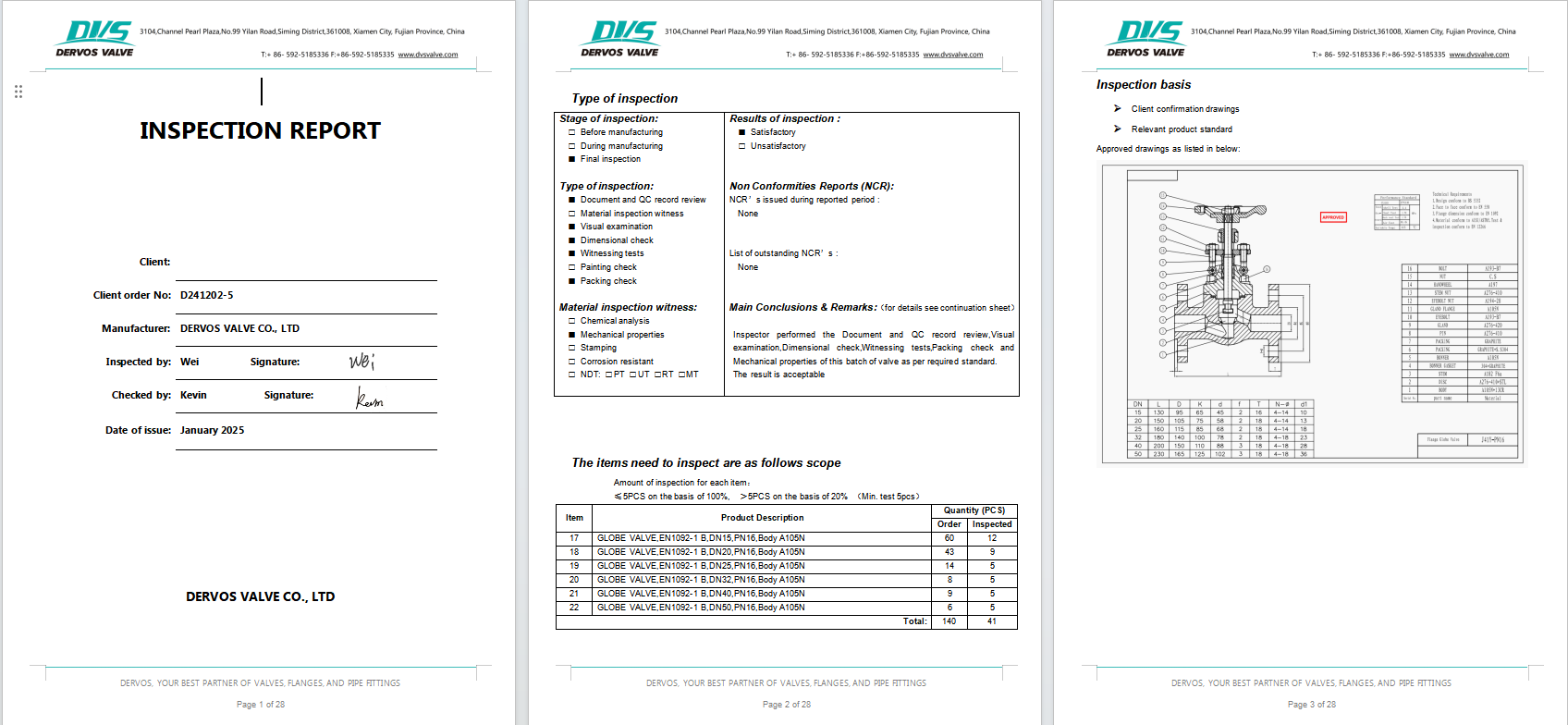

Inspection Report
