Cast Steel Knife Gate Valve DN300 PN16 WCB
Key Specifications / Features
Model No.: Hits: 0
DN300 PN16 Cast Steel Gate Valve is made according to MSS SP-81 standard. The valve body is made of WCB. It has the structural characteristics of Bolted Bonnet. Its connection mode is FF. And it has Hand Wheel operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Cast Steel Gate Valve |
| Size | DN300 |
| Pressure | PN16 |
| Connection | FF |
| Operation | Hand Wheel |
| Body Material | WCB |
| Design Norm | MSS SP-81 |
| Face to face | MFR Standard |
| End connection | EN1092-1 |
| Test & Inspection Code | MFR Standard |
| Temperature | -10 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Knife gate design provides effective shutoff for slurry, wastewater, and other media containing solids.2. WCB cast steel body offers excellent strength and durability for demanding industrial applications.

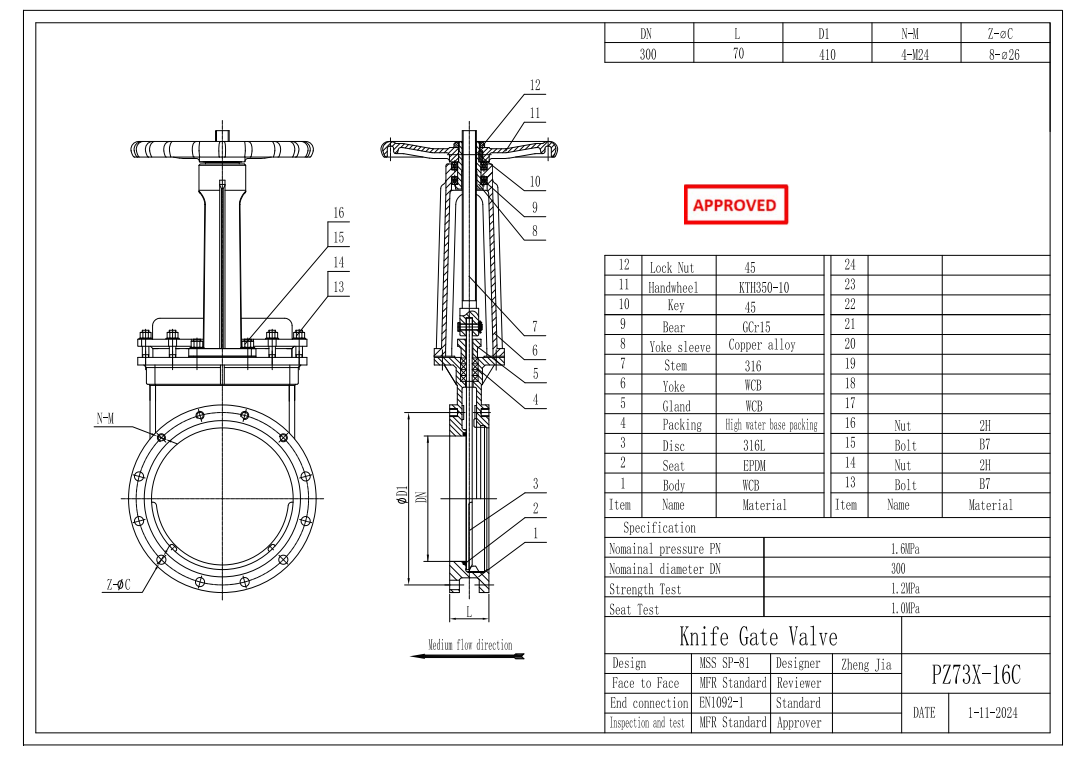

Technical Drawing

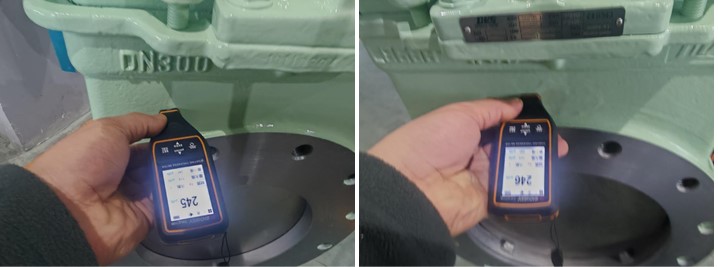

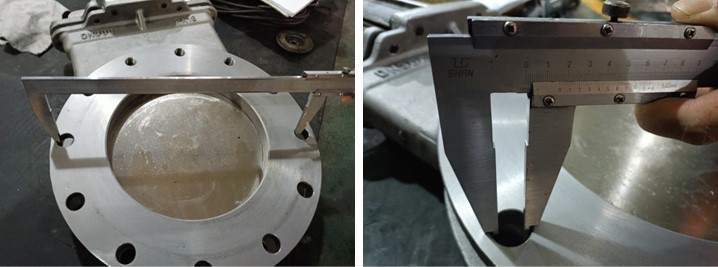

Dimension Checking

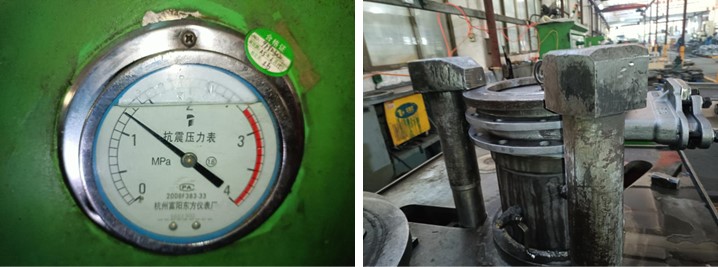

Pressure Testing
Painting

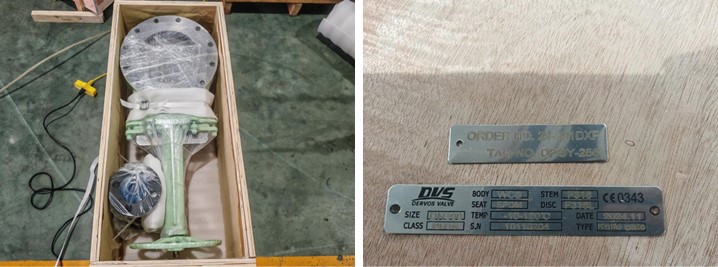

Nameplate & Packing
