Forged Steel Gate Valve 1" 800LB A105N FNPT
Key Specifications / Features
Model No.: Hits: 0
1" 800LB Forged Steel Gate Valve is made according to API 602 standard. The valve body is made of A105N. It has the structural characteristics of Bolted Bonnet, Rising Stem, Rigid Gate. Its connection mode is FNPT. And it has Hand Wheel operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Forged Steel Gate Valve |
| Size | 1” |
| Pressure | 800LB |
| Connection | FNPT |
| Operation | Hand wheel |
| Body Material | ASTM A105N |
| Design Norm | API 602 |
| Face to face | manufacturer's Std. |
| Ends dimension | ANSI B1.20.1 |
| Test & Inspection Code | API STD.598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Steam |
Features
1.Forged Steel Gate Valve 1" 800LB A105N FNPT provides reliable tight shut-off and high-pressure resistance, ideal for small-bore industrial and oil & gas pipeline systems (forged steel gate valve 800LB FNPT A105N).2.FNPT Threaded A105N Gate Valve ensures easy installation and durable sealing performance, suitable for compact piping systems requiring dependable isolation (1 inch 800LB forged gate valve FNPT).

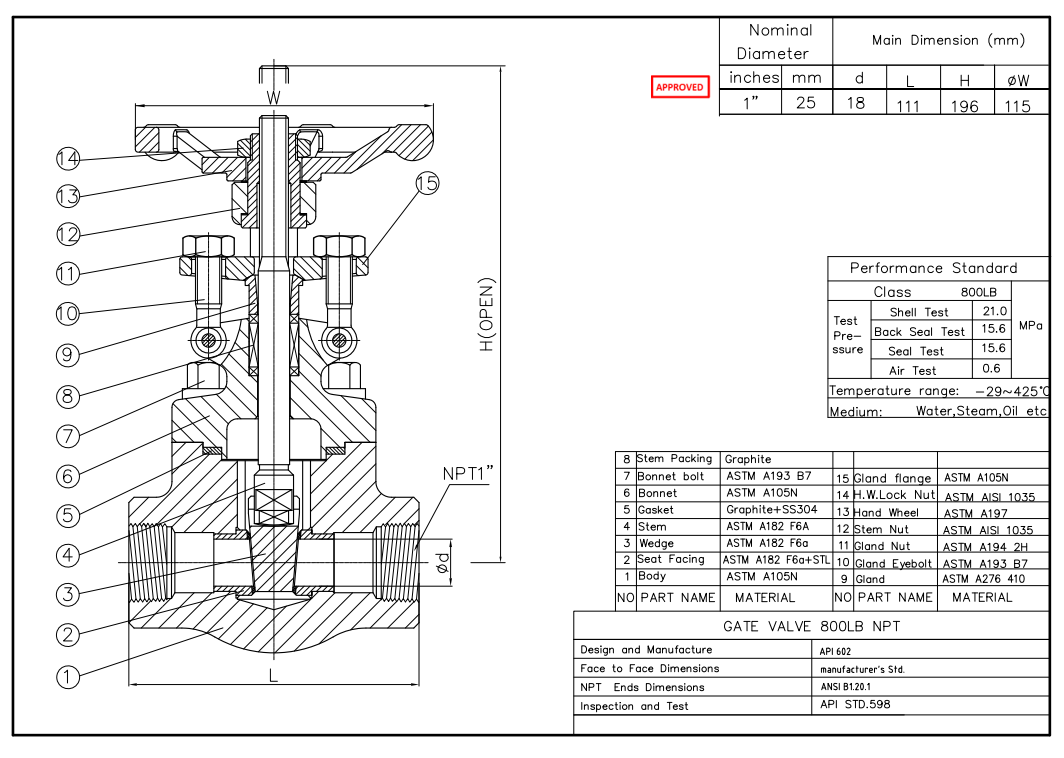

Technical Drawing

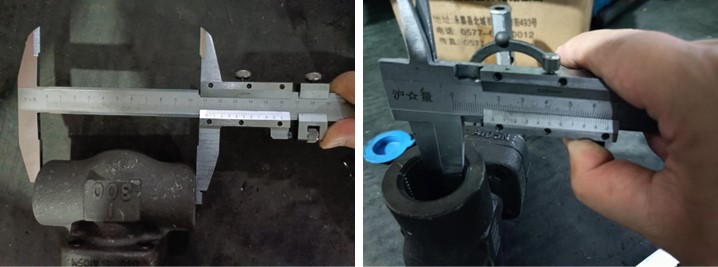

Dimension Checking

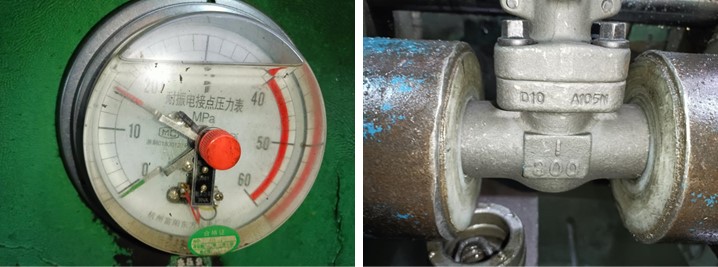

Pressure Testing

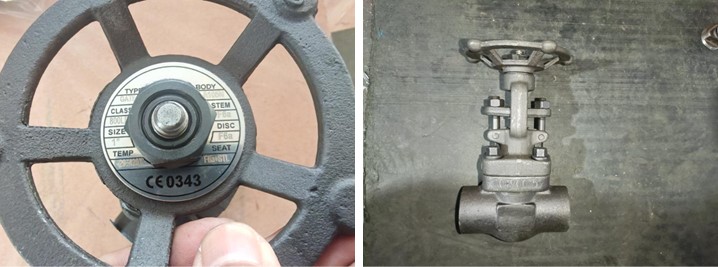

Nameplate & Packing

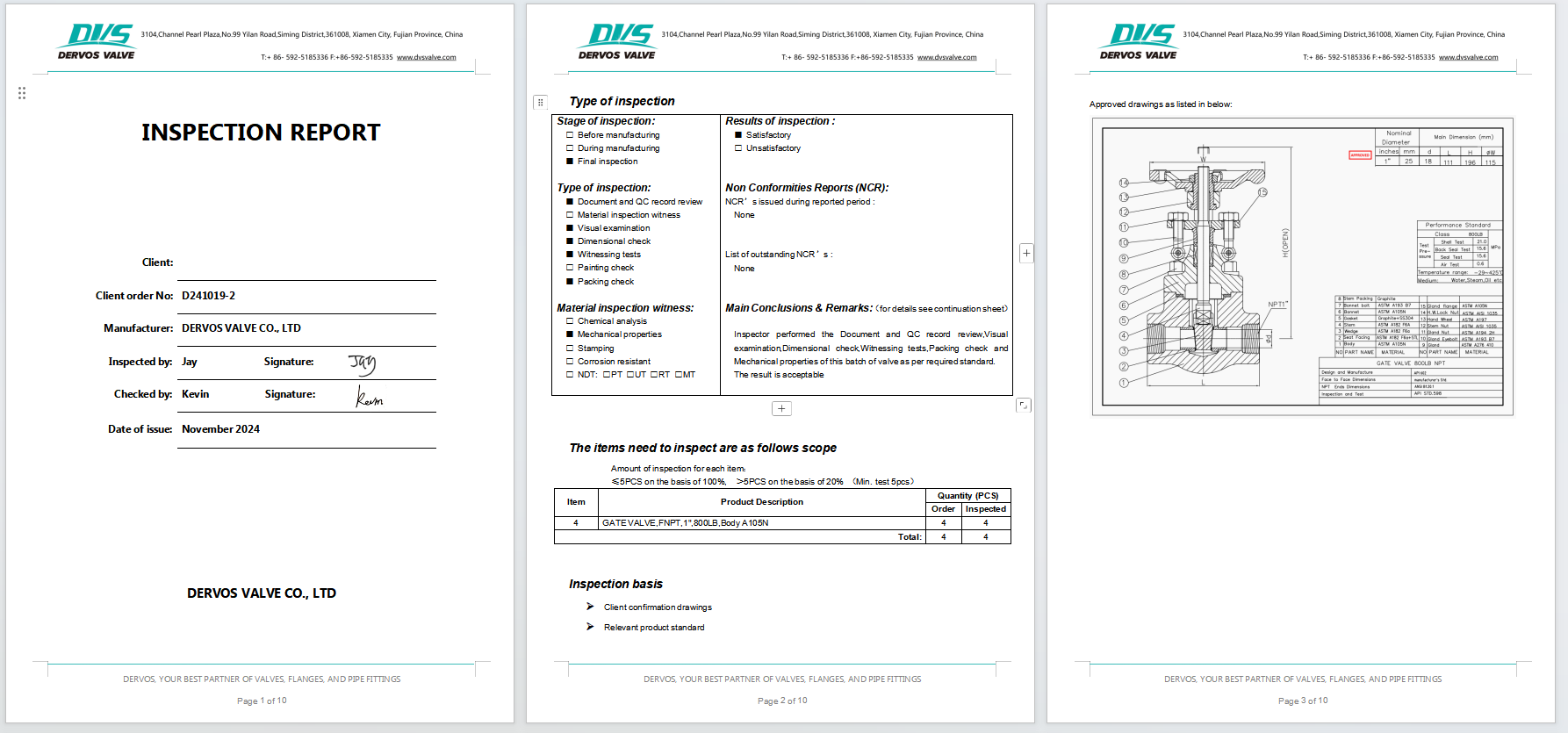

Inspection Report
