Cast Steel Swing Check Valve DN100 PN160 1.7357 BS1868
Key Specifications / Features
Model No.: Hits: 0
DN100 PN160 Swing Check Valve is made according to BS1868 standard. The valve body is made of 1.7357. It has the structural characteristics of Bolted Bonnet, Swing Type, Internal Pin, Investment Casting. Its connection mode is Lens gasket.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Swing Check Valve |
| Size | DN100 |
| Pressure | PN160 |
| Connection | DIN2696 |
| Body Material | 1.7357+STL |
| Design Norm | BS1868 |
| Face to face | EN558-1/99 |
| Face dimension | DIN2696 |
| Test & Inspection Code | EN12266-1/2 |
| Temperature | -10 ~ 370°C |
| Applicable Medium | Hydrogen cycle gas |
Features
1. Cast Steel Swing Check Valve DN100 PN160 1.7357 BS 1868 provides reliable backflow prevention and high-pressure resistance, ideal for power plant and industrial pipeline systems (cast steel swing check valve PN160 DN100).2. BS 1868 Alloy Steel Check Valve ensures durable performance and stable sealing under high-temperature and high-pressure conditions (DN100 PN160 swing check valve 1.7357).

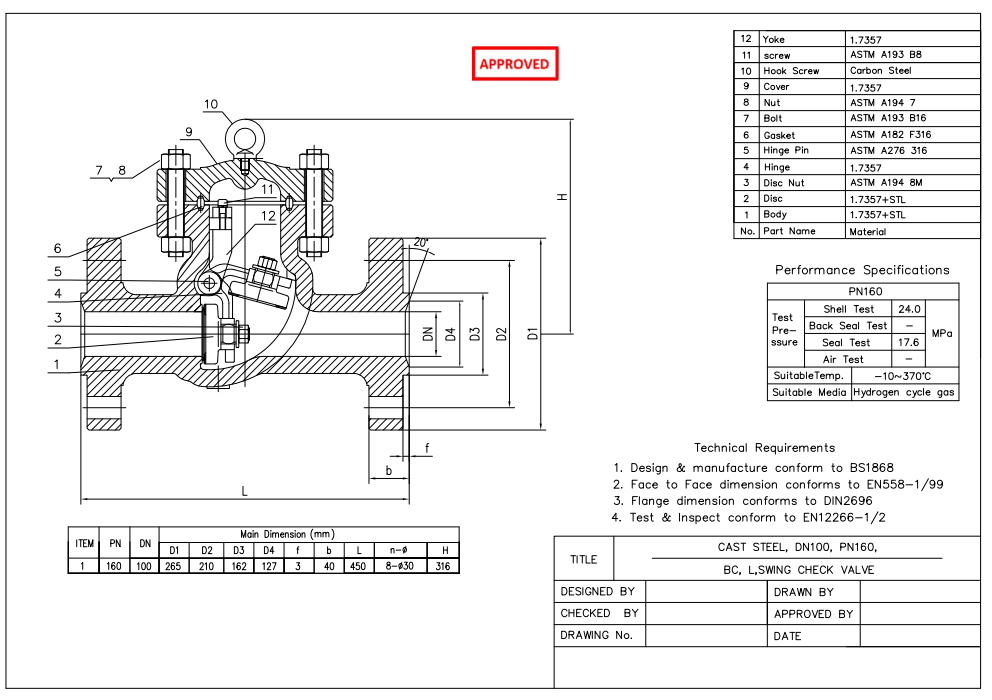

Technical Drawing

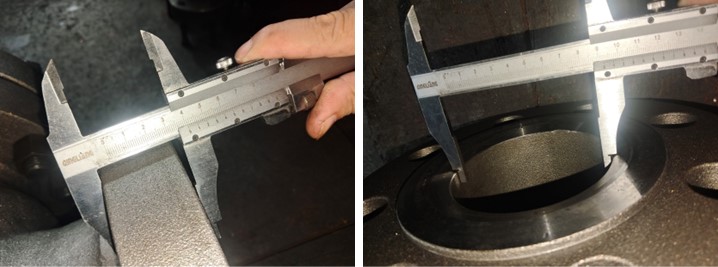

Dimension Checking

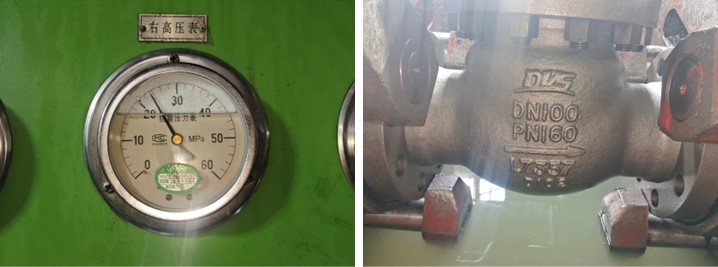

Pressure Testing

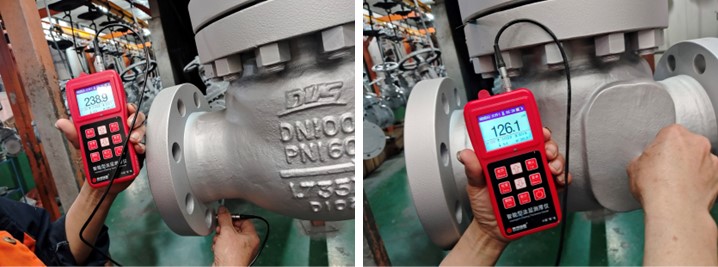

Painting

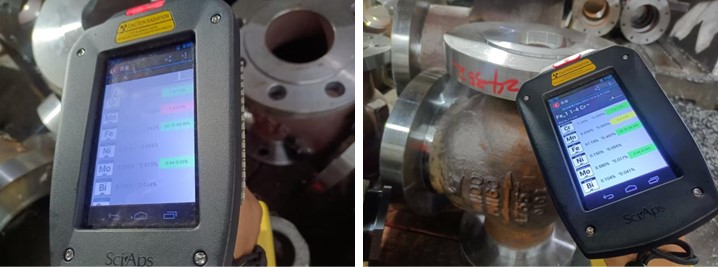

Spectrum

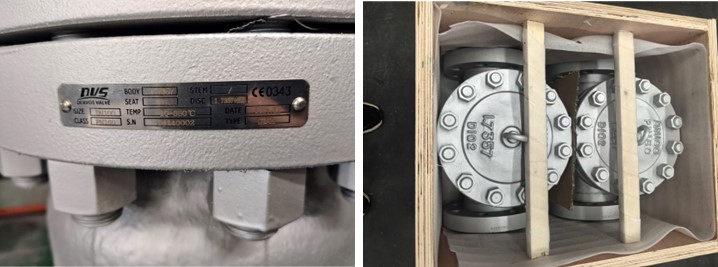

Nameplate & Packing

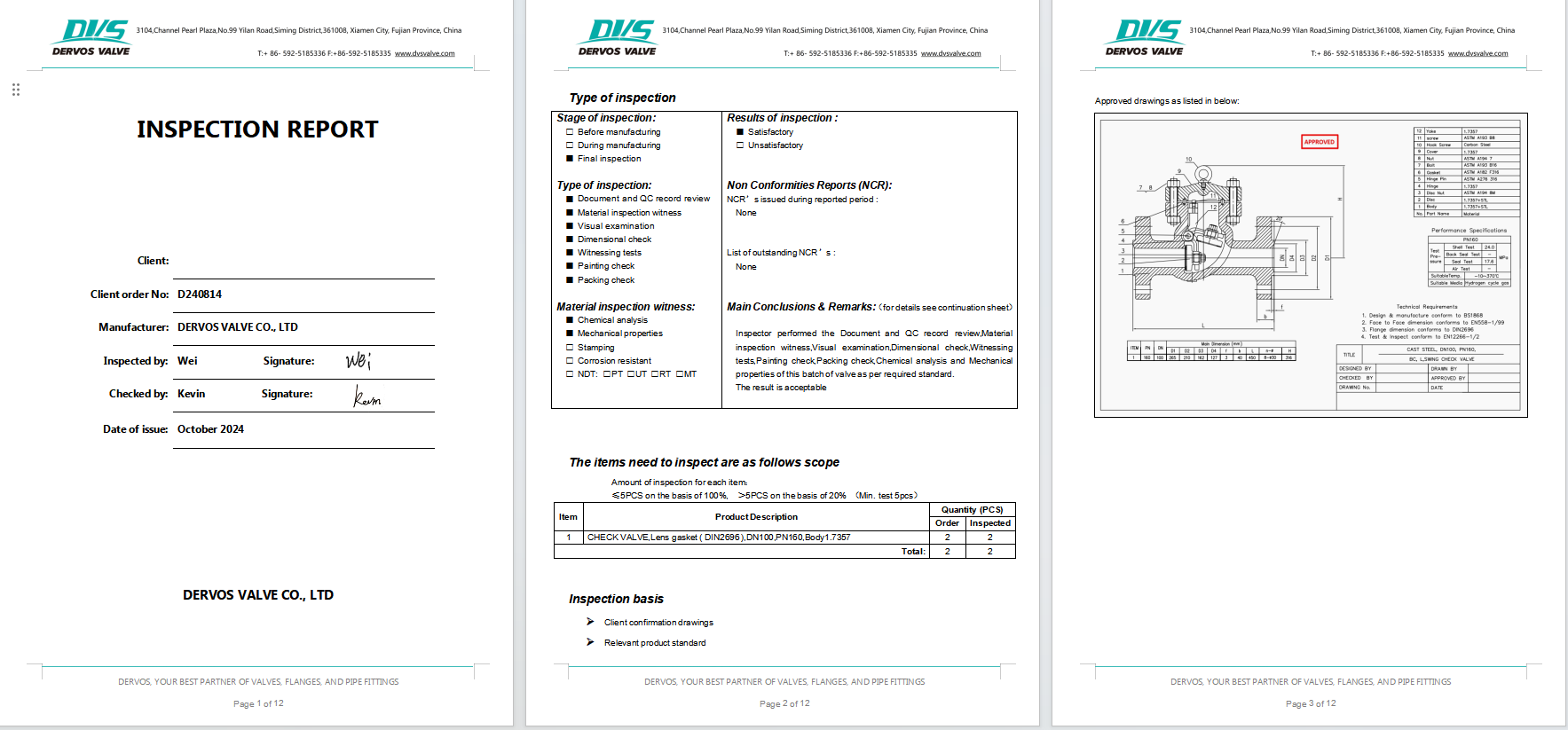

Inspection Report
