Lift Type Swing Valve 1" 800LB A350 LF2 CL.1 SW
Key Specifications / Features
Model No.: Hits: 0
1" 800LB gate valve is made according to API 602 standard. The valve body is made of A350-LF2 CL.1+STL. It has the structural characteristics of Lift Type, Bolted Bonnet. Its connection mode is SW.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Lift Type Swing Valve |
| Size | 1” |
| Pressure | 800LB |
| Connection | SW |
| Body Material | A350 LF2 CL.1 |
| Design Norm | API 602 |
| Socket-welding | ASME B16.11 |
| Test & Inspection Code | API 598 |
| Temperature | -46 ~ 125°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Lift Type Check Valve 1" 800LB A350 LF2 CL.1 SW ensures reliable backflow prevention with fast response, ideal for high-pressure low-temperature pipeline systems (lift type check valve 800LB LF2).2.Socket Weld LF2 Check Valve provides secure connection and durable sealing performance, suitable for oil & gas and industrial applications requiring compact installation (1 inch SW check valve A350 LF2).

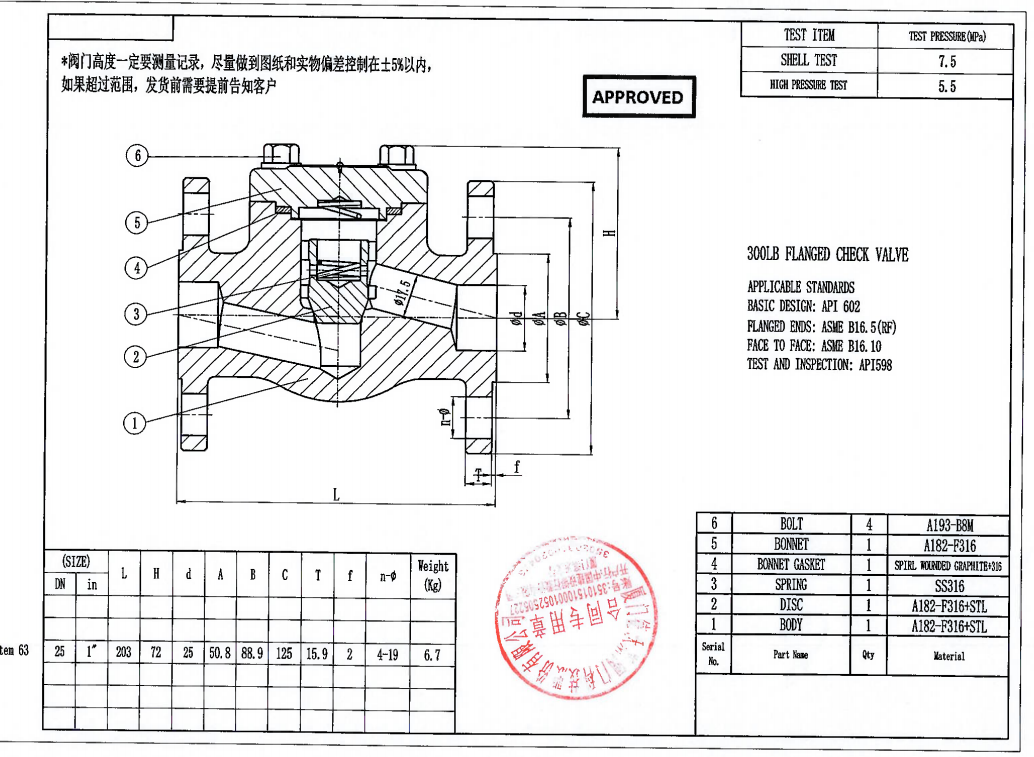

Technical Drawing

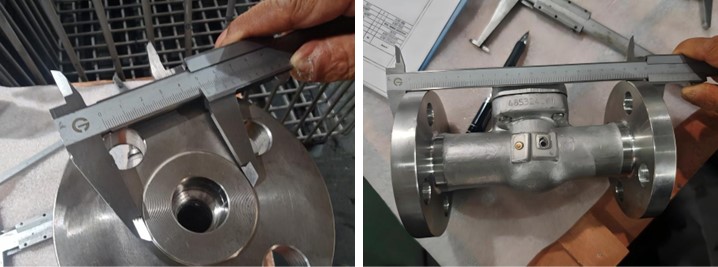

Dimension Checking

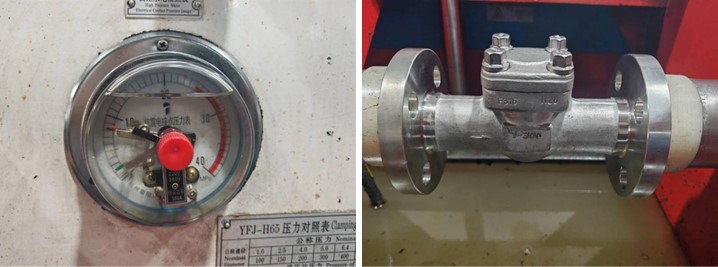

Pressure Testing

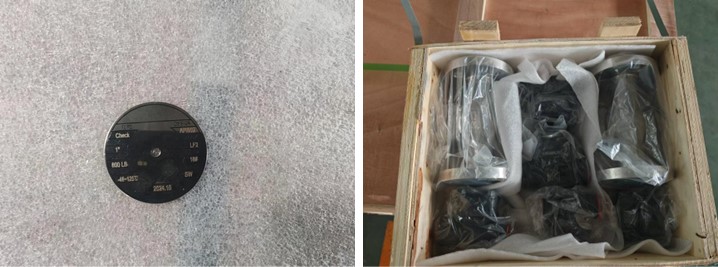

Nameplate & Packing

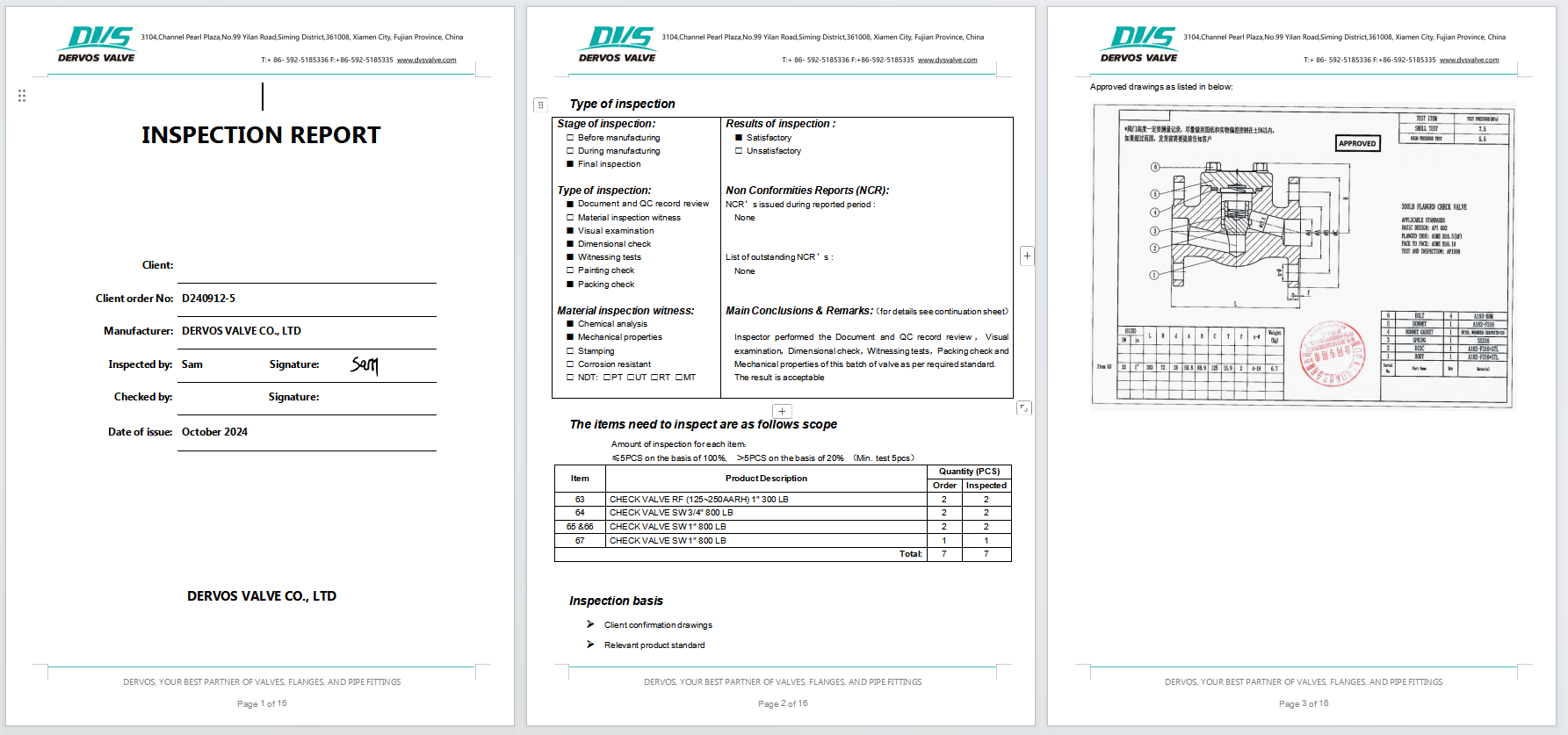

Inspection Report
