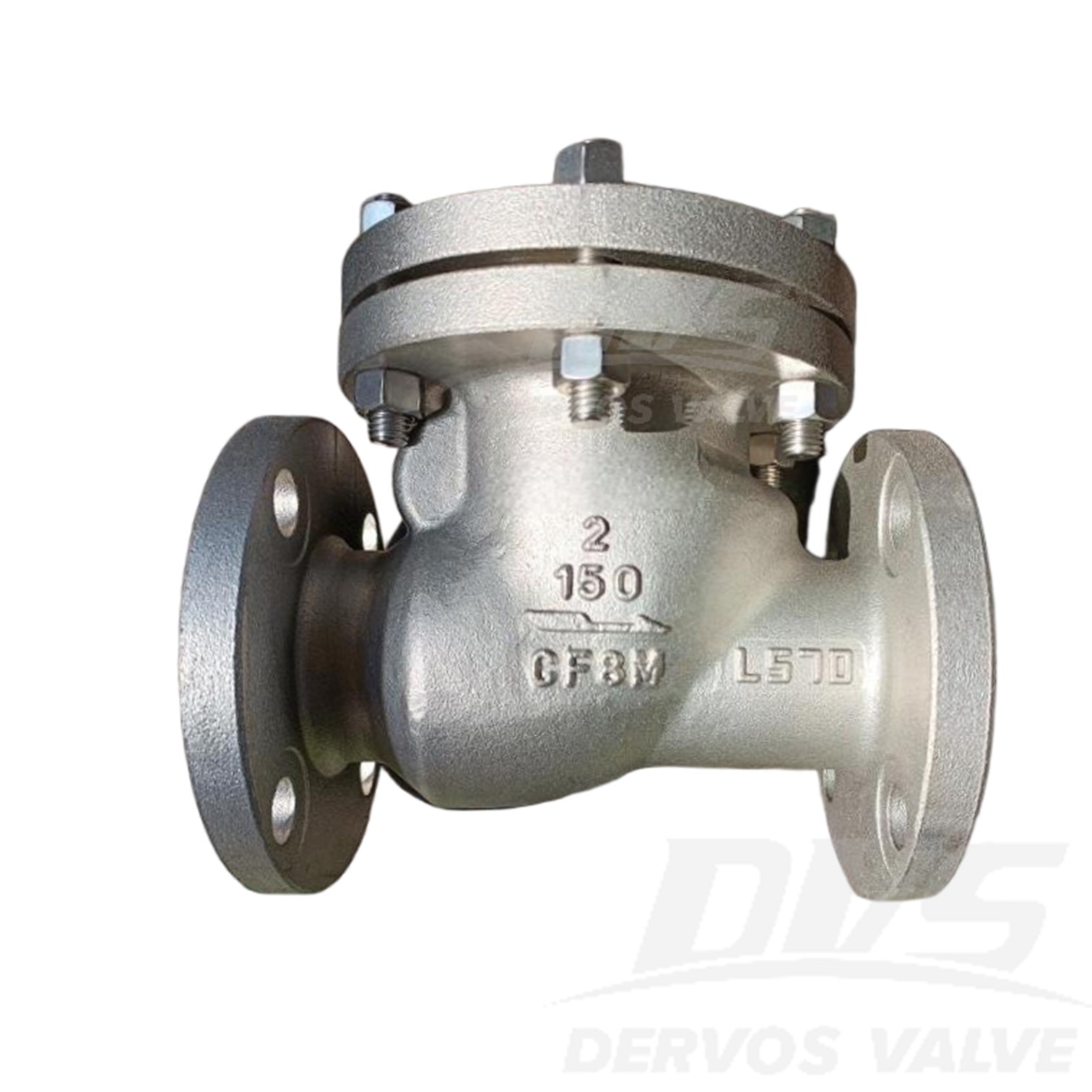

Stainless Steel Swing Check Valve 2" 150LB RF CF8M API 6D
Key Specifications / Features
Model No.: Hits: 0
2" 150LB Swing Check Valve is made according to API6D standard. The valve body is made of A351 CF8M. It has the structural characteristics of Bolted Bonnet, Swing Type, Full Open, Stud Bolts & Nuts in Middle Section. Its connection mode is RF.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Swing Check Valve |
| Size | 2” |
| Pressure | 150LB |
| Connection | RF |
| Body Material | CF8M |
| Design Norm | API 6D |
| Face to face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 300°C |
| Applicable Medium | Water, Oil and Gas |
Features
● Stainless Steel Swing Check Valve 2" 150LB RF CF8M API 6D provides excellent corrosion resistance and reliable backflow prevention, ideal for chemical and offshore pipeline systems (CF8M swing check valve API 6D).● RF Flanged Stainless Steel Check Valve ensures secure installation and stable sealing performance under low to medium pressure conditions (2 inch 150LB swing check valve CF8M).

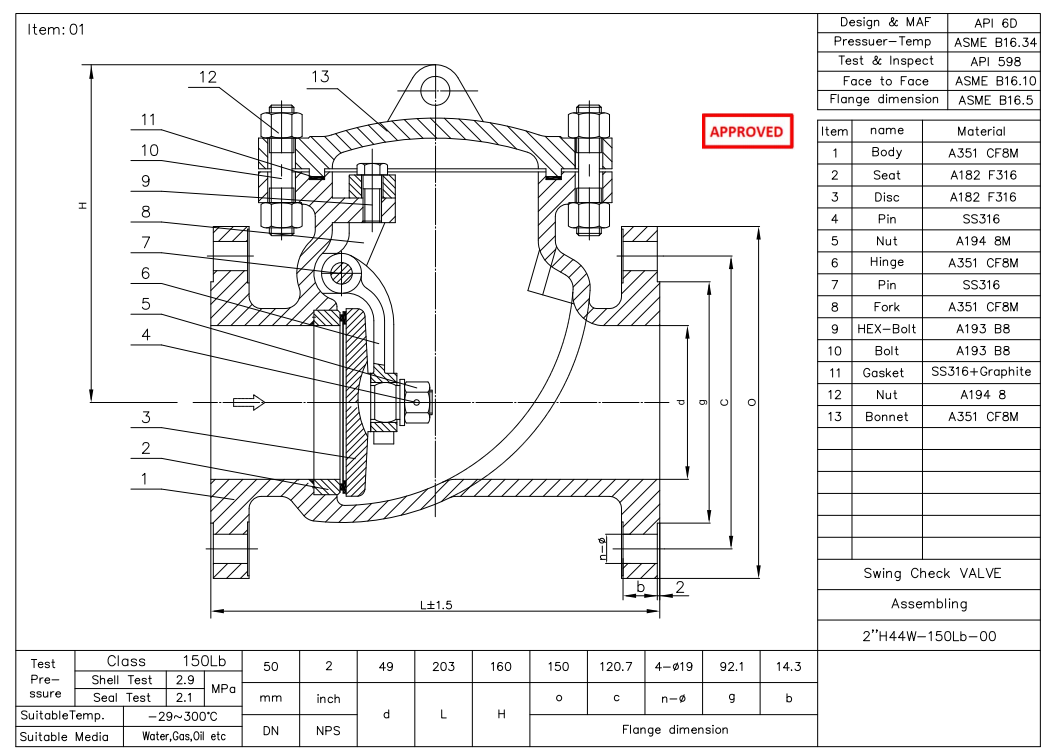

Technical Drawing

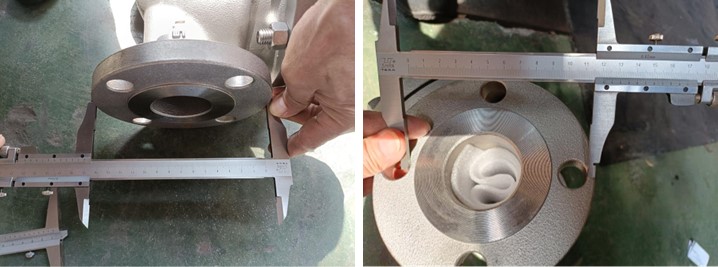

Dimension Checking

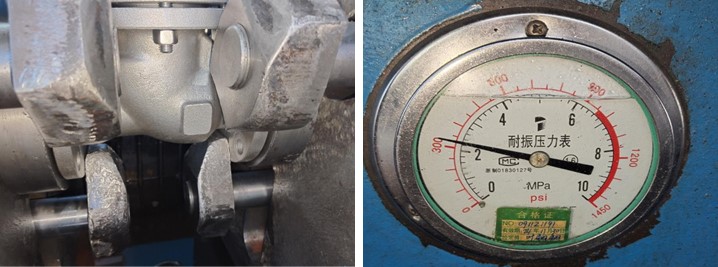

Pressure Testing

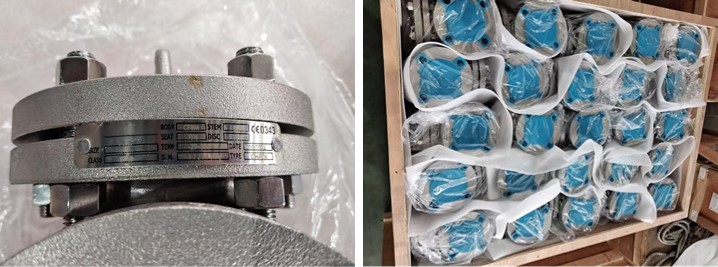

Nameplate & Packing

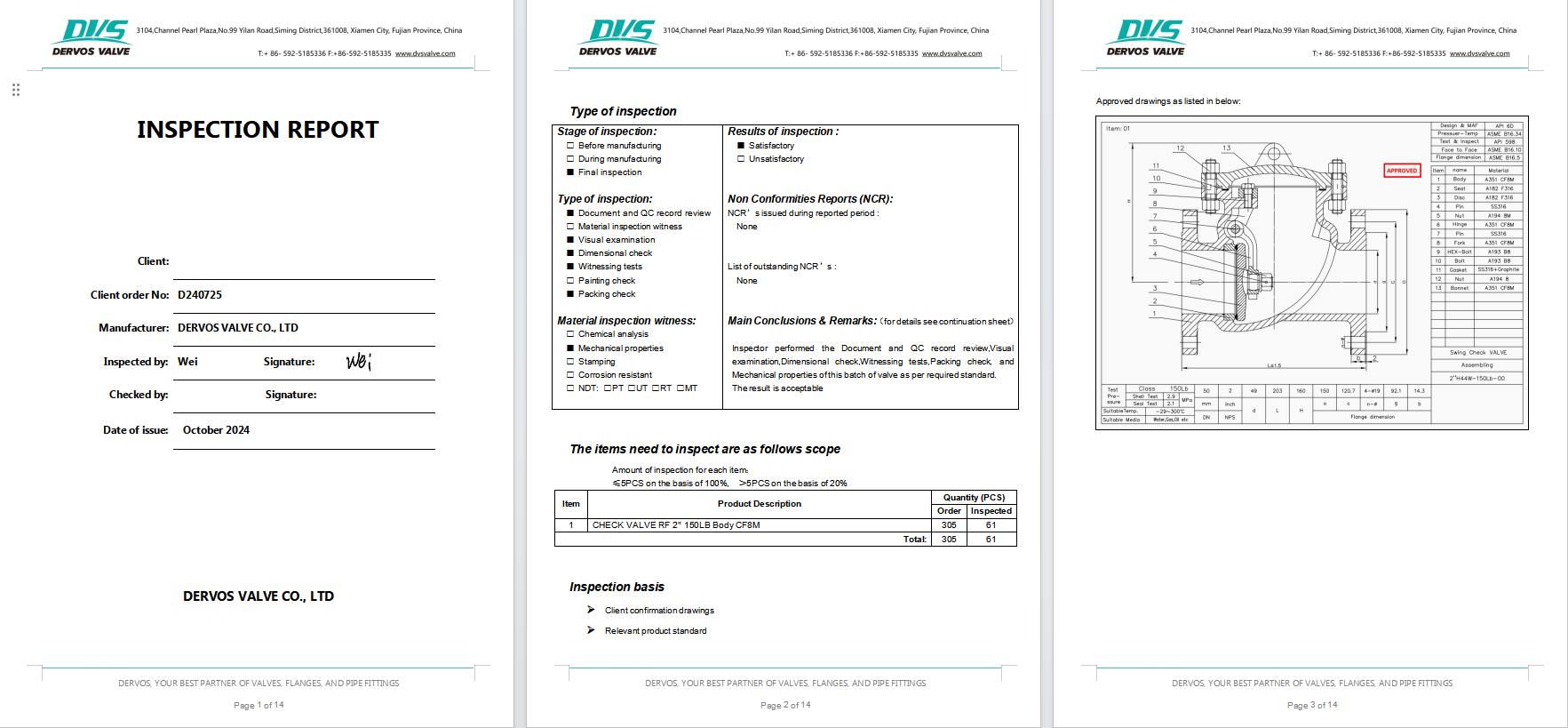

Inspection Report
