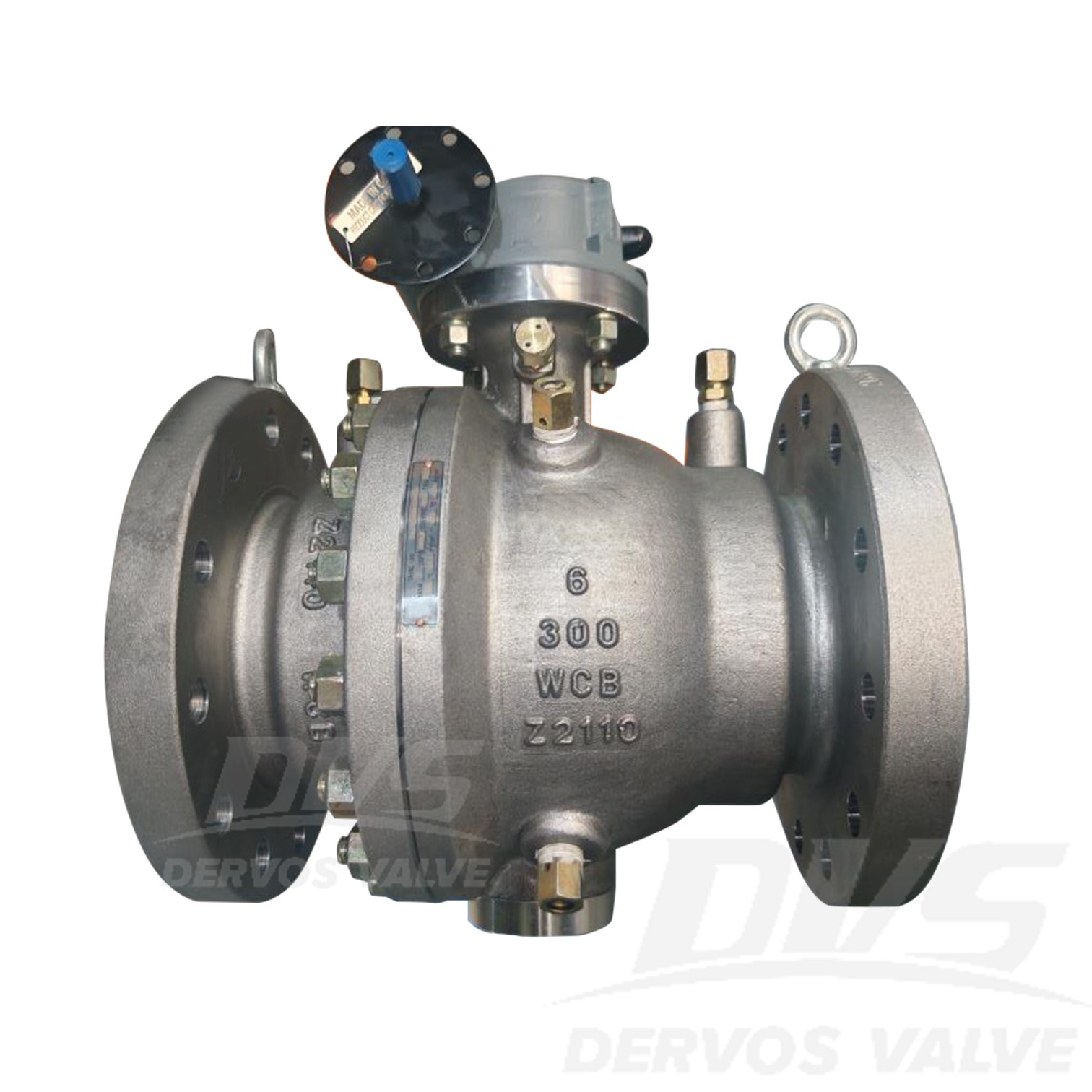

Cast Steel Trunnion Ball Valve 6" 300LB WCB RF
Key Specifications / Features
Model No.: Hits: 0
6" 300LB Cast Steel Trunnion Ball Valve is made according to ASME B16.34 standard. The valve body is made of WCB. It has the structural characteristics of Full bore, trunnion-mounted ball, fire-safe, anti-static, with a blowout-proof stem. Its connection mode is RF. And it has Worm gear operated.
Request a quote
Tags:
Next: Return to List
Previous: Forged Steel Trunnion Ball Valve 10" 600LB A105 RF
Detail Information
Product Parameters
| Type | Cast Steel Trunnion Ball Valve |
| Size | 6” |
| Pressure | 300LB |
| Connection | RF |
| Operation | G.O |
| Body Material | A216-WCB |
| Design Norm | API 6D |
| Face to face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 6D |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. The trunnion-mounted ball design ensures stable operation, low operating torque, and reliable sealing under Class 300 service.2. The WCB cast steel body and RF flanged ends provide robust construction and secure pipeline connections.

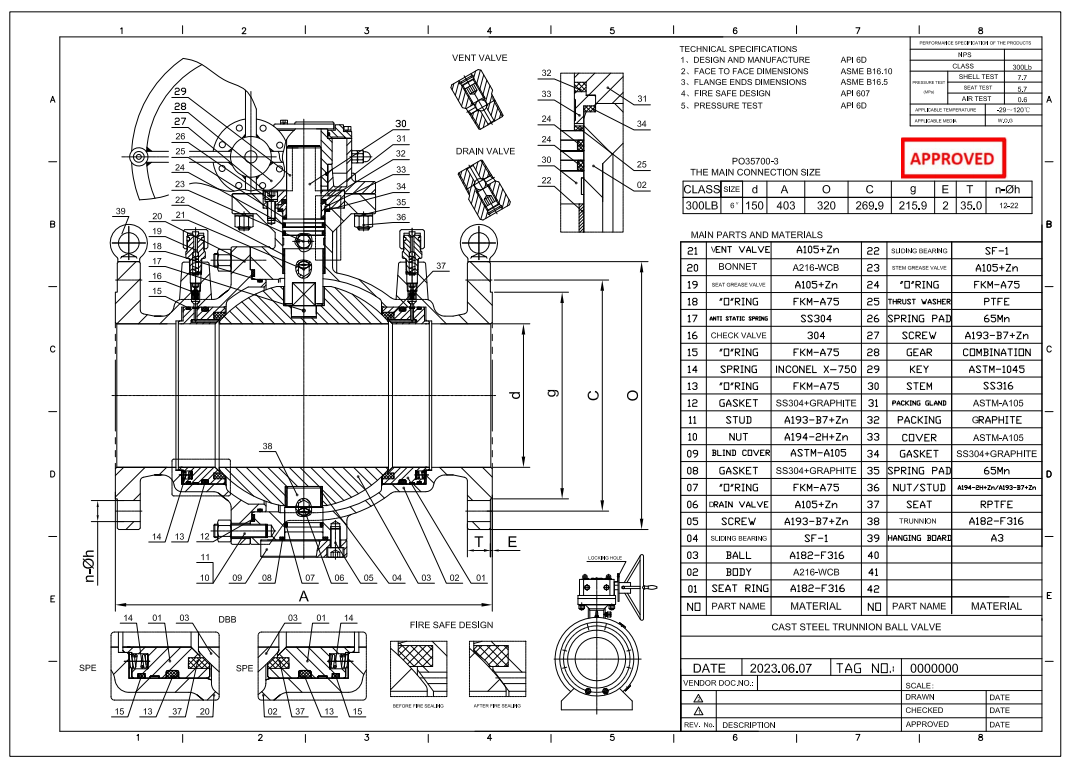

Technical Drawing

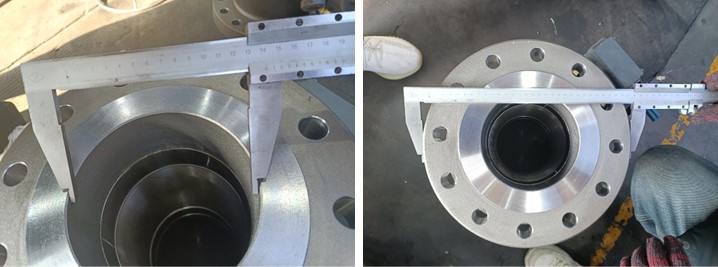

Dimension Checking

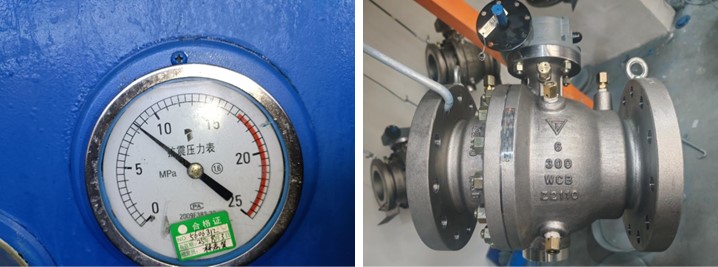

Pressure Testing

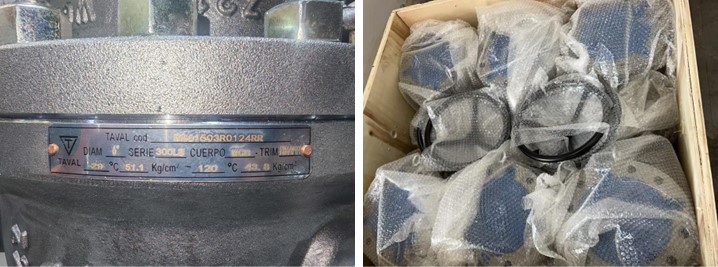

Nameplate & Packing

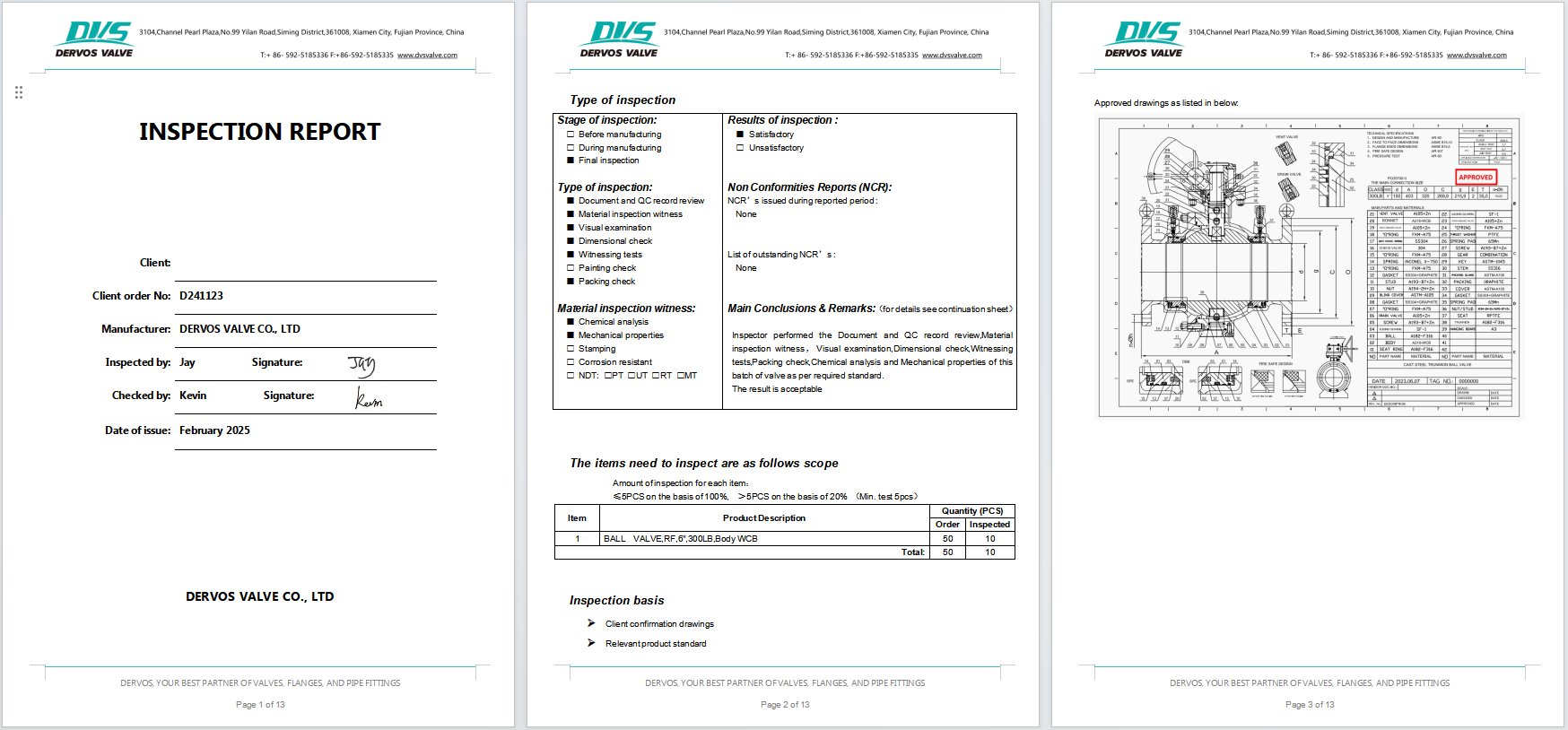

Inspection Report
