Cast Steel Y Type Strainer 8" 1500LB WCB RF
Key Specifications / Features
Model No.: Hits: 0
8" 1500LB Cast Steel Y Type Strainer is made according to ASME B16.34 standard. The valve body is made of WCB. It has the structural characteristics of Y-Type, Bolted Body-to-Cover Connection. Its connection mode is RF.
Request a quote
Tags:
Next: Return to List
Previous: Single Basket Strainer 1" 150LB CN7M RF
Detail Information
Product Parameters
| Type | Cast Steel Y Type Strainer |
| Size | 12” |
| Pressure | 600LB |
| Connection | RF |
| Body Material | ASTM A216 WCB |
| Design Norm | ASME B16.34 |
| Face to face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Heavy-Duty Y-Pattern Filtration: Captures scale, rust, and solid contaminants while maintaining efficient flow through high-pressure pipelines.2. 1500LB WCB Pressure-Bearing Body: Robust cast carbon steel construction provides the strength required for severe high-pressure industrial service.

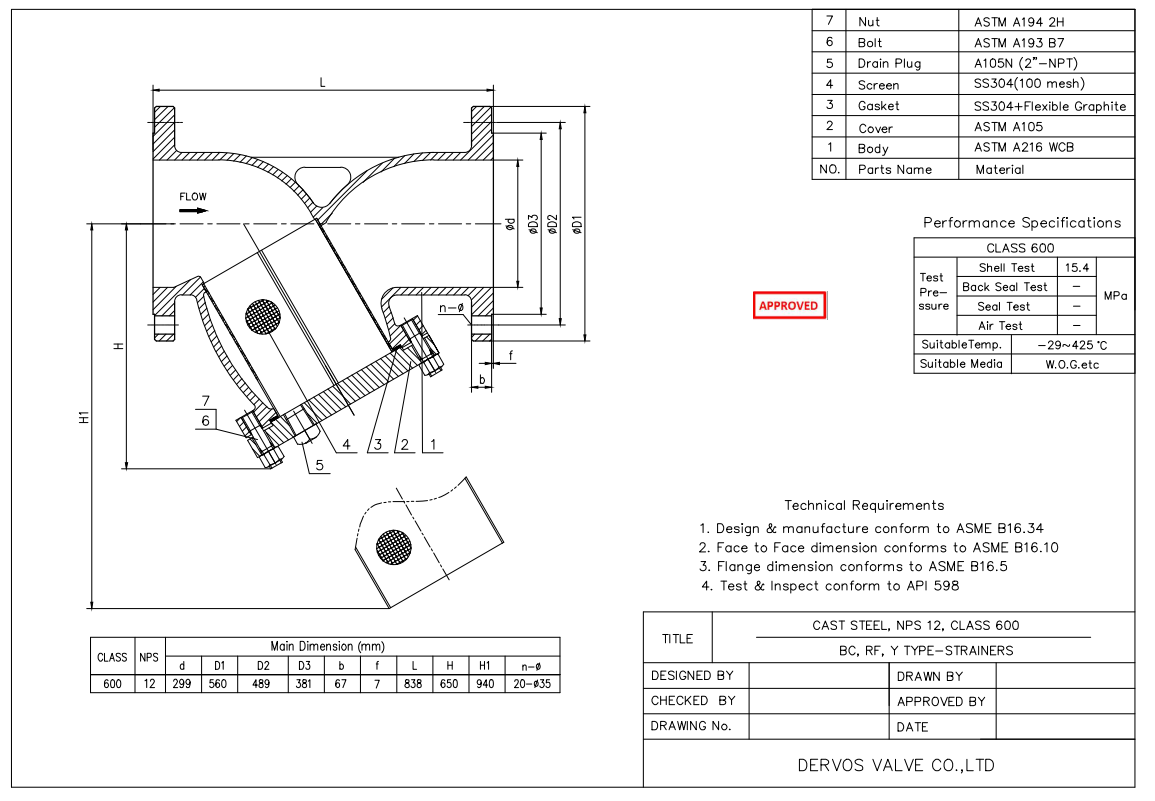

Technical Drawing

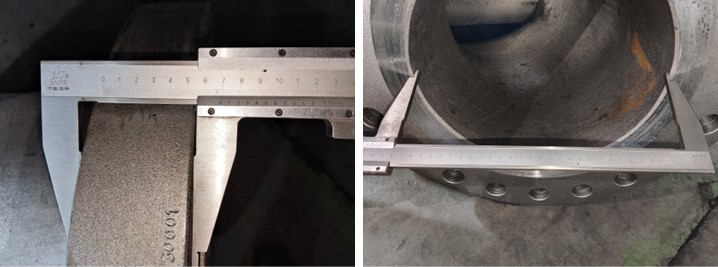

Dimension Checking

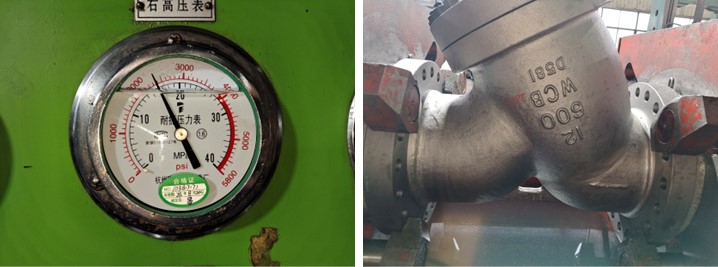

Pressure Testing

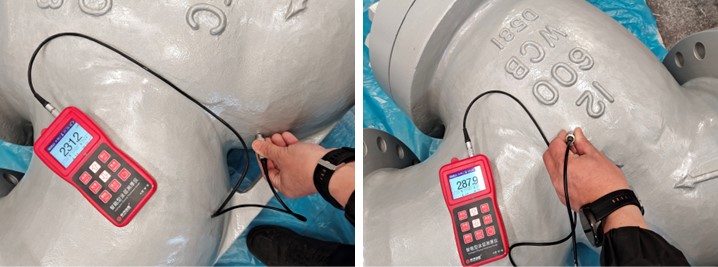

Painting

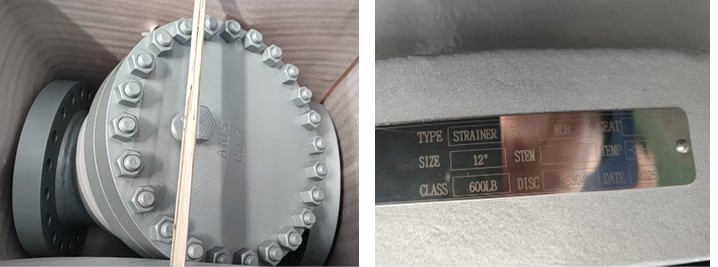

Nameplate & Packing

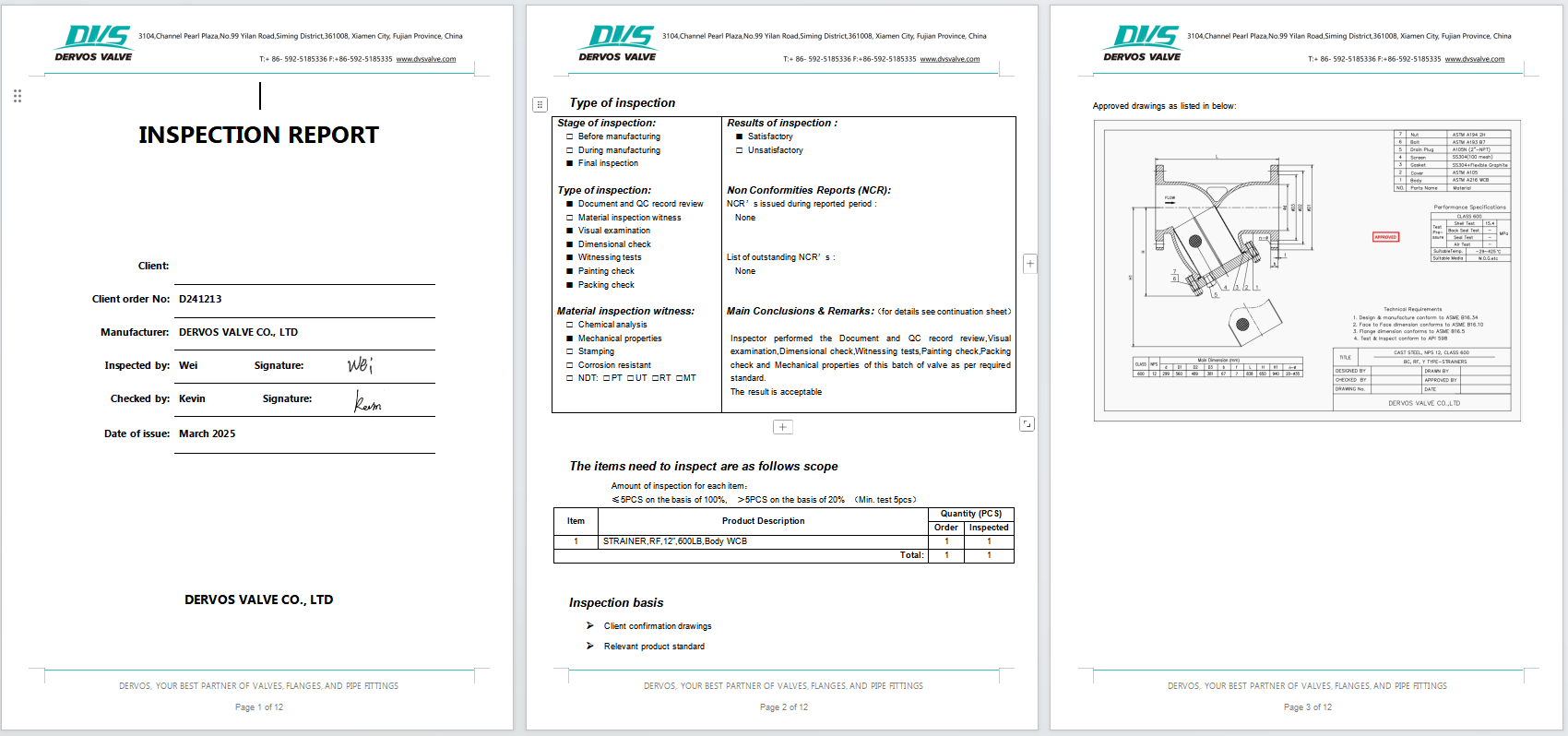

Inspection Report
