DN40 PN40 Cast Steel Angle Globe Valve, EN1092-1 D, Body LCB, GB/T26478
Key Specifications / Features
Model No.: Hits: 0
DN40 PN40 Cast Steel Angle Globe valve is made according to GB / T26478 standard. The valve body is made of LCB. It has the structural characteristics of concealed rod, angle ammonia shut-off valve, copper prohibited. Its connection mode is EN1092-1 D. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Cast Steel Angle Globe Valve |
| Size | DN40 |
| Pressure | PN40 |
| Connection | EN1092-1 D |
| Operation | Hand Wheel |
| Body Material | LCB |
| Design Norm | GB / T26478 |
| Structure Length | EN 558-1 |
| Connection Flange Size | EN 1092-1 D |
| Test & Inspection Code | EN 12266 |
| Temperature | -46 ~ 150°C |
| Applicable Medium | NH3 |
Features
1. Simple structure, convenient maintenance and replacement of valve seats and seals, reliable sealing;2. Widely used in industries such as petroleum, chemical, natural gas, low-temperature storage, and energy, suitable for liquid, gas, and steam media.

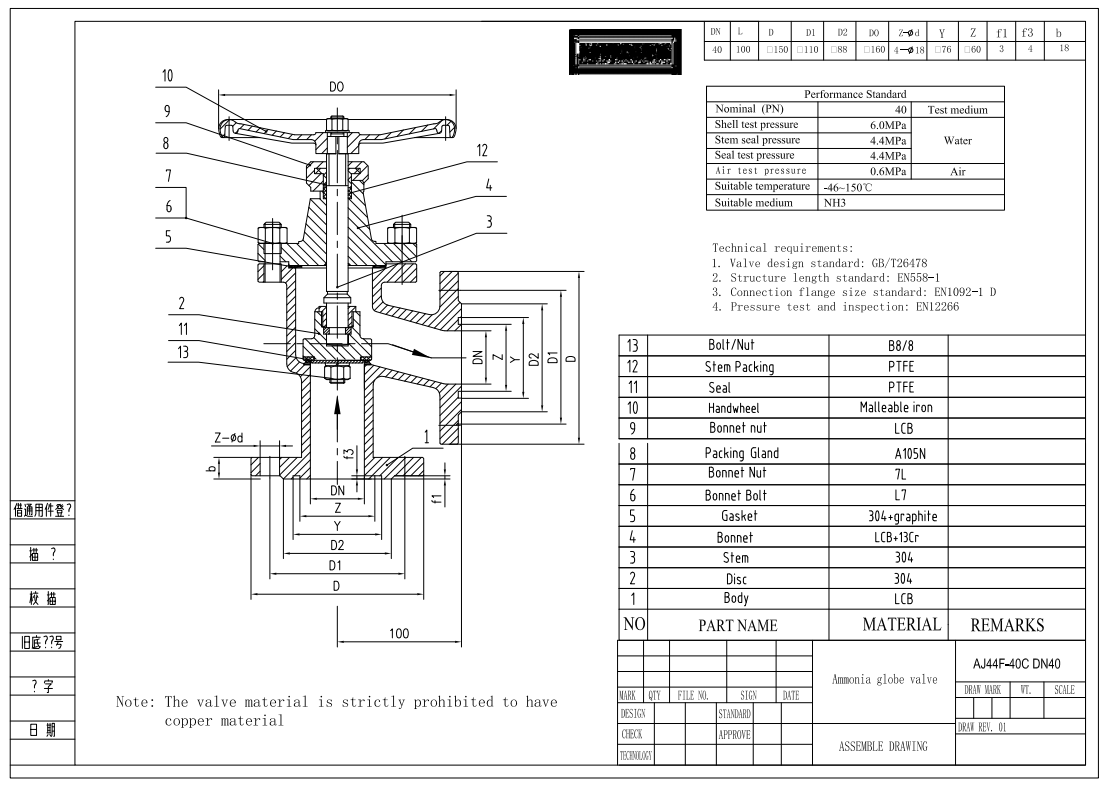

Technical Drawing

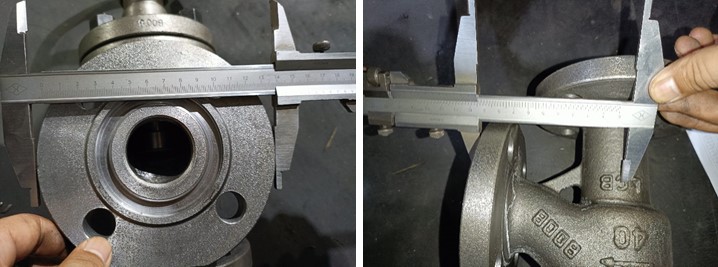

Dimension Checking

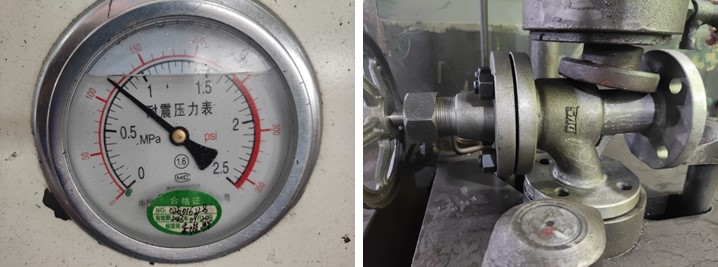

Pressure Testing

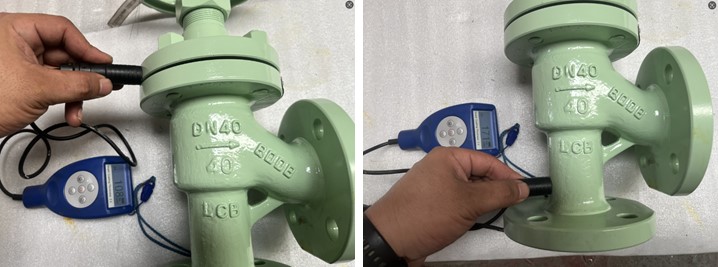

Painting

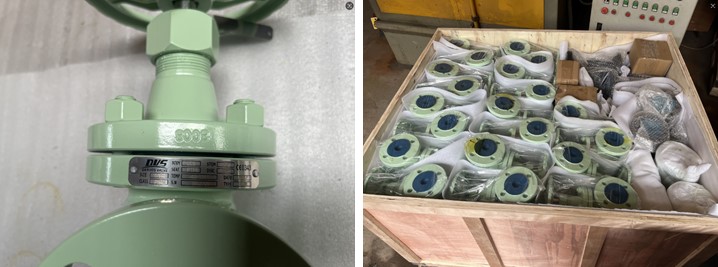

Nameplate & Packing

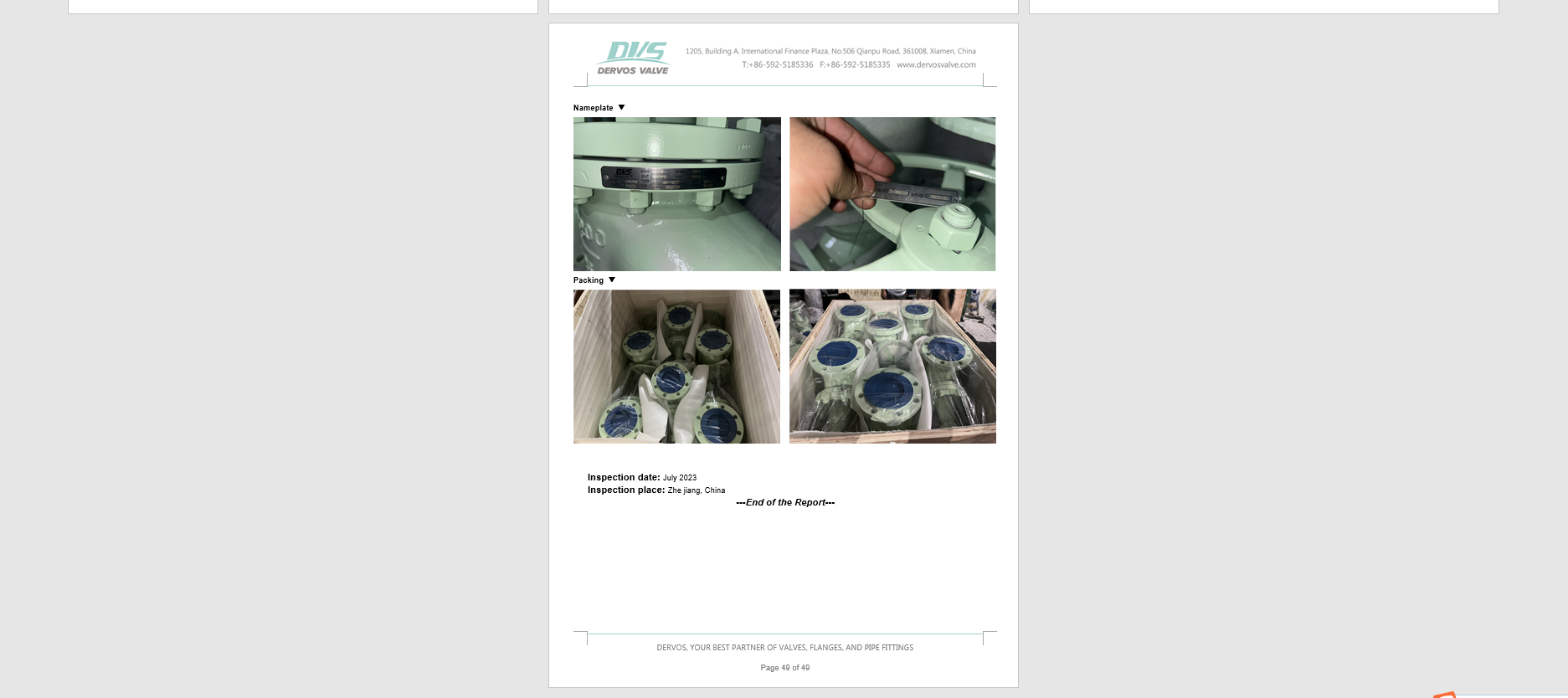

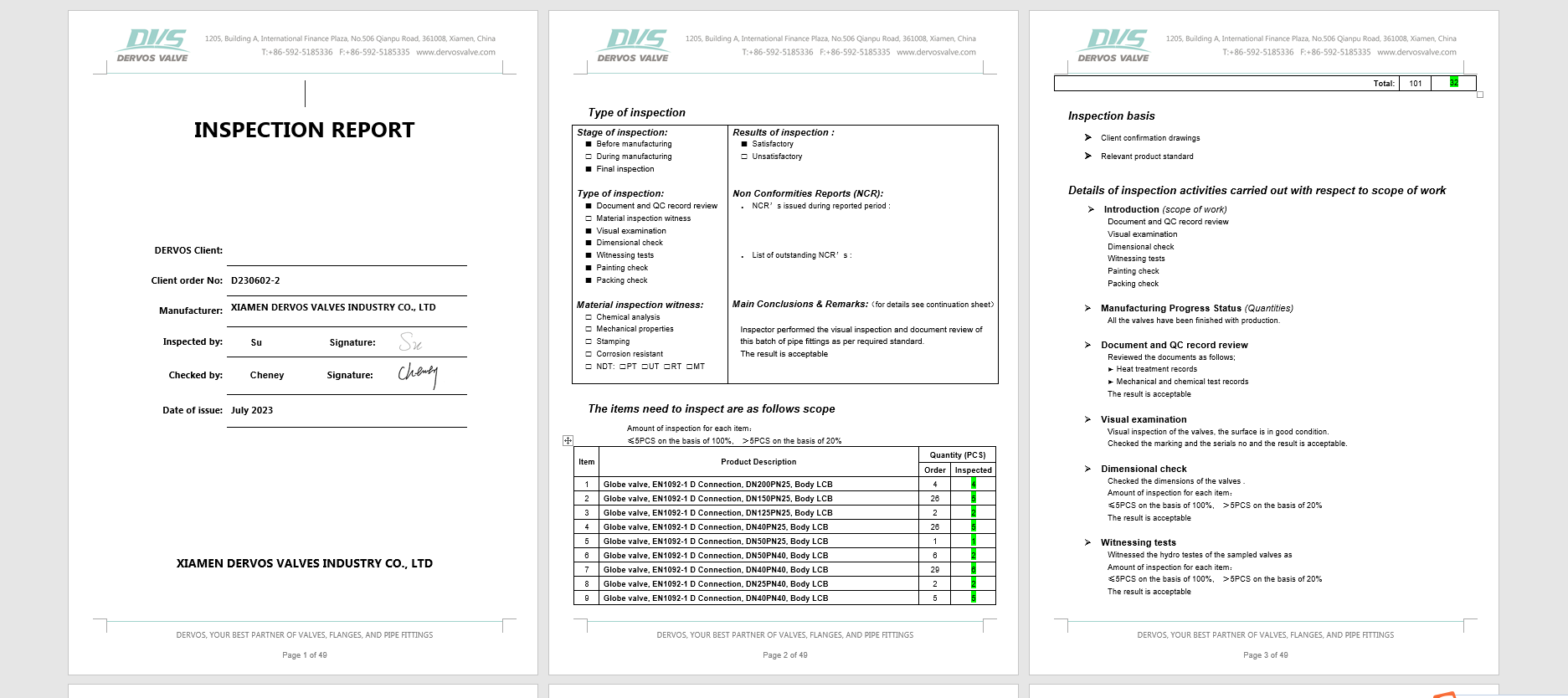

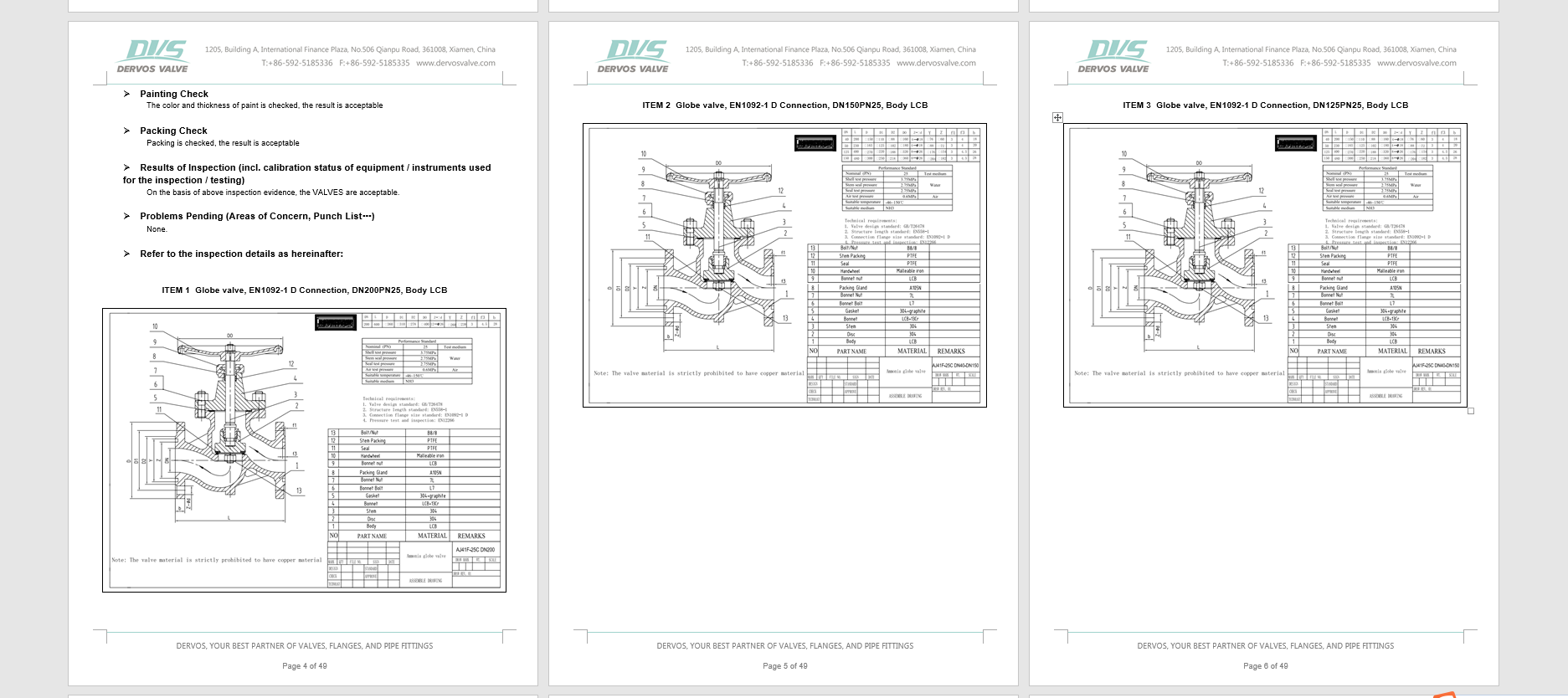

Inspection report
