Body F51, 1" 600LB Forged Steel Globe Valve, API602, Handwheel
Key Specifications / Features
Model No.: Hits: 0
1" 600LB Forged Steel Globe valve is made according to API 602 standard. The valve body is made of A182-F51. It has the structural characteristics of Needle valve disc, welded valve cover. Its connection mode is RF. And it has Hand Wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Forged Steel Globe Valve |
| Size | 1" |
| Pressure | 600LB |
| Connection | RF |
| Operation | Hand Wheel |
| Body Material | A182-F51 |
| Design Norm | API 602 |
| Face to Face | ASME/B16.10 |
| Flange Dimension | ASME/B16.5 |
| Material | AISI/ASTM |
| Test & Inspection Code | API 598 |
| Applicable Medium | Water, Oil and Gas |
Features
1. Relatively compact structure, space saving, especially suitable for systems with high installation space requirements;2. The valve disc moves along the vertical direction (at a right angle to the fluid flow direction), which can more accurately adjust the flow rate and is suitable for situations that require adjustment and closure.

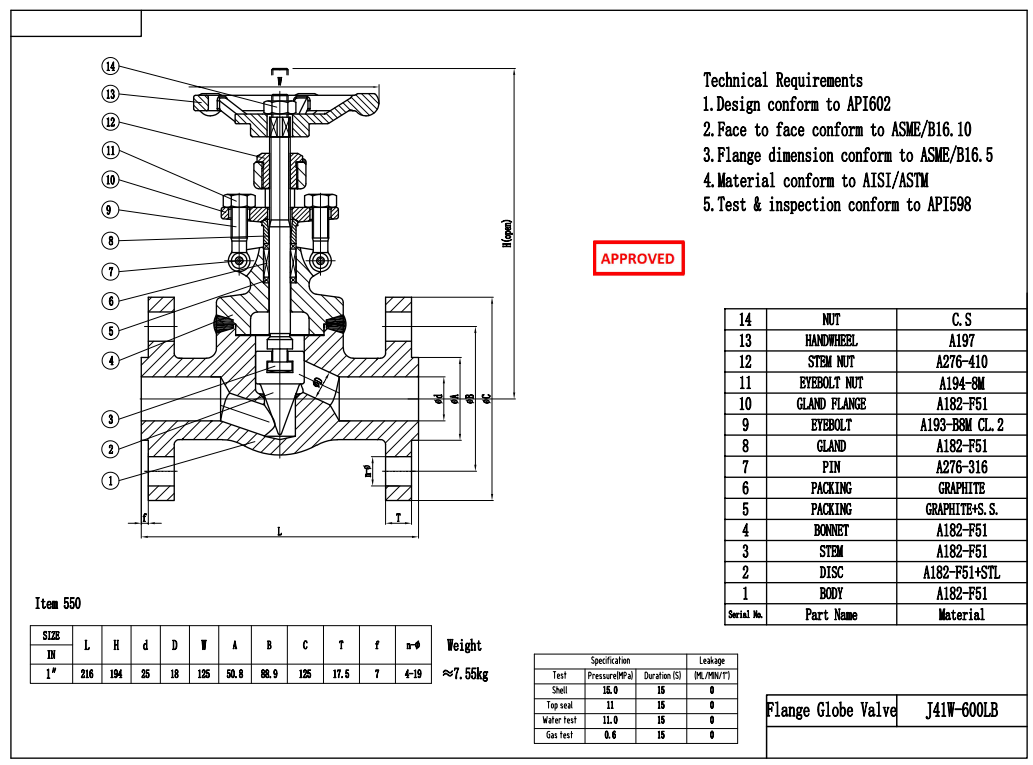

Technical Drawing

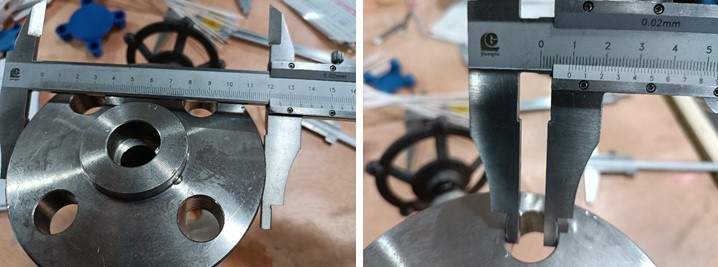

Dimension Checking

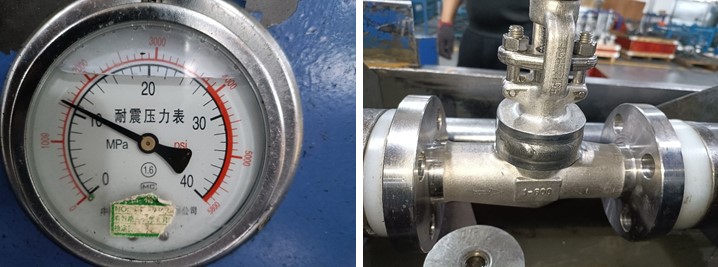

Pressure Testing

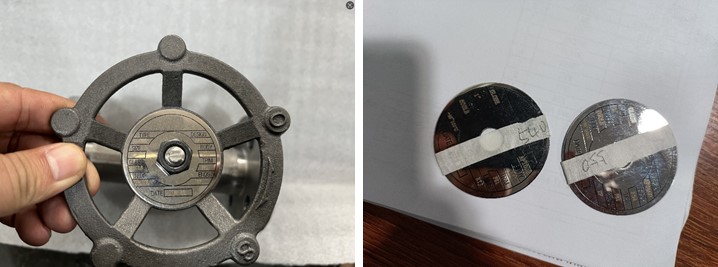

Nameplate

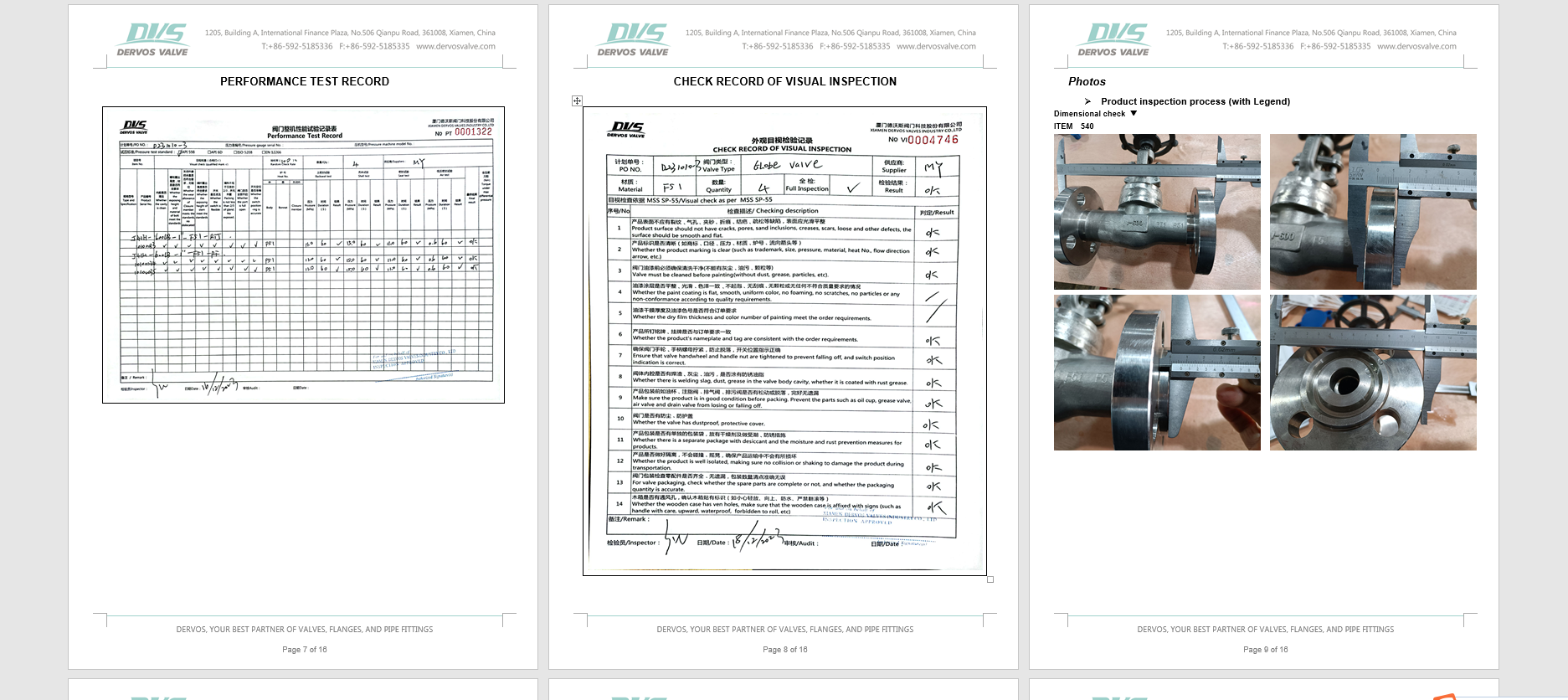

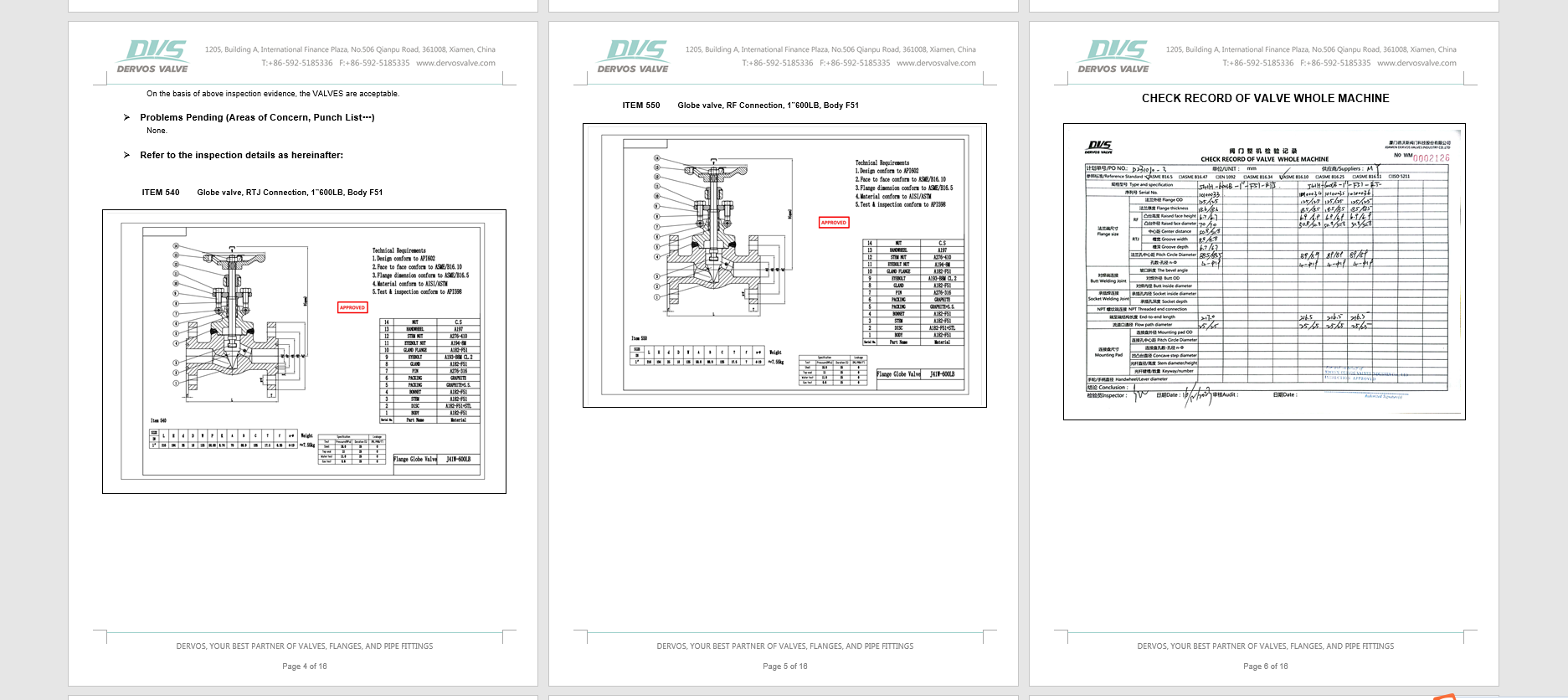

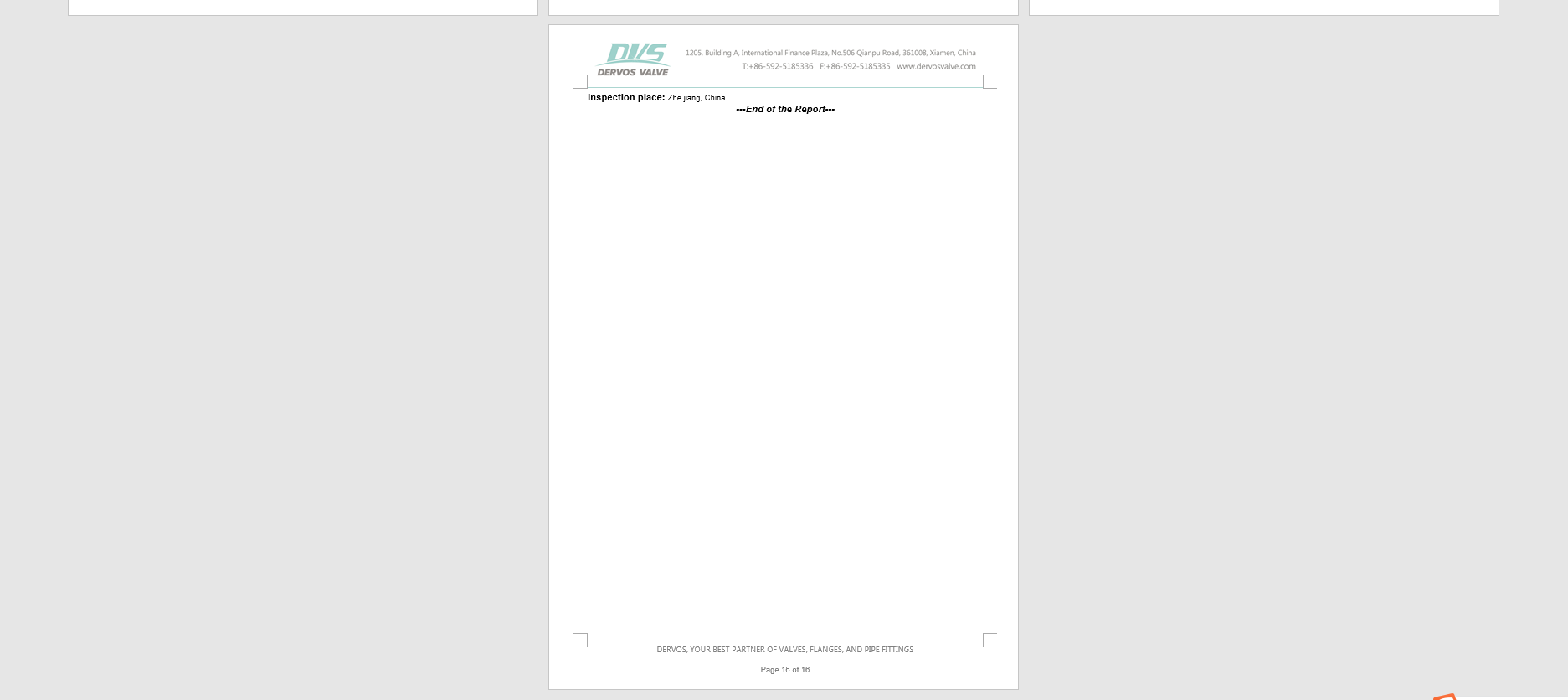

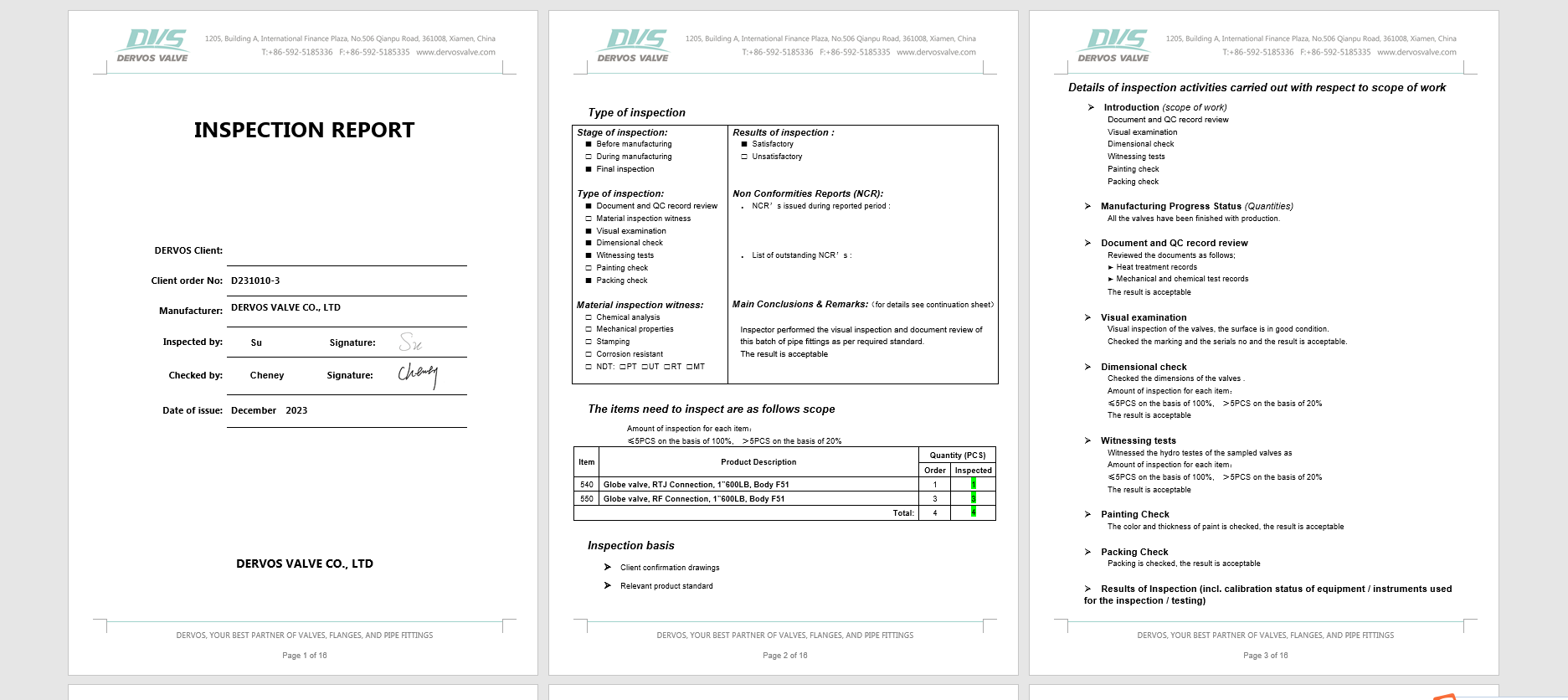

Inspection report
