Body WC9, 4" 2500LB Alloy Steel Globe Valve, ASME B16.34, Gearbox
Key Specifications / Features
Model No.: Hits: 0
4" 2500LB Alloy Steel Globe valve is made according to ASME B16.34 standard. The valve body is made of ASTM A217 WC9+STL. It has the structural characteristics of pressure self sealing. Its connection mode is BW SCH80. And it has Gearbox operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Alloy Steel Globe Valve |
| Size | 4" |
| Pressure | 2500LB |
| Connection | BW SCH80 |
| Operation | Gearbox Operation |
| Body Material | ASTM A217 WC9+STL |
| Design Norm | ASME B16.34 |
| Pres. & Temp. | ASME B16.34 |
| Face to Face | ASME B16.10 |
| Flange Conn. | BW ASME B16.25 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 595°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Suitable for high temperature, high pressure and harsh working conditions, with stable structure and reliable sealing;2. The material can be customized, with strong adaptability, suitable for high temperature, high pressure and harsh working conditions.

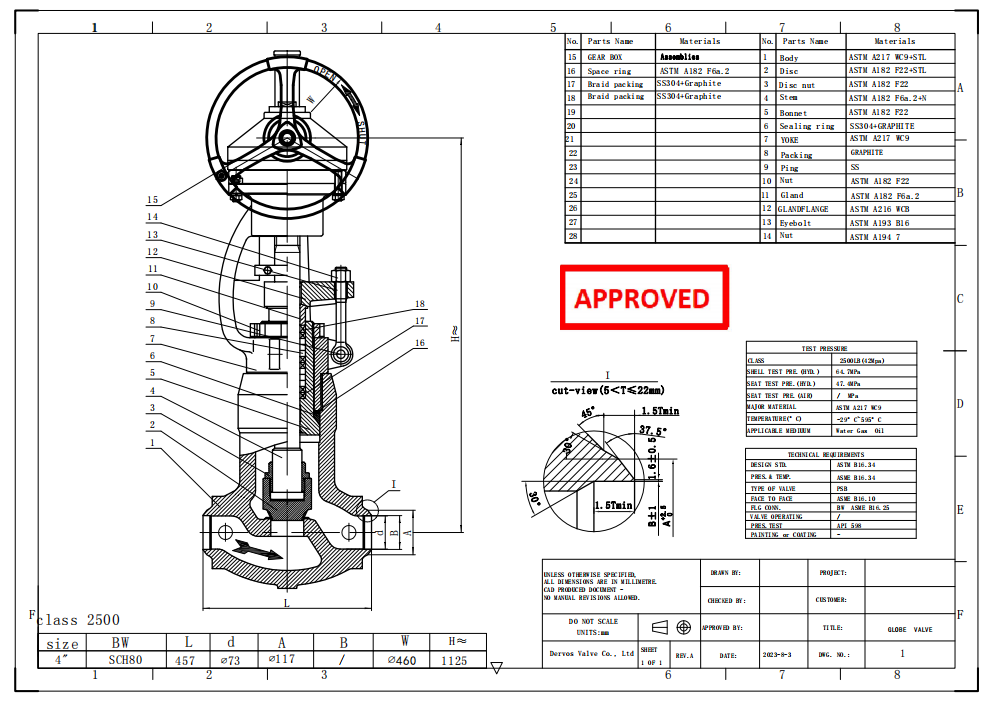

Technical Drawing

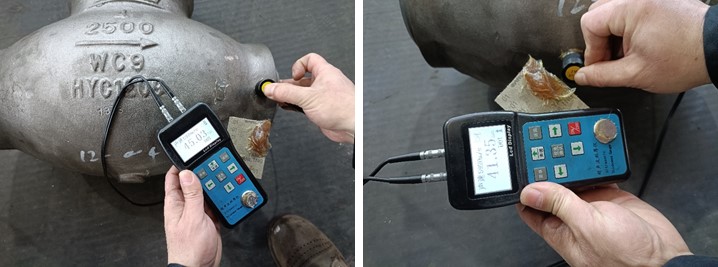

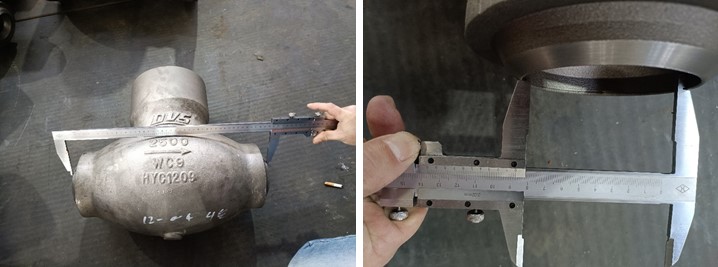

Dimension Checking

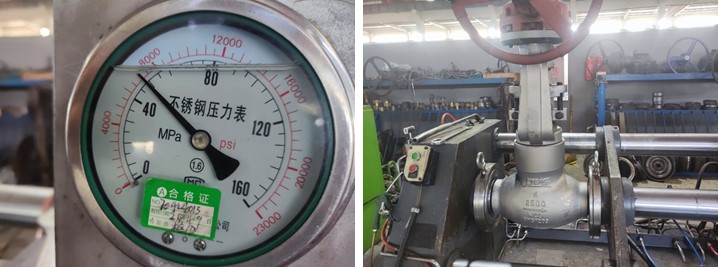

Pressure Testing
Painting

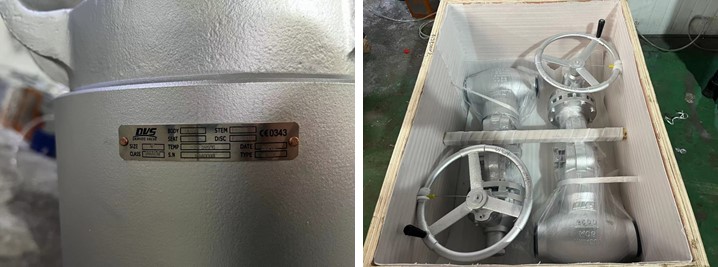

Nameplate & Packing

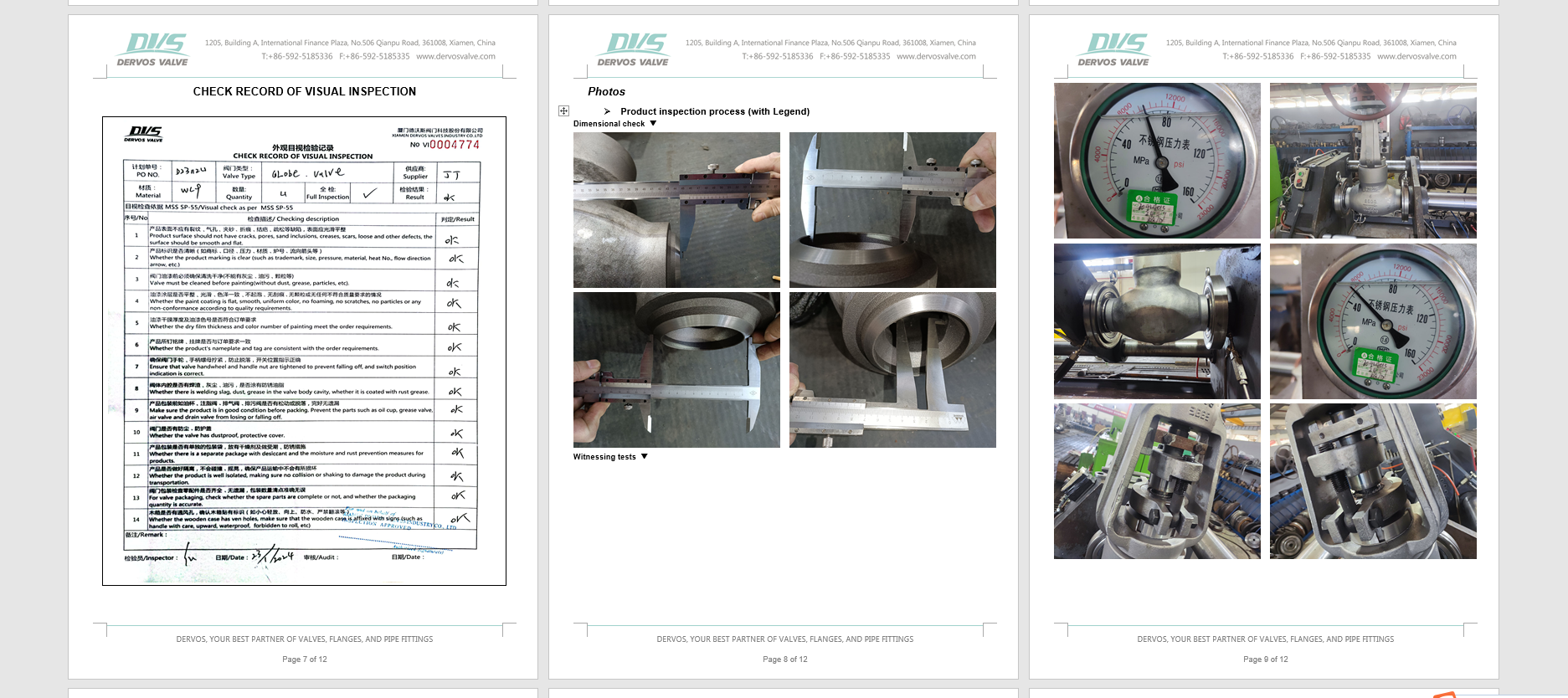

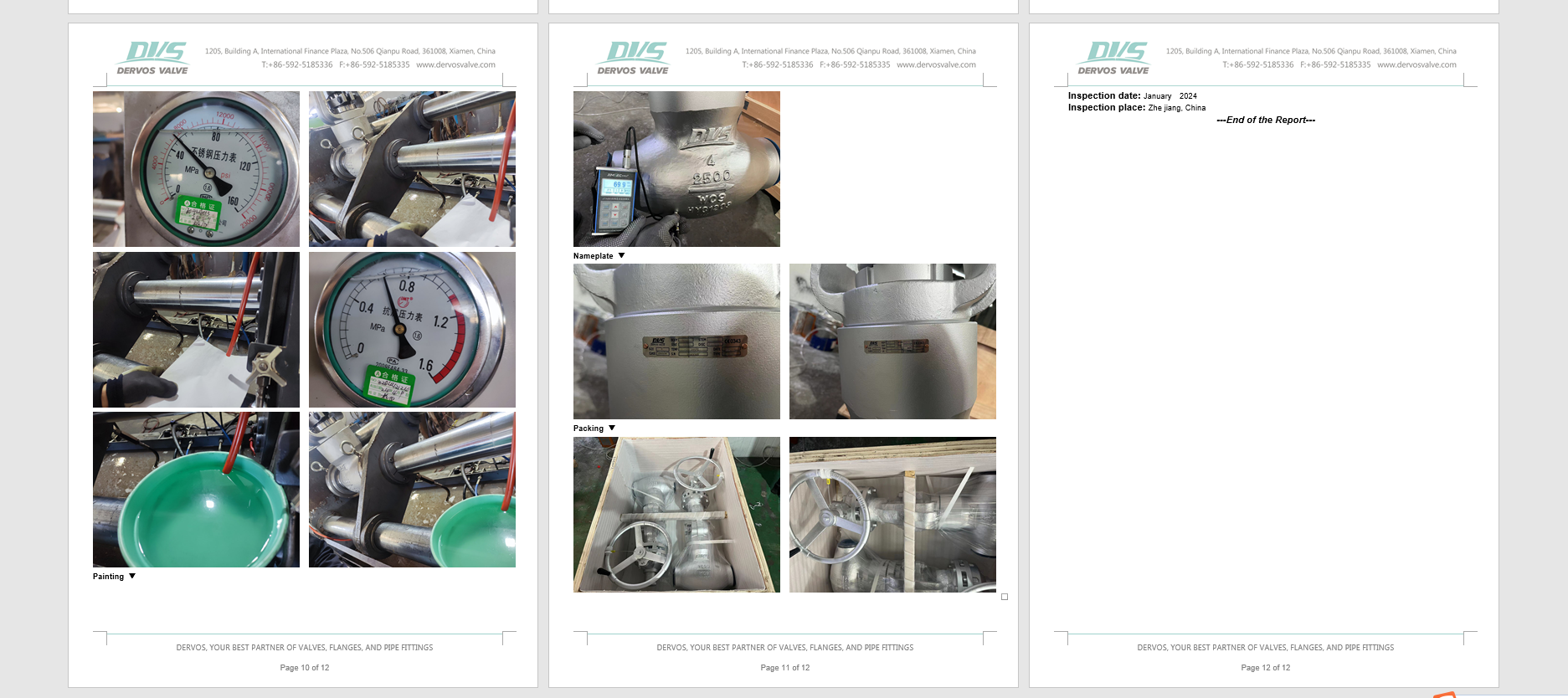

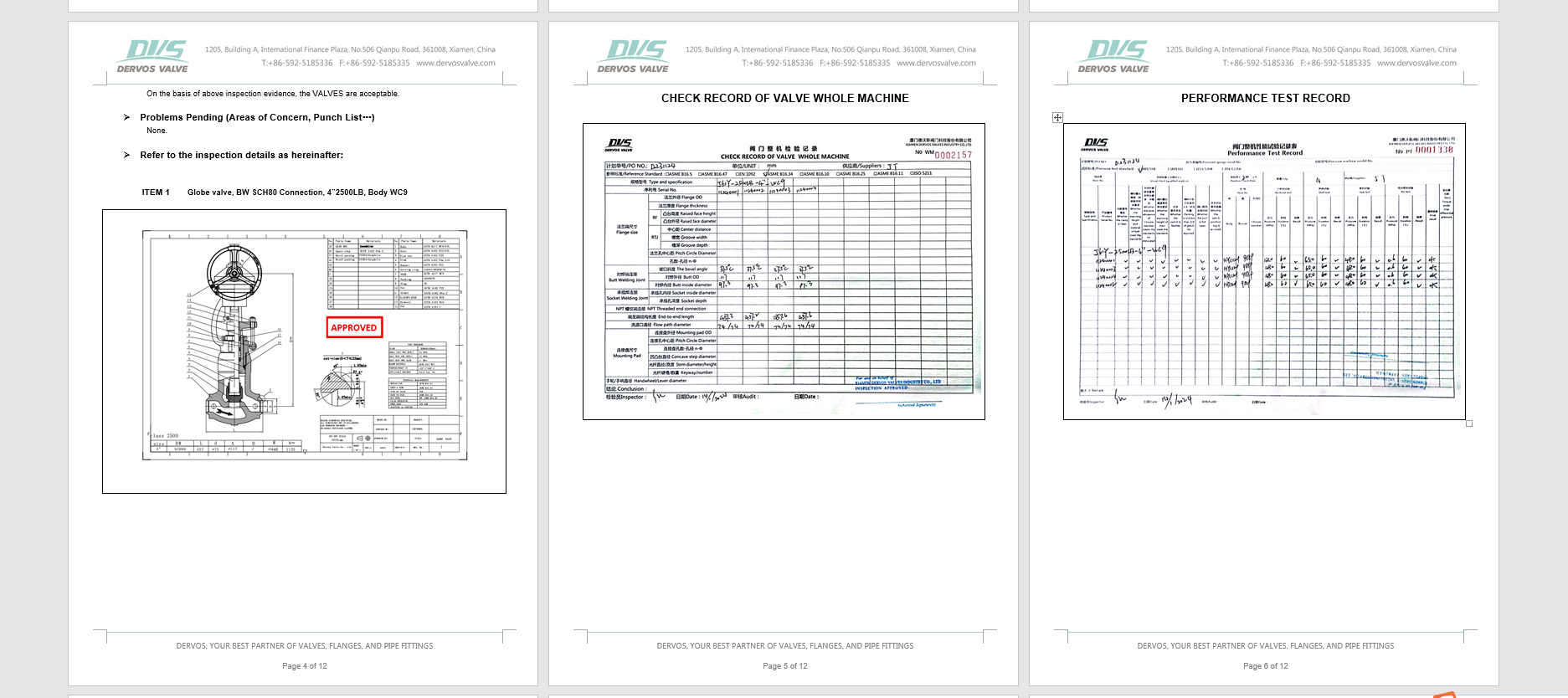

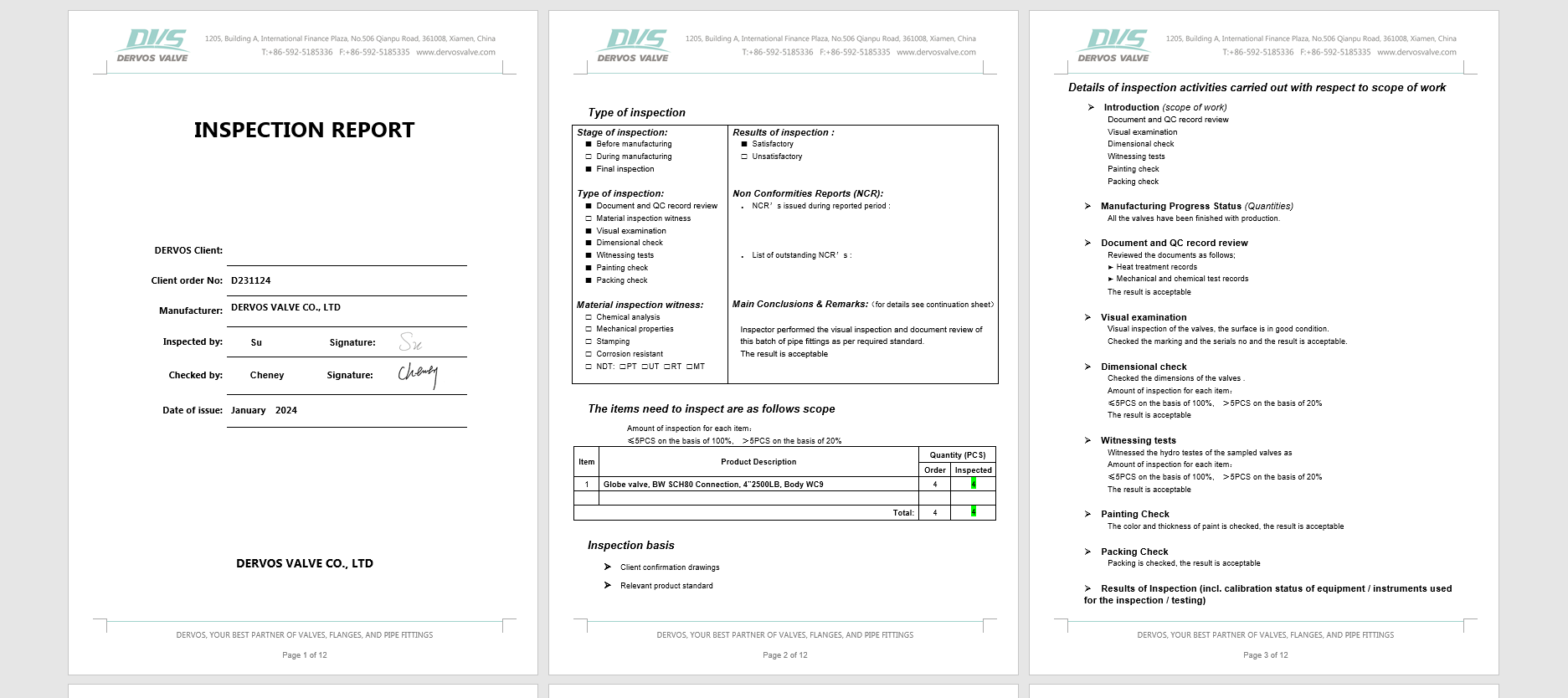

Inspection report
