RF, 3" 300LB Cast Steel Globe Valve, Body LC1, BS1873, Handwheel
Key Specifications / Features
Model No.: Hits: 0
3" 300LB Cast Steel Globe valve is made according to BS 1873 standard. The valve body is made of A352 LC1. It has the structural characteristics of cut-through type. Its connection mode is RF. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Cast Steel Globe Valve |
| Size | 3" |
| Pressure | 300LB |
| Connection | RF |
| Operation | Hand Wheel |
| Body Material | A352 LC1 |
| Design Norm | BS 1873 |
| End Connection | ASME B16.5 RF |
| Face-to-Face Dimension | ASME B16.10 |
| Test & Inspection Code | API 598 |
| Temperature | -48 ~ 345°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Superior cutting performance: The valve disc rises and falls along the center, with tight sealing, suitable for cutting off media;2. Short opening and closing stroke: small opening and closing distance, quick operation, suitable for frequent opening and closing conditions.

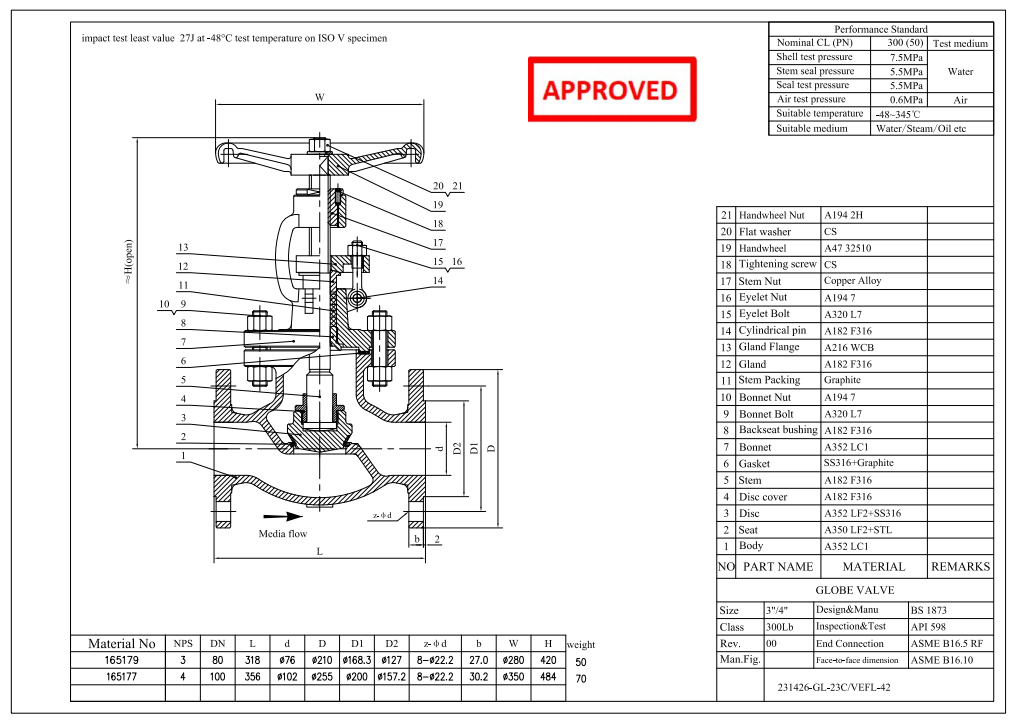

Technical Drawing

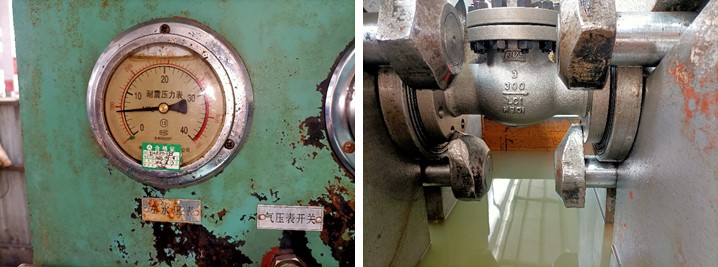

Pressure Testing

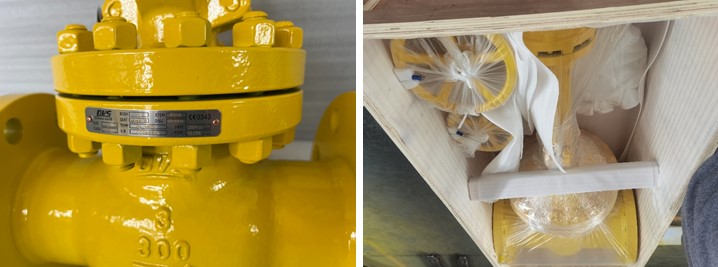

Nameplate & Packing

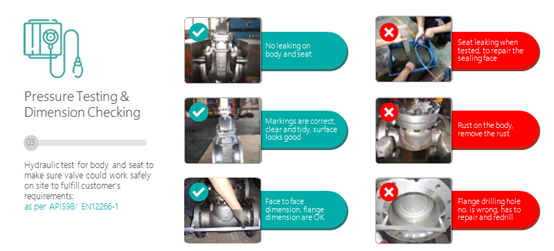

Dervos Inspection after Valve Assembly
