Dual Plate Wafer-Lug Check Valve 2" 900LB A105
Key Specifications / Features
Model No.: Hits: 0
2" 900LB Dual Plate Wafer-Lug Check Valve is made according to API 594 standard. The valve body is made of A105+SS316. It has the structural characteristics of Dual Plate, Wafer Type. Its connection mode is Lug Type.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Dual Plate Wafer-Lug Check Valve |
| Size | 2" |
| Pressure | 900LB |
| Connection | Lug Type |
| Body Material | A105+SS316 |
| Design Norm | API 594 |
| Face to face | API594 |
| Flange Ends | ANSI B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Wafer-Lug Compact Design: Saves installation space and weight while maintaining secure positioning between pipeline flanges.2. A105 Forged Steel Construction: Provides high strength and pressure resistance for demanding 900LB industrial service.

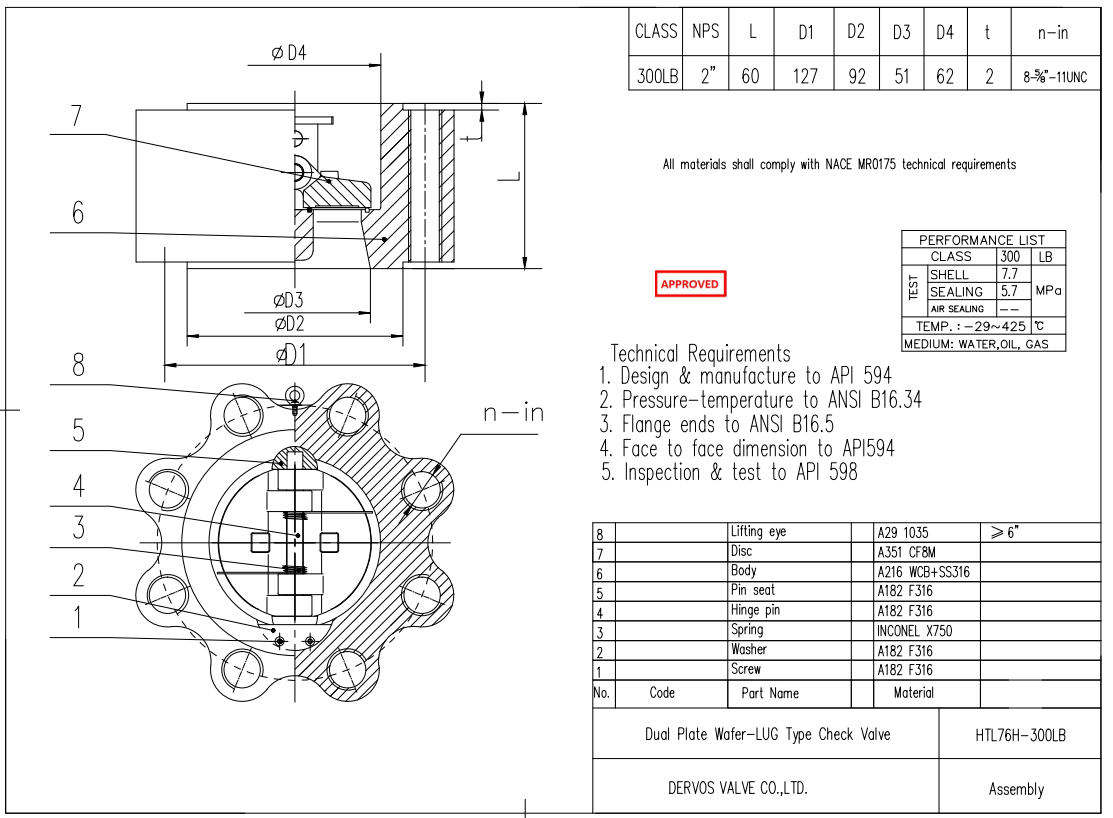

Technical Drawing

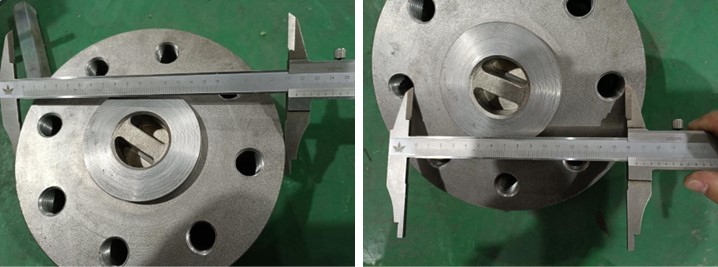

Dimension Checking

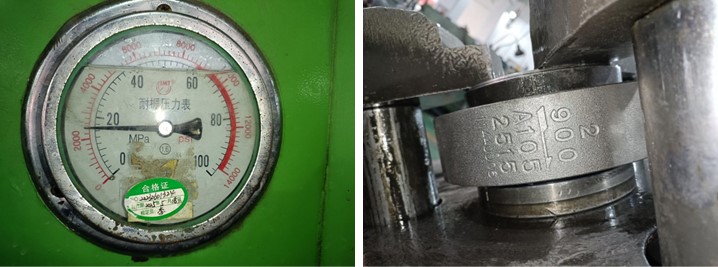

Pressure Testing

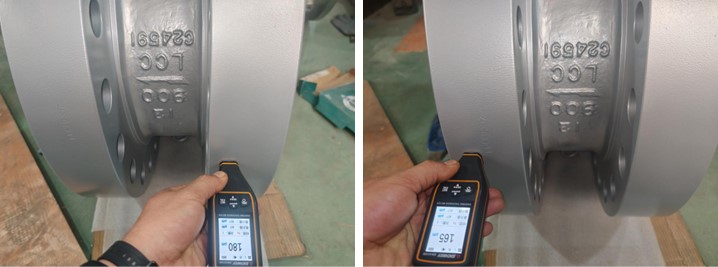

Painting

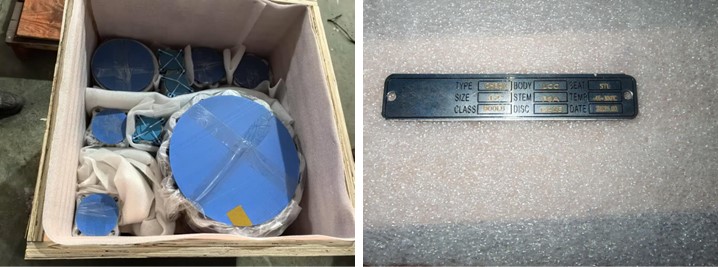

Nameplate & Packing

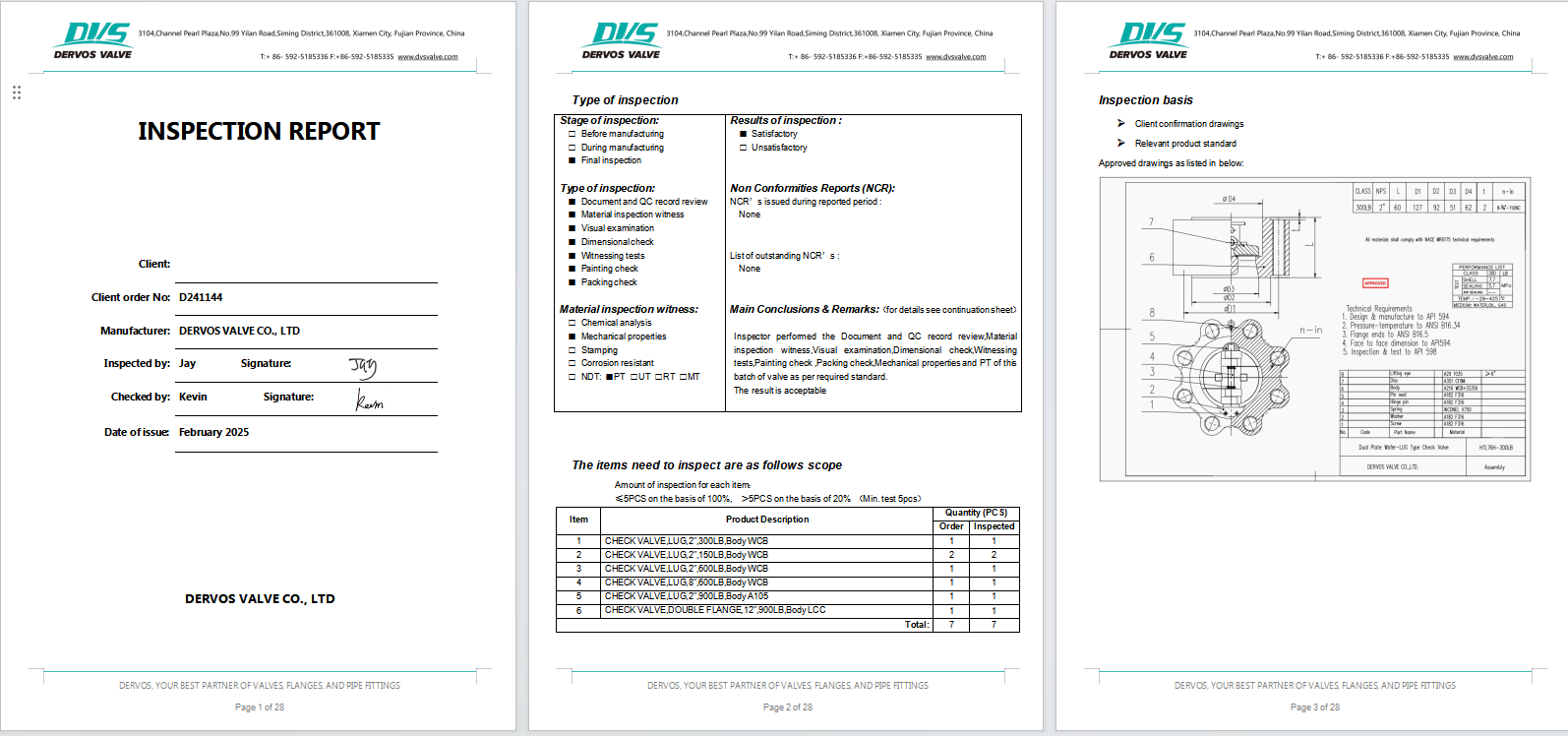

Inspection Report
