Dual Plate Wafer Type Check Valve 1-1/2" 150LB A105 Lug Type
Key Specifications / Features
Model No.: Hits: 0
1-1/2" 150LB Dual Plate Wafer Type Check Valve is made according to ASME B16.34 standard. The valve body is made of A105. It has the structural characteristics of Dual Plate, Wafer Type. Its connection mode is RF.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Dual Plate Wafer Type Check Valve |
| Size | 1-1/2" |
| Pressure | 150LB |
| Connection | Lug Type |
| Body Material | A105 |
| Design Norm | API 594 |
| Face to face | MFR’S standard |
| Flange dimension | ANSI B16.34 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 200°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Dual Plate Wafer Configuration: Provides compact non-return protection with quick closing action to help control reverse flow.2. Lug-Type A105 Body: Combines forged carbon steel strength with secure flange alignment for reliable 150LB pipeline service.

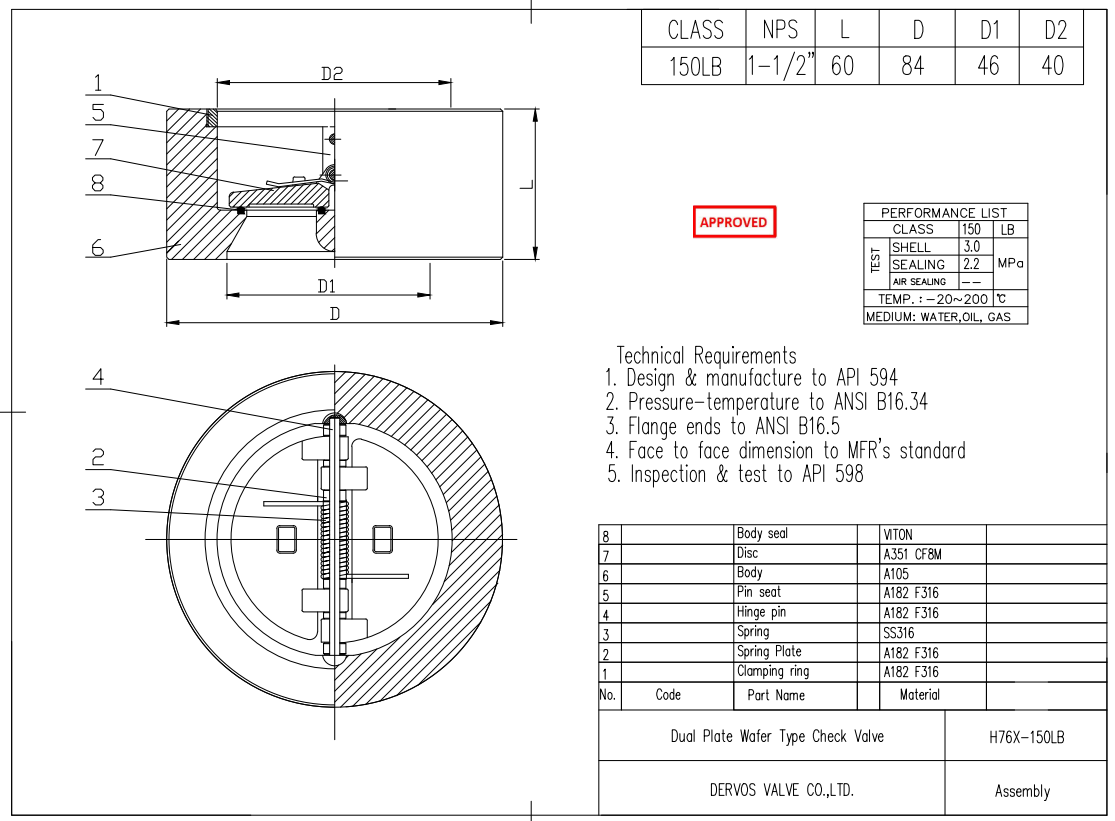

Technical Drawing

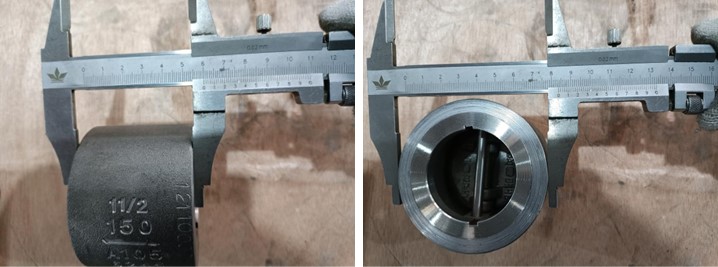

Dimension Checking

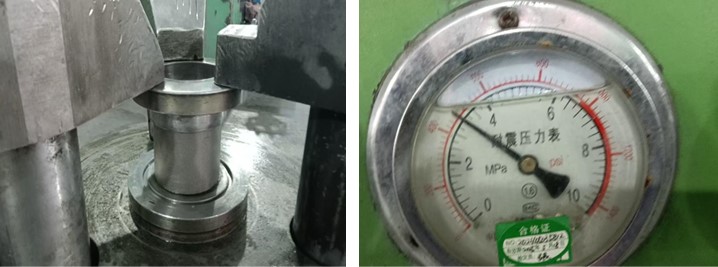

Pressure Testing

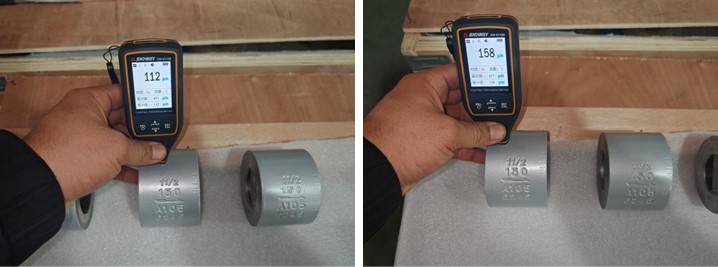

Painting

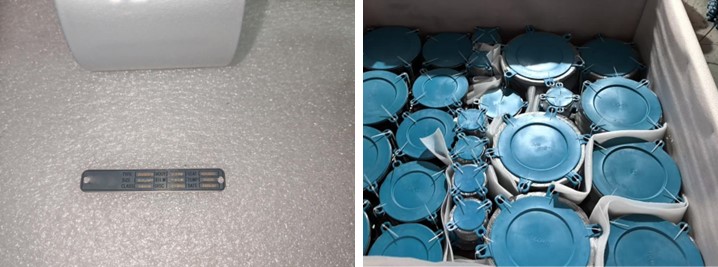

Nameplate & Packing

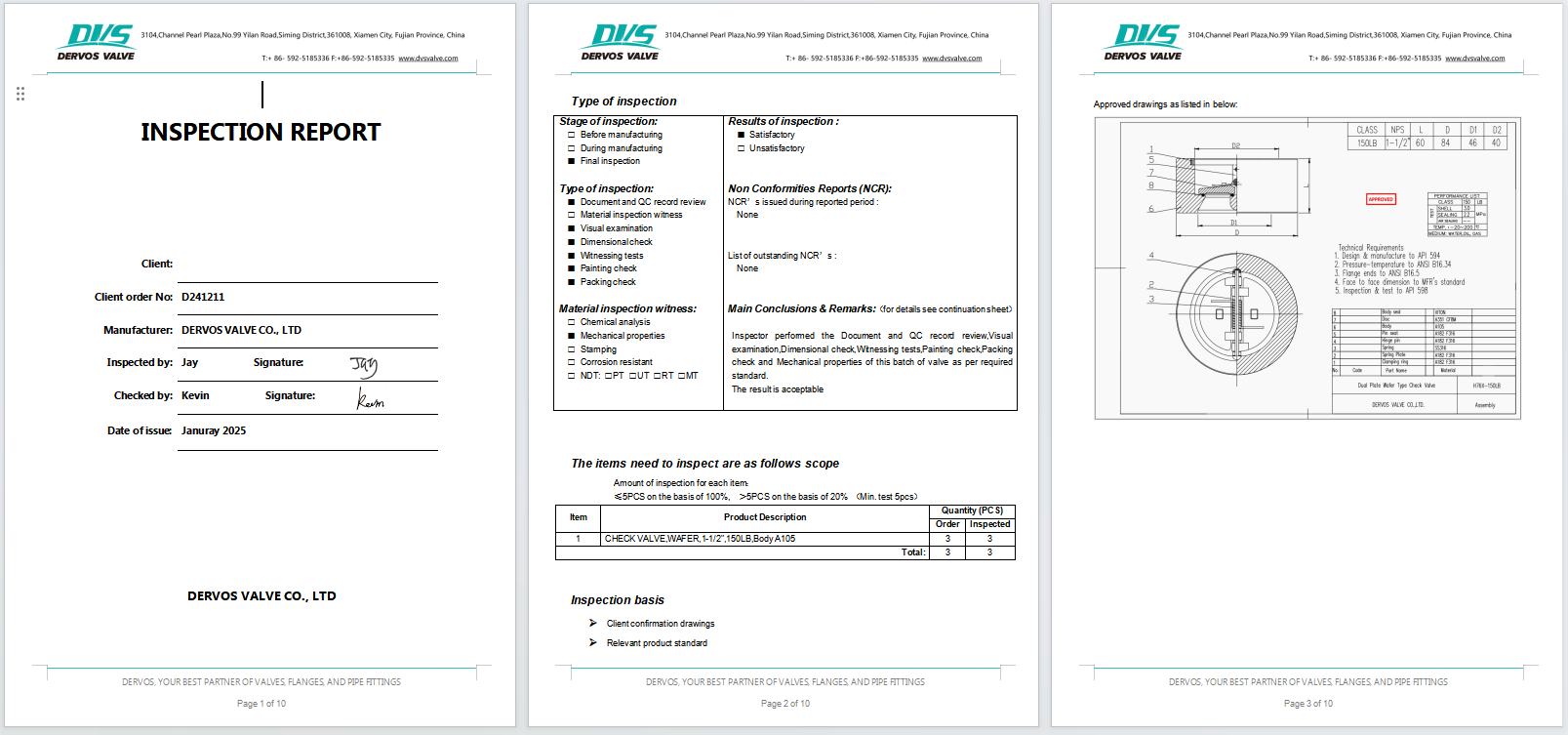

Inspection Report
