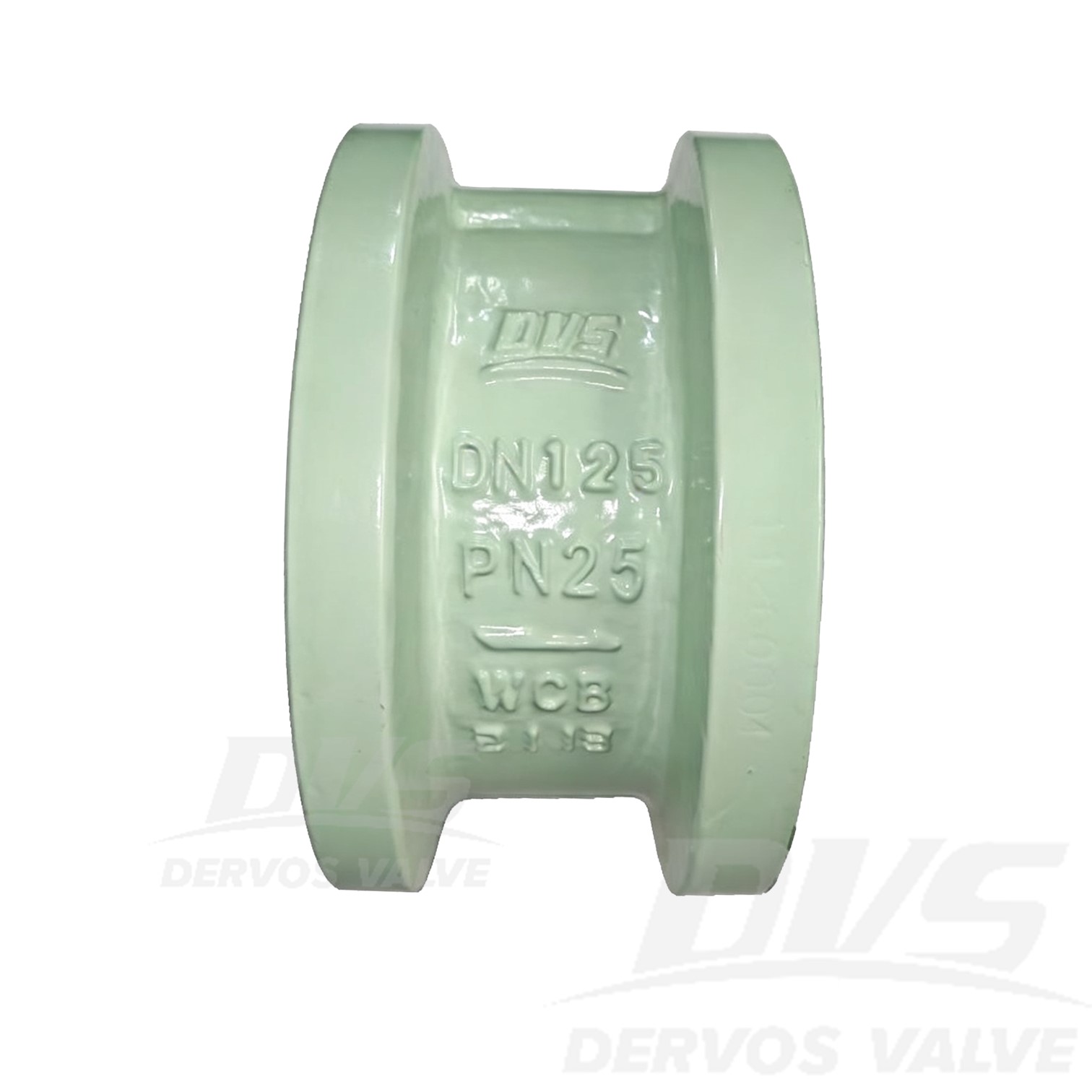

Dual Plate Wafer Type Check Valve DN125 PN25 A216 WCB +STL FF
Key Specifications / Features
Model No.: Hits: 0
DN125 PN25 Dual Plate Wafer Type Check Valve is made according to ASME B16.34 standard. The valve body is made of A216 WCB +STL. It has the structural characteristics of Dual Plate Wafer Check Valve, Internal Type. Its connection mode is FF.
Request a quote
Tags:
Next: Return to List
Previous: Cast Steel Dual Plate Wafer Check Valve 8" 150LB WCB
Detail Information
Product Parameters
| Type | Dual Plate Wafer Type Check Valve |
| Size | DN125 |
| Pressure | 600LB |
| Connection | FF |
| Body Material | A216 WCB +STL |
| Design Norm | API 594 |
| Face to face | API 594 |
| Flange dimension | EN 1092-1 |
| Test & Inspection Code | API 598 |
| Temperature | -10 ~ 300°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Dual plate wafer design provides fast closing response, low pressure drop, and reliable backflow prevention in PN25 service.2.A216 WCB body with STL overlay offers high strength and enhanced sealing durability for demanding industrial applications.

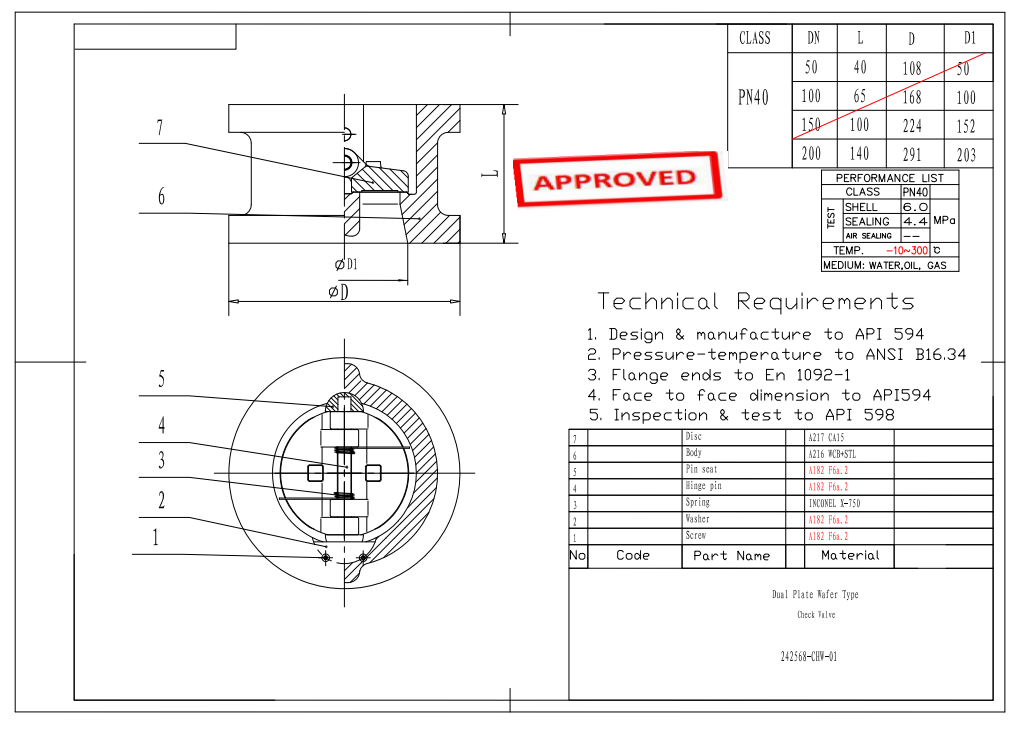

Technical Drawing

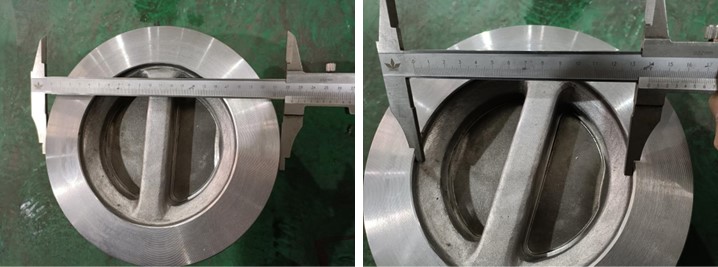

Dimension Checking

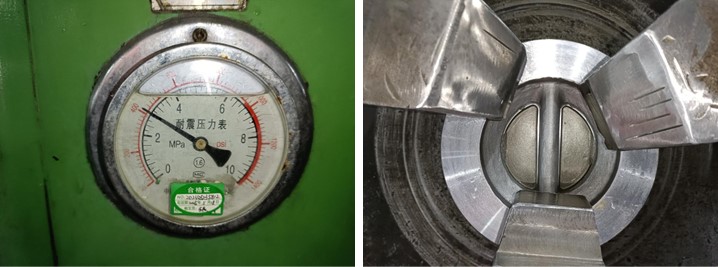

Pressure Testing

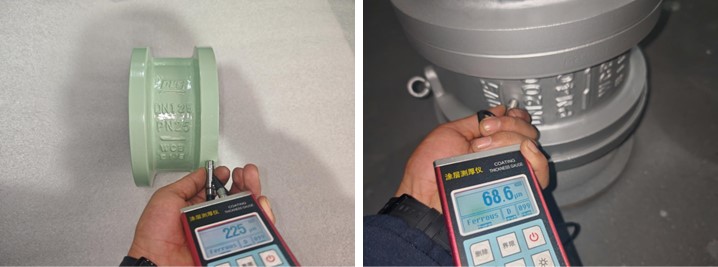

Painting

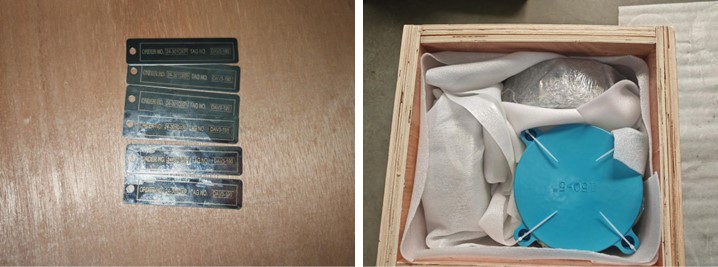

Nameplate & Packing

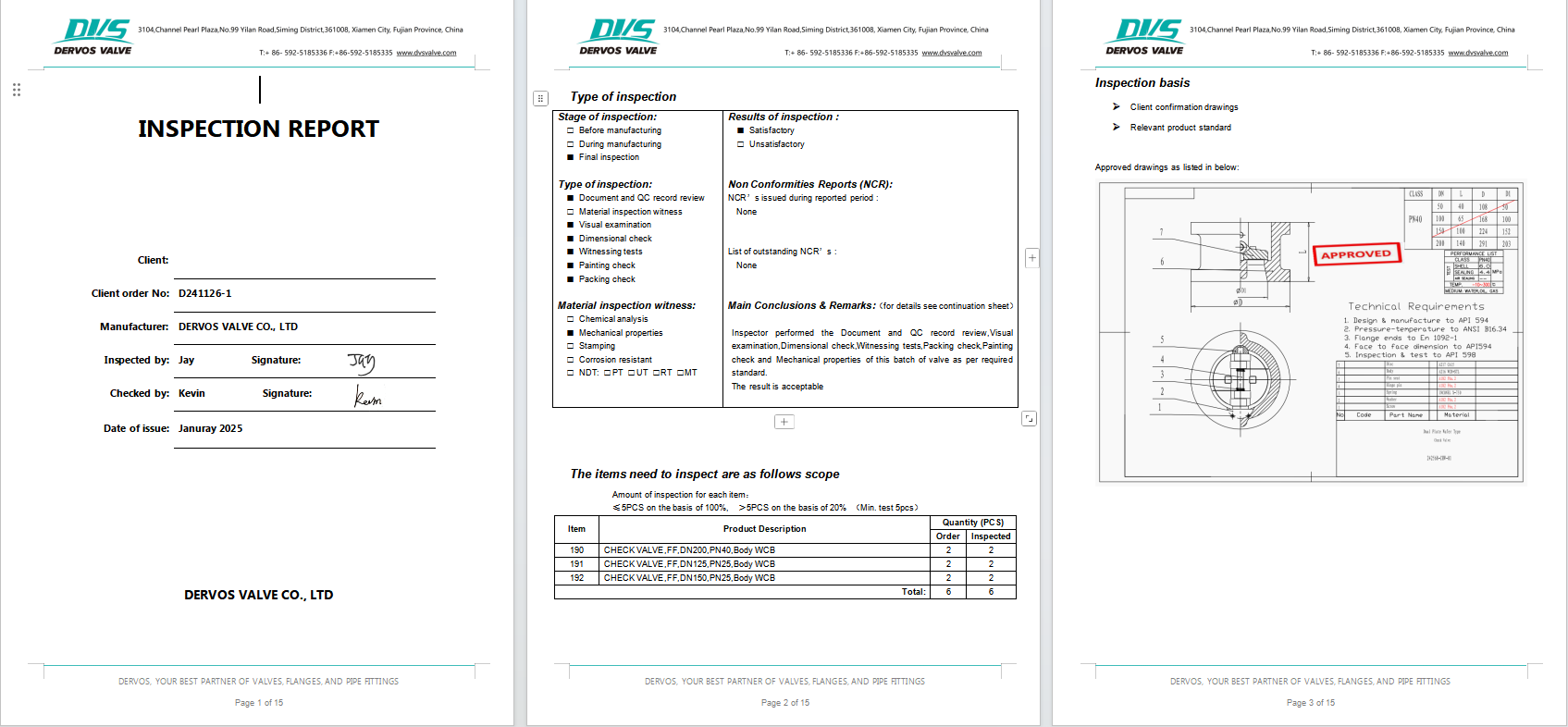

Inspection Report
