Floating Ball Valve DN25 PN160 A105 EN1092-1 D
Key Specifications / Features
Model No.: Hits: 0

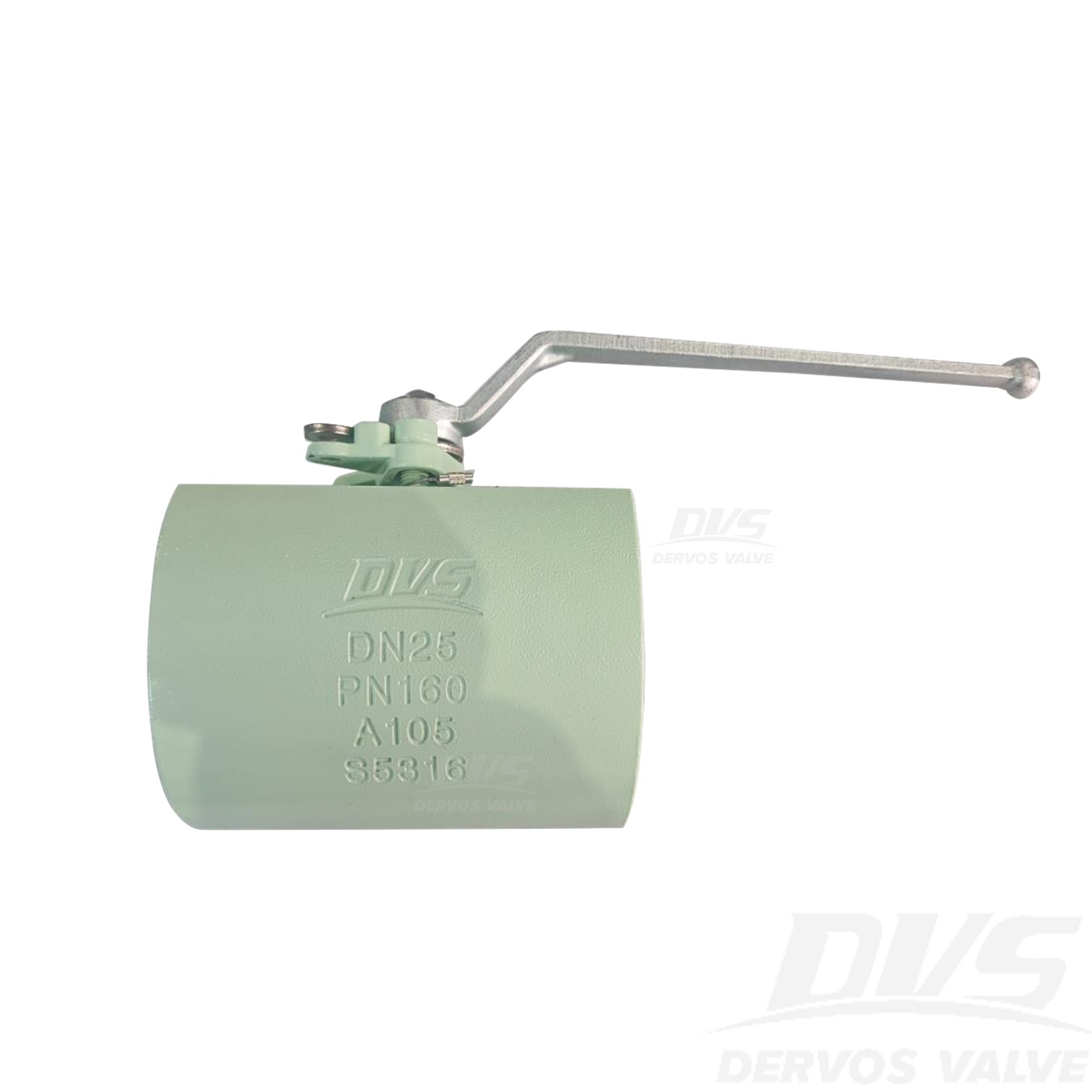

DN25 PN160 Floating Ball Valve is made according to ISO17292 standard. The valve body is made of A105. It has the structural characteristics of Full bore, floating ball, fire-safe and anti-static design, blowout-proof stem. Its connection mode is EN1092-1 D. And it has Lever operation mode.
Request a quote
Tags:
Next: Return to List
Previous: Floating Ball Valve DN50 PN16 A182 F304
Detail Information
Product Parameters
| Type | Floating Ball Valve |
| Size | DN25 |
| Pressure | PN160 |
| Connection | RF |
| Operation | Lever |
| Body Material | ASTM A105 |
| Design Norm | ISO 17292 |
| Face to face | Factory design |
| Flange dimension | EN1092 D |
| Test & Inspection Code | ISO 5208 |
| Temperature | -29 ~ 150°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Floating ball design provides reliable shutoff and tight sealing under high-pressure service.2. ASTM A105 forged steel construction offers high strength and durability for demanding industrial applications.

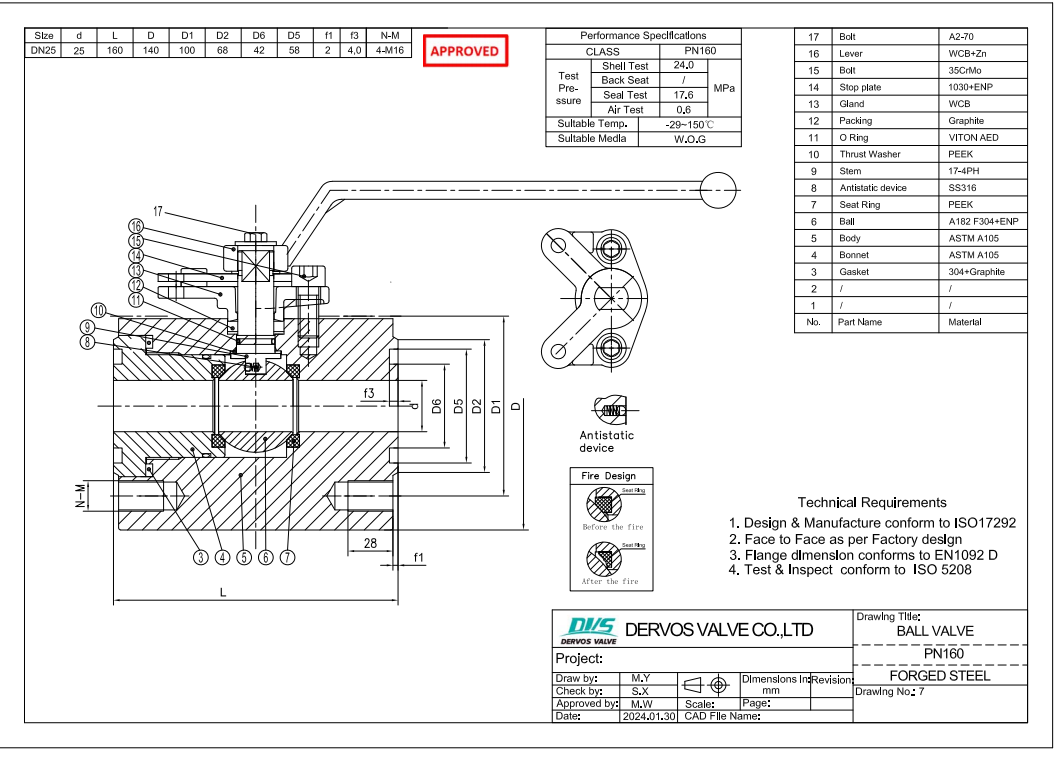

Technical Drawing

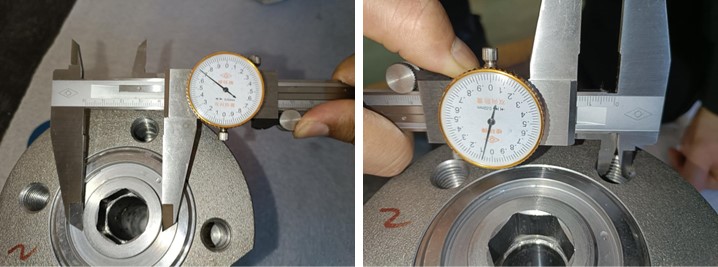

Dimension Checking

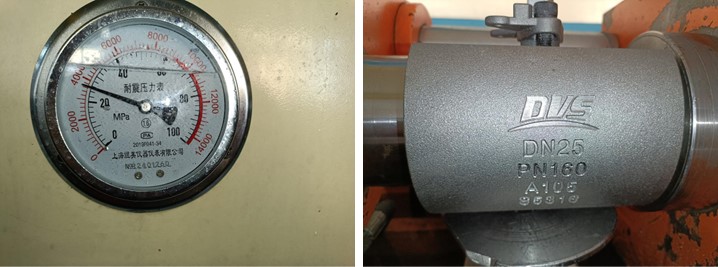

Pressure Testing

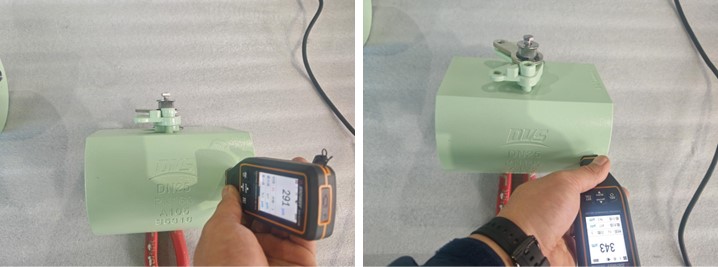

Painting

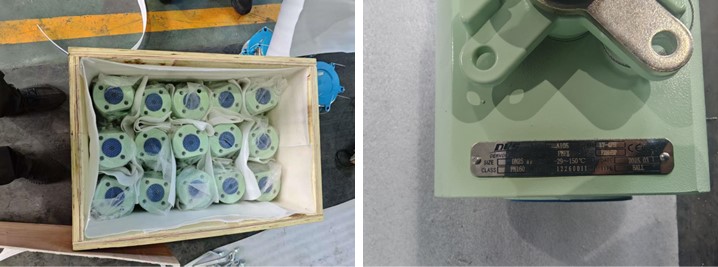

Nameplate & Packing

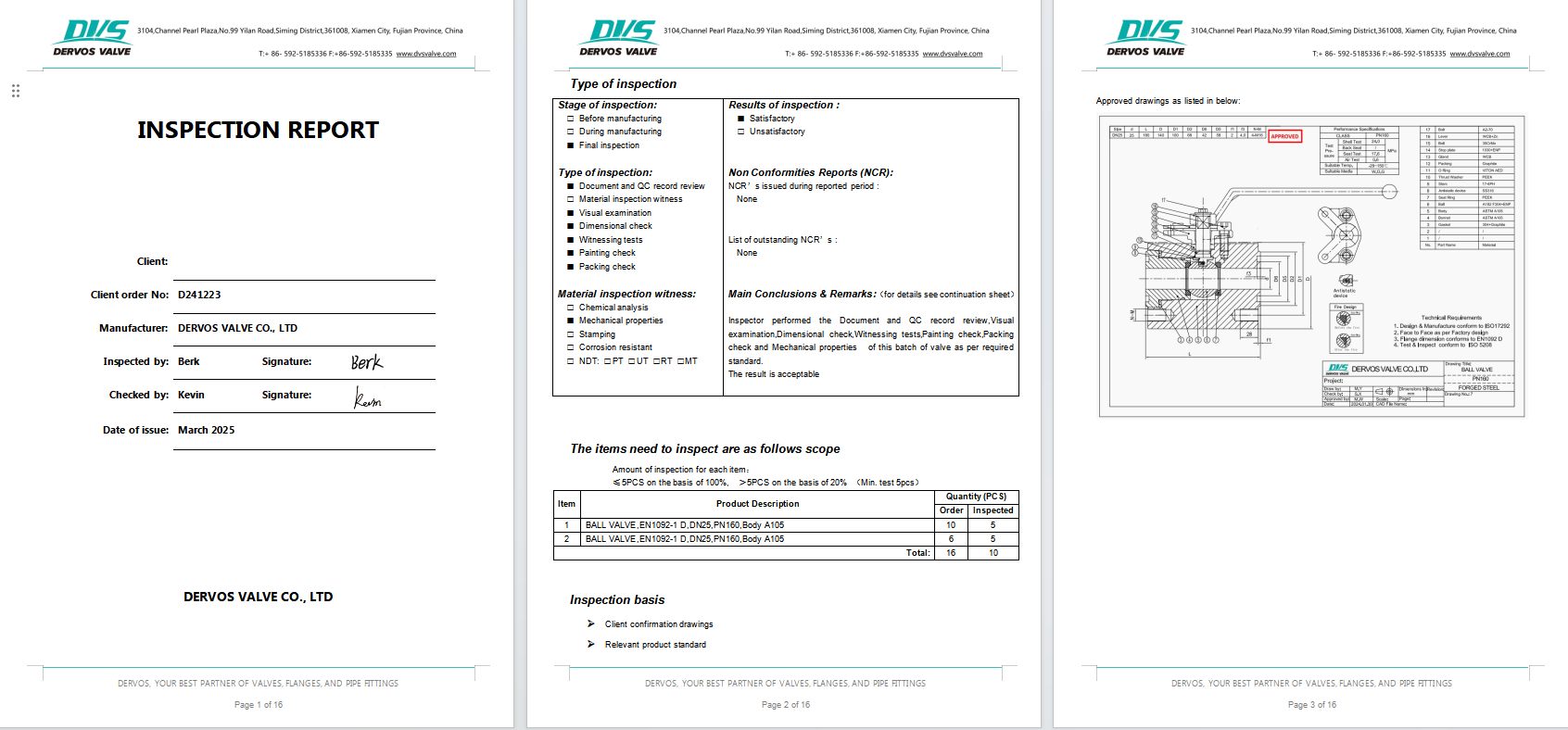

Inspection Report
