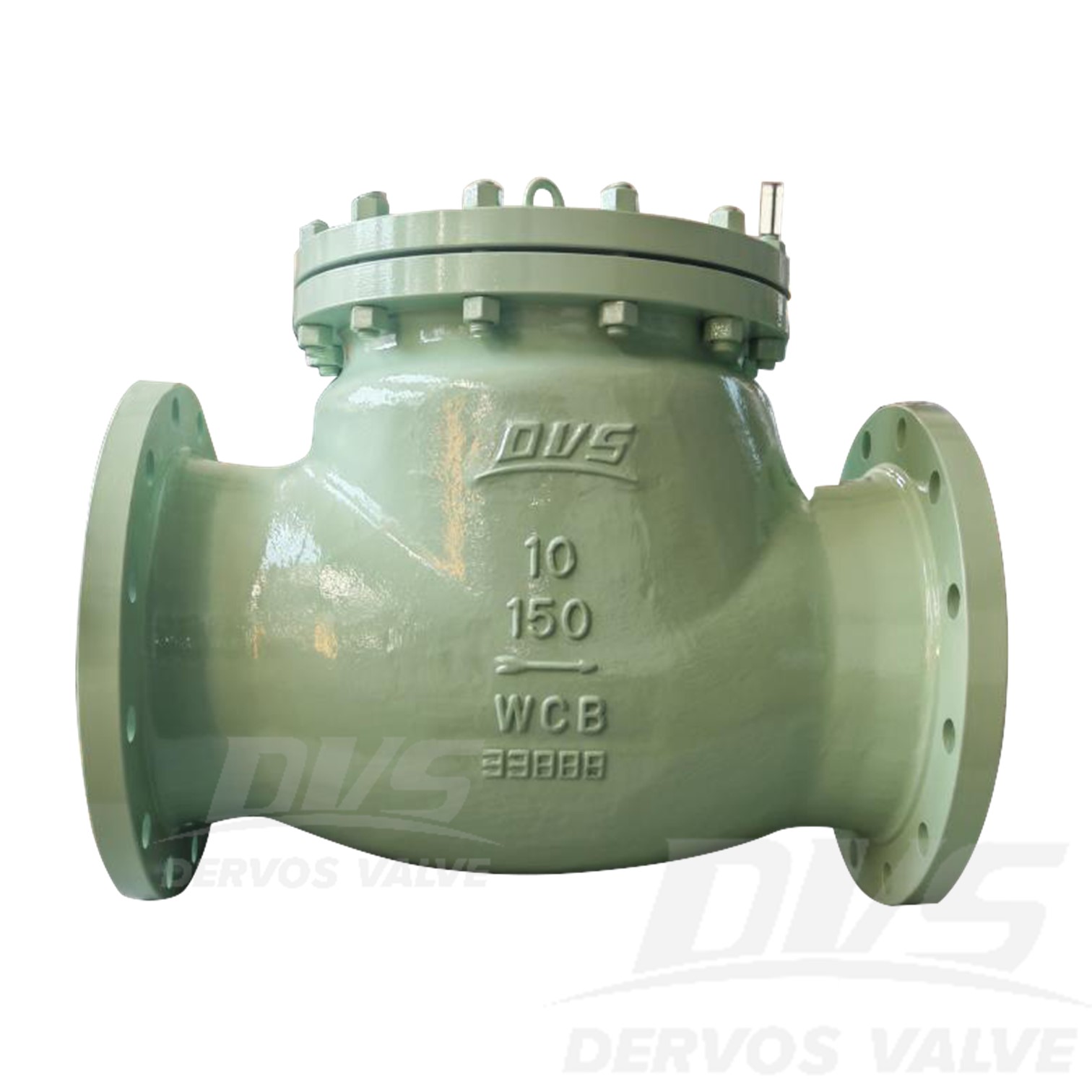

Swing Type Check Valve 10" 150LB WCB RF
Key Specifications / Features
Model No.: Hits: 0
10" 150LB Swing Type Check Valve is made according to API 6D standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of Swing type, internally retained, full-opening design. Its connection mode is RF.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Swing Type Check Valve |
| Size | 10" |
| Pressure | 150LB |
| Connection | RF |
| Body Material | ASTM A216 WCB |
| Design Norm | API 6D |
| Face to face | ASME B16.10 |
| Flange Ends | ASME B16.5 |
| Test & Inspection Code | API 6D |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Steam |
Features
1. The swing-type disc provides full opening and reliable closure to prevent reverse flow with minimal pressure loss.2. The WCB cast steel body and RF flanged ends ensure durable performance and secure installation in Class 150 pipelines.

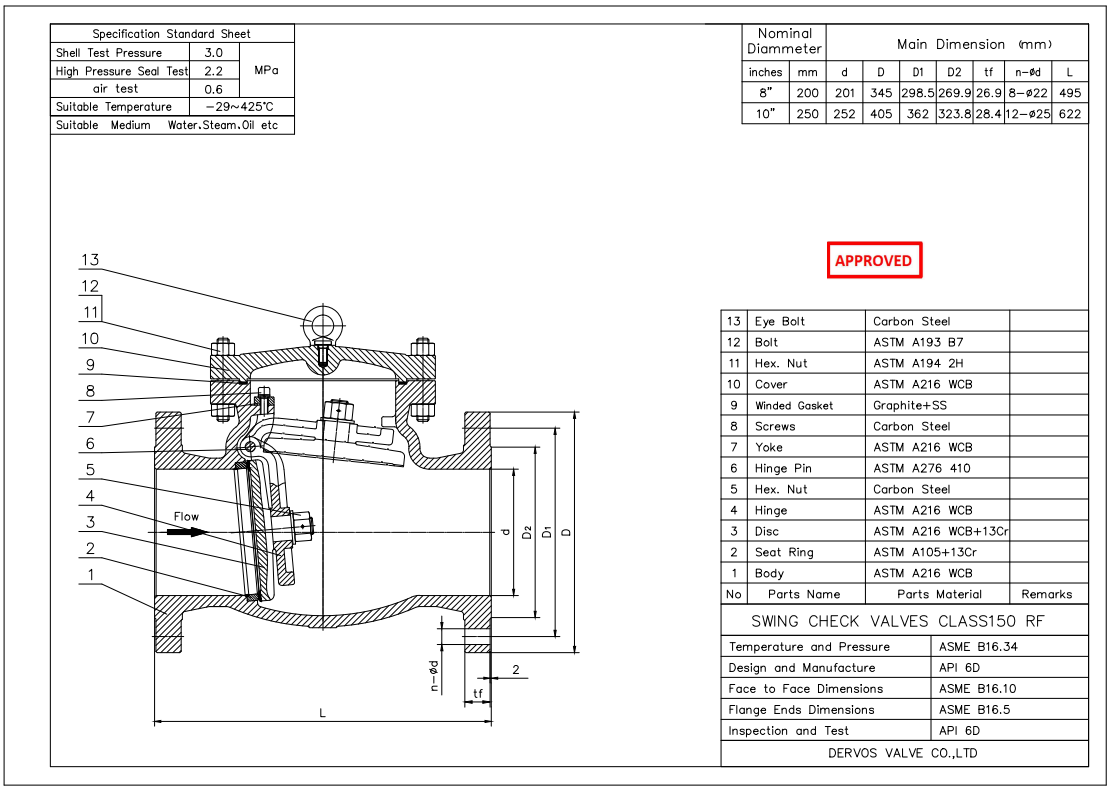

Technical Drawing

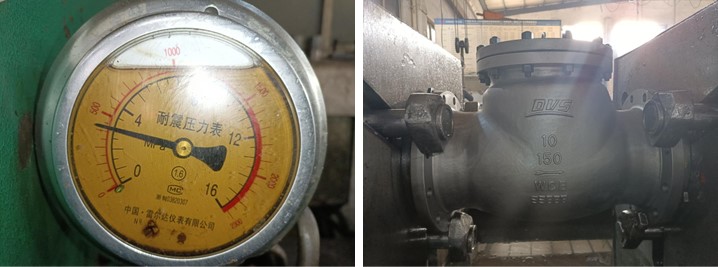

Pressure Testing

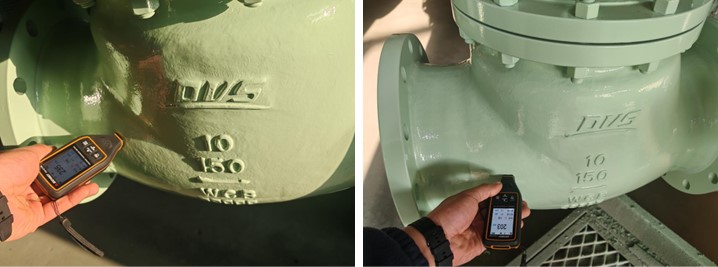

Painting

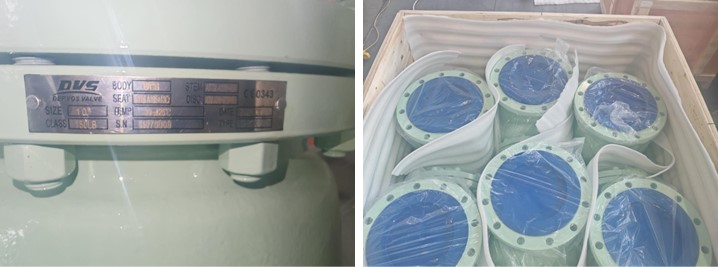

Nameplate & Packing

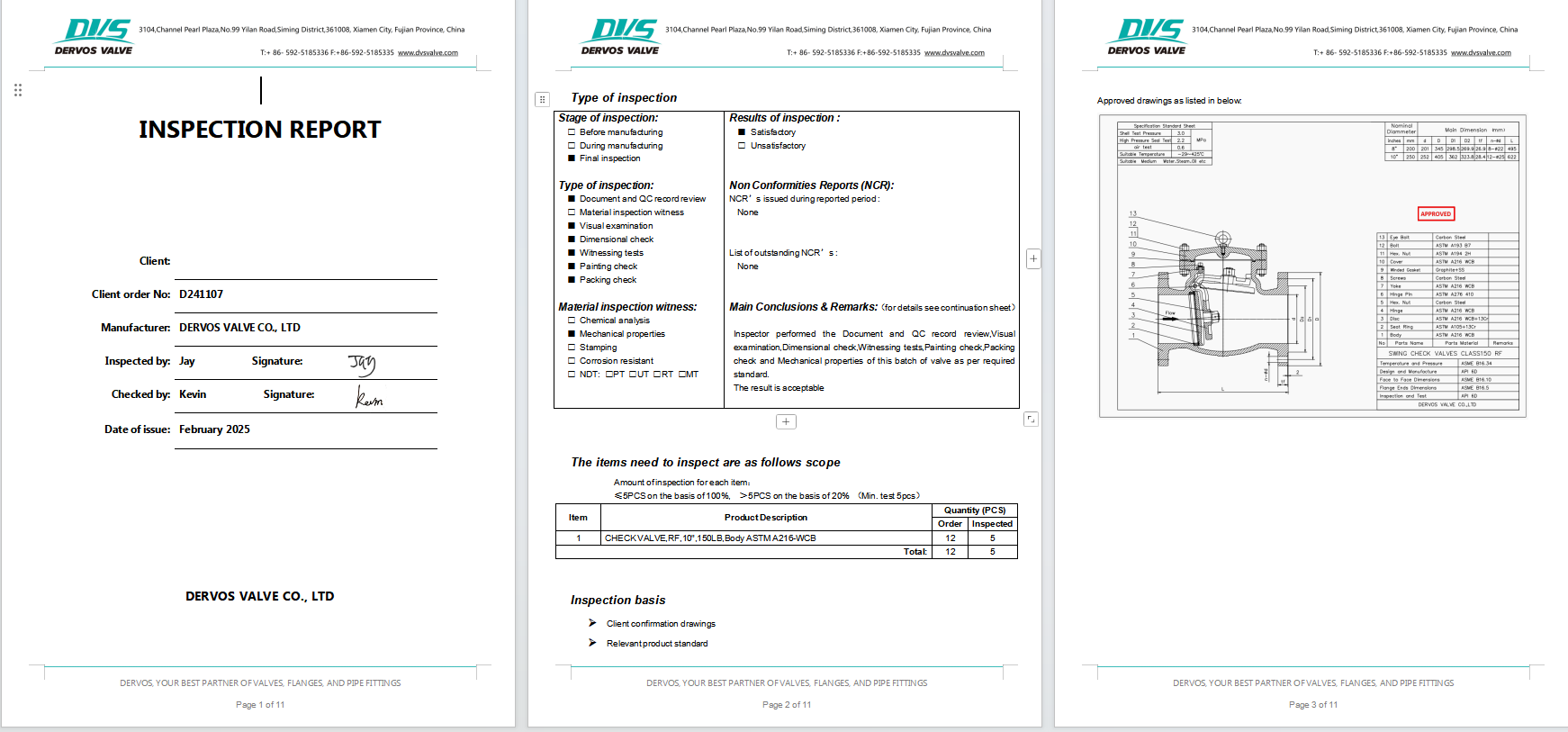

Inspection Report
