Triple Offset Butterfly Valve DN100 PN16 RF WCB EN593
Key Specifications / Features
Model No.: Hits: 0
DN100 PN16 Butterfly Valve is made according to EN593 standard. The valve body is made of A216 WCB. It has the structural characteristics of Triple Offset, Multi-Layer, Bi-Directional Sealing. Its connection mode is RF. And it has Worm Gear operation mode.
Request a quote
Tags:
Next: Return to List
Previous: Three Eccentric Butterfly Valve 6" 150LB WCB API609
Detail Information
Product Parameters
| Type | Butterfly Valve |
| Size | DN100 |
| Pressure | PN16 |
| Connection | RF |
| Operation | Worm Gear |
| Body Material | A216 WCB |
| Design Norm | EN593 |
| Face to face | EN558 |
| End Flange | EN1092-1 |
| Test & Inspection Code | EN12266-1 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
● Triple Offset Butterfly Valve DN100 PN16 RF WCB EN 593 provides zero-leakage sealing and high-temperature resistance, ideal for demanding industrial and pipeline isolation applications (triple offset butterfly valve EN 593).● RF Flanged WCB Butterfly Valve ensures durable performance with low operating torque and reliable shut-off in medium-pressure systems (DN100 PN16 butterfly valve WCB).

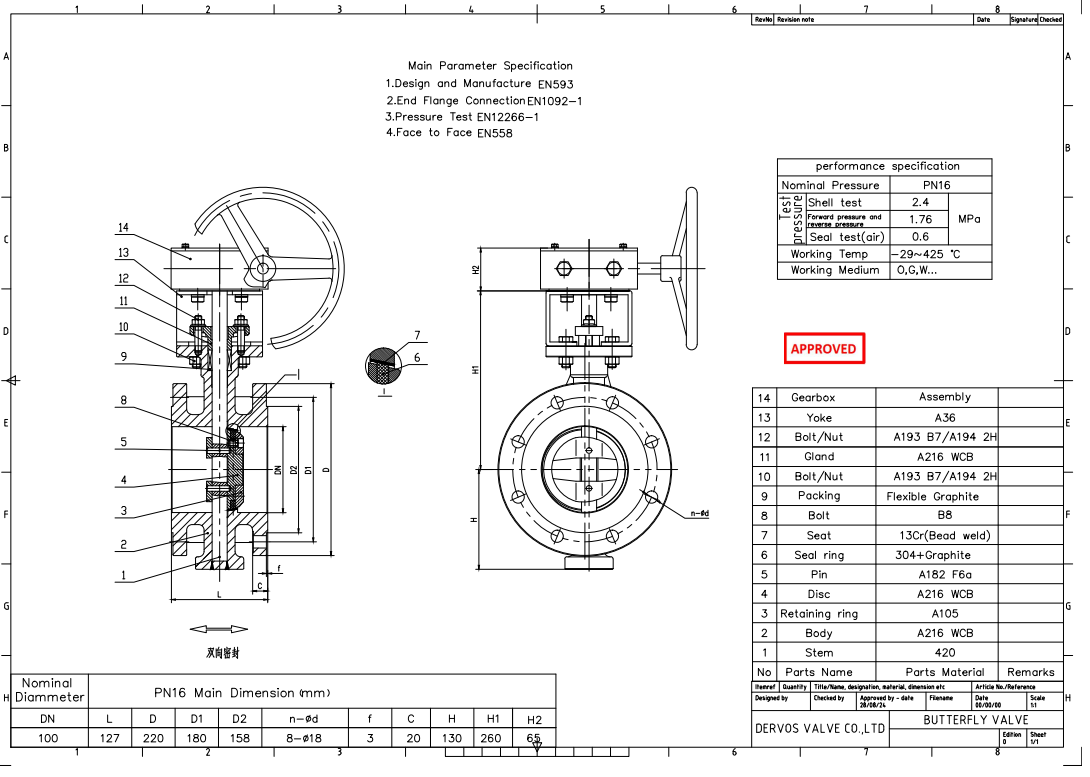

Technical Drawing

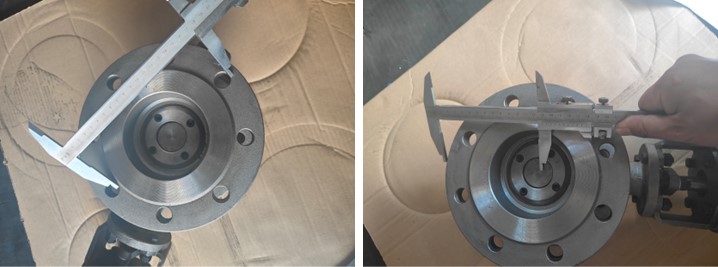

Dimension Checking

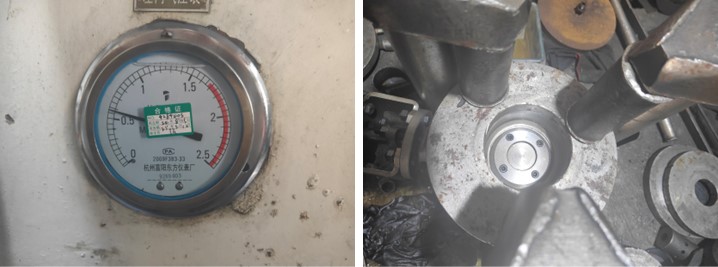

Pressure Testing

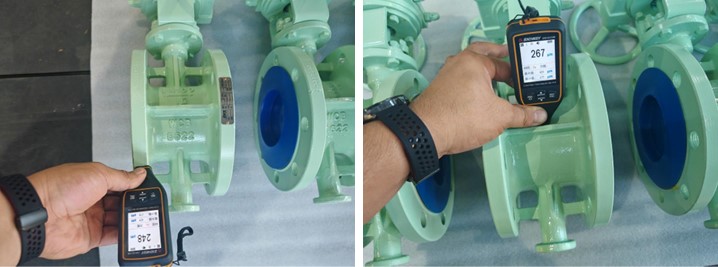

Painting

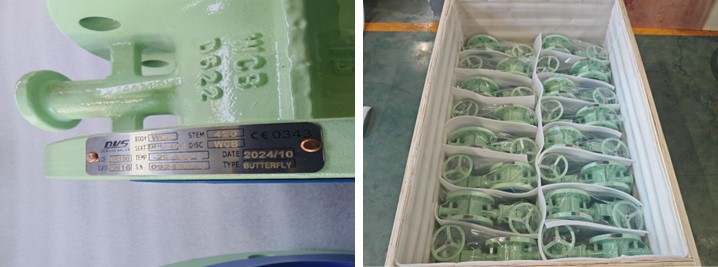

Nameplate & Packing

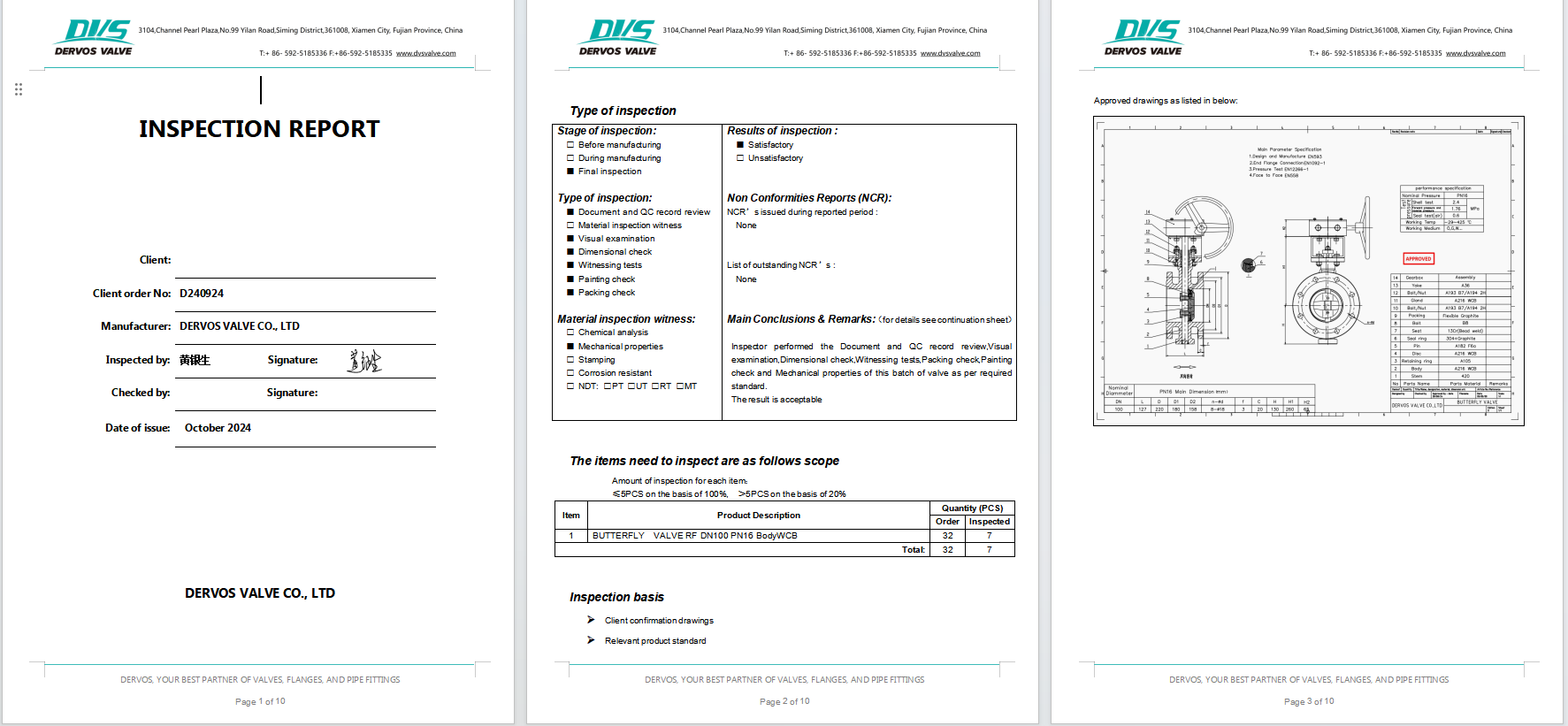

Inspection Report
