Trunnion Ball Valve DN150 PN16 A105N RF
Key Specifications / Features
Model No.: Hits: 0
DN150 PN16 Trunnion Ball Valve is made according to ASME B16.34 standard. The valve body is made of ASTM A105N. It has the structural characteristics of Full Bore, Trunnion-Mounted Ball, with Welded Drain and Vent Ball Valves, Fire-Safe and Anti-Static Design, Blowout-Proof Stem. Its connection mode is RF. And it has Worm Gear operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Trunnion Ball Valve |
| Size | DN150 |
| Pressure | PN16 |
| Connection | RF |
| Operation | Worm Gear |
| Body Material | ASTM A105N |
| Design Norm | ISO 17292 |
| Face to face | MFR’S |
| Ends Connection | EN 1092-1 B |
| Test & Inspection Code | EN 12266 |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Trunnion-Mounted Ball Design: Reduces operating torque and provides stable sealing performance for reliable pipeline isolation.2. A105N Forged Steel Body with RF Ends: Offers high mechanical strength and dependable flanged connection for industrial service.

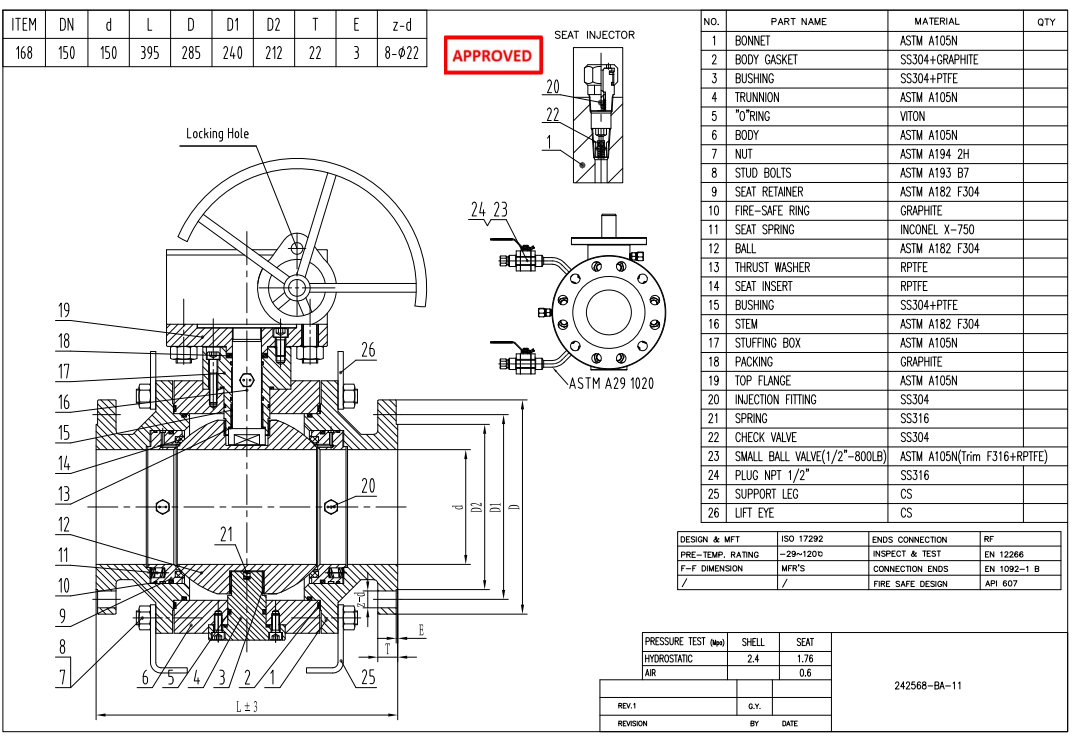

Technical Drawing

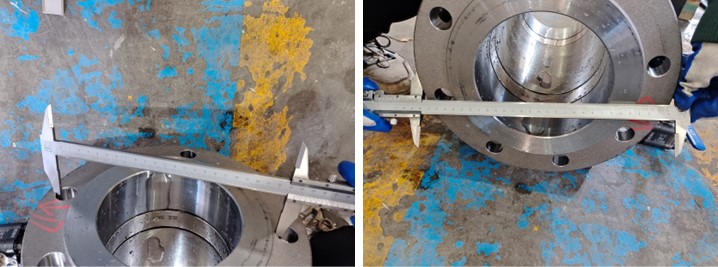

Dimension Checking

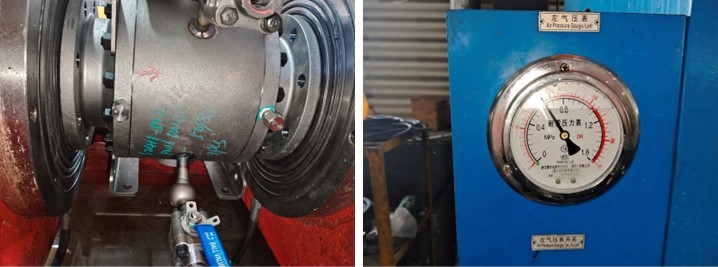

Pressure Testing

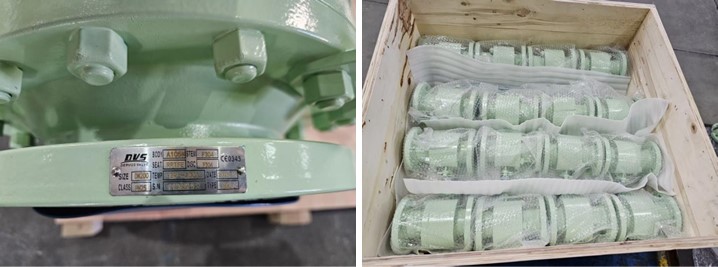

Nameplate & Packing

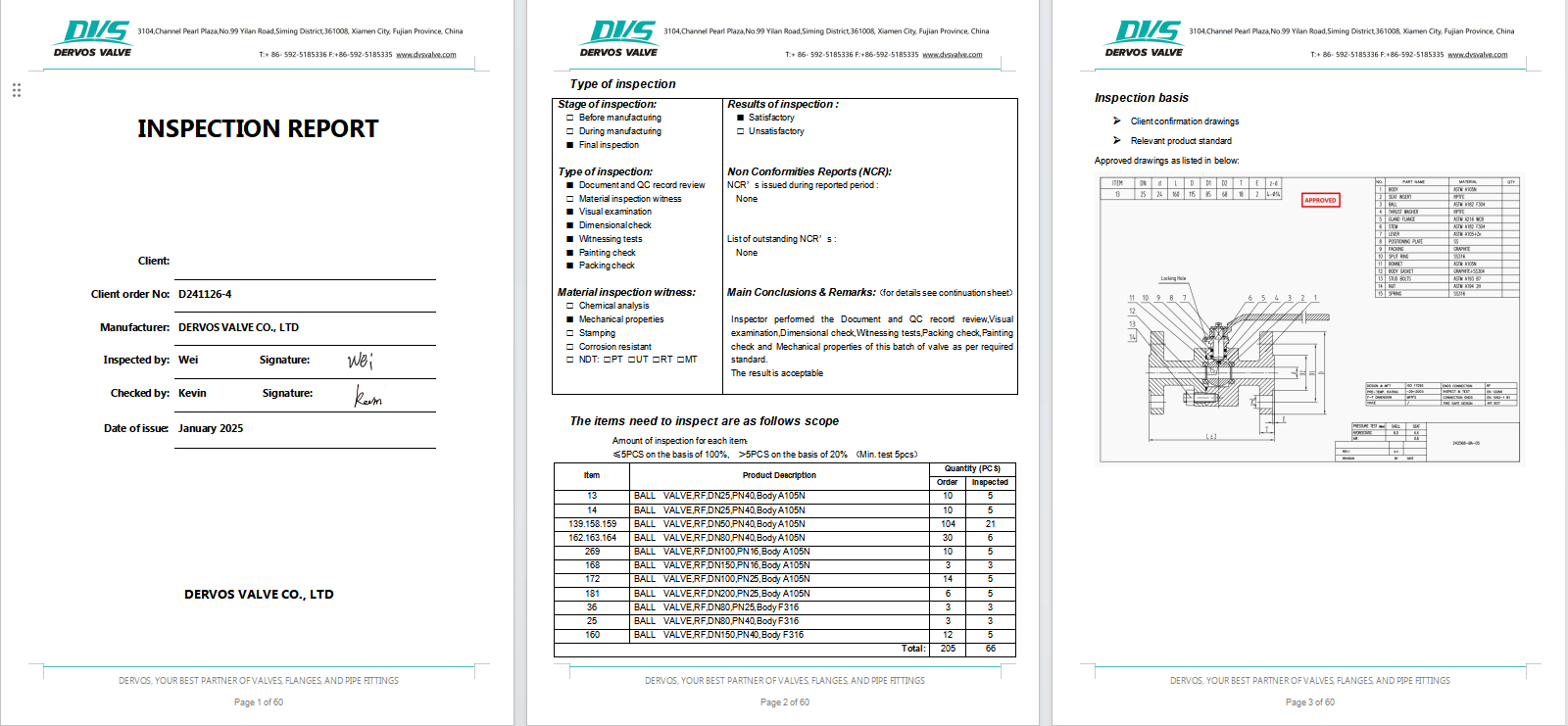

Inspection Report
