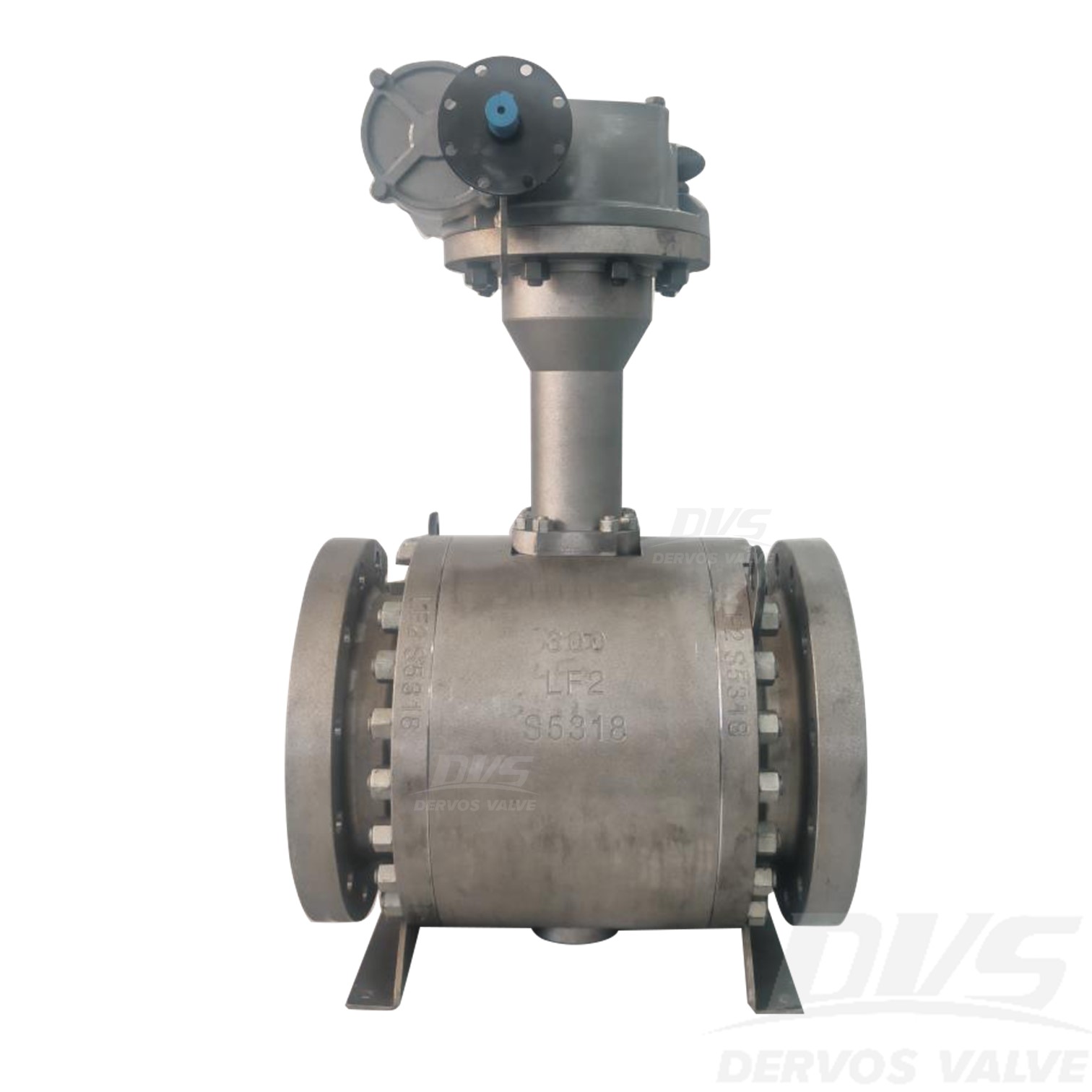

Trunnion Mounted Ball Valve 8" 300LB ASTM A350 LF2 RF
Key Specifications / Features
Model No.: Hits: 0
8" 300LB Trunnion Mounted Ball is made according to API 6D standard. The valve body is made of LF2. It has the structural characteristics of Trunnion-mounted ball, full bore, 250 mm extended stem, fire-safe and anti-static design, blowout-proof stem. Its connection mode is RF. And it has Worm gear operation mode.
Request a quote
Tags:
Next: Return to List
Previous: Trunnion Ball Valve DN150 PN16 A105N RF
Detail Information
Product Parameters
| Type | Trunnion Mounted Ball |
| Size | 8” |
| Pressure | 300LB |
| Connection | RF |
| Operation | Worm gear |
| Body Material | ASTM A350 LF2 |
| Design Norm | API 6D |
| Face to face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 6D |
| Temperature | -29 ~ 320°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Trunnion-mounted ball design provides stable operation and reliable sealing under high-pressure service.2.ASTM A350 LF2 body material offers good toughness for low-temperature applications.

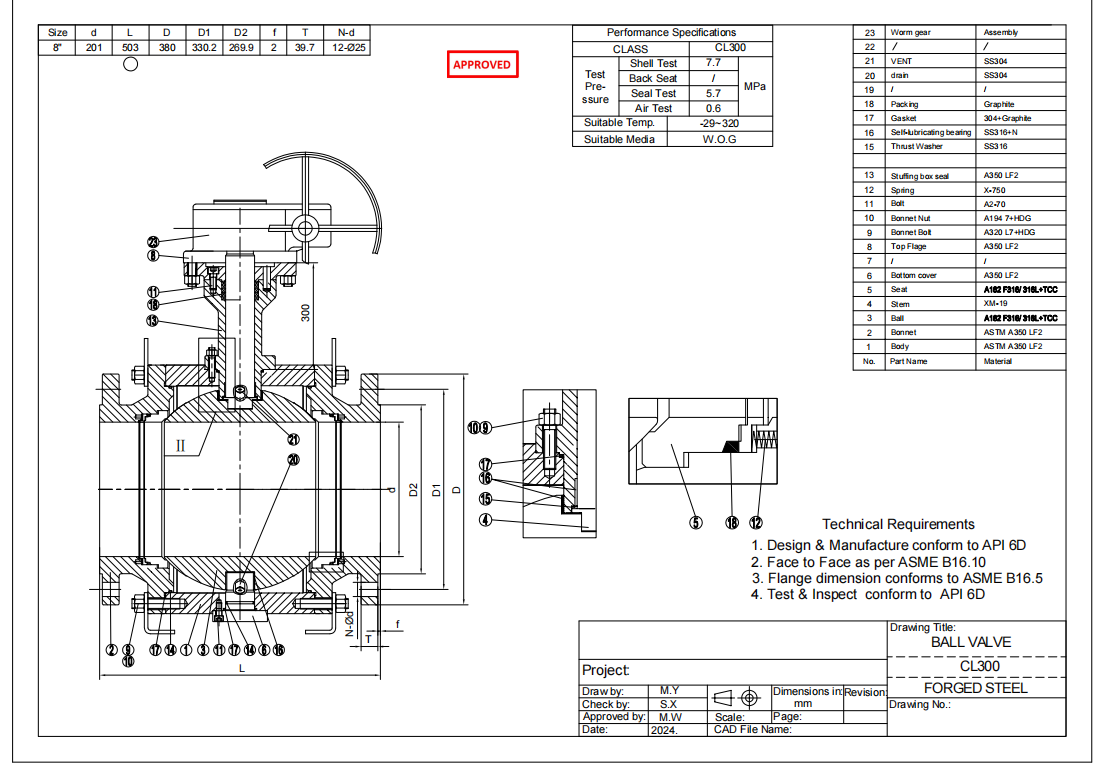

Technical Drawing

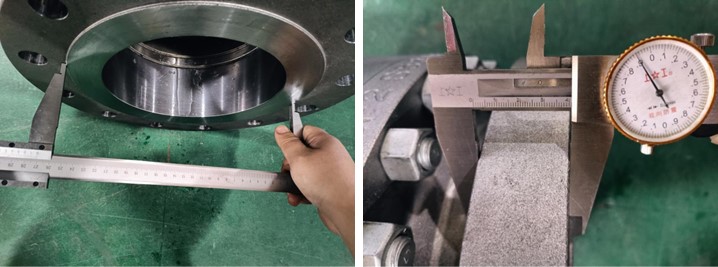

Dimension Checking

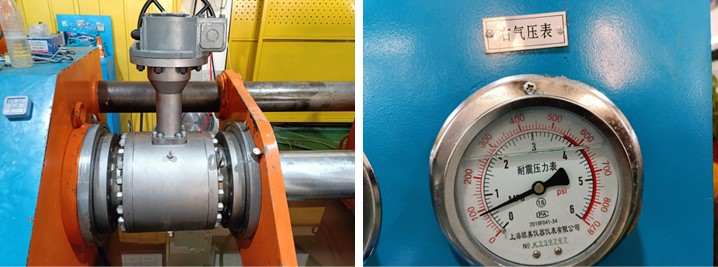

Pressure Testing

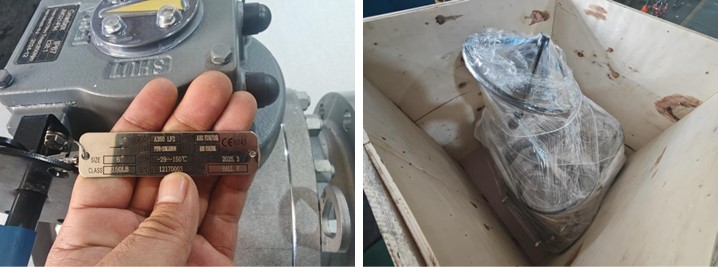

Nameplate & Packing
