2" 150LB Cast Steel Gate Valve WCB H.W. RF
Key Specifications / Features
Model No.: Hits: 0
2" 150LB Cast Steel Gate Valve is made according to BS1873 standard. The valve body is made of WCB. It has the structural characteristics of BB，OS&Y. Its connection mode is RF. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Cast Steel Gate Valve |
| Size | 2” |
| Pressure | 150LB |
| Connection | RF |
| Operation | H.W. |
| Body Material | A216 WCB |
| Design Norm | BS 1873 |
| Face to Face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. BB, OS&Y Design: Features a sturdy bolted bonnet (BB) and outside screw & yoke (OS&Y) structure for reliable sealing and easy maintenance.
2. RF Connection with Hand Wheel: Equipped with a raised face (RF) flange connection and manual hand wheel operation for secure installation and user-friendly control.
Cast Steel Gate Valve Technical Drawing

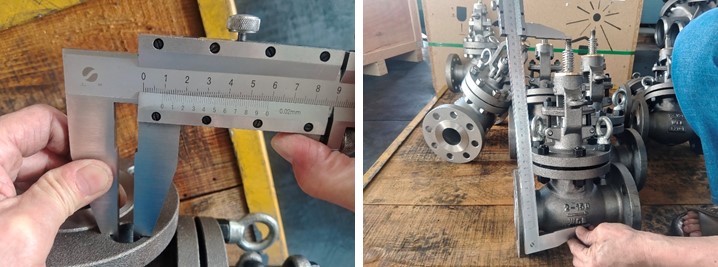

Dimension Checking

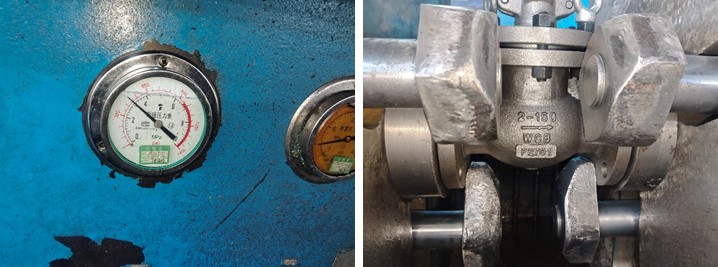

Pressure Testing

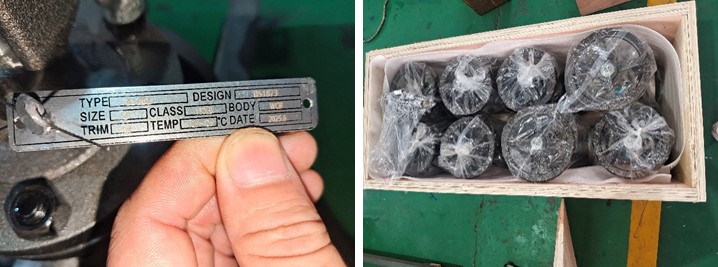

Nameplate & Packing

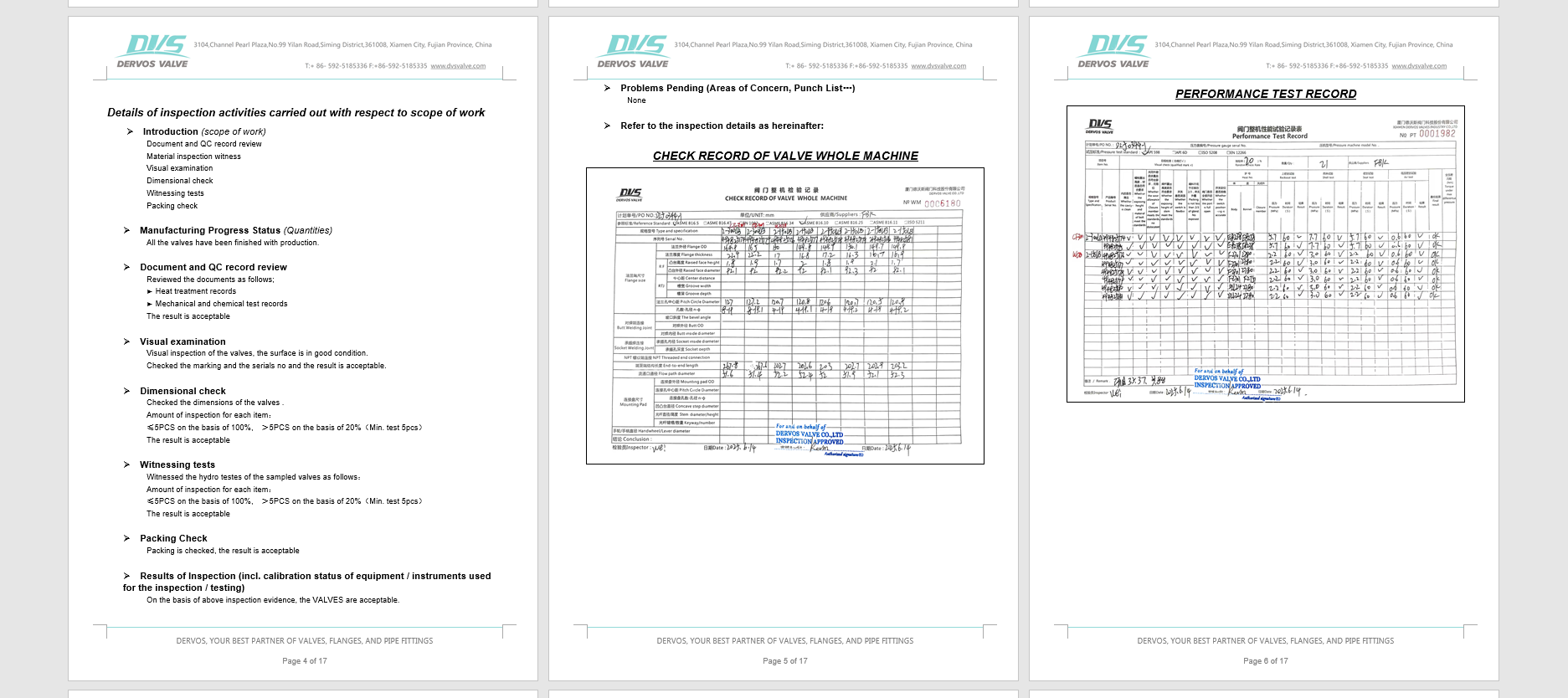

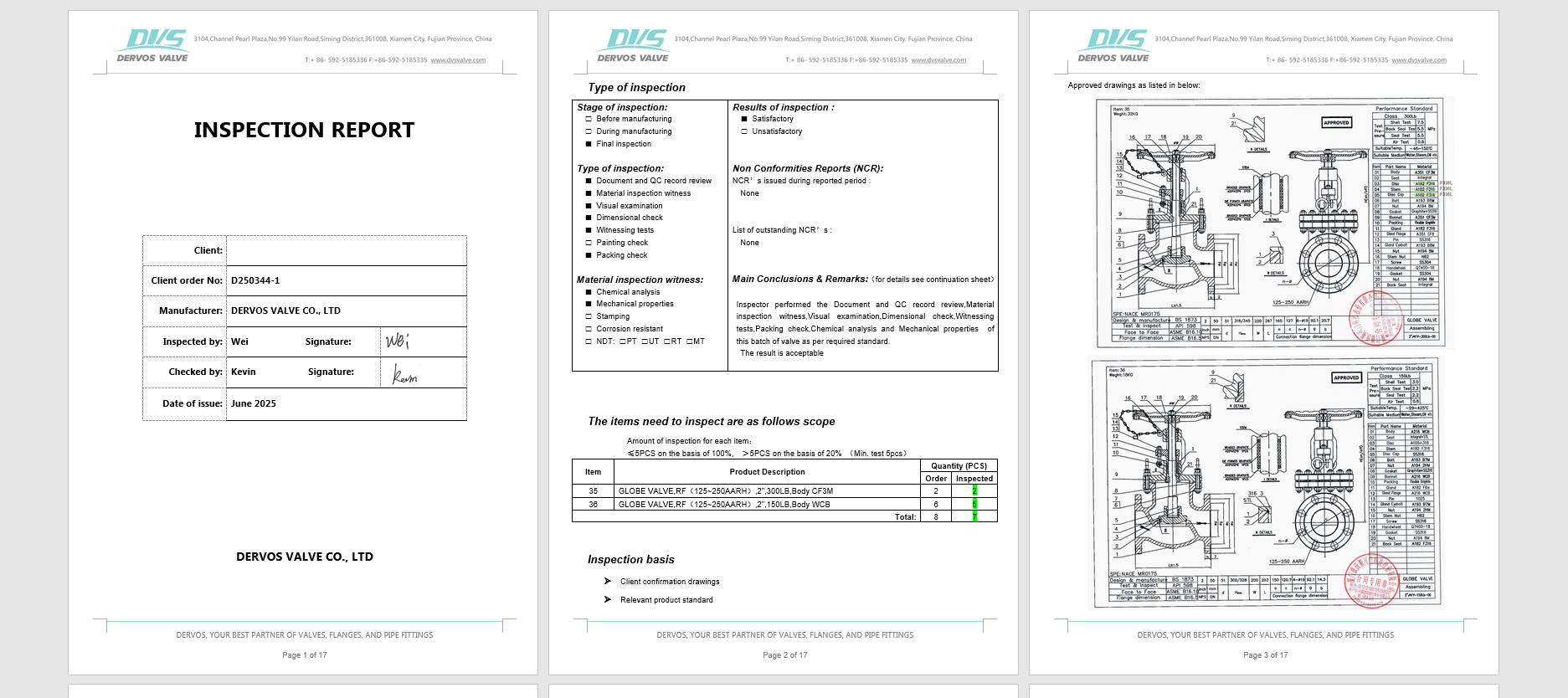

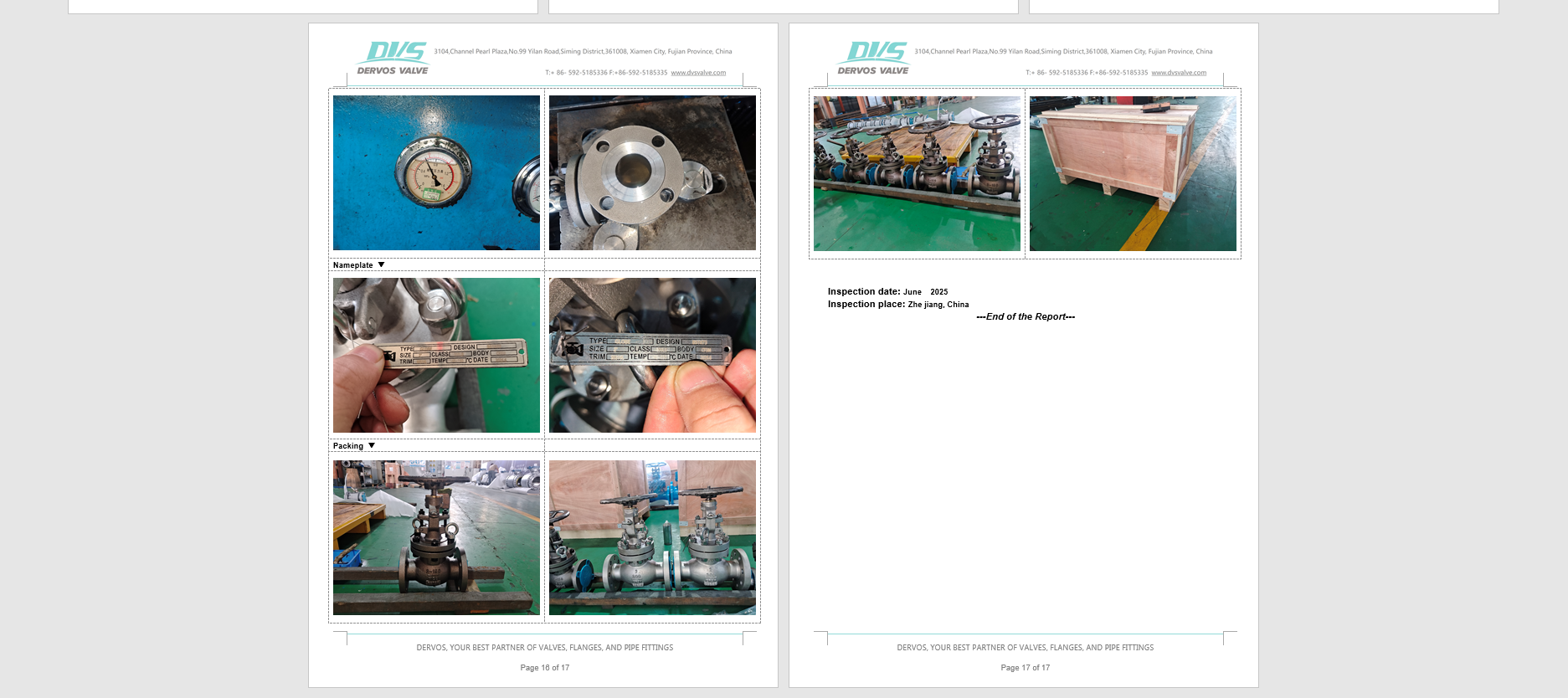

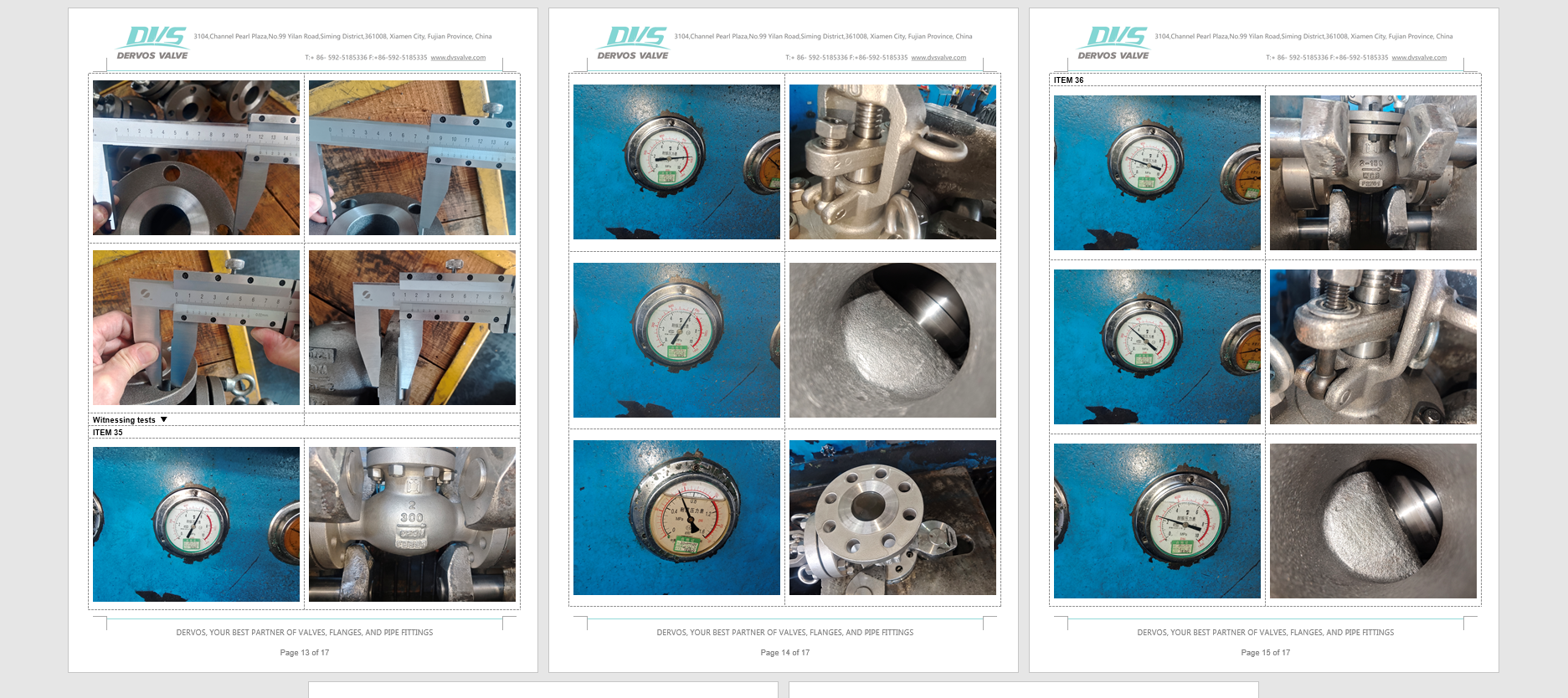

Inspection report
