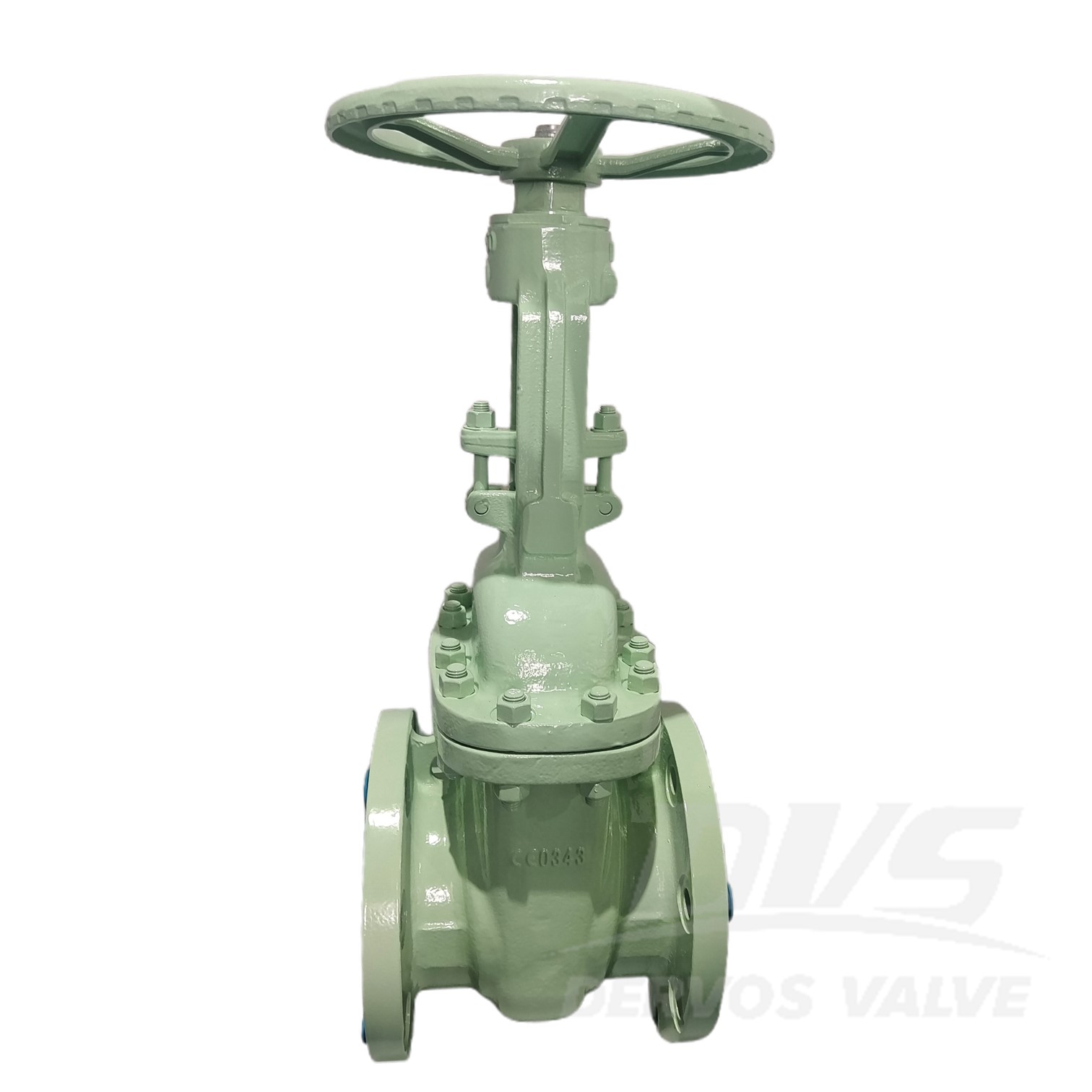

6” 150LB Cast Steel Gate Valve WCB API600 RF
Key Specifications / Features
Model No.: Hits: 0
6”150LB Cast Steel Gate Valve is made according to API600 standard. The valve body is made of A216 WCB. It has the structural characteristics of BB, OS&Y. Its connection mode is RF.
Request a quote
Tags:
Detail Information
Product Description
| Type | Cast Steel Gate Valve |
| Size | 6” |
| Pressure | 150LB |
| Connection | RF |
| Body Material | A216 WCB |
| Design Norm | API 600 |
| Face to Face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Bolted bonnet & OS&Y design ensures easy maintenance and visible stem position for reliable flow control.

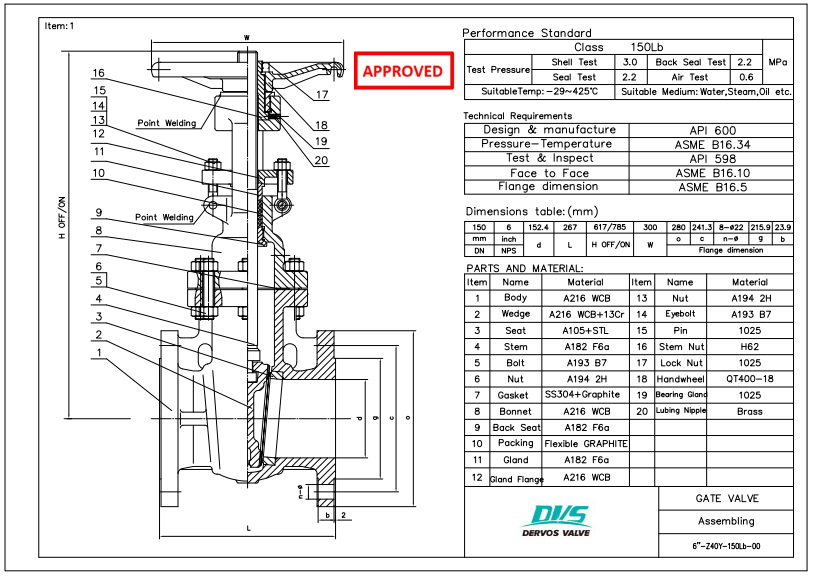

2. Robust WCB body with RF ends, ideal for general industrial applications with secure sealing and standard flanged connection.Cast Steel Gate Valve Technical Drawing

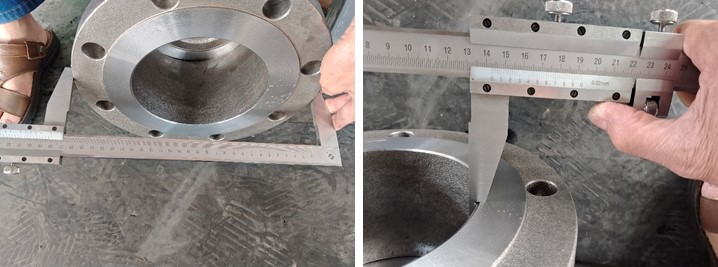

Dimension Checking

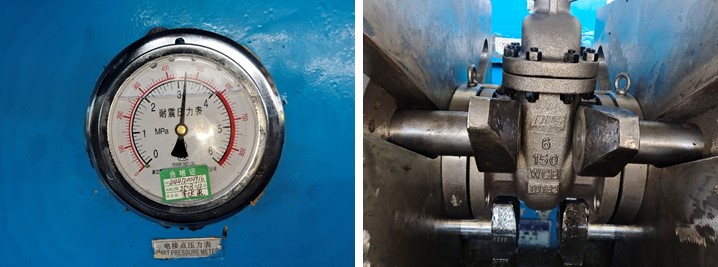

Pressure Testing

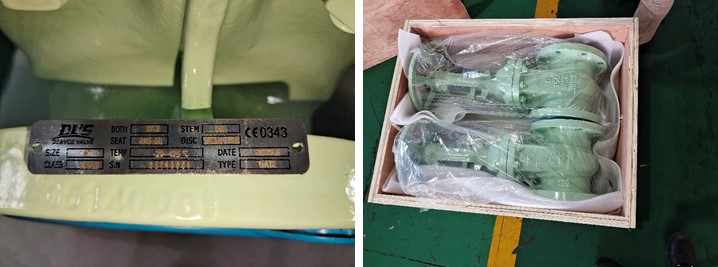

Nameplate & Packing

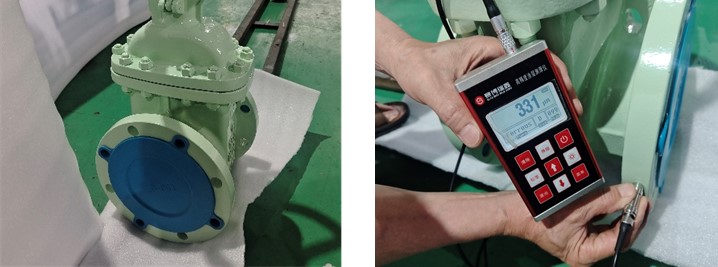

Painting
