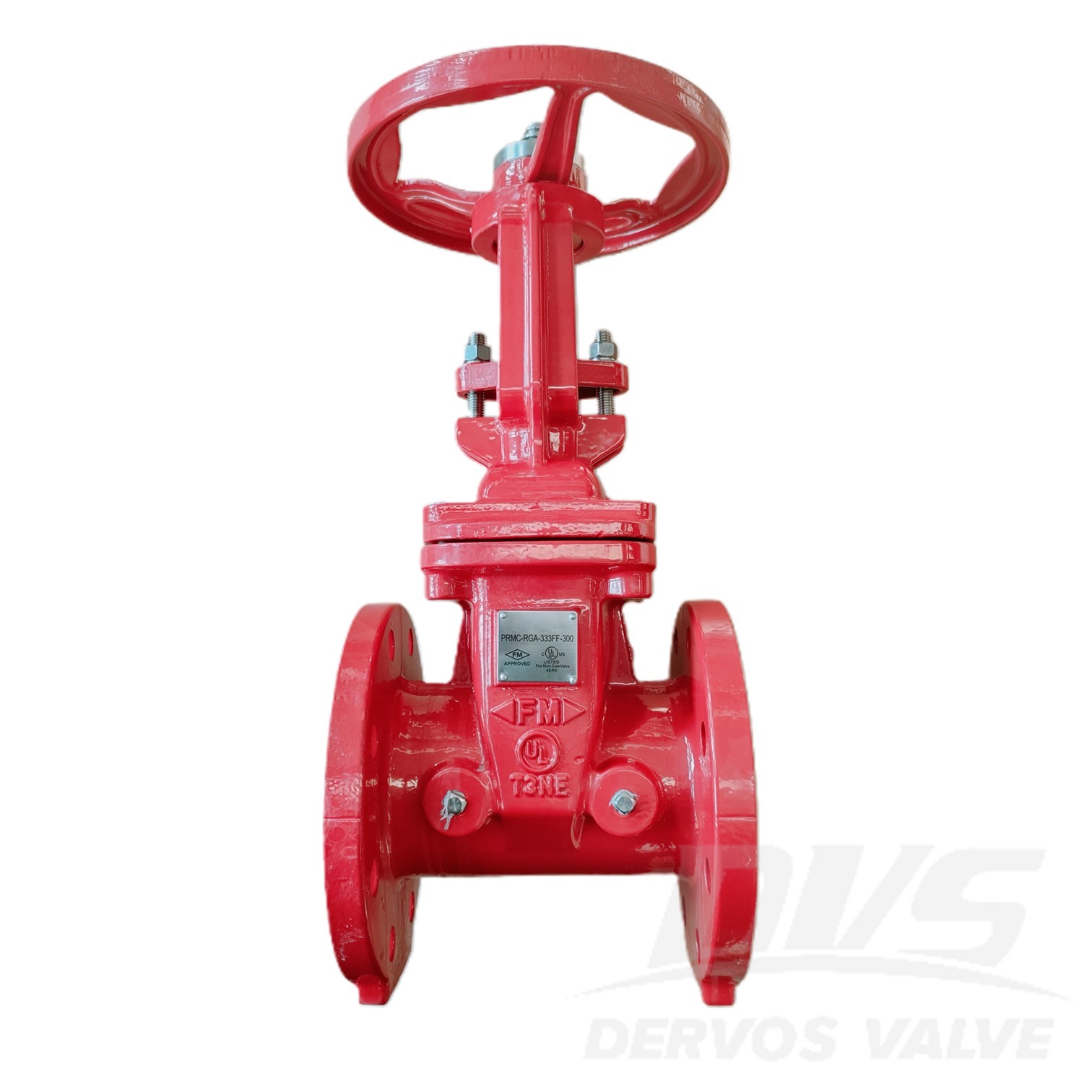

4" 150LB Ductile Iron Gate Valve ASTM RF OS&Y
Key Specifications / Features
Model No.: Hits: 0
4" 150LB Ductile Iron Gate Valve is made according to AWWA C515 standard. The valve body is made of ASTM A536 65-45-12. It has the structural characteristics of OS&Y Resilient Seat. It is operated by a handwheel.
Request a quote
Tags:
Detail Information
Product Description
| Type | Gate Valve |
| Size | 4” |
| Pressure | 150LB |
| Connection | RF |
| Body Material | ASTM A536 65-45-12 |
| Design Norm | AWWA C515 |
| Flange dimension | ANSI 150 |
| Working pressure | 300PSI. |
| Temperature | -10 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Built to AWWA C515 standards, this 4" gate valve features a ductile iron body (ASTM A536 65-45-12) with a resilient seated OS&Y design for reliable sealing.2.Operated by a handwheel, it offers smooth manual control and long-lasting performance in water and wastewater systems.

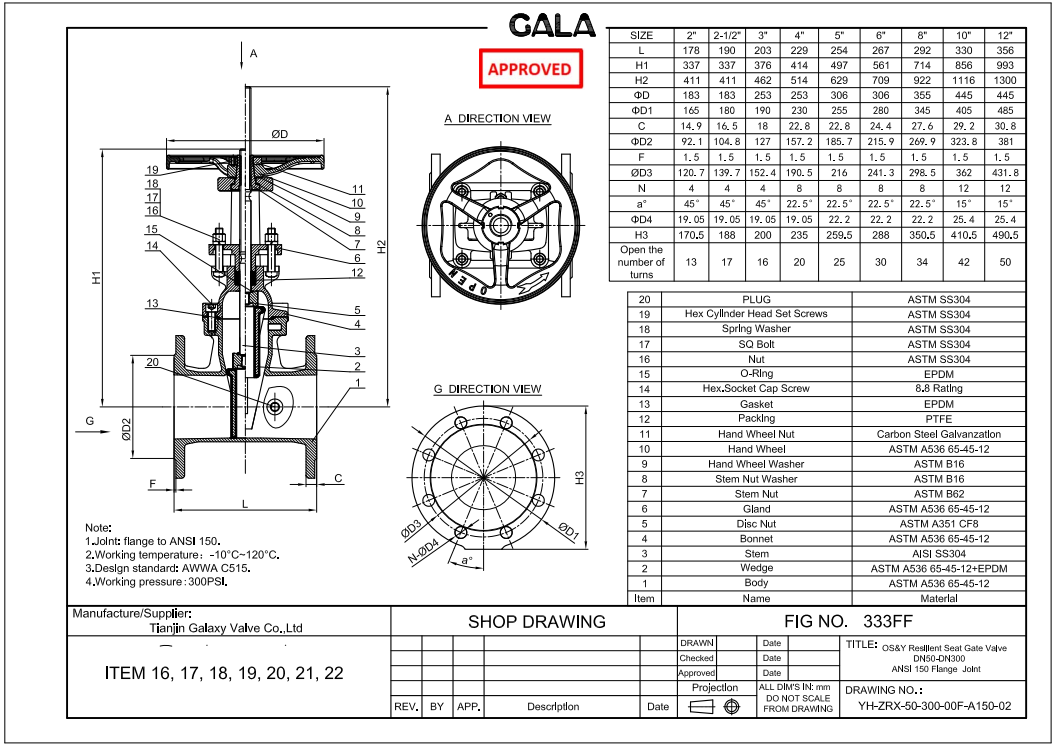

Ductile Iron Gate Valve Technical Drawing

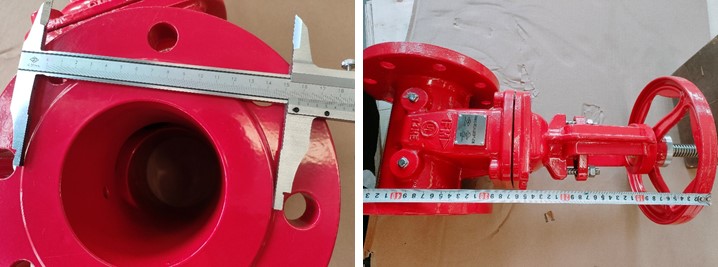

Dimension Checking

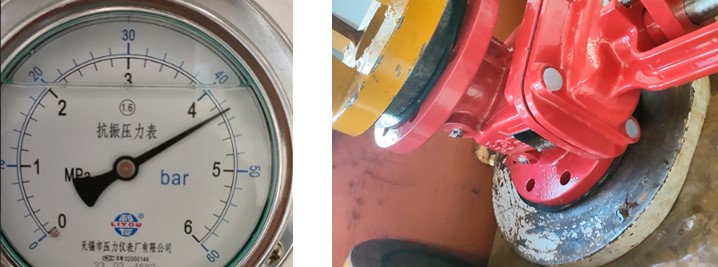

Pressure Testing

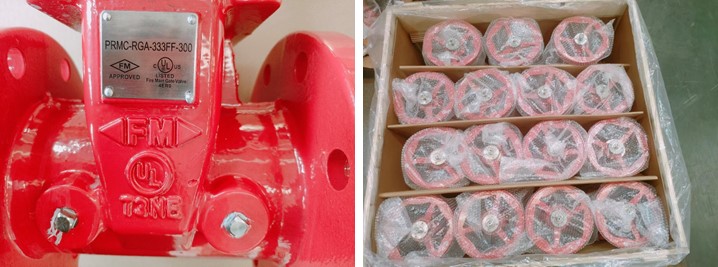

Nameplate & Packing

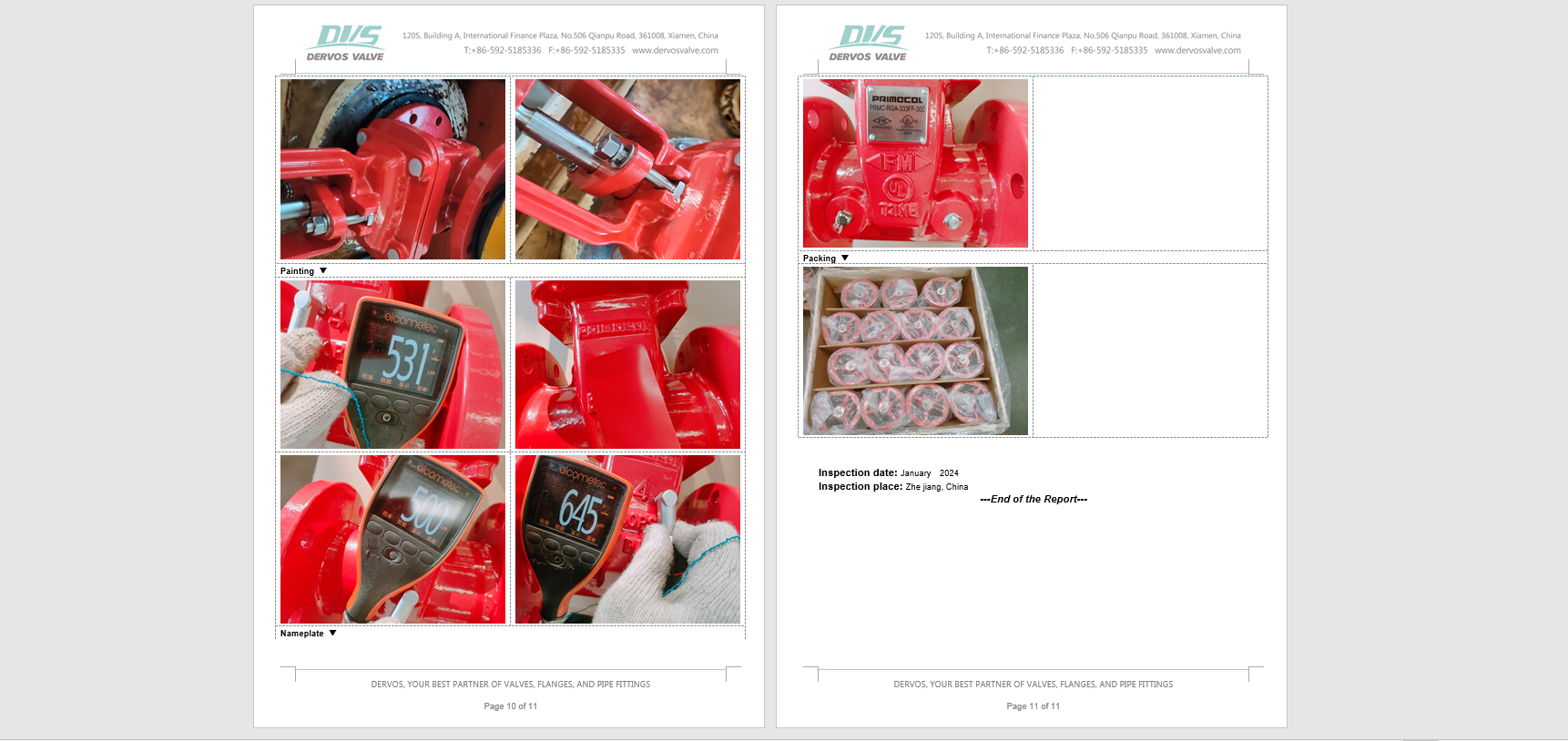

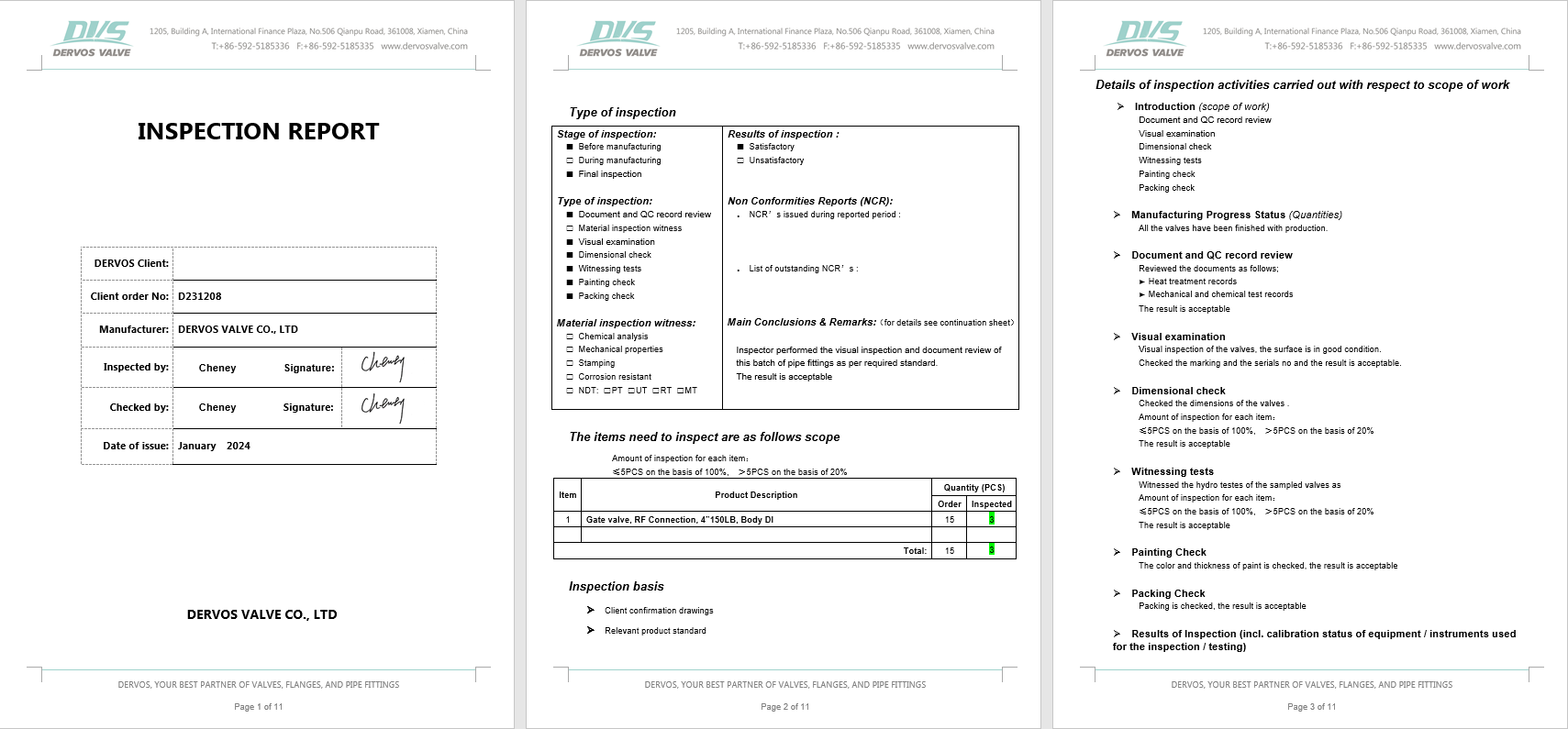

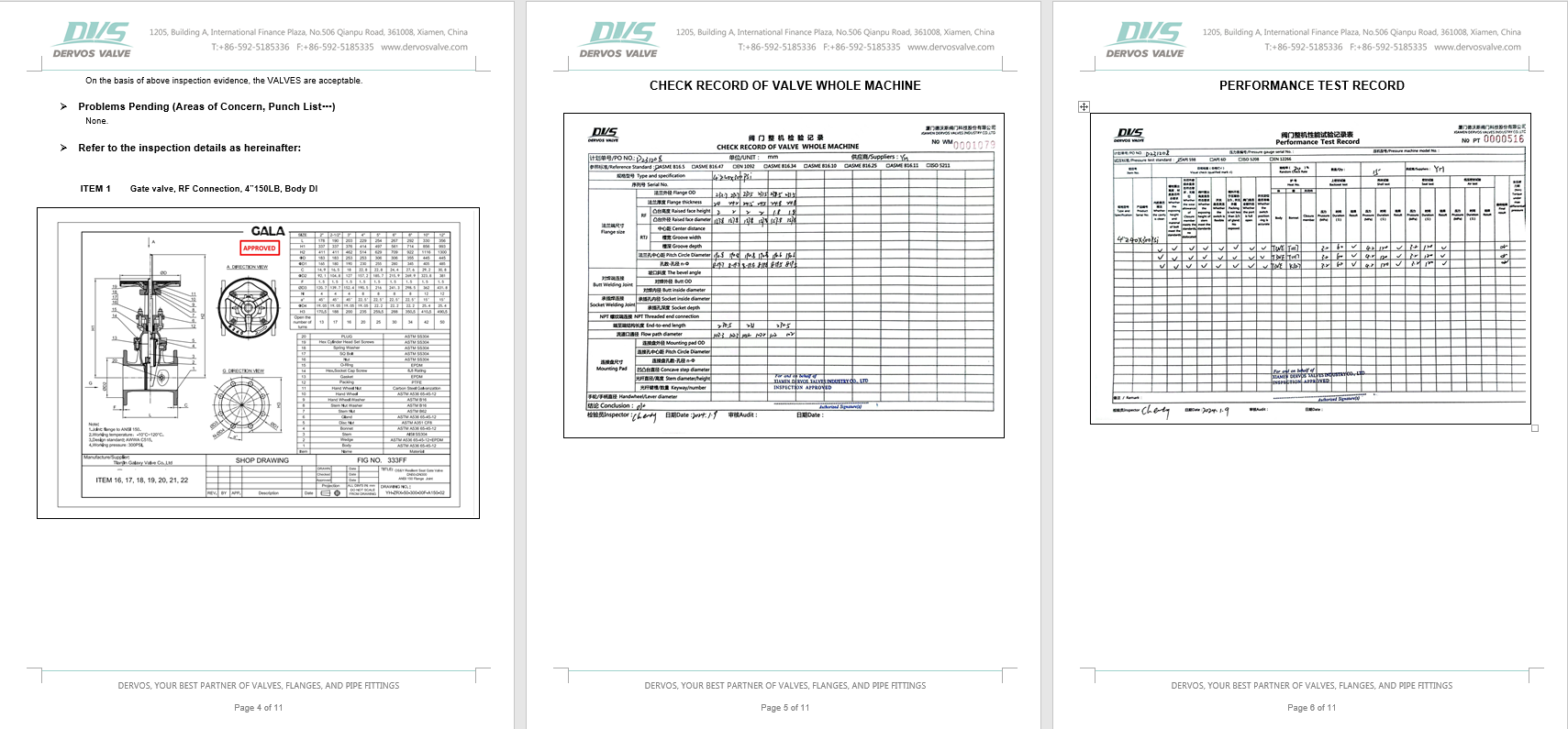

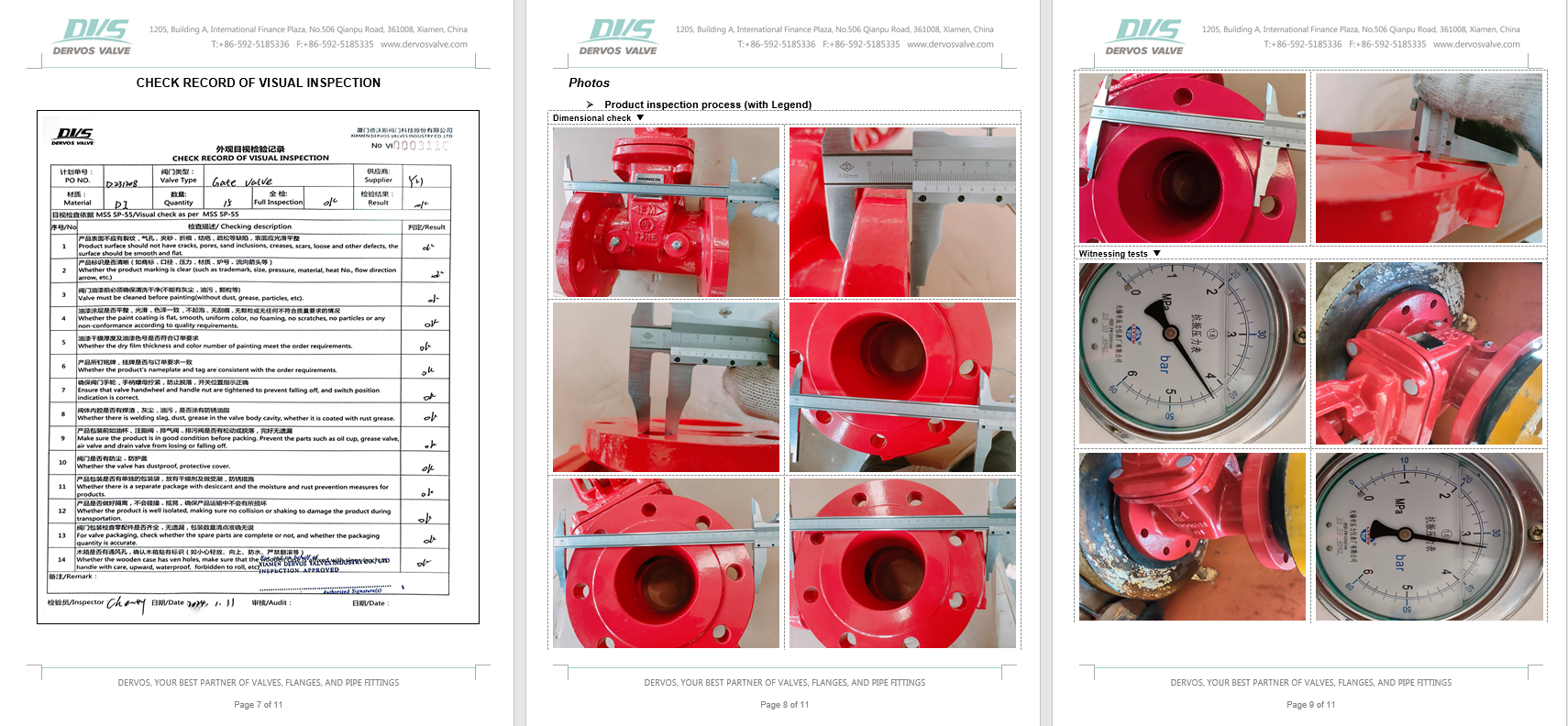

Inspection report
