11/2" 800LB Forged Steel Gate Valve F316L SW H.W.
Key Specifications / Features
Model No.: Hits: 0
11/2" 800LB Forged Steel Gate Valve is made according to API 602 standard. The valve body is made of F316L. Designed with a bolted bonnet, OS&Y structure, and replaceable seat rings for easy maintenance and reliable operation. Its connection mode is SW. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Forged Steel Gate Valve |
| Size | 11/2" |
| Pressure | 800LB |
| Connection | SW |
| Operation | H.W. |
| Body Material | A182 F316L |
| Design Norm | API602 |
| Socket Welding Dimension | ASME B16.11 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 300°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Forged from corrosion-resistant F316L stainless steel, ideal for high-pressure and corrosive fluid applications.
2. Socket weld ends with handwheel operation, designed for secure pipeline connections and easy manual flow control.

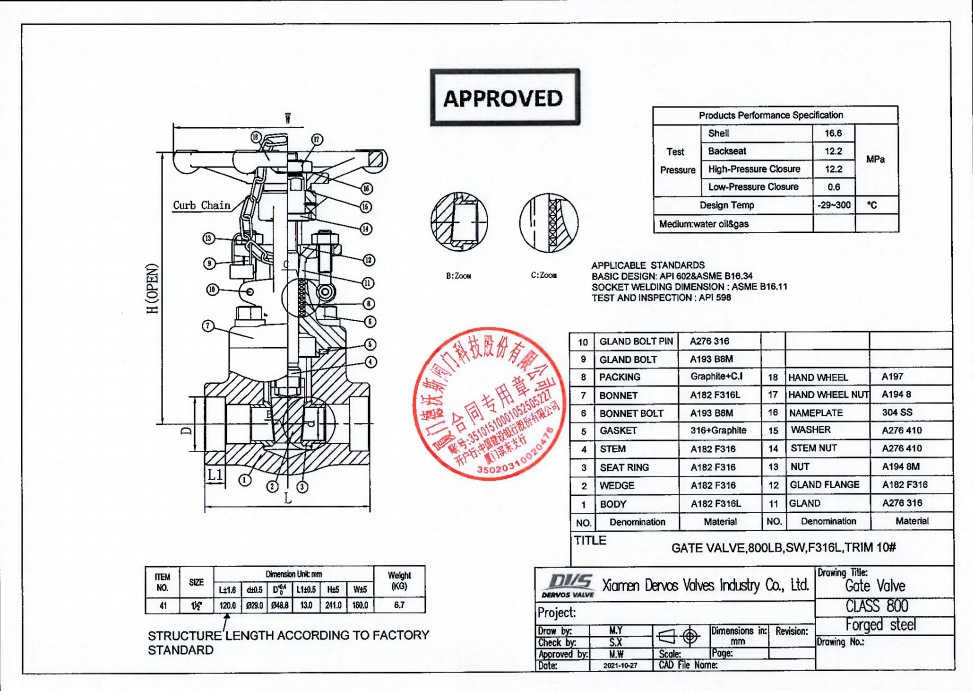

Forged Steel Gate Valve Technical Drawing

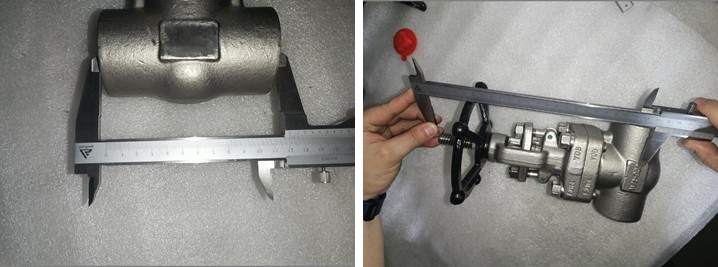

Dimension Checking

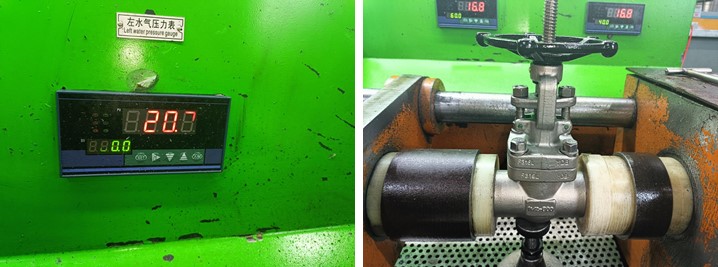

Pressure Testing

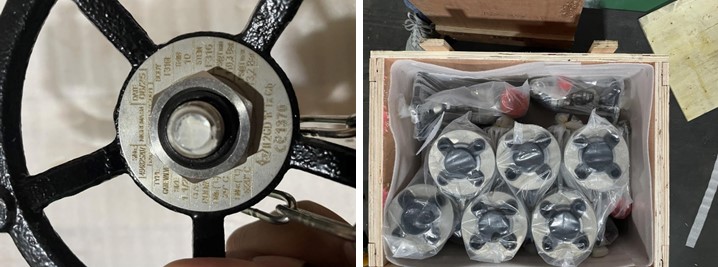

Nameplate & Packing
