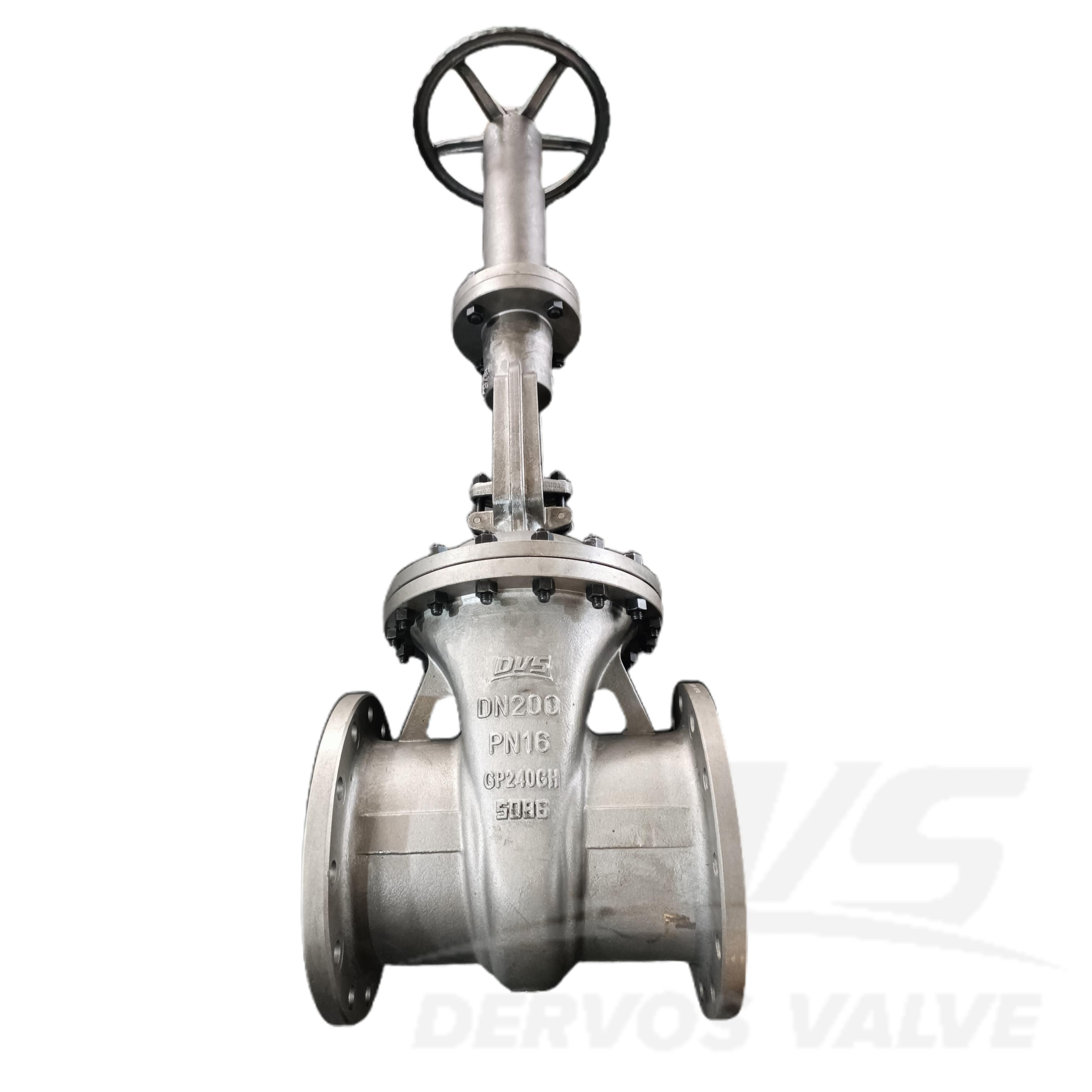

DN200 PN16 Cast Steel Gate Valve EN1092-1 B H.W.
Key Specifications / Features
Model No.: Hits: 0
DN200 PN16 Cast Steel Gate Valve is made according to BS EN1984 standard. The valve body is made of EN 10213 GP240GH. It has the structural characteristics of Bolted Bonnet, Flexible Wedge, Rising Stem with Yoke, Extended Stem 1200 mm. Its connection mode is EN1092-1 B. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Cast Steel Gate Valve |
| Size | DN200 |
| Pressure | PN16 |
| Connection | EN1092-1 B |
| Operation | H.W. |
| Body Material | GP240GH |
| Design Norm | EN 558-1 15 |
| Face to Face | BS EN 558 Series 15 |
| End connection | BS EN 1092-1 |
| Pressure-temperature | BS EN 12516-1 |
| Test & Inspection Code | BS EN 12266 |
| Temperature | -10 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Cast steel body provides high strength and durability for industrial fluid control.2. Flanged connection per EN1092-1 ensures reliable sealing and easy installation.

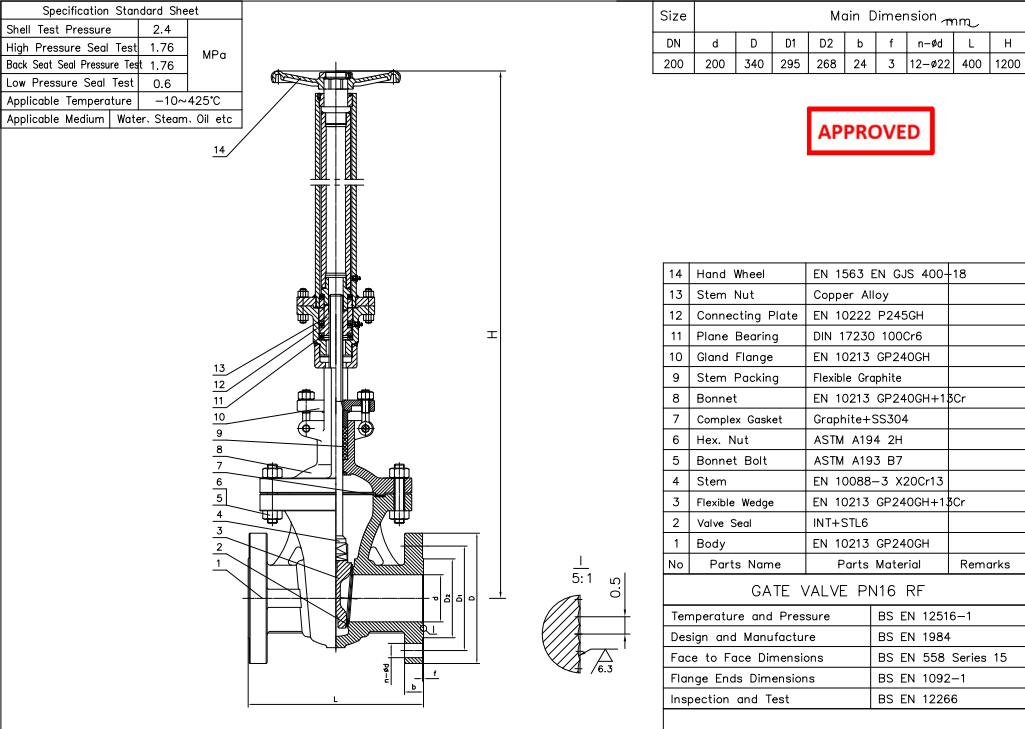

Technical Drawing

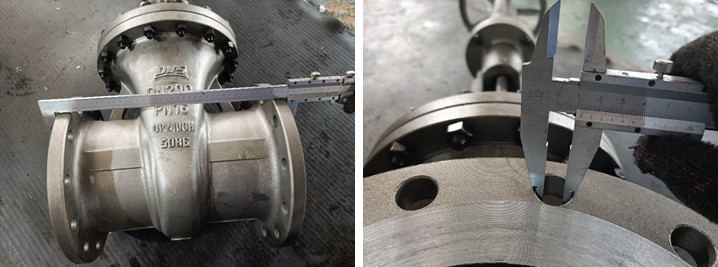

Dimension Checking

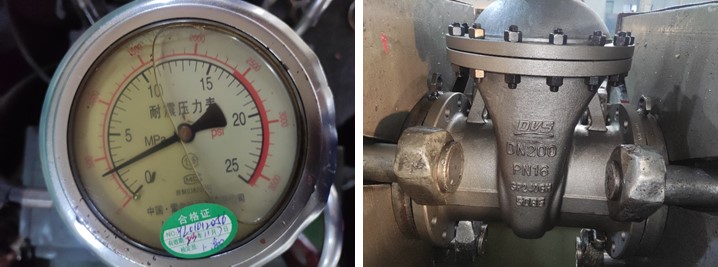

Pressure Testing

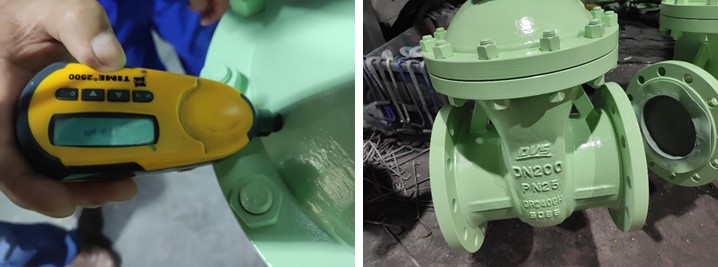

Painting

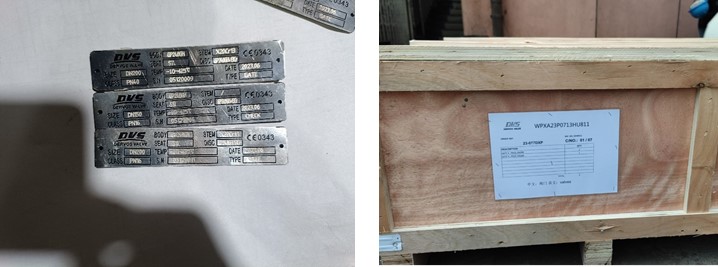

Nameplate & Packing

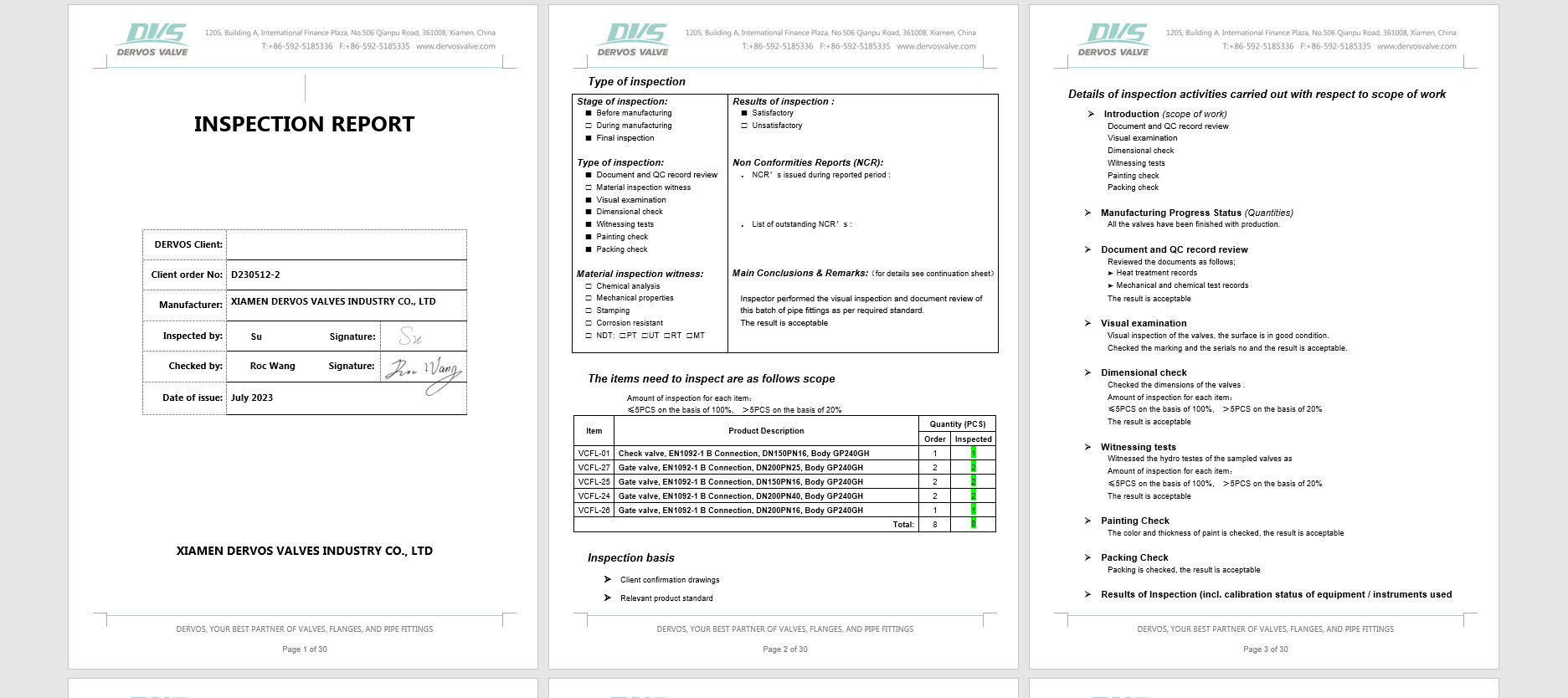

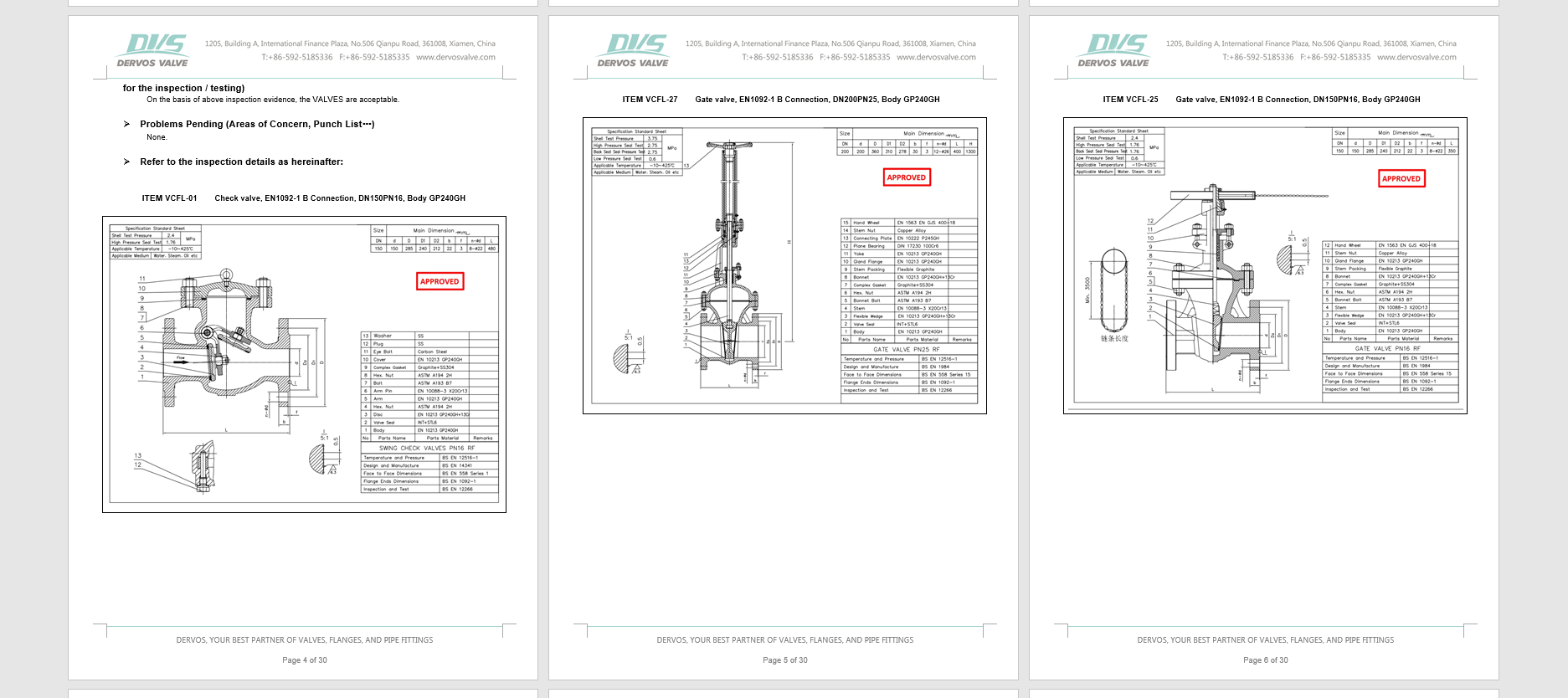

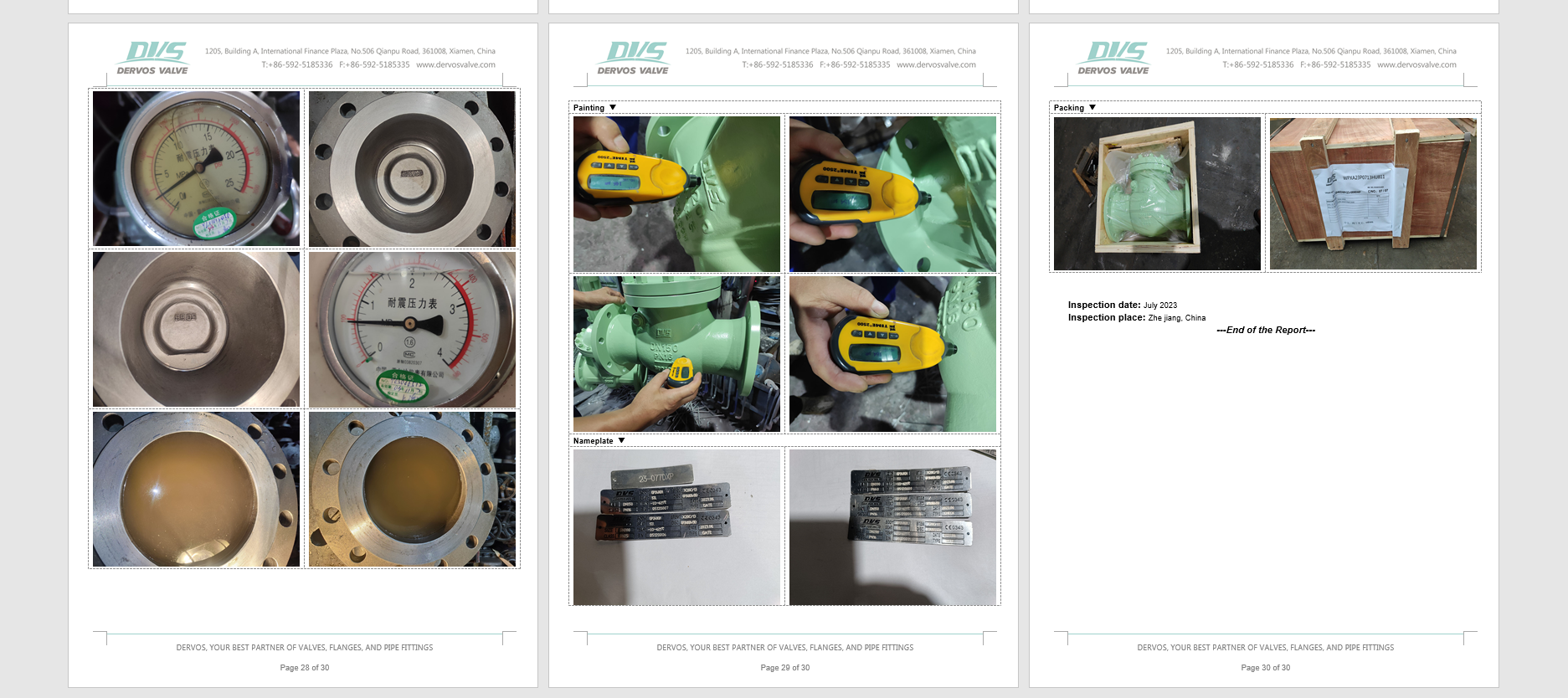

Inspection Report
