3” 300LB Cast Steel Gate Valve LCB API600 H.W.
Key Specifications / Features
Model No.: Hits: 0
3” 300LB Cast Steel Gate Valve is made according to API600 standard. The valve body is made of ASTM A352 LCB. It has the structural characteristics of Bonnet. Its connection mode is RF.
Request a quote
Tags:
Detail Information
Product Description
| Type | Cast Steel Gate Valve |
| Size | 3” |
| Pressure | 300LB |
| Connection | RF |
| Body Material | ASTM A352 LCB |
| Design Norm | API 600 |
| Face to Face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -46 ~ 345°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Constructed from LCB cast steel, offering excellent corrosion resistance and strength for 300LB pressure systems.2. Rising stem gate design with API 600 compliance and H.W. ends ensures reliable flow control and tight shutoff.

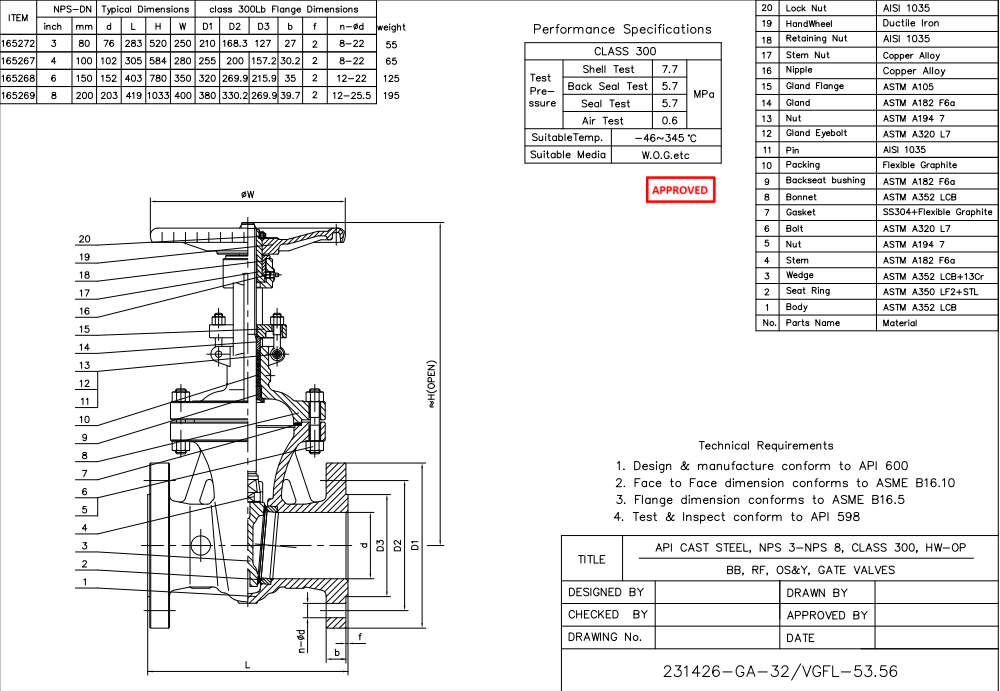

Technical Drawing

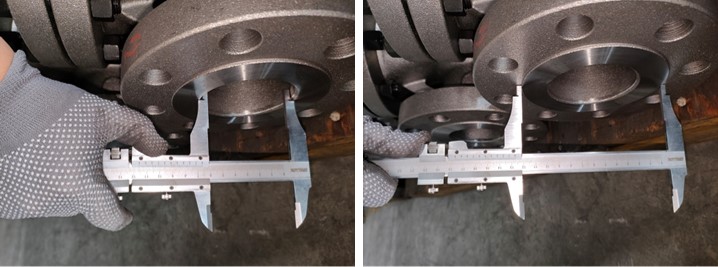

Dimension Checking

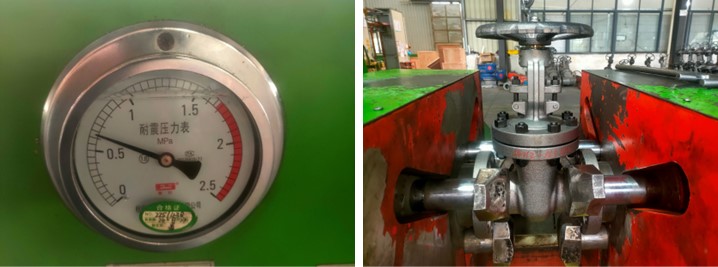

Pressure Testing

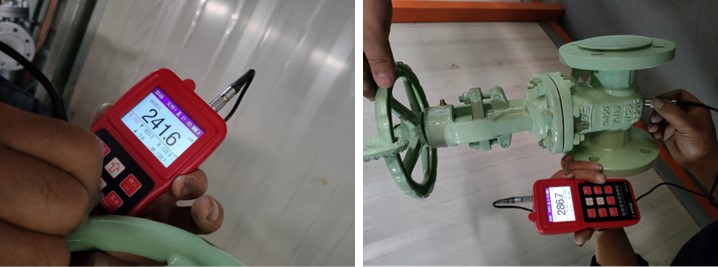

Painting

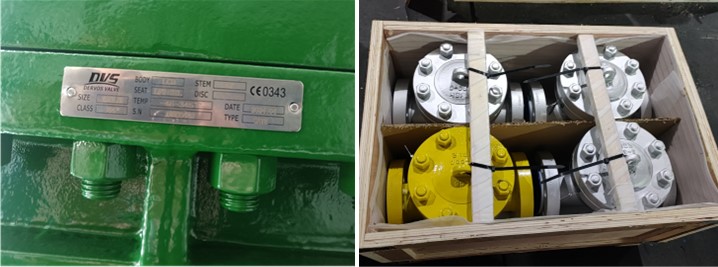

Nameplate & Packing
