API600 2” 150LB Cast Steel Gate Valve A216 WCB H.W.
Key Specifications / Features
Model No.: Hits: 0
2” 150LB Cast Steel Gate Valve is made according to API600 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of Bolted Bonnet, Flexible Wedge. Its connection mode is RF. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Cast Steel Gate Valve |
| Size | 2" |
| Pressure | 150LB |
| Connection | RF |
| Operation | H.W. |
| Body Material | ASTM A216 WCB |
| Design Norm | API 600 |
| Face to Face | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Made of A216 WCB cast steel, this 2” gate valve offers robust durability and reliable performance under 150LB pressure.2. Engineered according to API 600 standards with handwheel (H.W.) operation, it provides precise control and easy manual operation.

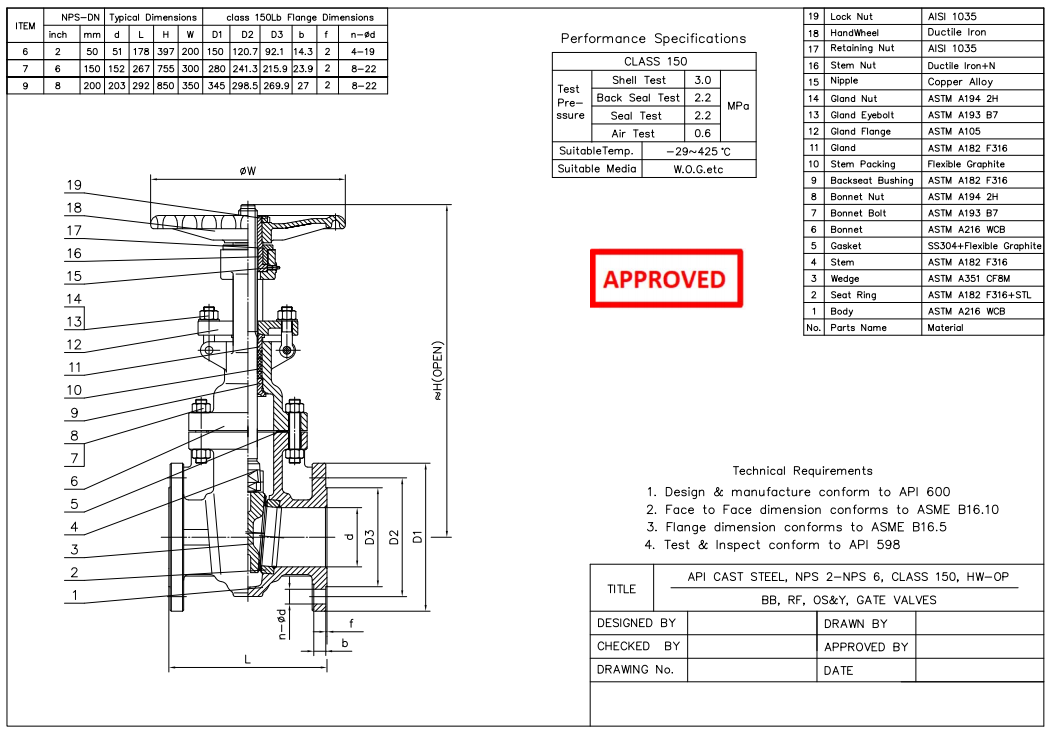

Technical Drawing

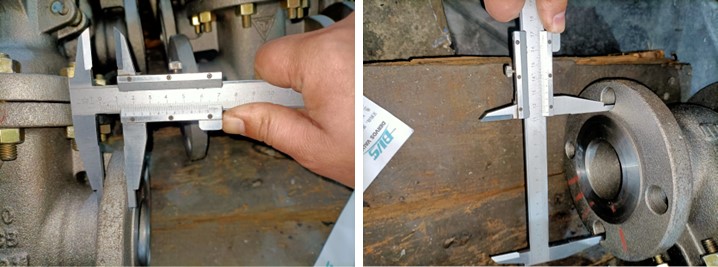

Dimension Checking

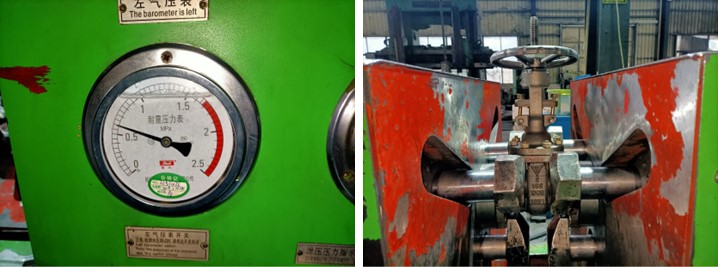

Pressure Testing

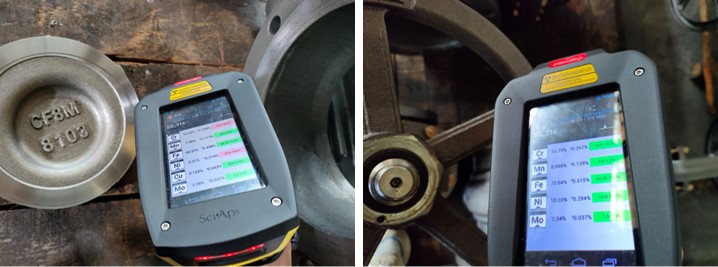

Spectrum

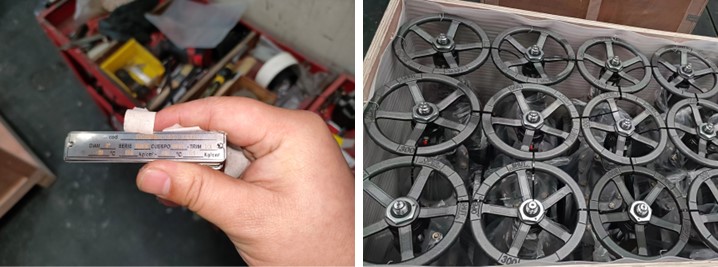

Nameplate & Packing

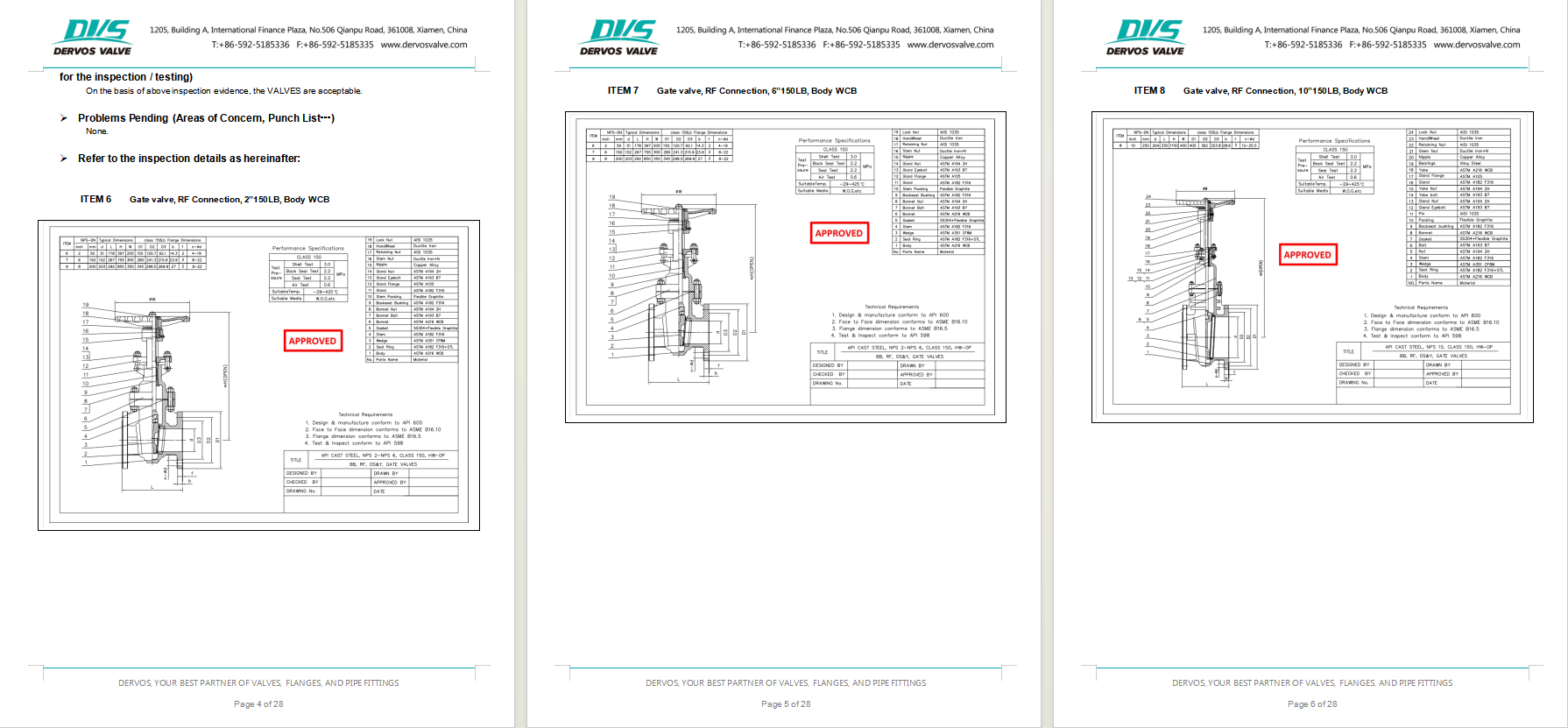

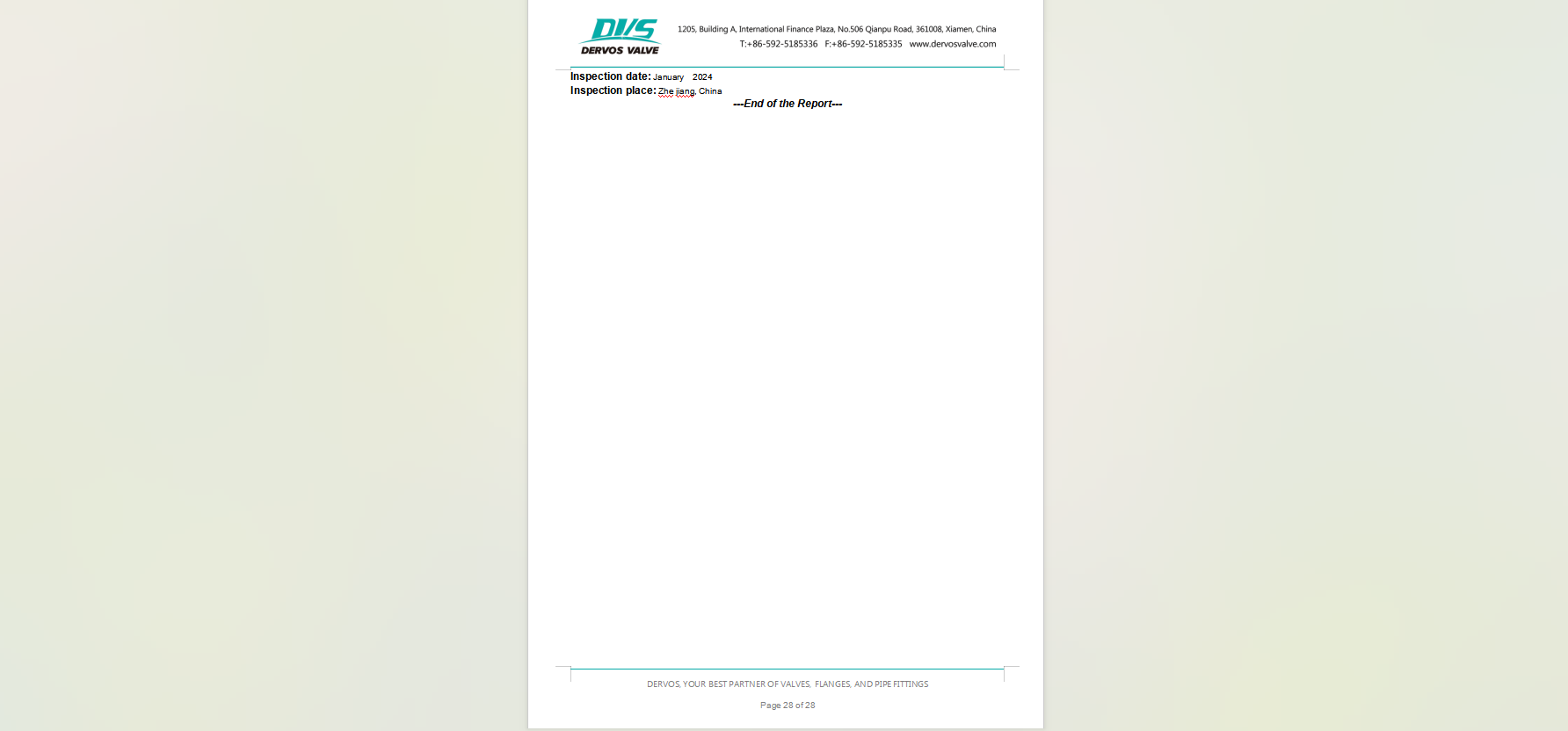

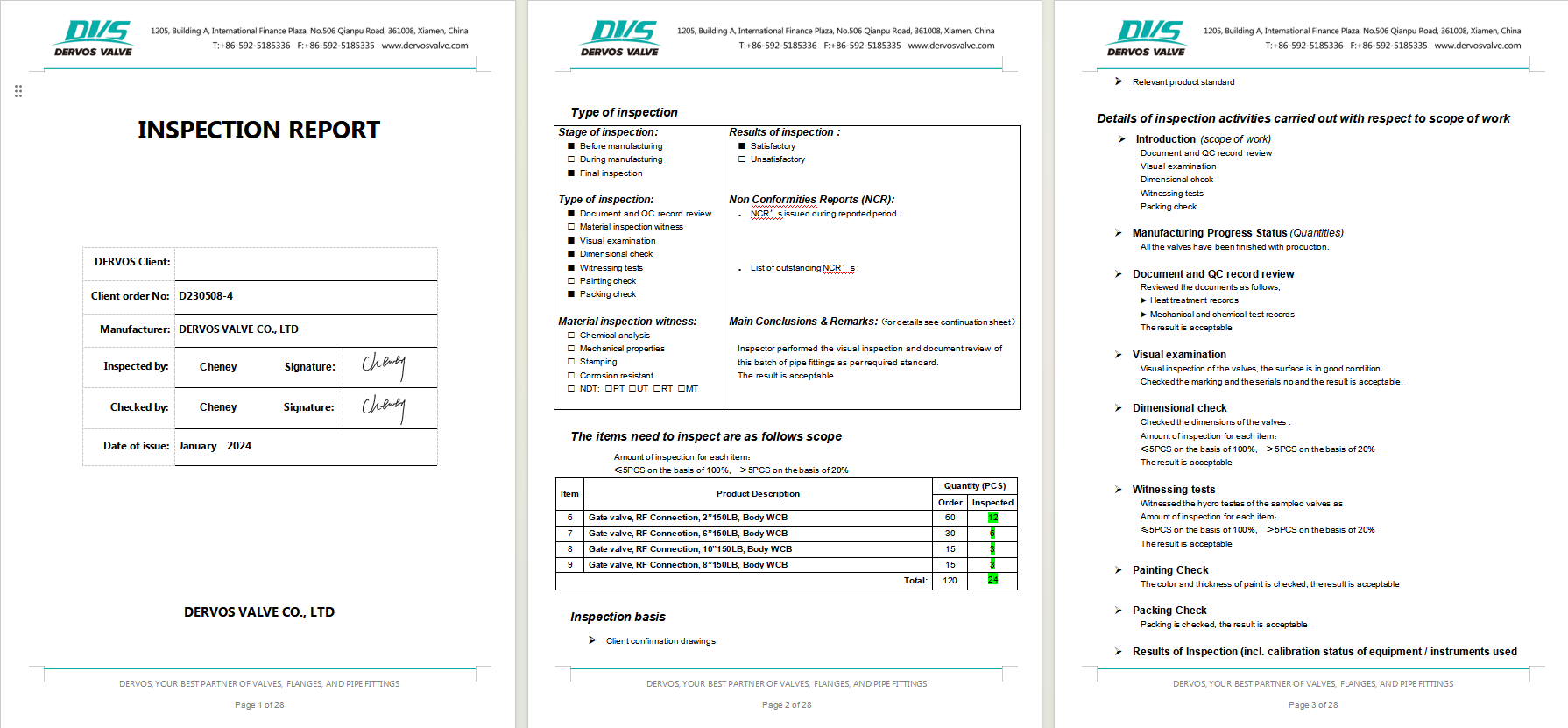

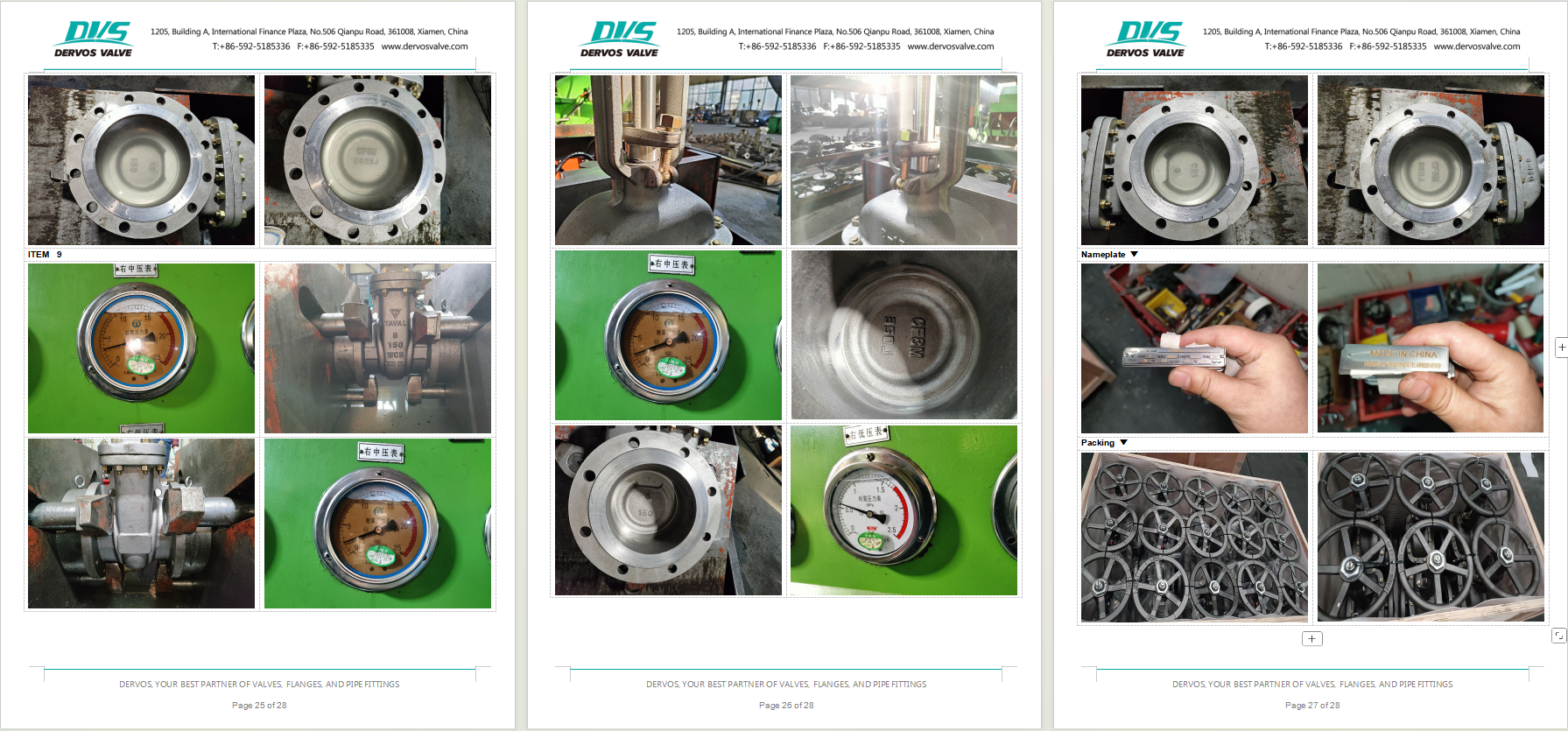

Inspection Report
