1-1/2" 300LB Forged Steel Flange Gate Valve API602 A105N Hand Wheel
Key Specifications / Features
Model No.: Hits: 0

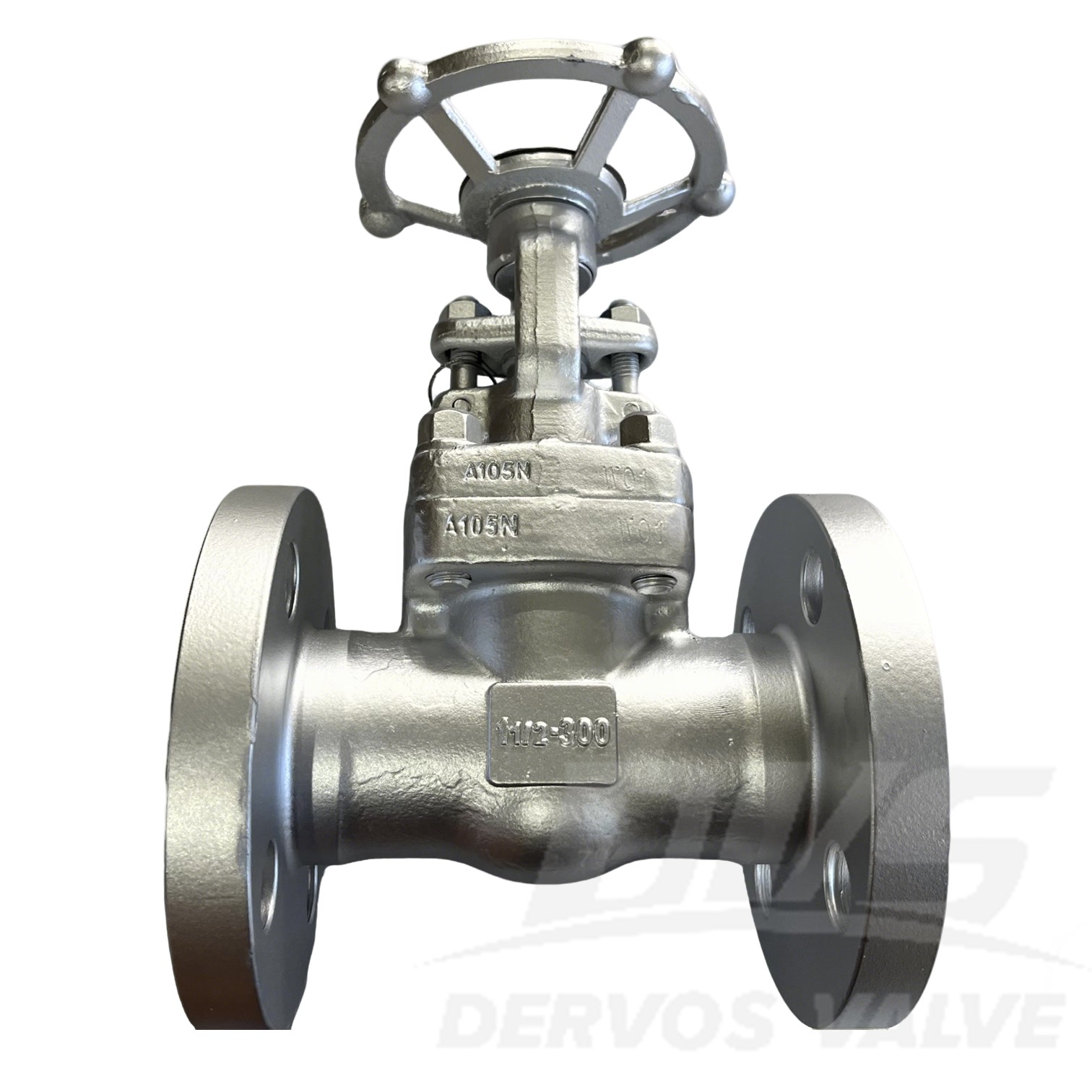

1-1/2" 300LB Forged Steel Flange Gate Valve is made according to API602 standard. The valve body is made of A105N. It has the structural characteristics of Bolted Bonnet Solid Wedge. Its connection mode is RF. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Flange Gate Valve |
| Size | 1-1/2" |
| Pressure | 300LB |
| Connection | RF |
| Operation | Hand wheel |
| Body Material | A105N |
| Design Norm | API 602 |
| Face to Face | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Heavy-duty 300LB pressure rating with forged A105N carbon steel construction ensures reliable performance.2.API 602 compliant flanged gate valve design with hand wheel allows for durable shut-off in industrial applications.

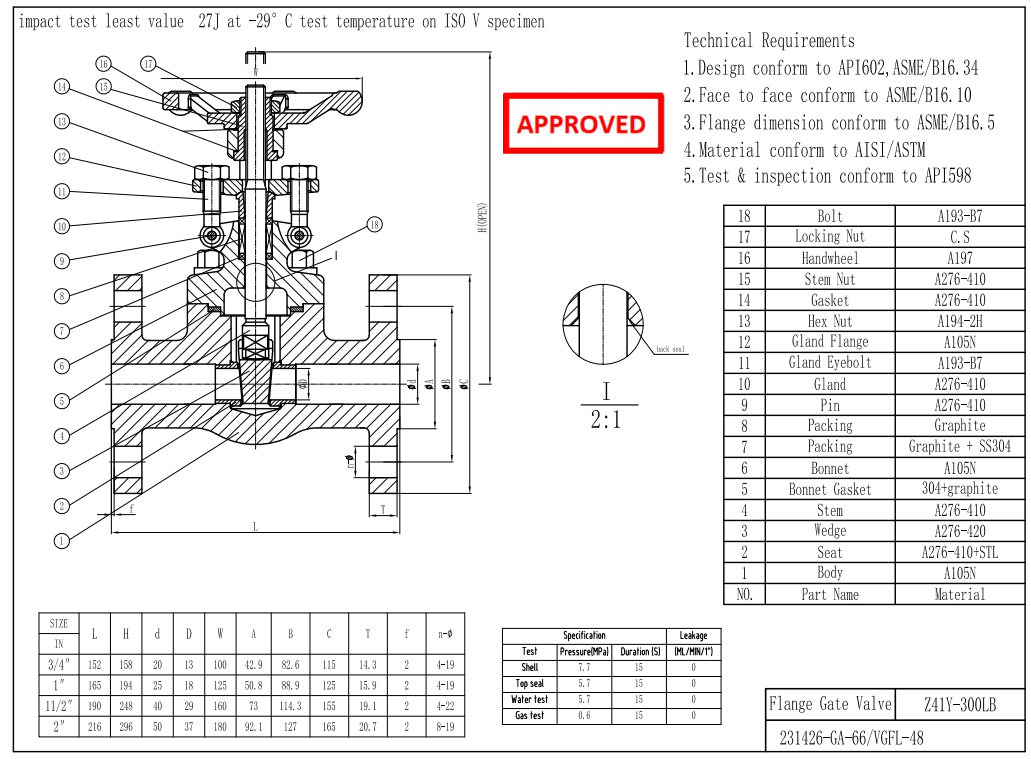

Technical Drawing

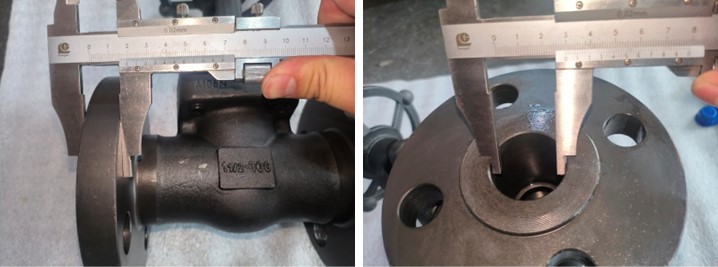

Dimension Checking

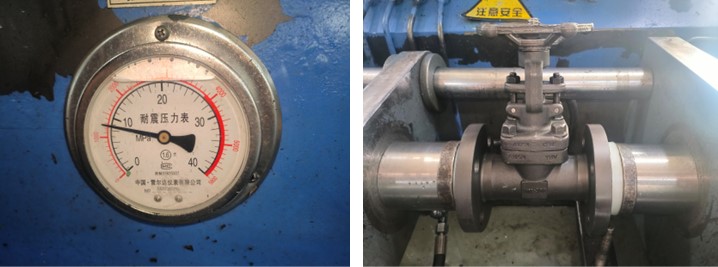

Pressure Testing

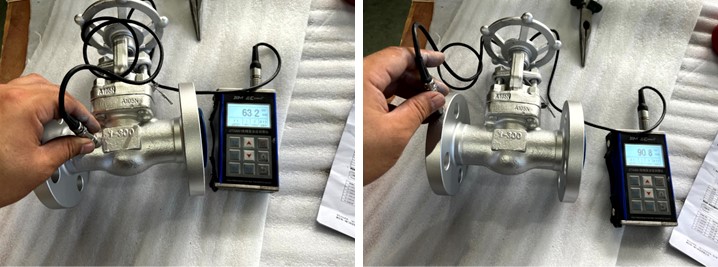

Painting

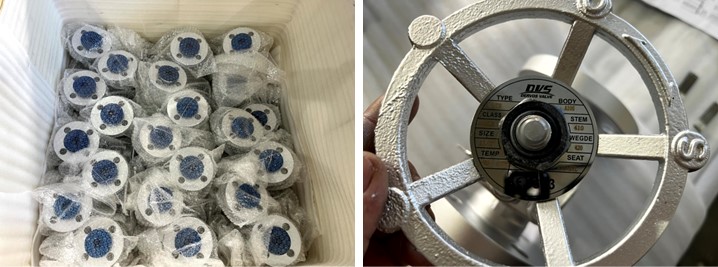

Nameplate & Packing

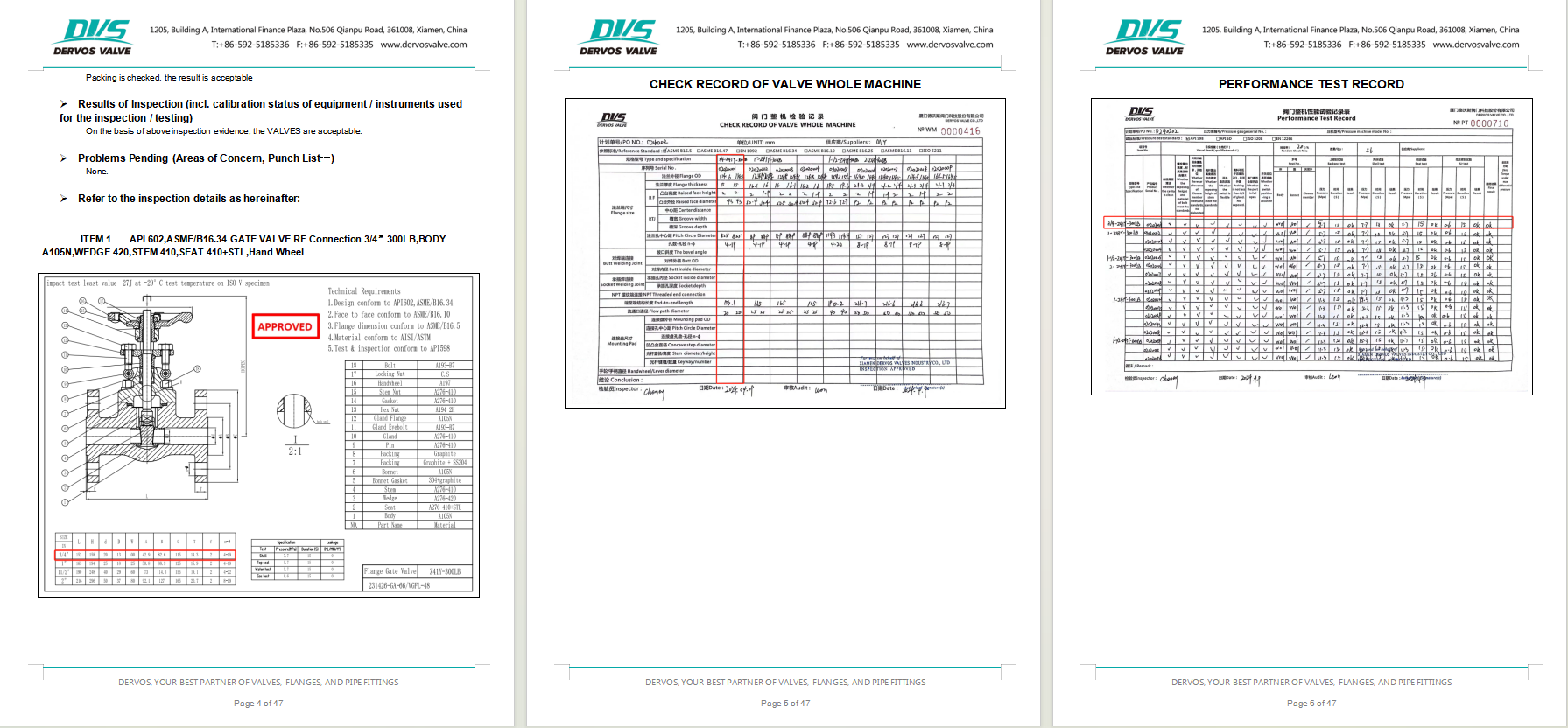

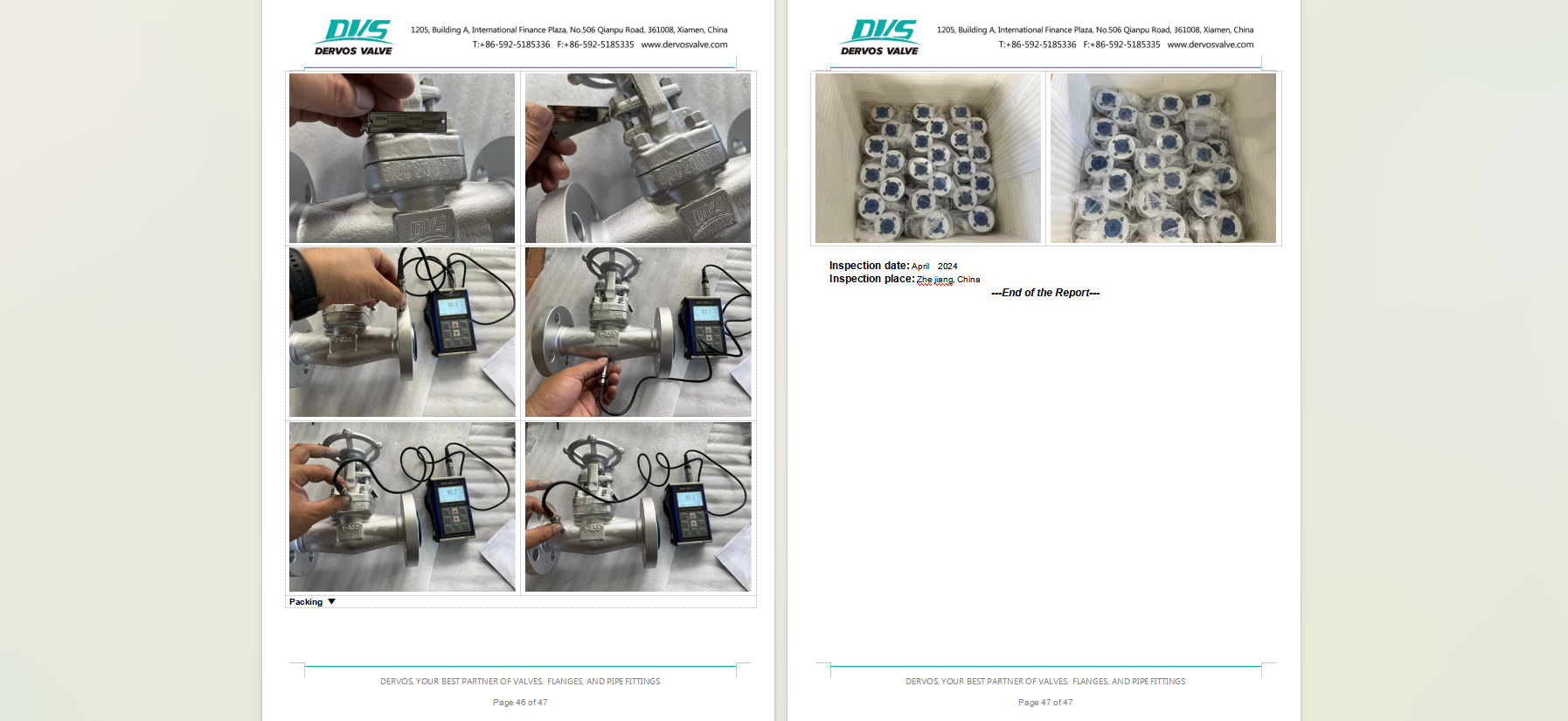

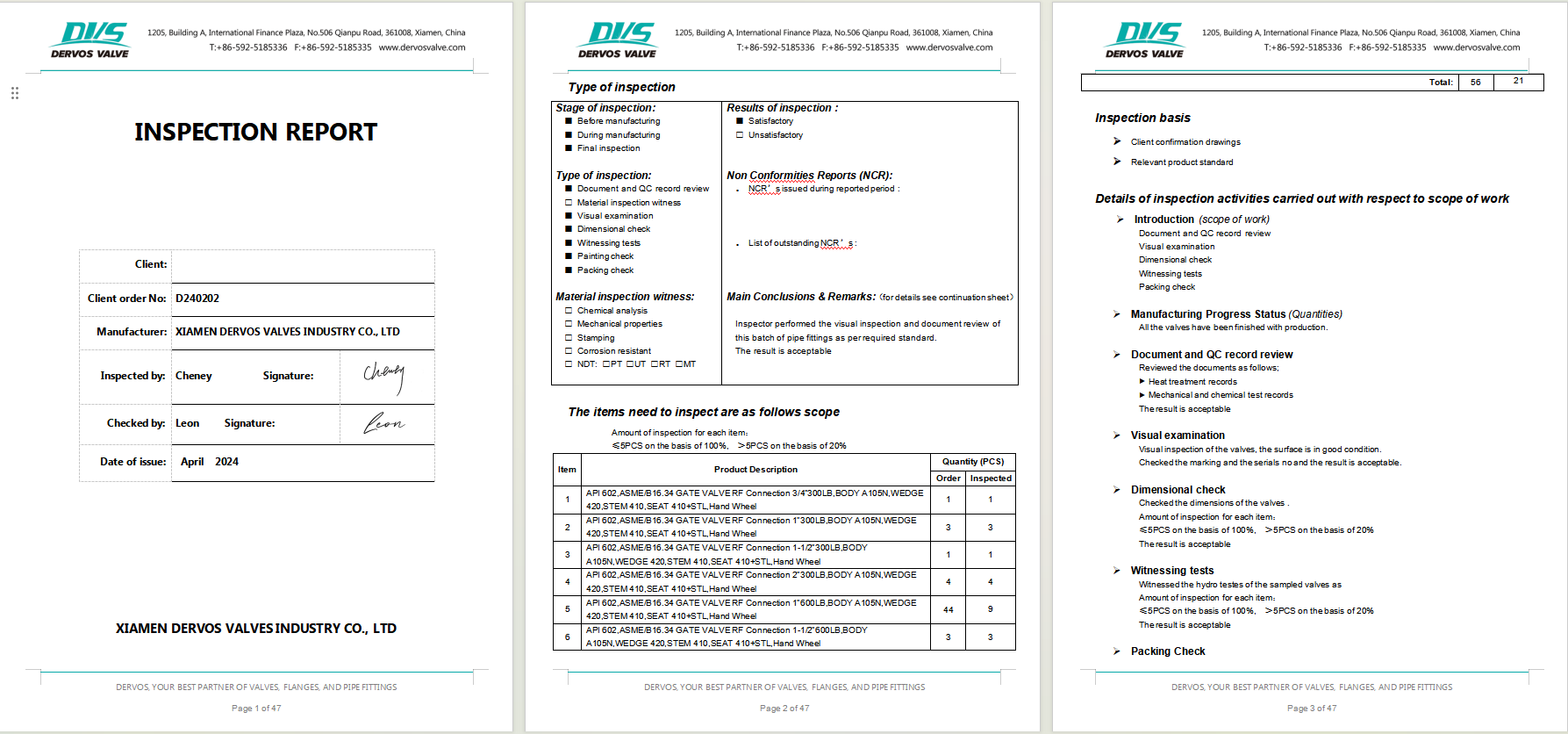

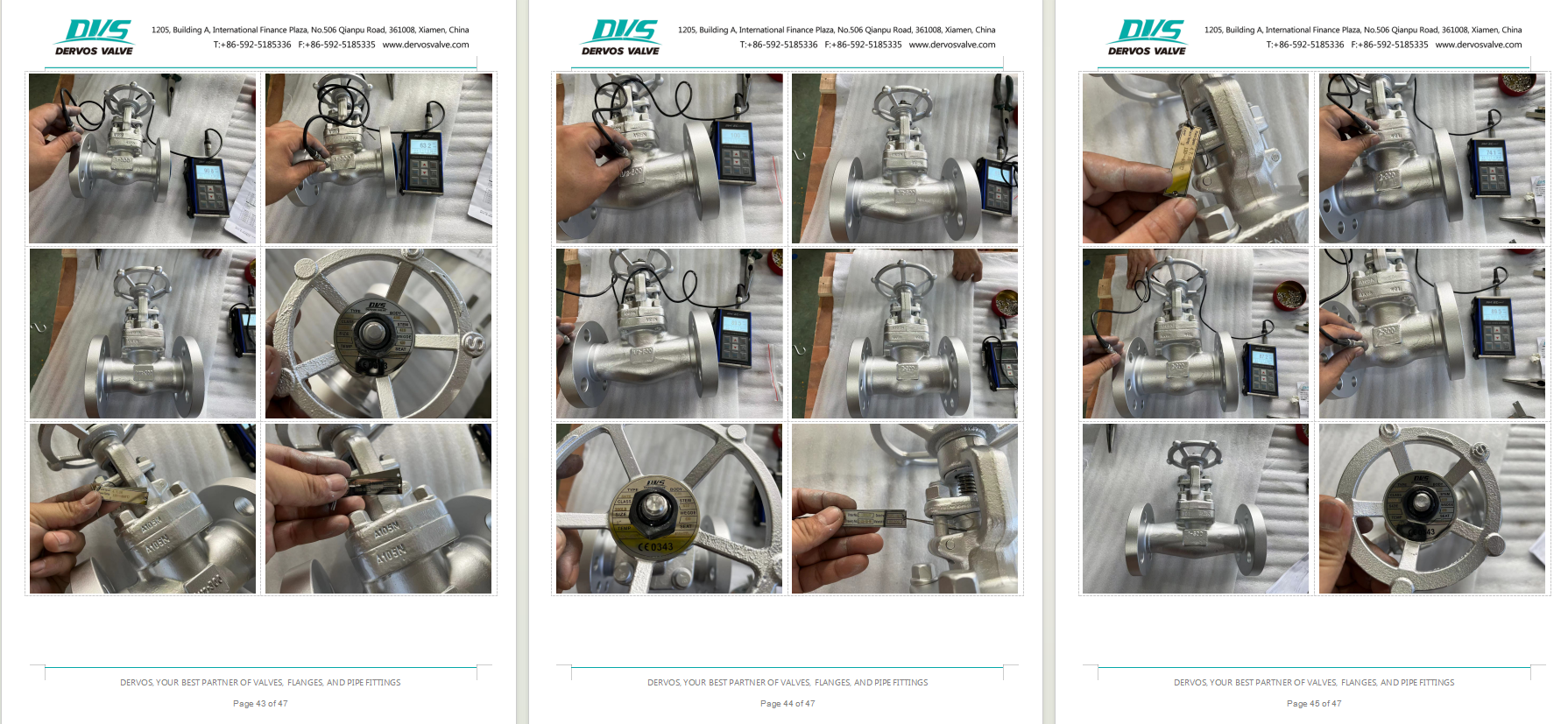

Inspection Report
