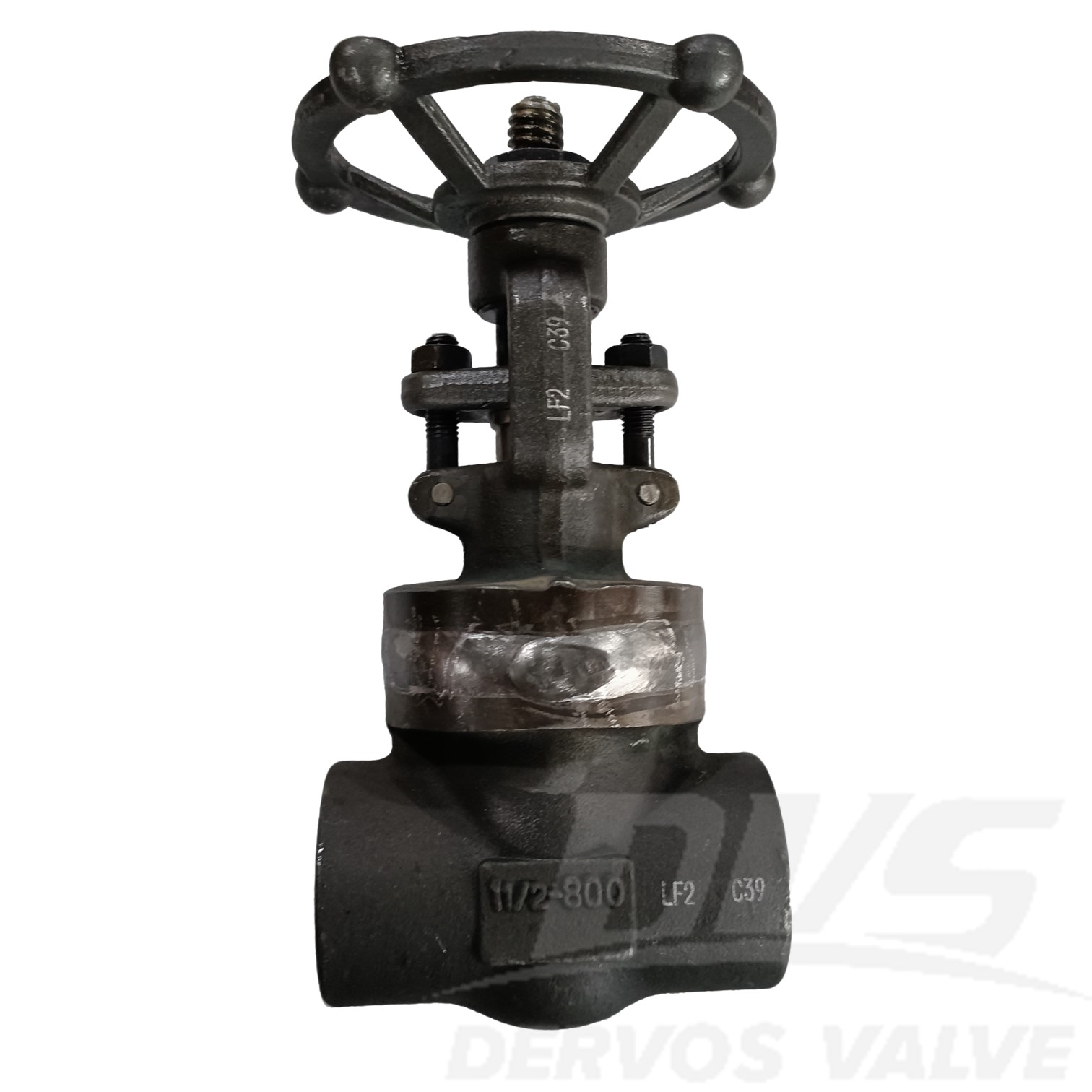

API 602 1 1/2”800LB Forged Steel Gate Valve SW LF2
Key Specifications / Features
Model No.: Hits: 0
1 1/2”800LB Forged Steel Gate Valve is made according to API602 standard. The valve body is made of LF2. It has the structural characteristics of OS&Y, Welded Bonnet (Seal Weld). Its connection mode is SW. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Forged Steel Gate Valve |
| Size | 1 1/2” |
| Pressure | 800LB |
| Connection | SW |
| Operation | Hand wheel |
| Body Material | A350-LF2 |
| Design Norm | API602 |
| End to End | API 6D |
| End connection | ASME B16.5 |
| Test & Inspection Code | API 6D |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Forged from LF2 carbon steel, offering excellent low-temperature toughness and reliable performance for 800LB pressure class systems.2.Gate valve with SW ends, compliant with API 602, ensures smooth operation and tight shutoff in industrial pipelines.

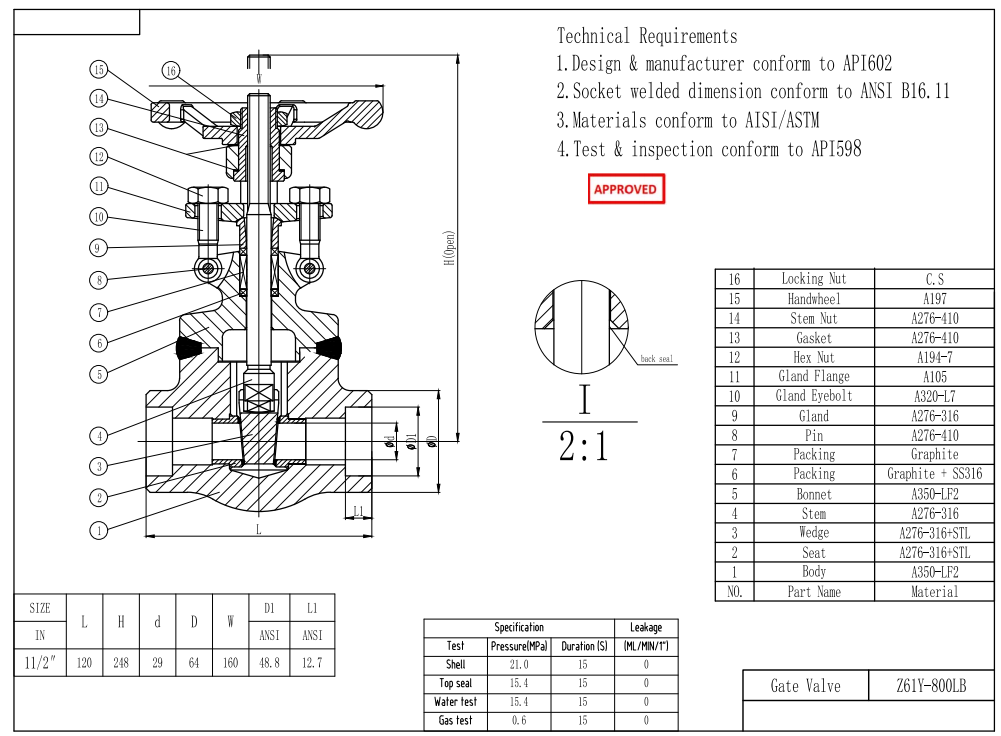

Technical Drawing

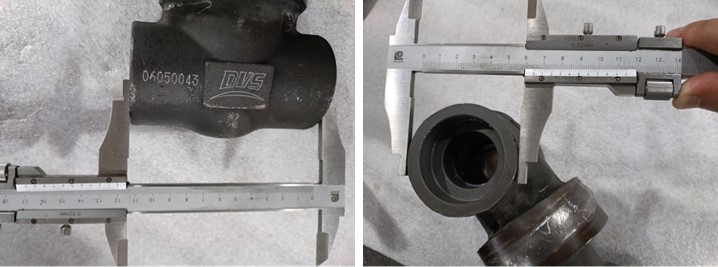

Dimension Checking

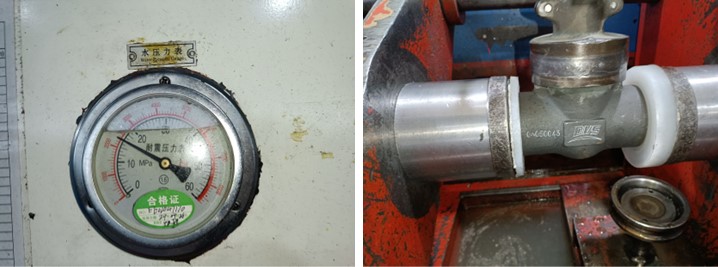

Pressure Testing

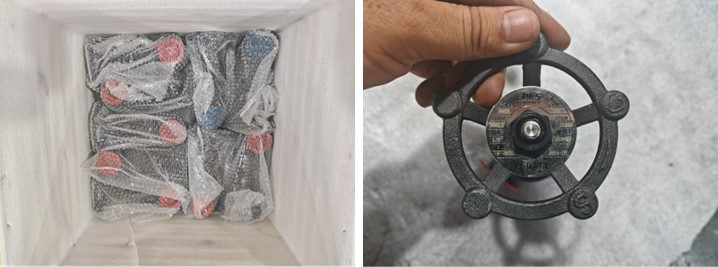

Nameplate & Packing

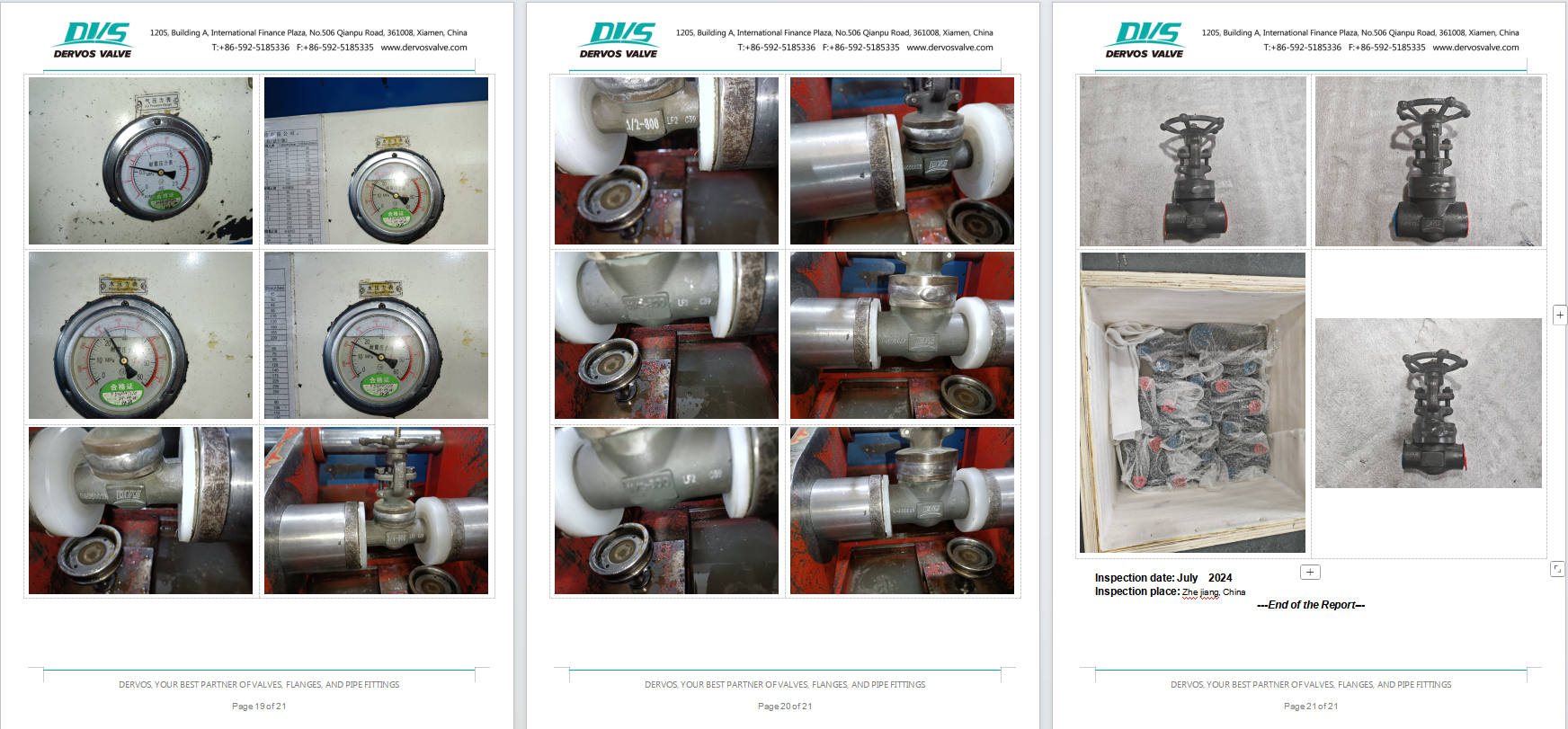

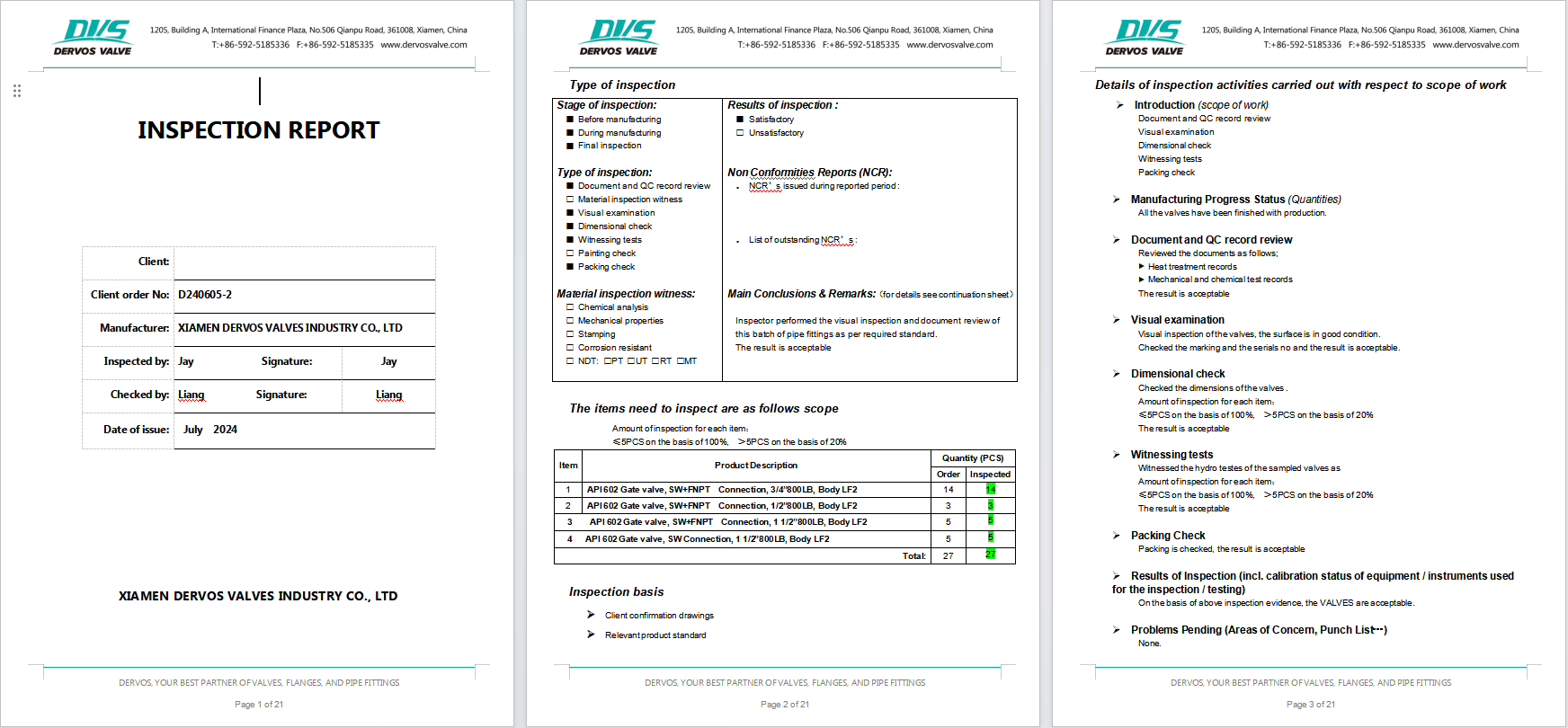

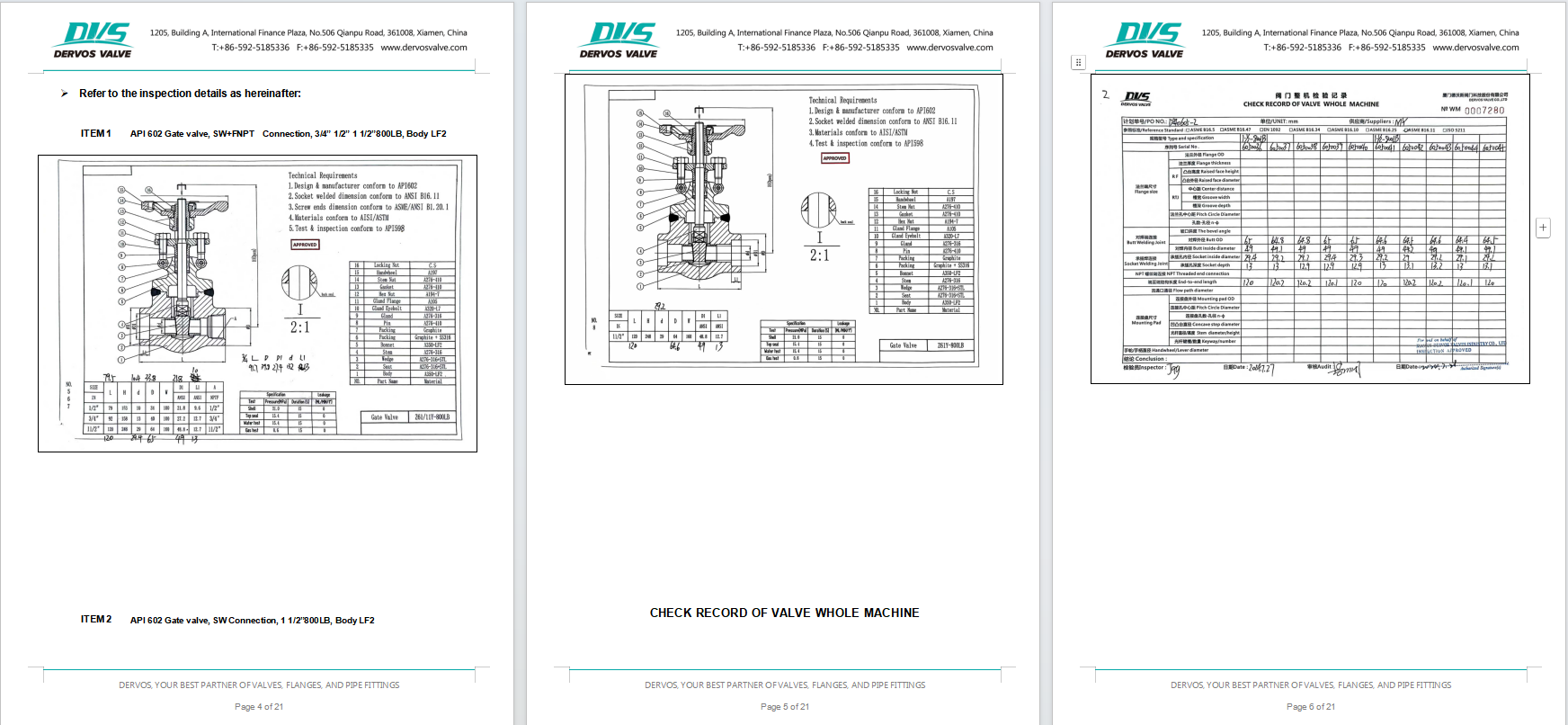

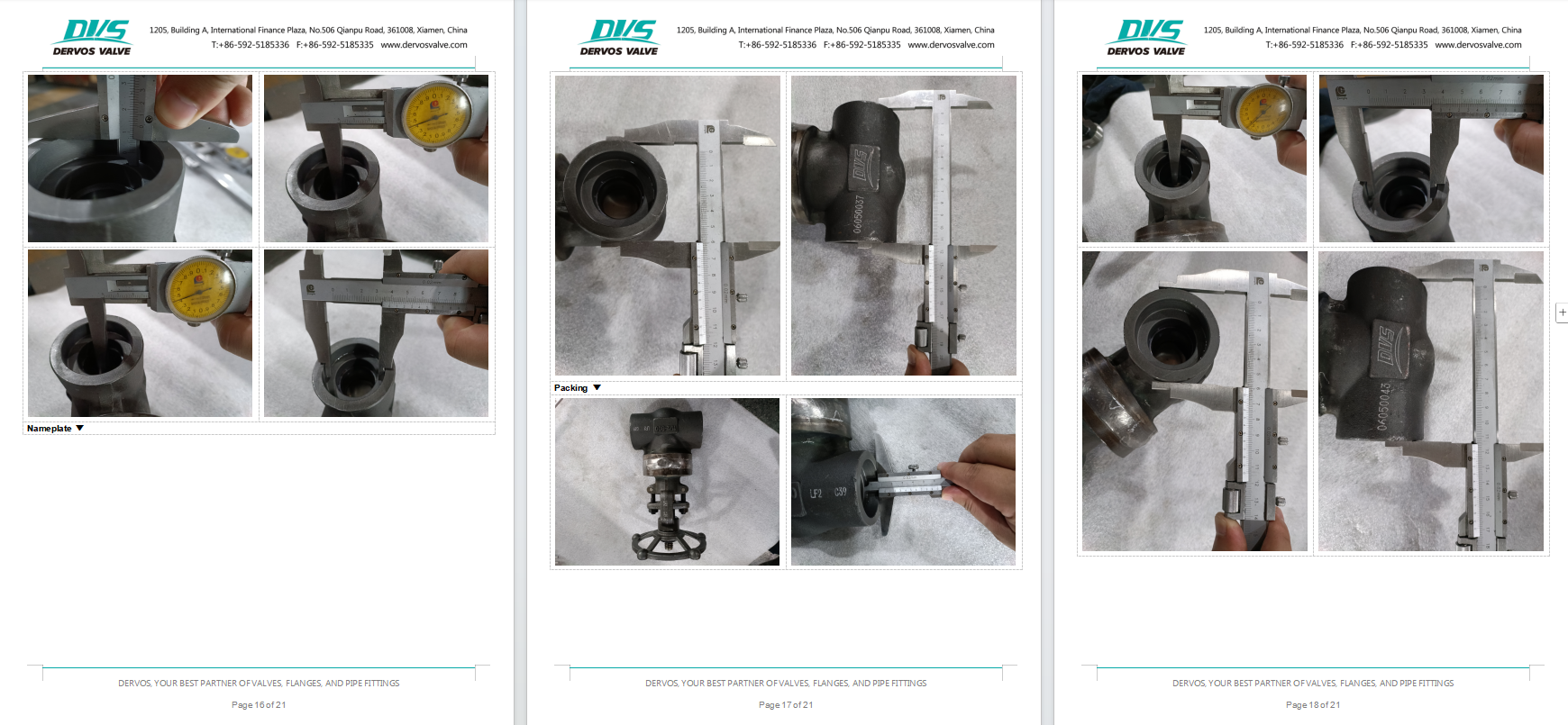

Inspection Report
