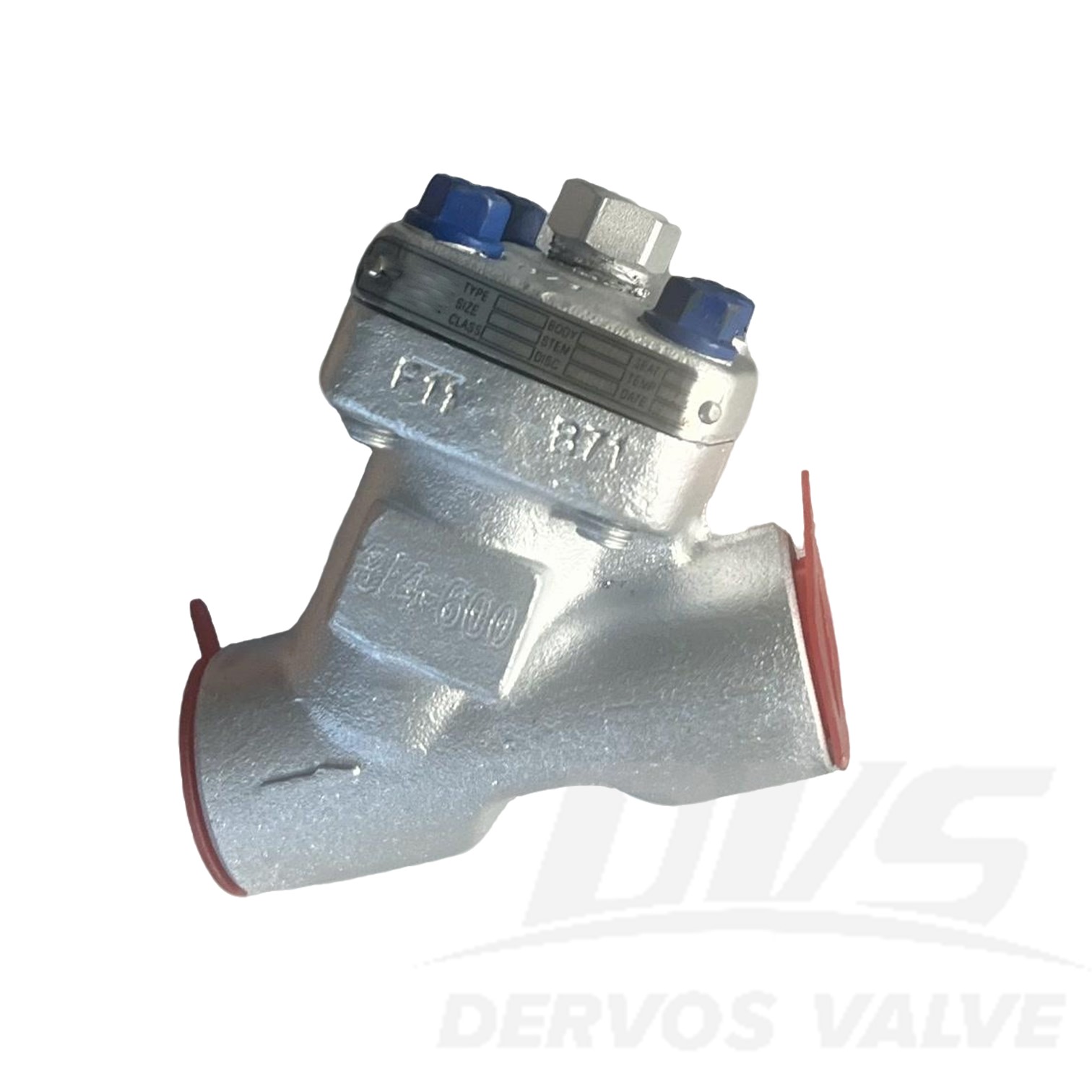

3/4”600LB Y Type Strainer A182-F11 SW ASME B16.34
Key Specifications / Features
Model No.: Hits: 0
3/4”600LB Y Type Strainer is made according to ASME B16.34 standard. The valve body is made of A182-F11. It has the structural characteristics of Y-type, Bolted Bonnet. Its connection mode is SW.
Request a quote
Tags:
Detail Information
Product Description
| Type | Y Type Strainer |
| Size | 3/4” |
| Pressure | 600LB |
| Connection | SW |
| Body Material | A182-F11 |
| Design Norm | ASME B16.34 |
| Test & Inspection Code | API 598 |
| Temperature | 29~ 500°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Made from A182 F11 alloy steel, providing excellent strength and heat resistance for 600LB pressure systems.2.Y-type strainer design with SW ends and ASME B16.34 compliance ensures efficient debris filtration and reliable pipeline protection.

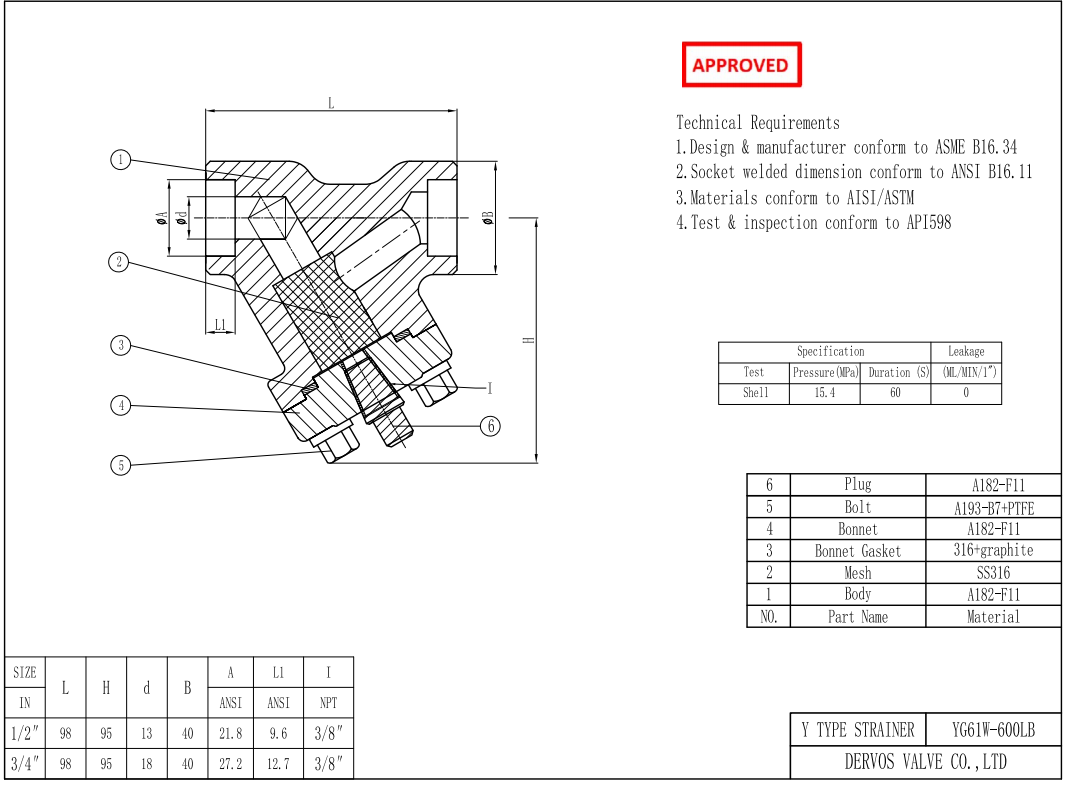

Technical Drawing

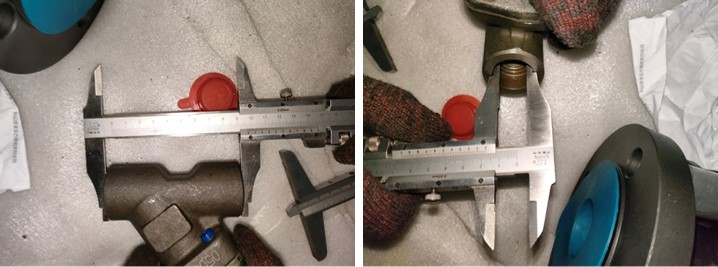

Dimension Checking

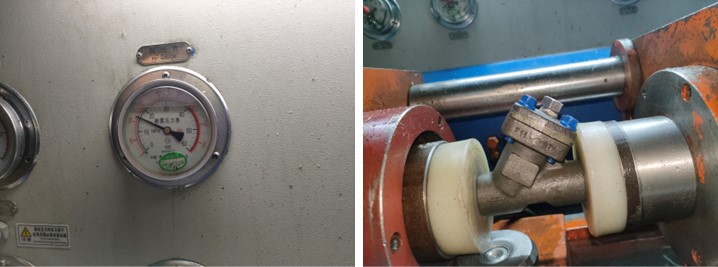

Pressure Testing

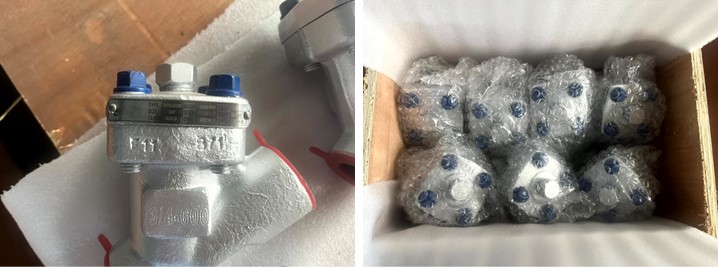

Nameplate & Packing

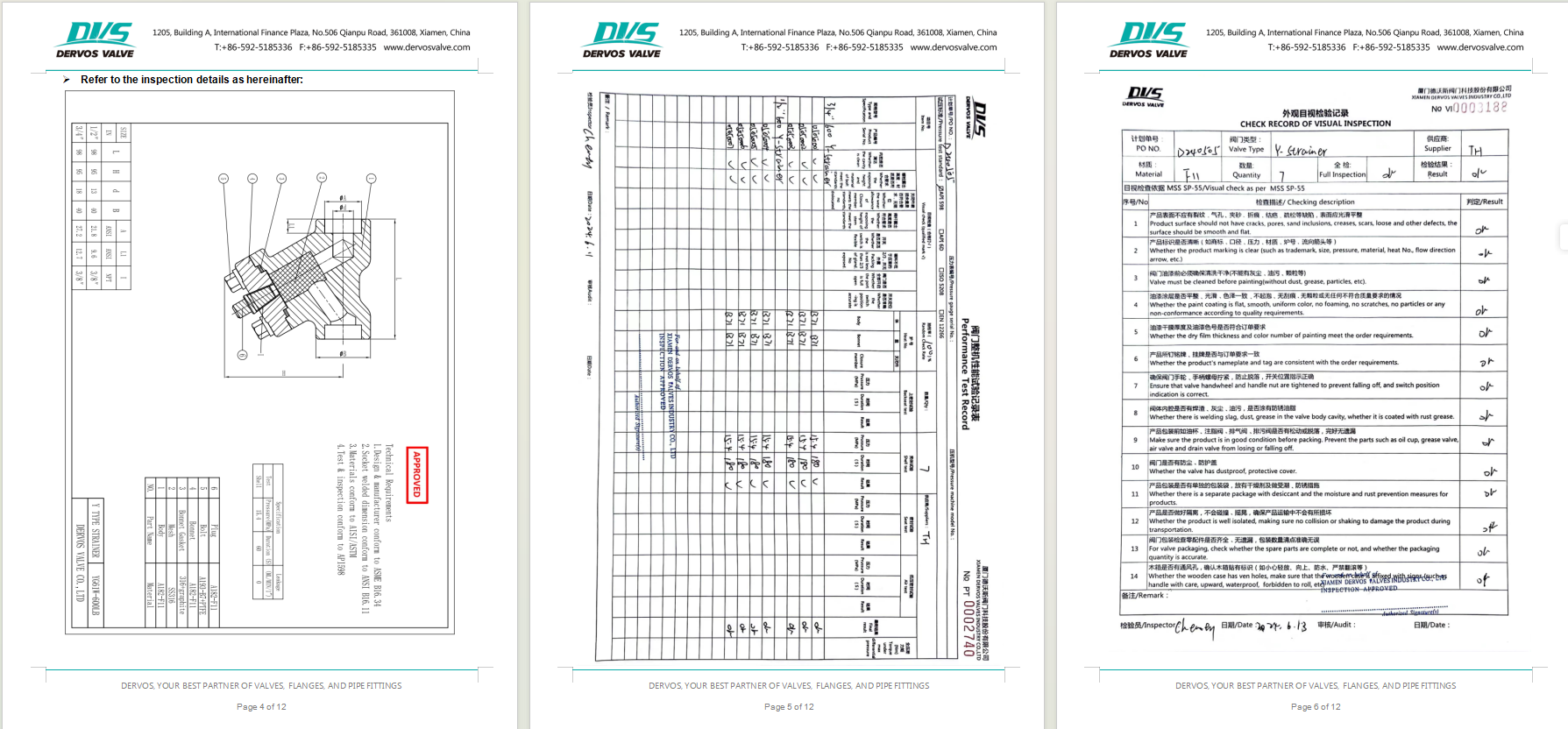

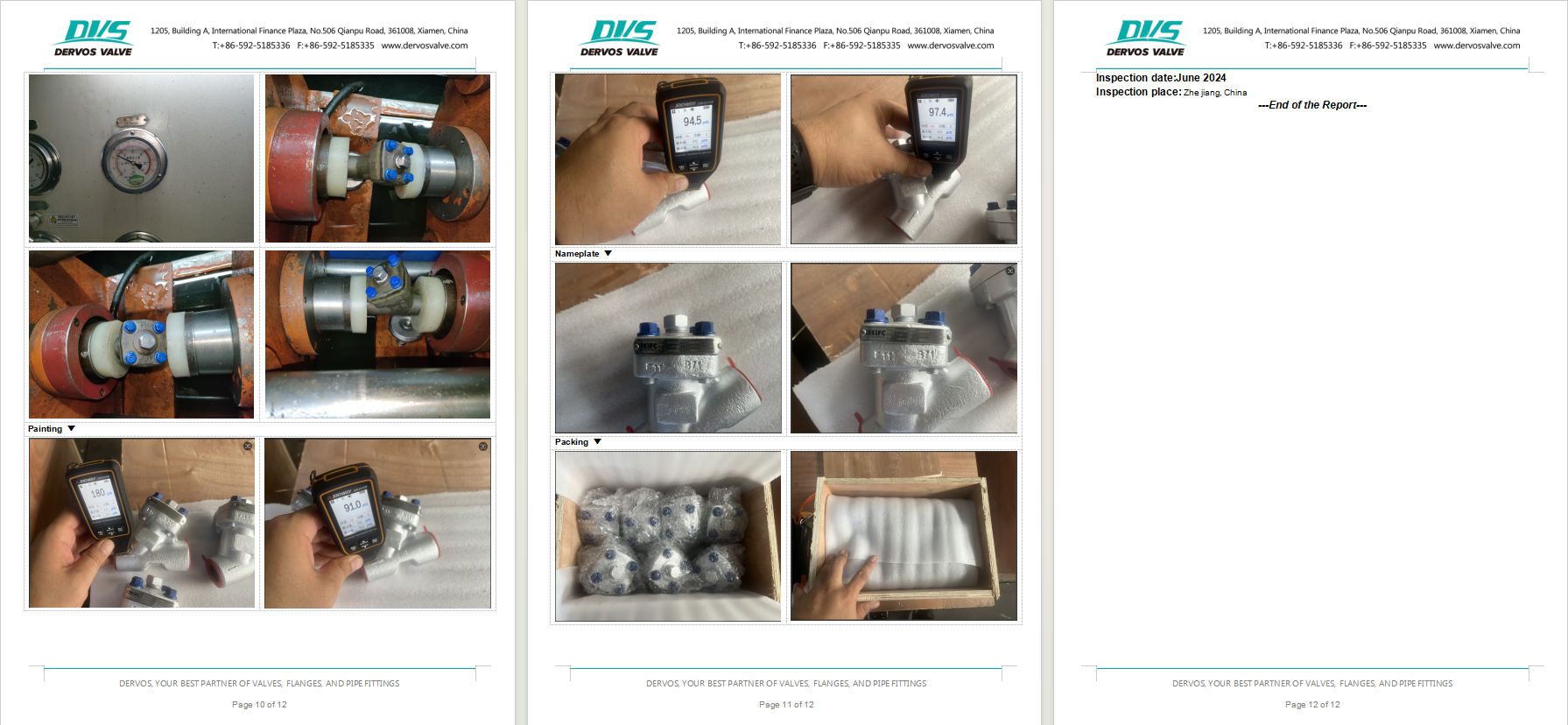

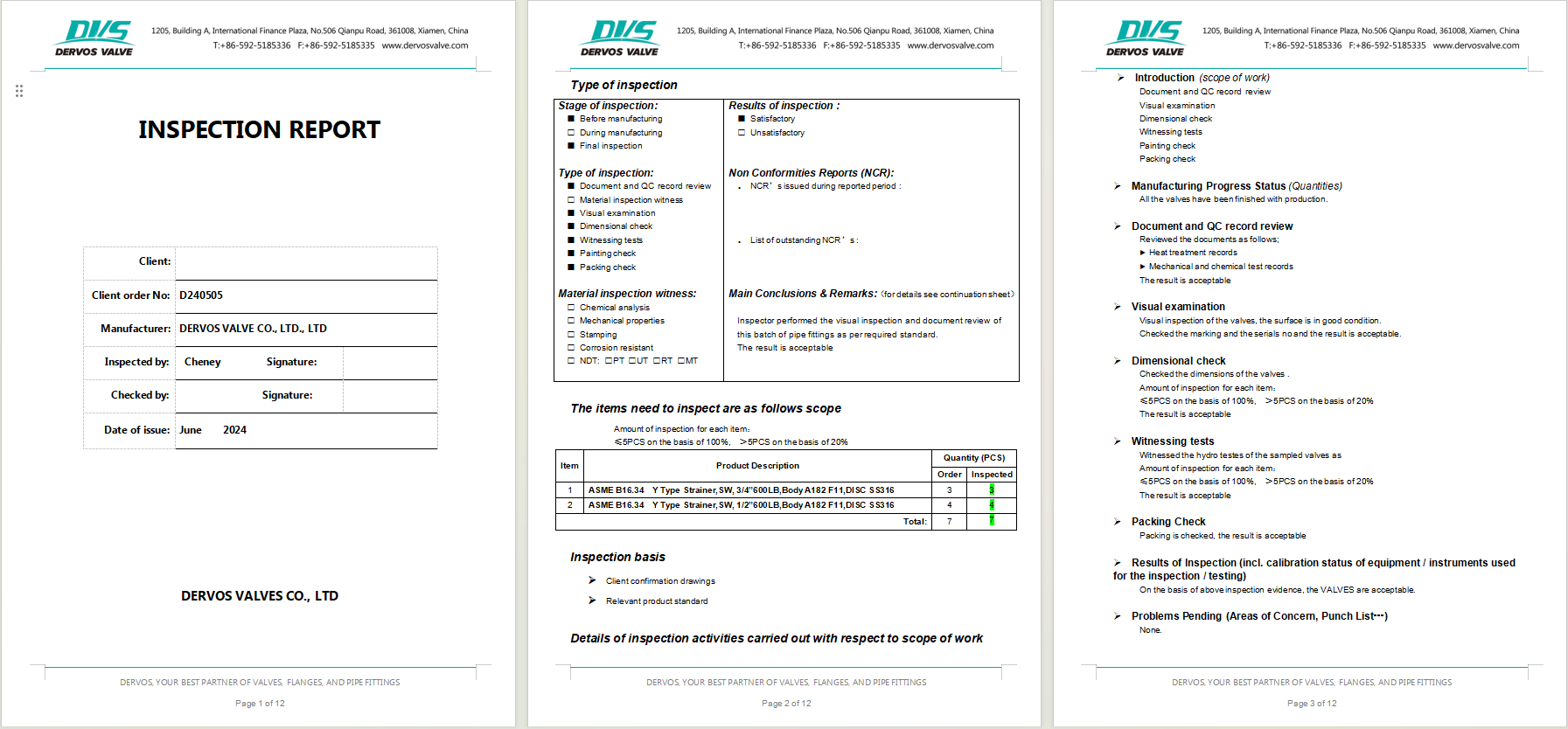

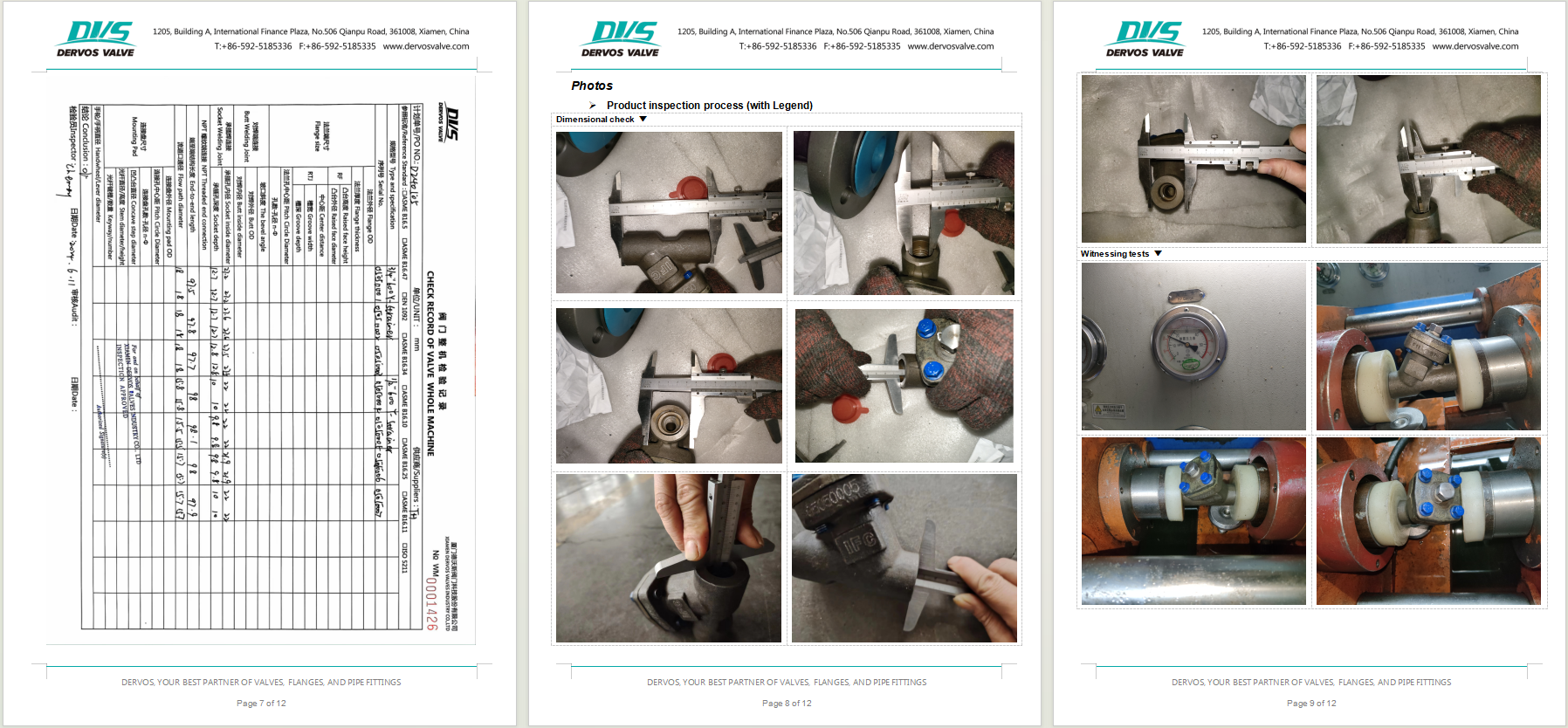

Inspection Report
