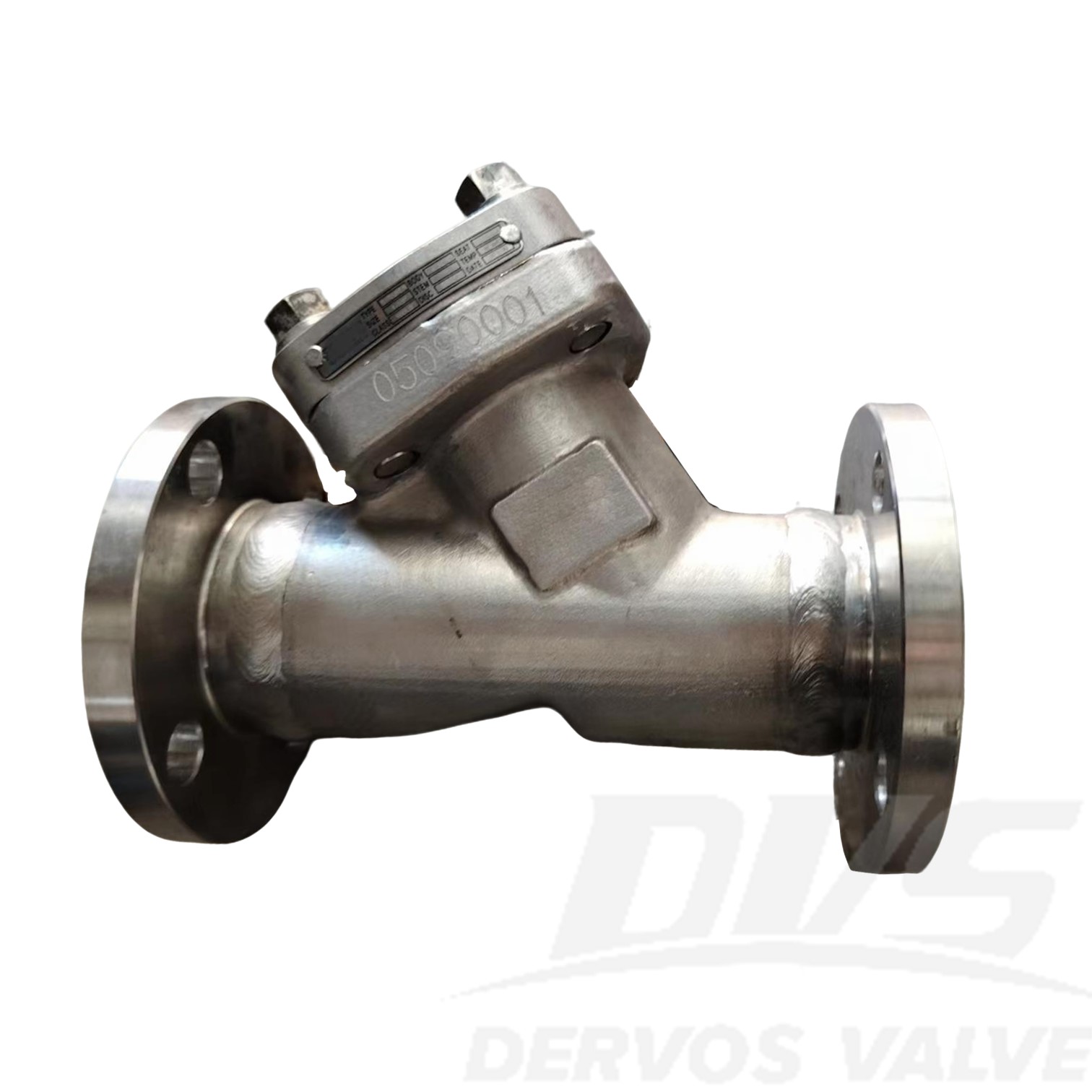

1-1/2" 150LB Y Type Strainer A182-F53 RF ASME B16.34
Key Specifications / Features
Model No.: Hits: 0
1-1/2" 150LB Y Type Strainer is made according to Drawing standard. The valve body is made of A182 F53. It has the structural characteristics of Y-Type, Bolted Body-Bonnet, Face-to-Face Length 200 mm. Its connection mode is RF.
Request a quote
Tags:
Detail Information
Product Description
| Type | Y Type Strainer |
| Size | 1-1/2" |
| Pressure | 150LB |
| Connection | RF |
| Body Material | A182 F53 |
| Design Norm | ASME/B16.34 |
| Flange dimension | ASME/B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 300°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Constructed from A182 F53 super duplex stainless steel, delivering outstanding corrosion resistance and strength for 150LB applications.2.Y-type strainer with RF flange and ASME B16.34 compliance ensures efficient filtration and reliable protection for downstream equipment.

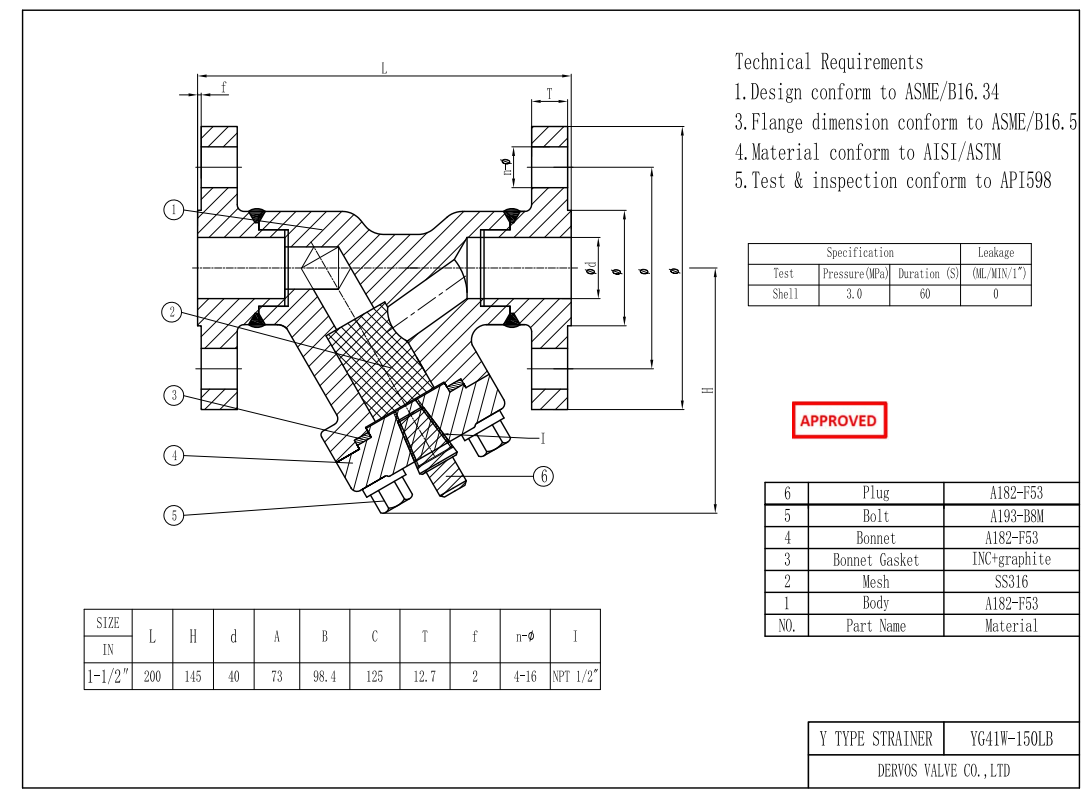

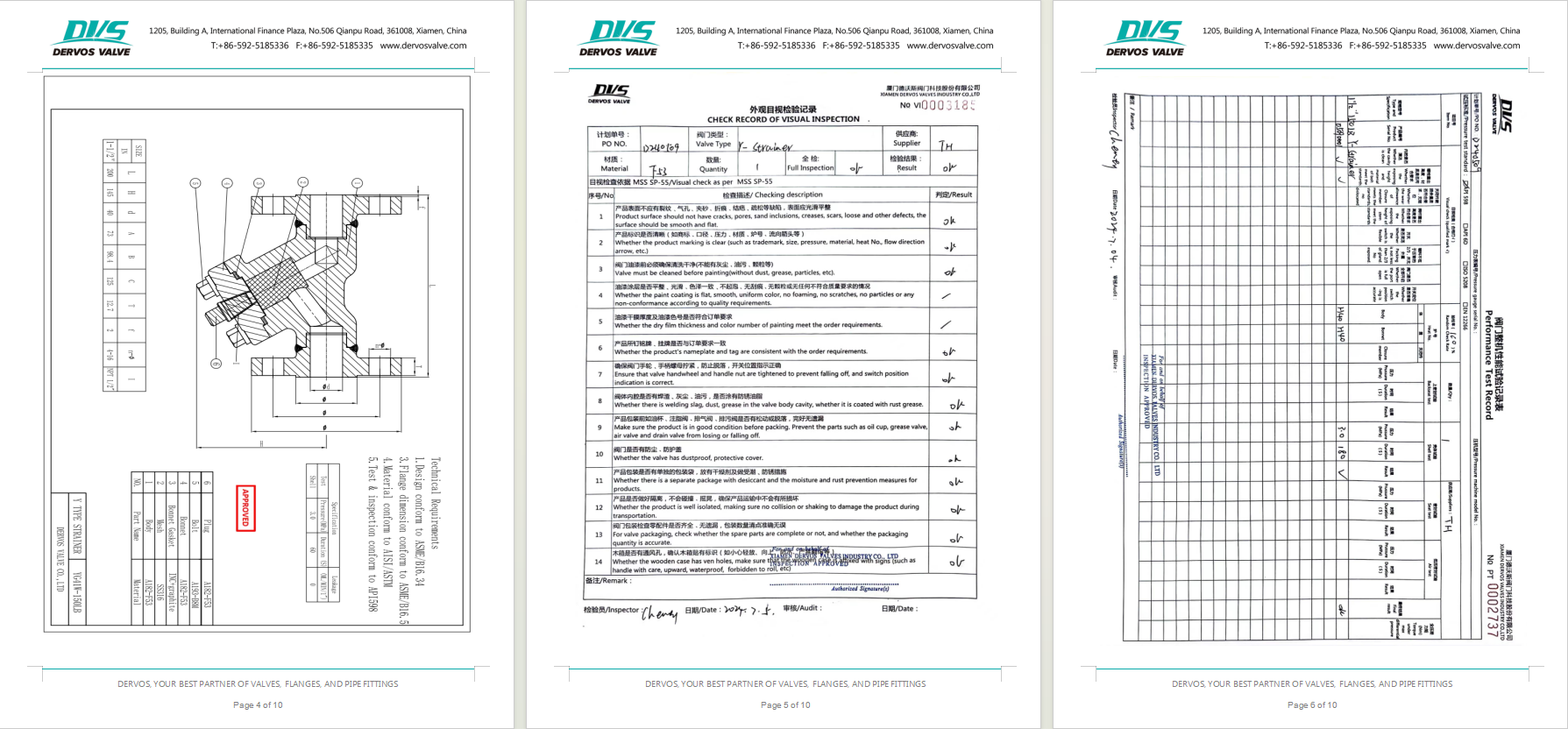

Technical Drawing

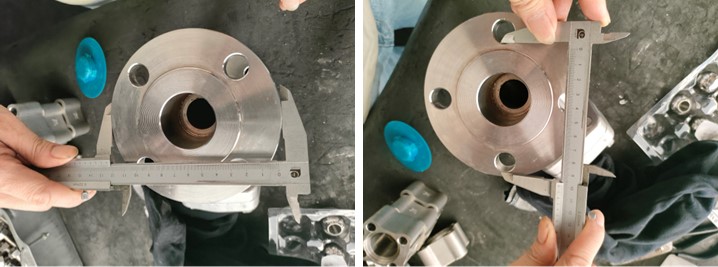

Dimension Checking

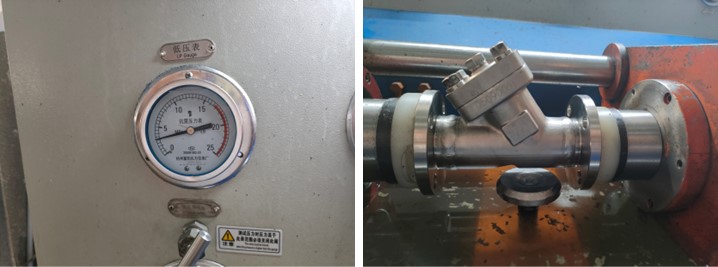

Pressure Testing

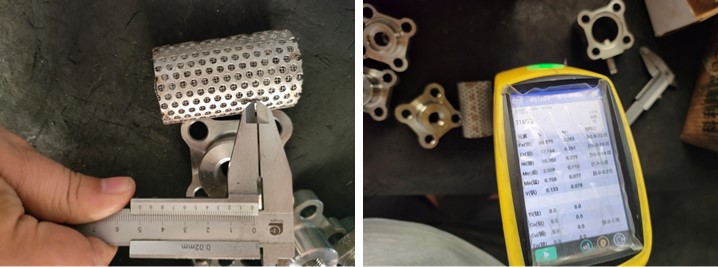

Spectrum

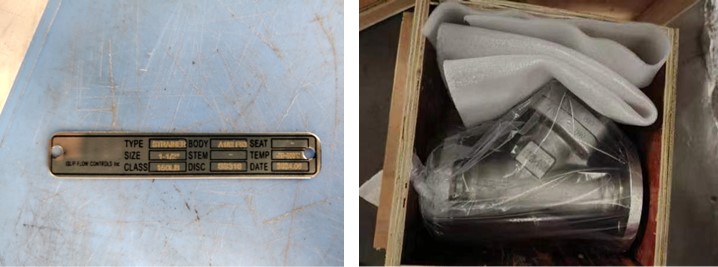

Nameplate & Packing

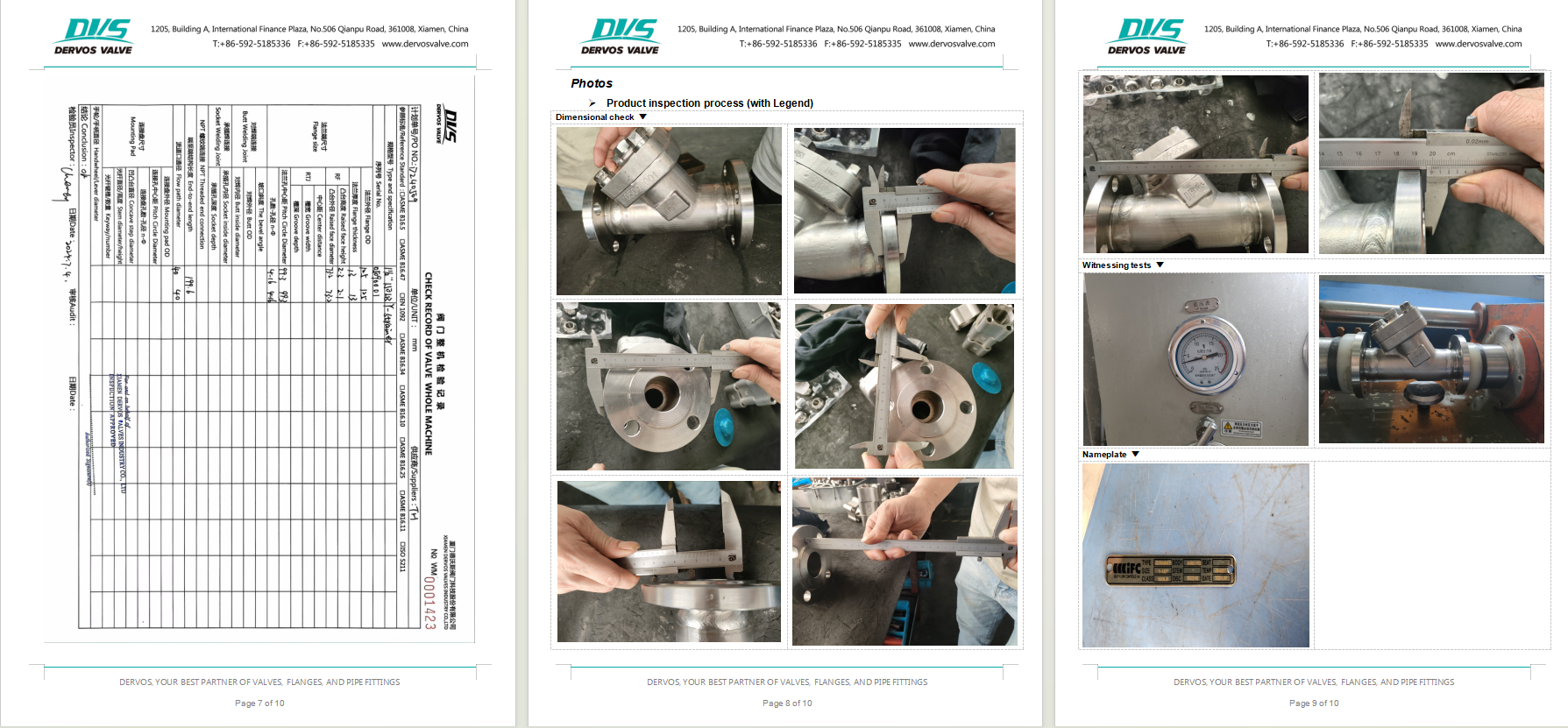

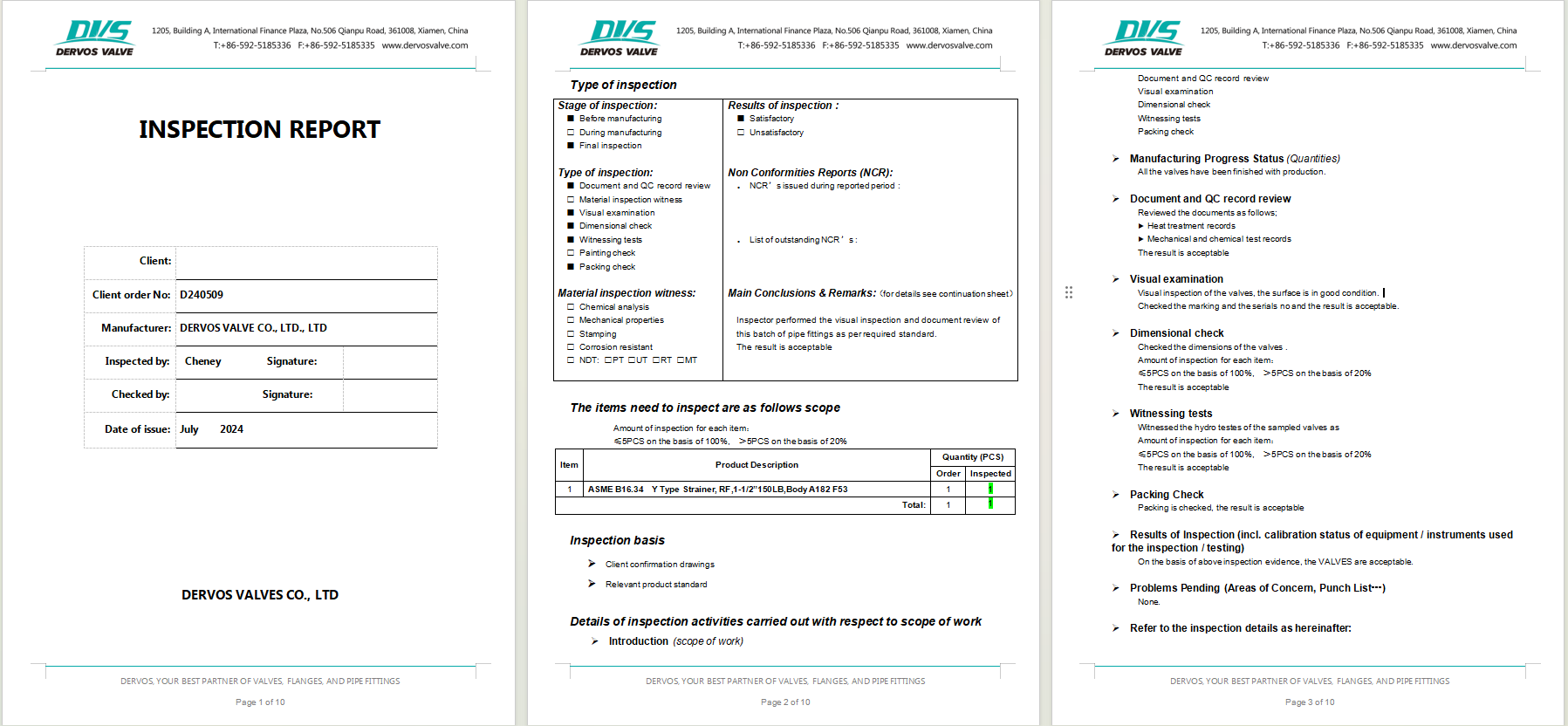

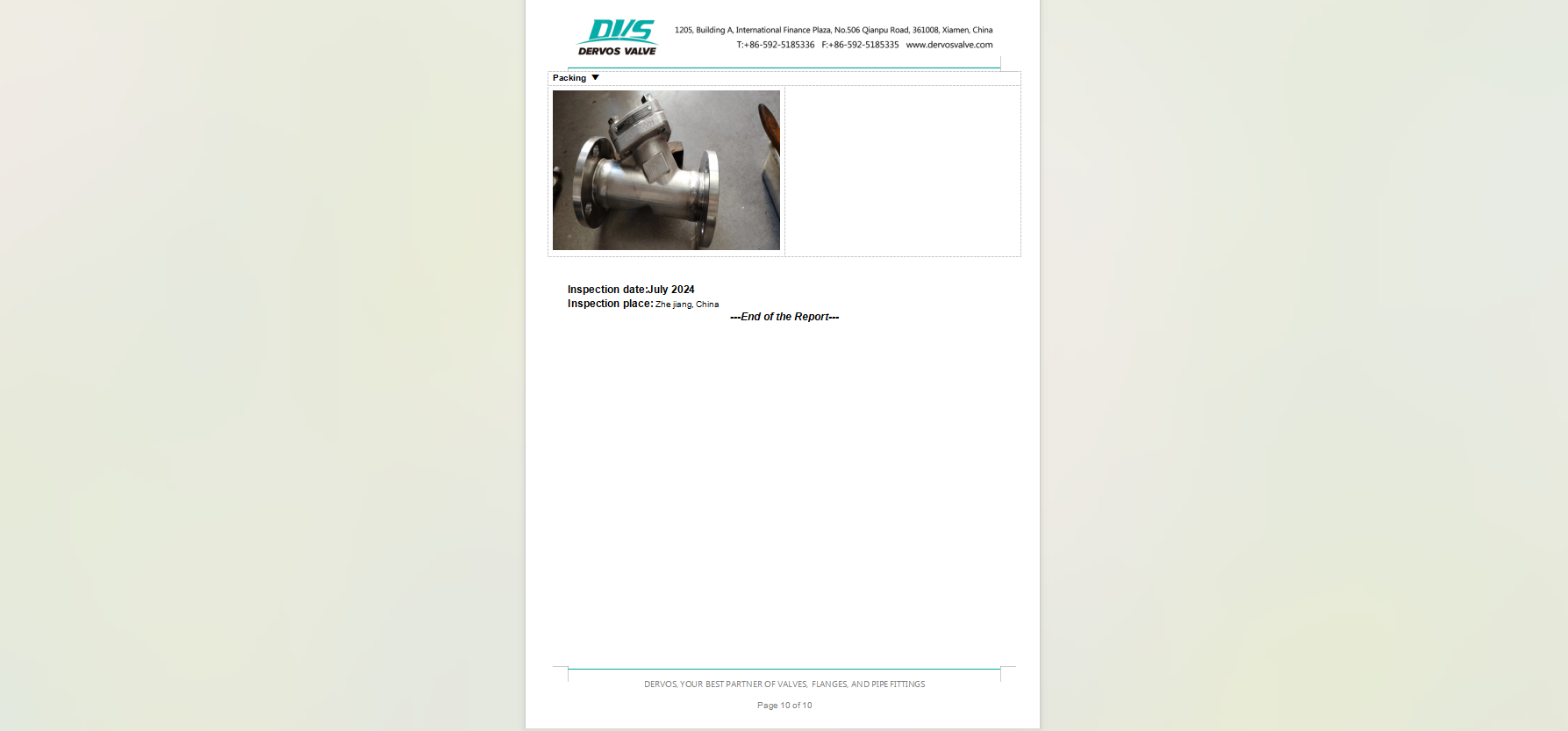

Inspection Report
