4" 300LB Y Type Strainer RF LCB LF2 ASME B16.34
Key Specifications / Features
Model No.: Hits: 0

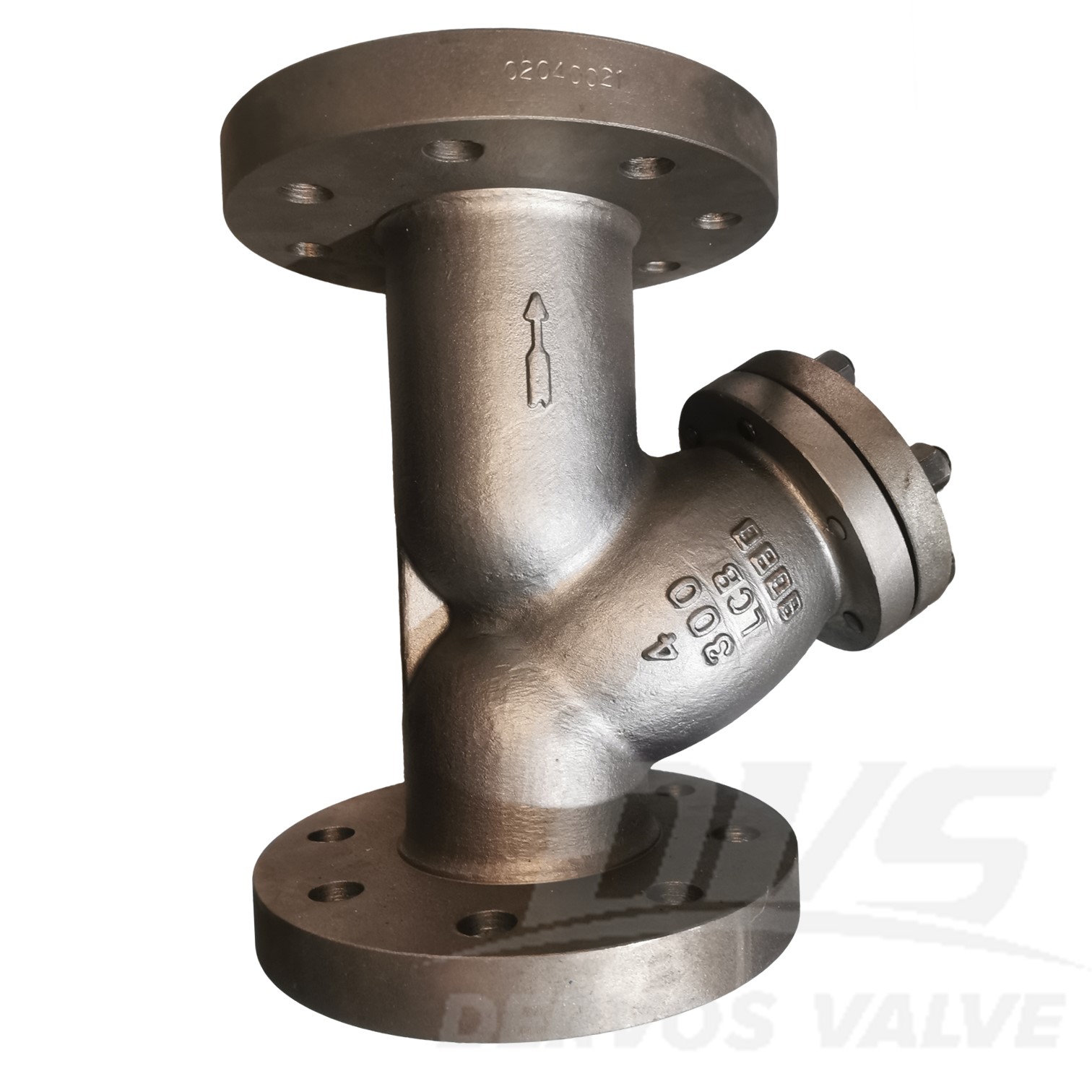

4" 300LB Y Type Strainer is made according to ASME B16.34 standard. The valve body is made of ASTM A352 LCB. It has the structural characteristics of Y-type, Strainer with 100 μm (150 Mesh) Screen. Its connection mode is RF.
Request a quote
Tags:
Next: Return to List
Previous: 1-1/2" 150LB Y Type Strainer A182-F53 RF ASME B16.34
Detail Information
Product Description
| Type | Y Type Strainer |
| Size | 4" |
| Pressure | 300LB |
| Connection | RF |
| Body Material | ASTM A352 LCB |
| Design Norm | ASME B6.34 |
| Face to Face | ASME B16.5 |
| Flange Dimension | ASME B16.5 |
| Test & Inspection Code | MFG’S STD |
| Temperature | -46~ 200°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Constructed from LCB/LF2 cast steel, providing high strength and corrosion resistance for 300LB pressure systems.2.Y-type strainer with RF flange and ASME B16.34 compliance ensures efficient debris filtration and reliable pipeline protection.

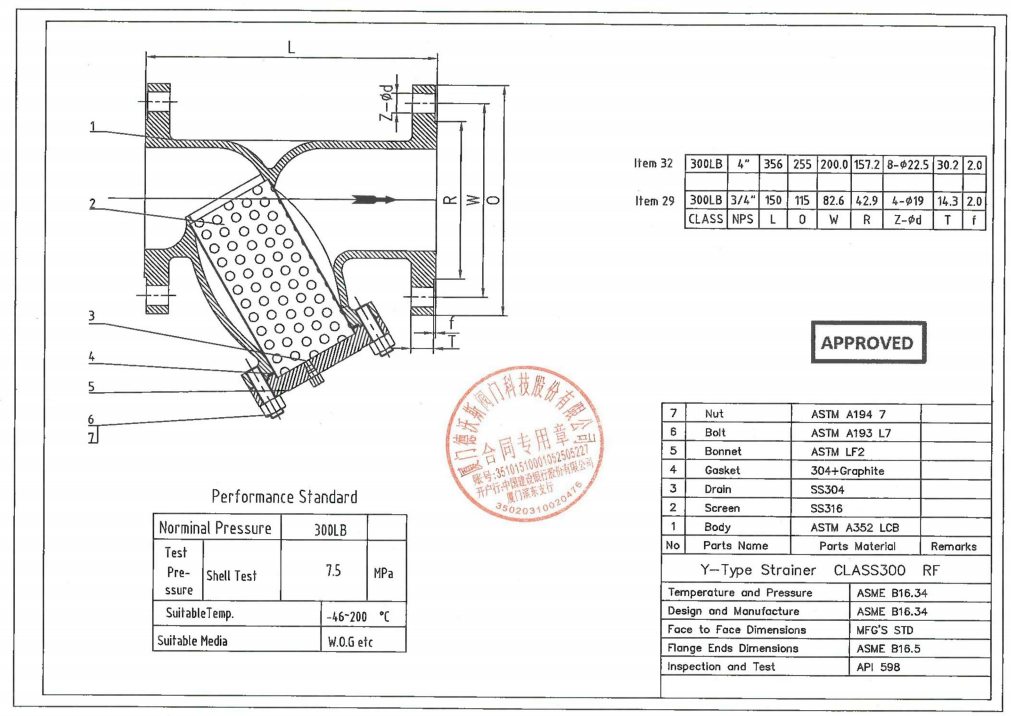

Technical Drawing

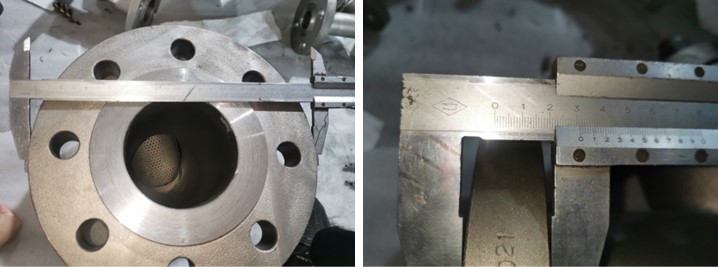

Dimension Checking

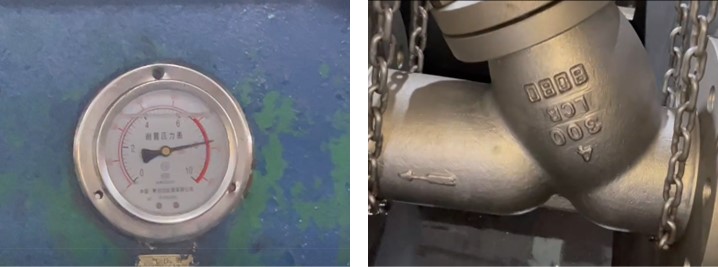

Pressure Testing

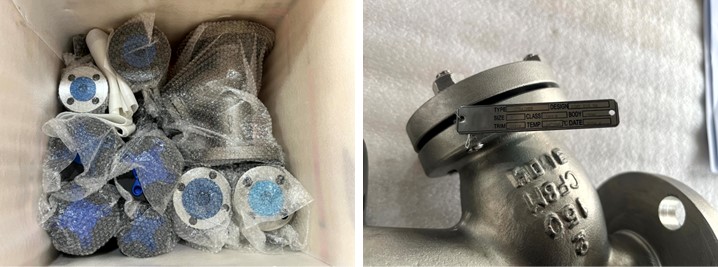

Nameplate & Packing

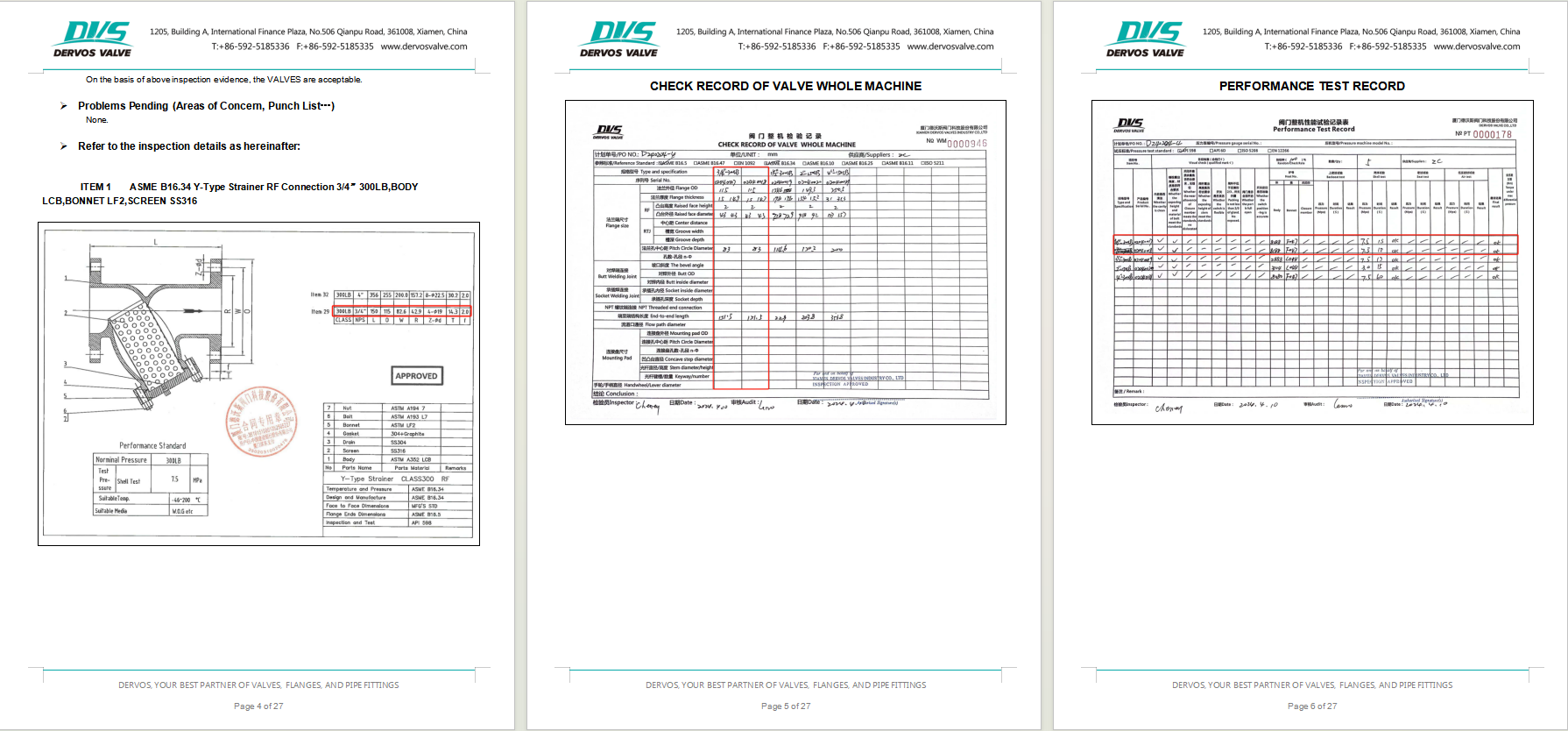

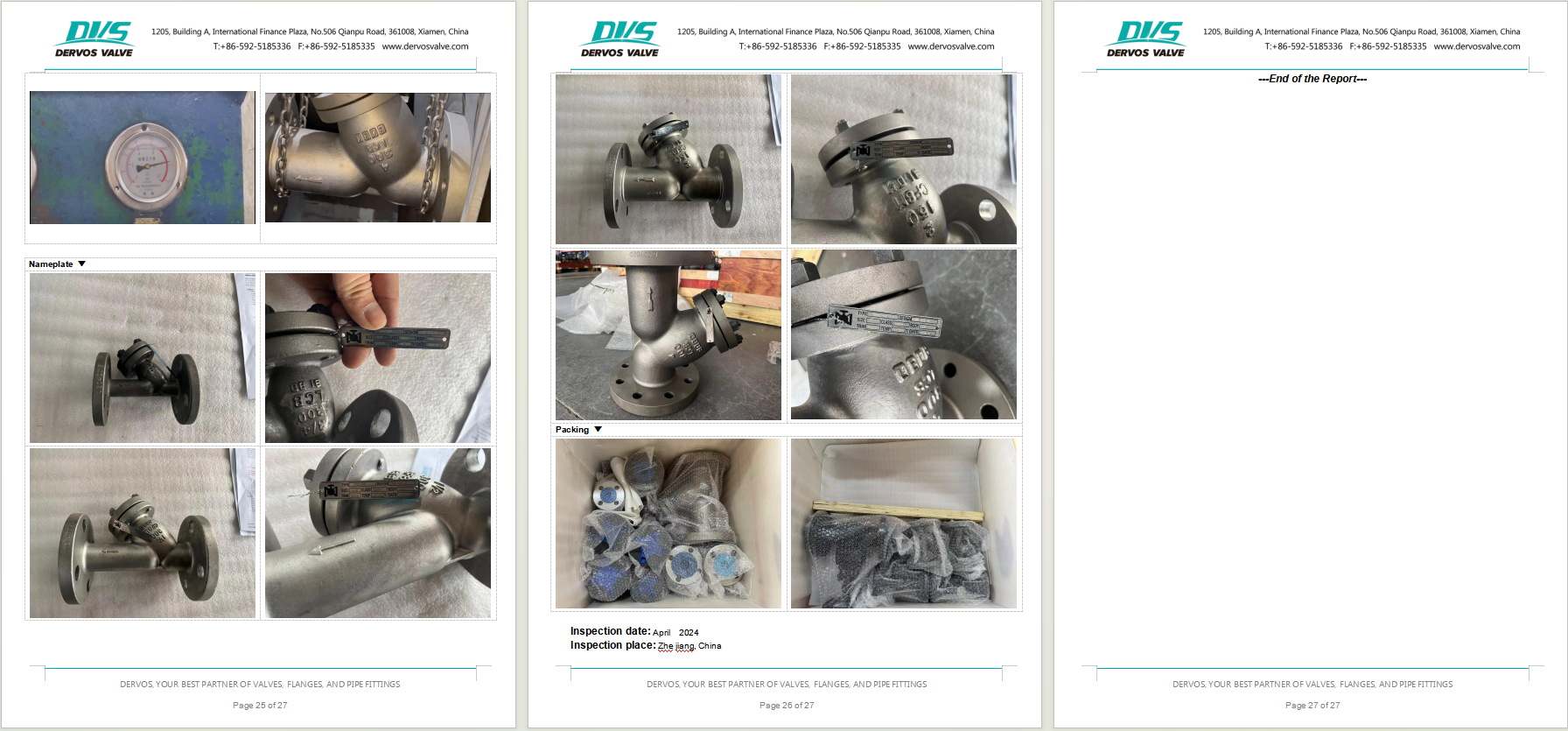

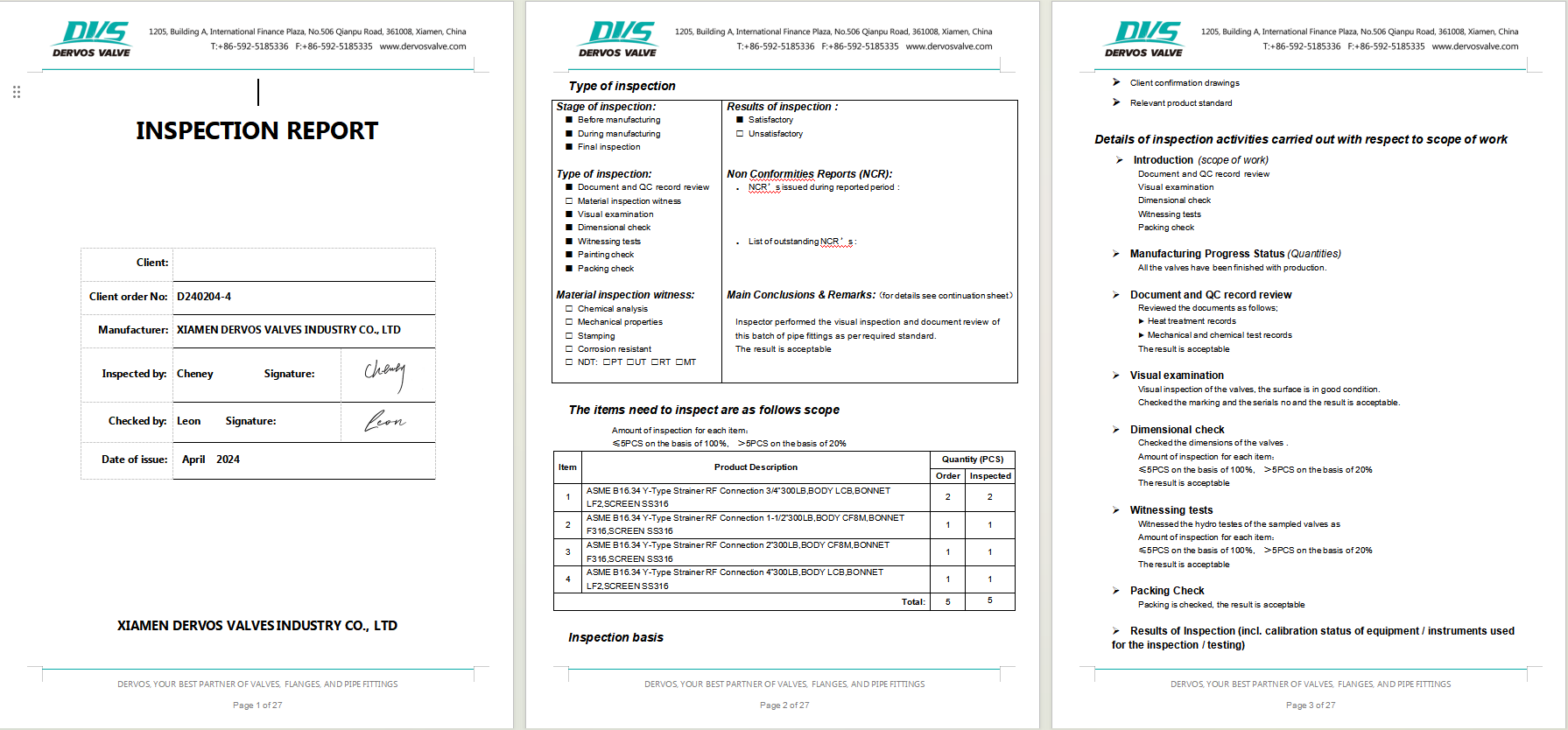

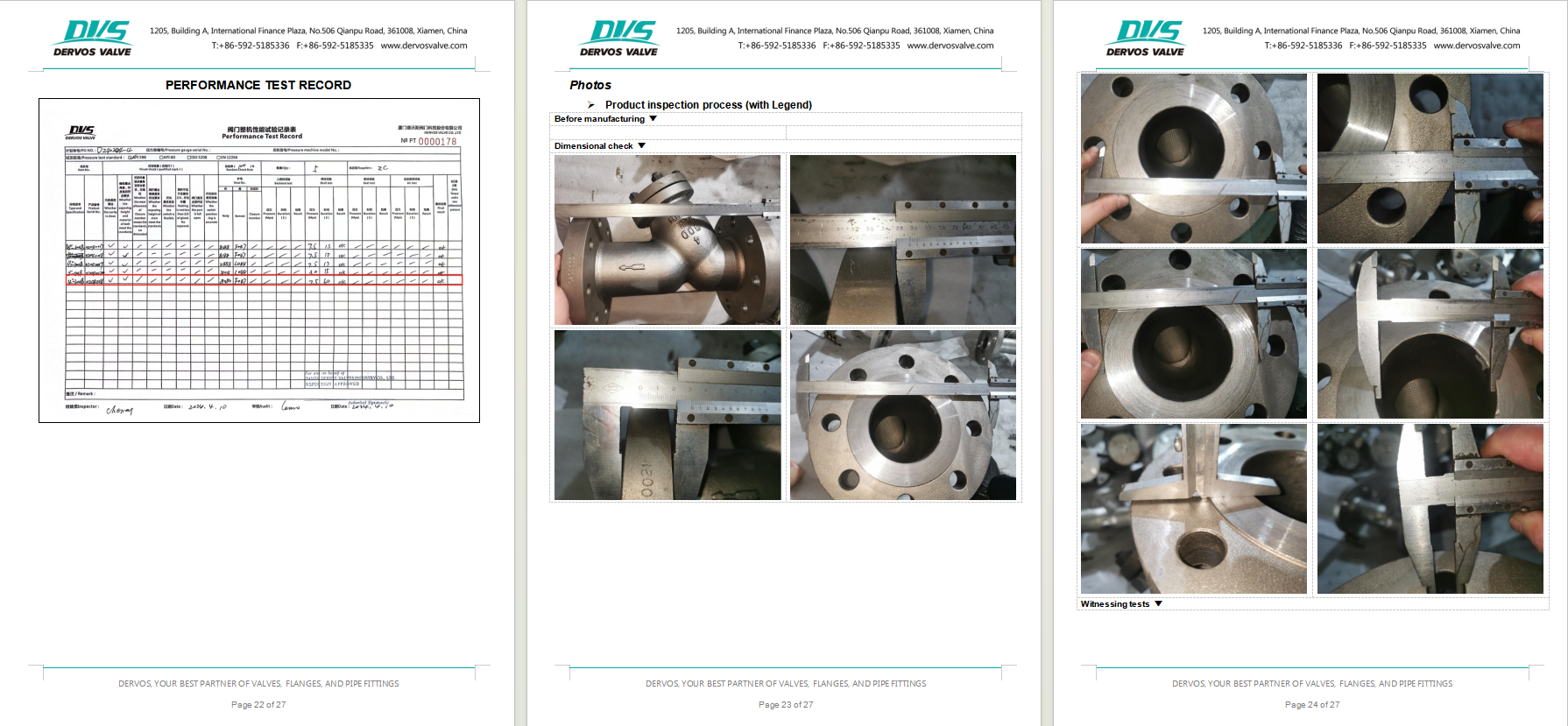

Inspection Report
