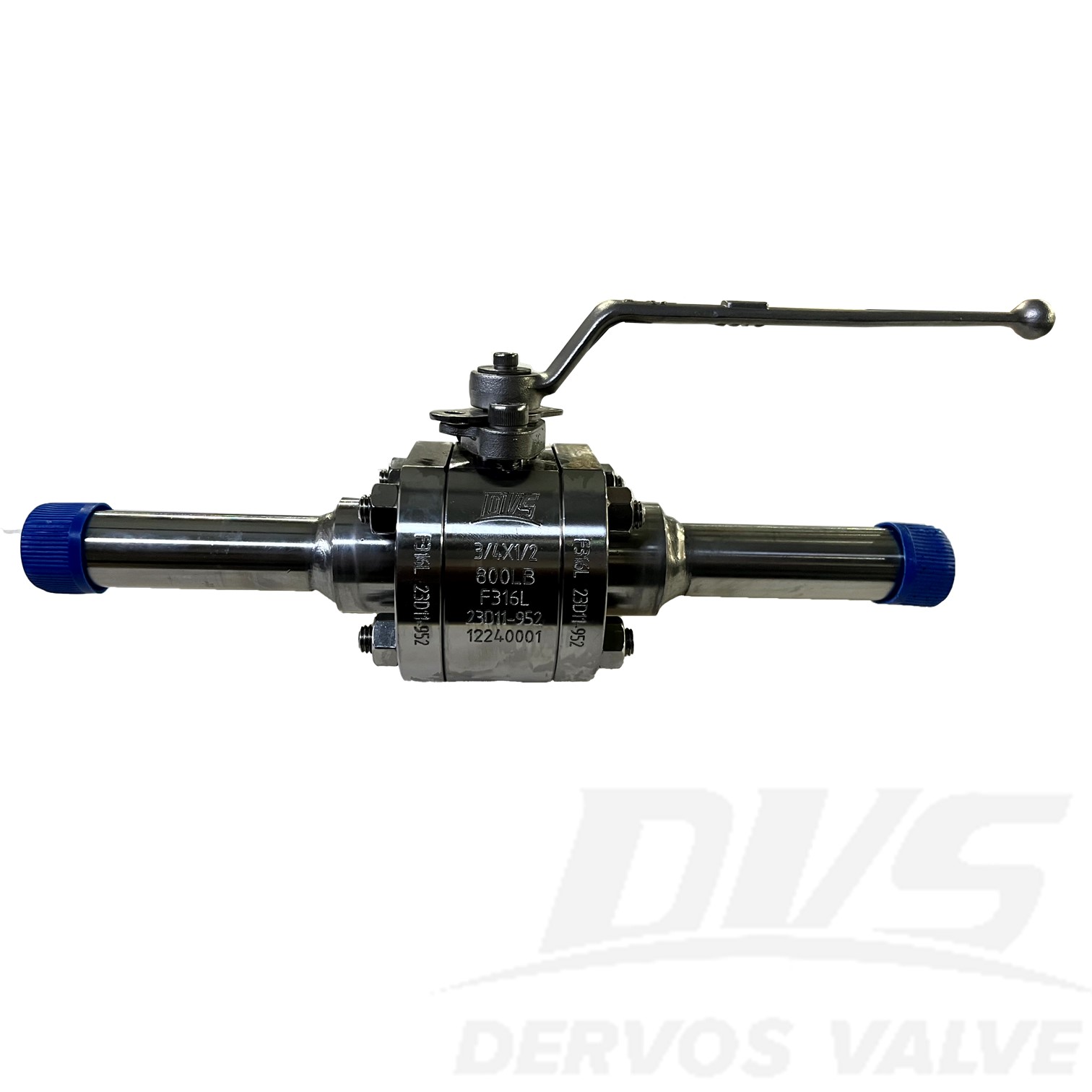

3/4”X1/2”800LB Forged Steel Floating Ball Valve Body F316L SW x SW
Key Specifications / Features
Model No.: Hits: 0
3/4”X1/2”800LB Forged Steel Floating Ball Valve is made according to ASME B16.34 standard. The valve body is made of A182 F316L. This valve is designed with a three-piece split body and reduced bore structure, featuring a floating solid ball. It incorporates an anti-static device and a blow-out proof stem for enhanced safety. The valve operates within a design temperature range of 0–170 °C and is suitable for media such as CWR and CWS. And it has CF8 Handle with Locking Device operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Forged Steel Floating Ball Valve |
| Size | 3/4”X1/2” |
| Pressure | 800LB |
| Connection | SW x SW |
| Operation | LEVER OP. |
| Body Material | A182 F316L |
| Design Norm | ASME B16.34 |
| END to END | MANUFACTURER STANDARD |
| End connection | SW |
| Pressure-temperature | ASME B16.34 |
| Test & Inspection Code | API 598 |
| Temperature | -20 ~ 170°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Made from F316L forged steel, ensuring superior corrosion resistance and durability in harsh environments.2. Floating ball design with SW x SW ends provides reliable sealing and easy installation in high-pressure systems.

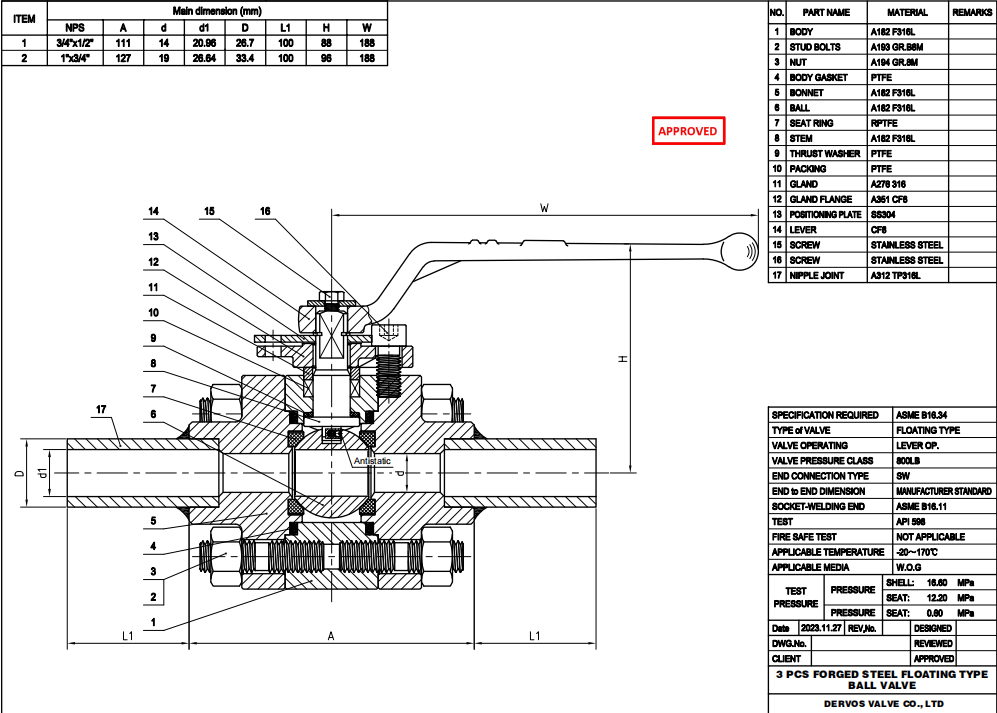

Technical Drawing

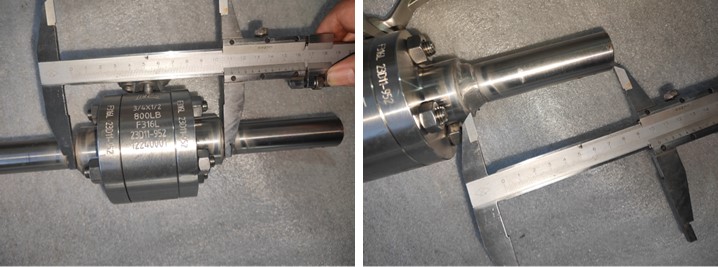

Dimension Checking

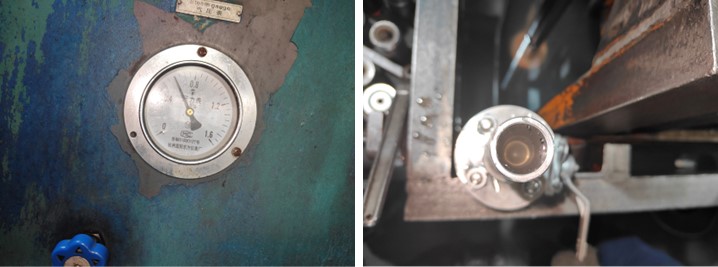

Pressure Testing

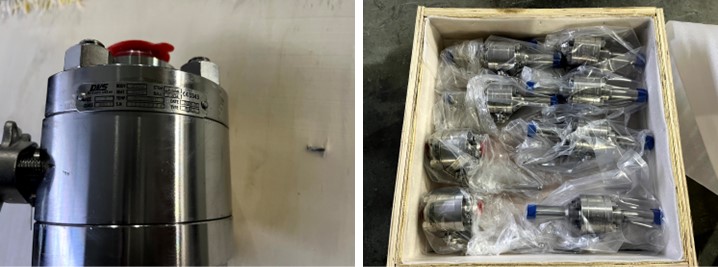

Nameplate & Packing
