6" 150LB Floating Ball Valve Body A350 LF2 Class1 API 6D Buried Service (IP68) Gearbox
Key Specifications / Features
Model No.: Hits: 0
6" 150LB Floating Ball Valve is made according to API6D standard. The valve body is made of A350 LF2 CLASS 1. It has the structural characteristics of Two-piece, Floating Ball, Full Port, Spring-energized Seats suitable for DBB, with Drain Plug, compliant with NACE MR-0175, Fire-safe & Anti-static, Blow-out Proof Stem. Its connection mode is BW X BW Schd 40. And it has Buried Service (IP68) Gearbox operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Floating Ball Valve |
| Size | 6” |
| Pressure | 150LB |
| Connection | BW X BW Schd 40 |
| Operation | Buried Service (IP68) Gearbox |
| Body Material | A350 LF2 CLASS 1 |
| Design Norm | API 6D |
| Face to Face | ASME B16.34 |
| End connection | BW |
| Pressure-temperature | ASME B16.34 |
| Test & Inspection Code | API 6D |
| Temperature | -20 ~ 150°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Buried Service Ready: Designed for underground installation with IP68-rated gearbox protection, ensuring reliable operation in harsh and submerged environments.2. Durable Forged Construction: Made from A350 LF2 Class 1 material, providing excellent corrosion resistance and mechanical strength for long-term performance in pipeline systems.

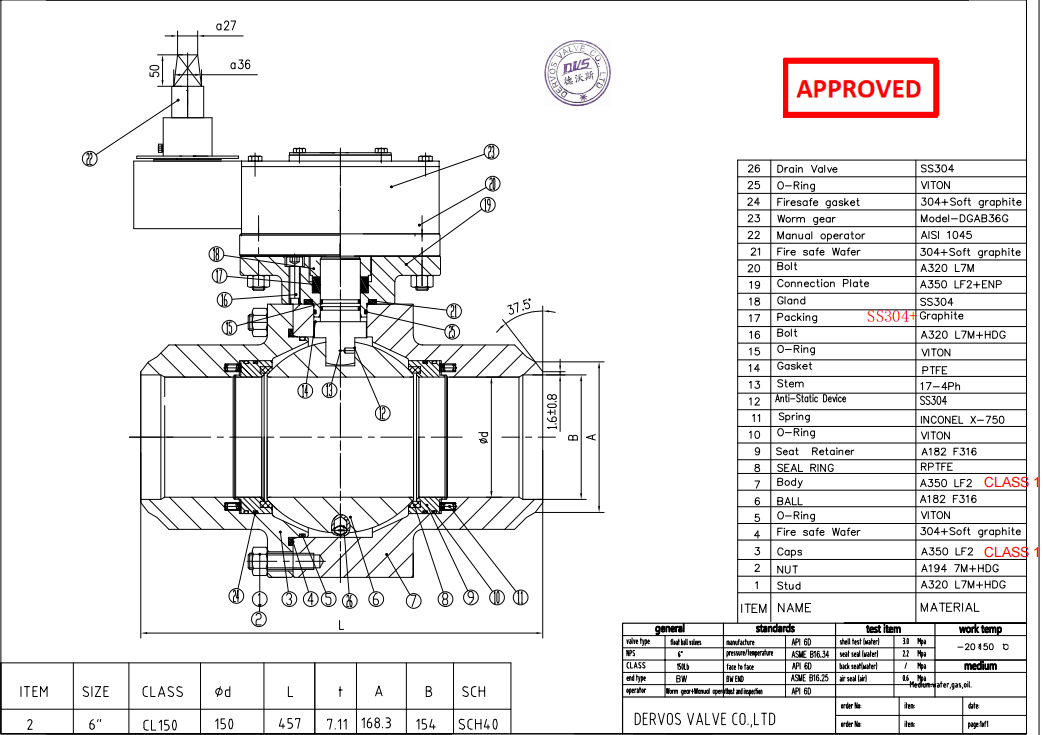

Technical Drawing

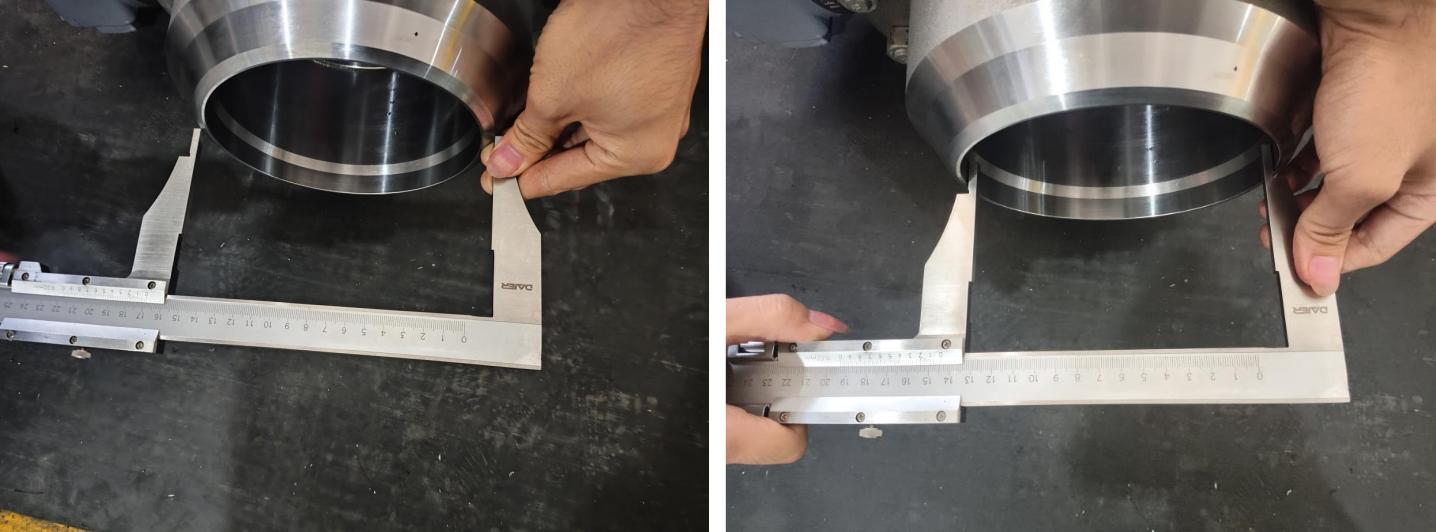

Dimension Checking

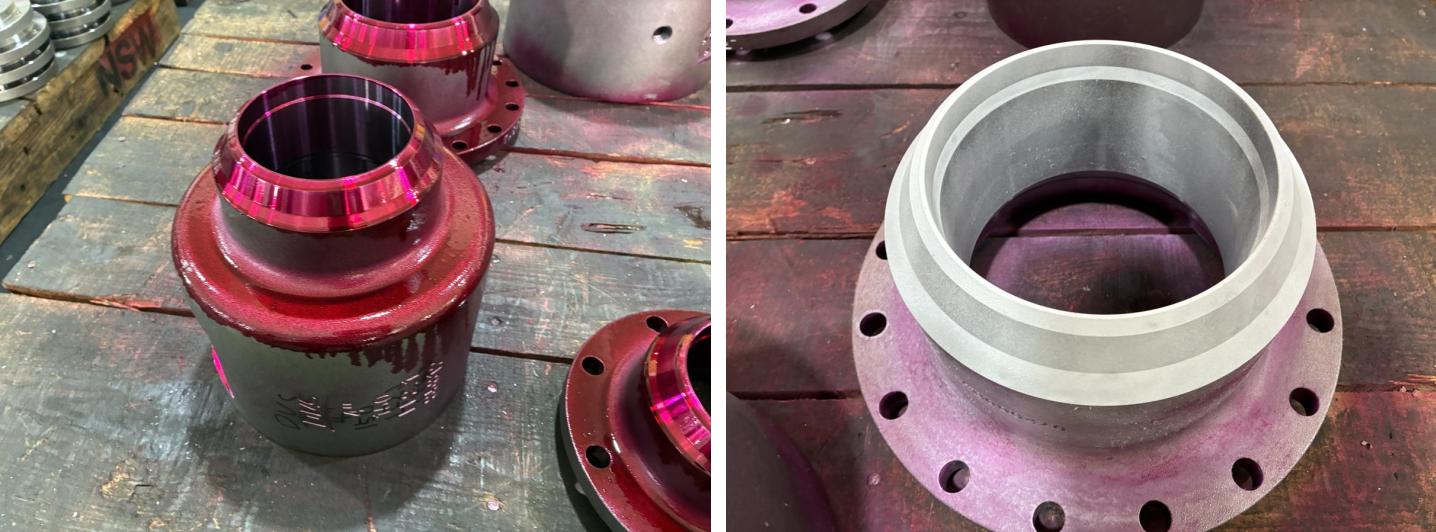

PT

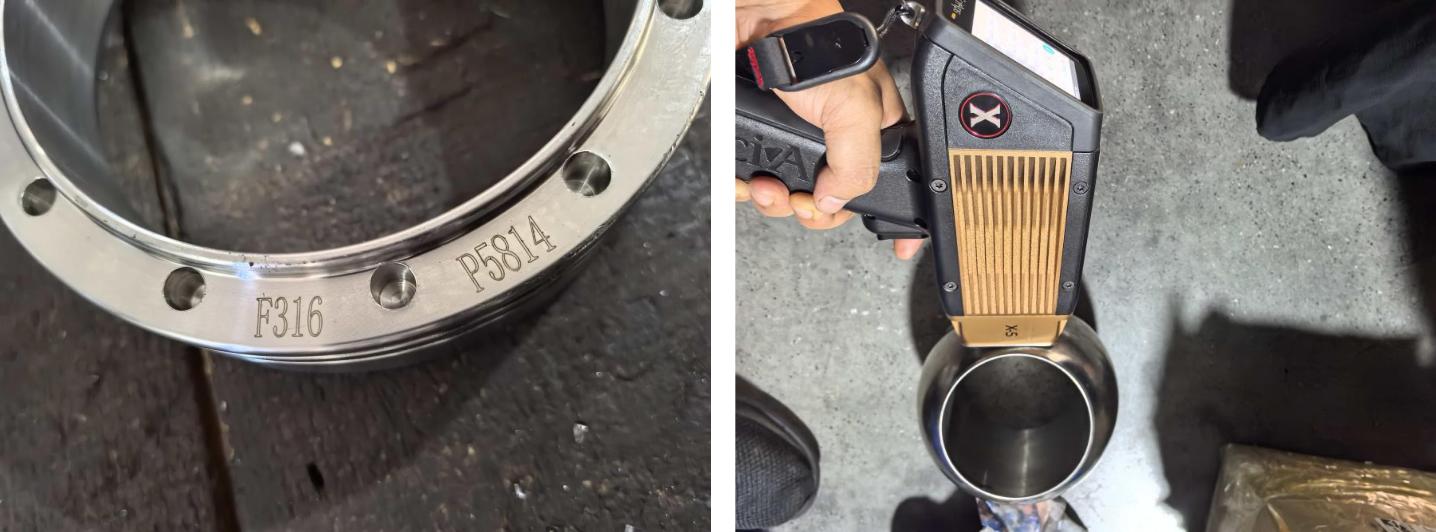

Spectrum

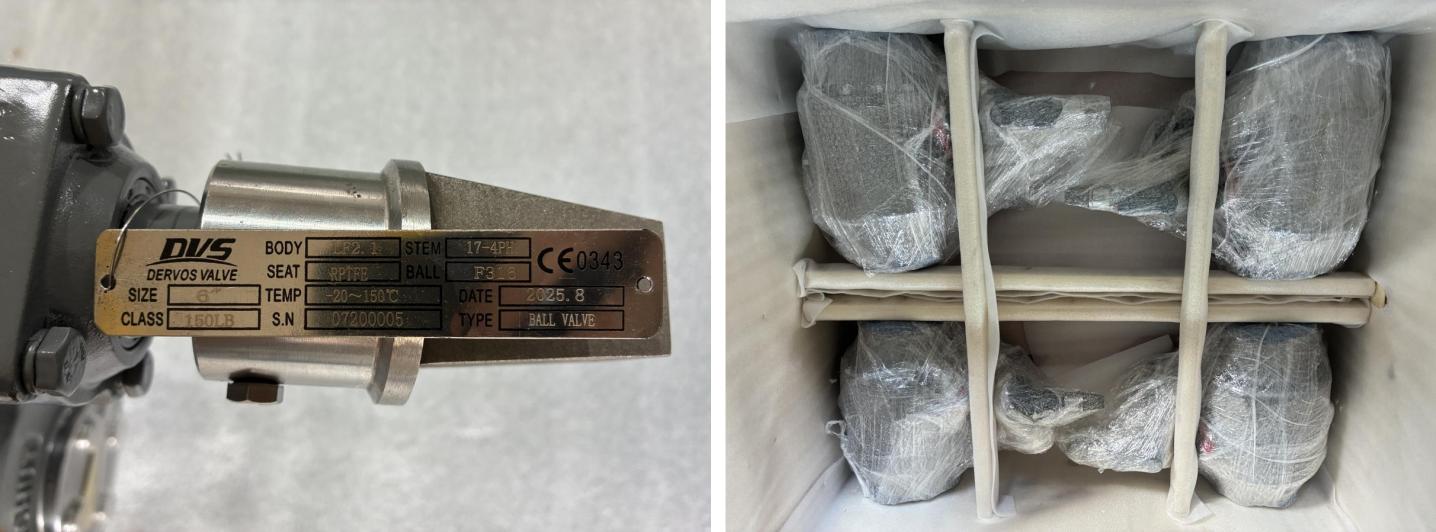

Nameplate & Packing
