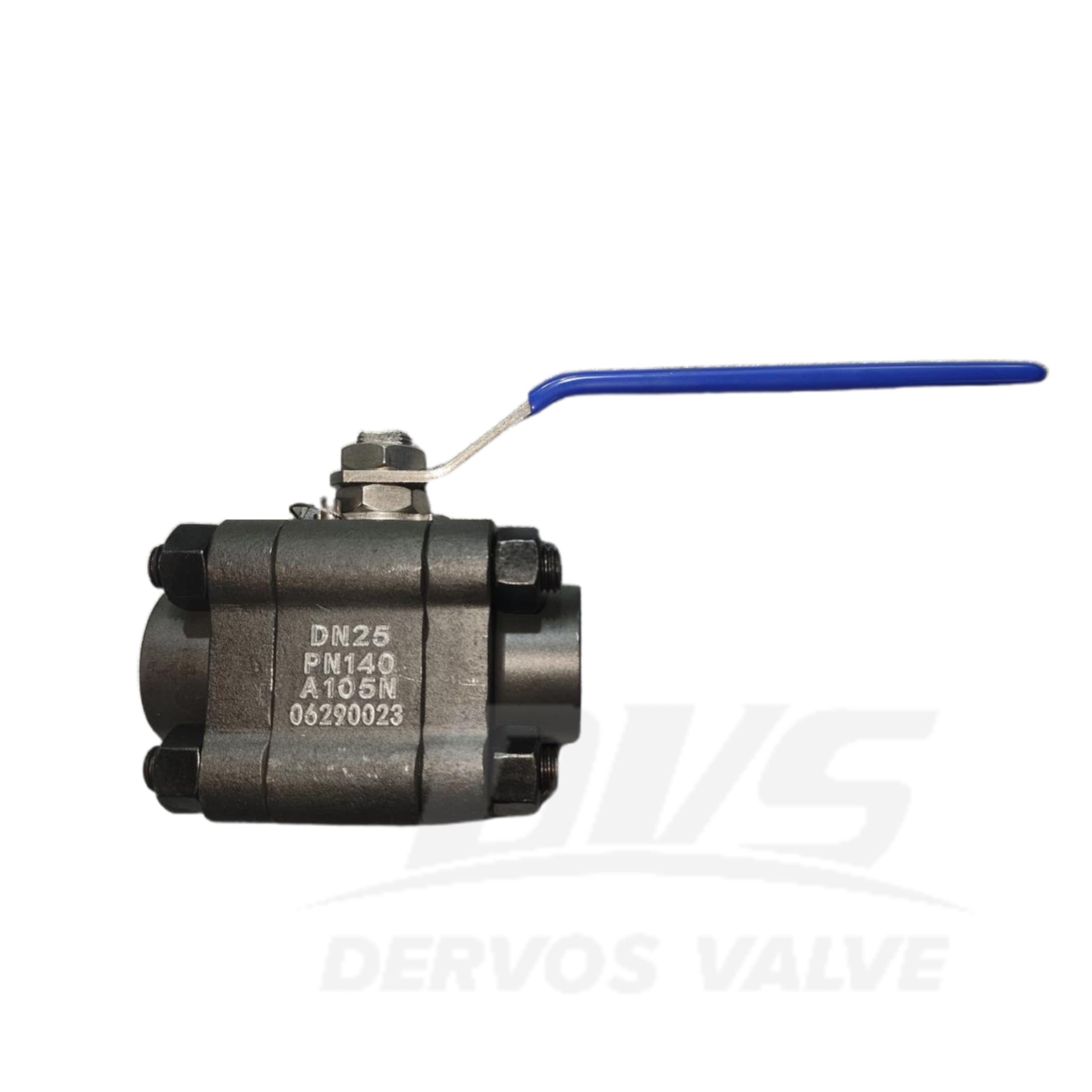

DN25 PN140 Forged Steel Floating Ball Valve Body A105N BSP H.W.
Key Specifications / Features
Model No.: Hits: 0
DN25 PN140 Forged Steel Floating Ball Valve is made according to API598 standard. The valve body is made of A105. It has the structural characteristics of Split Body, Floating Ball, Full Port, Fire-safe, Anti-static, Blow-out Proof Stem Design. Its connection mode is BSP. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Forged Steel Floating Ball Valve |
| Size | DN25 |
| Pressure | PN140 |
| Connection | BSP |
| Operation | H.W. |
| Body Material | A105 |
| Design Norm | API 598 |
| END to END | MANUFACTURER STANDARD |
| End connection | BSP |
| Pressure-temperature | ASME B16.34 |
| Test & Inspection Code | API 607 |
| Temperature | -20 ~ 180°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. High-Pressure Performance: Rated PN140, this forged steel ball valve ensures safe and reliable operation in high-pressure pipeline systems.2. Robust Forged Construction: Made from A105N material with BSP threaded ends, offering excellent strength, durability, and leak-tight performance.

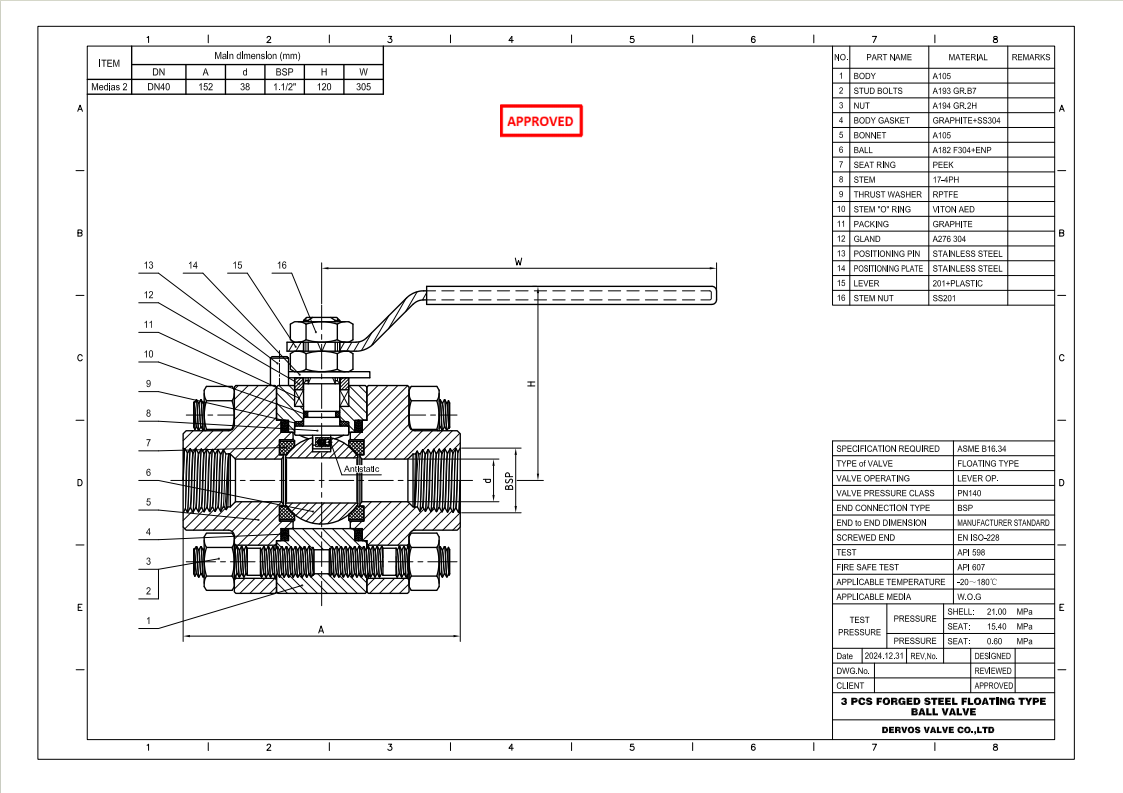

Technical Drawing

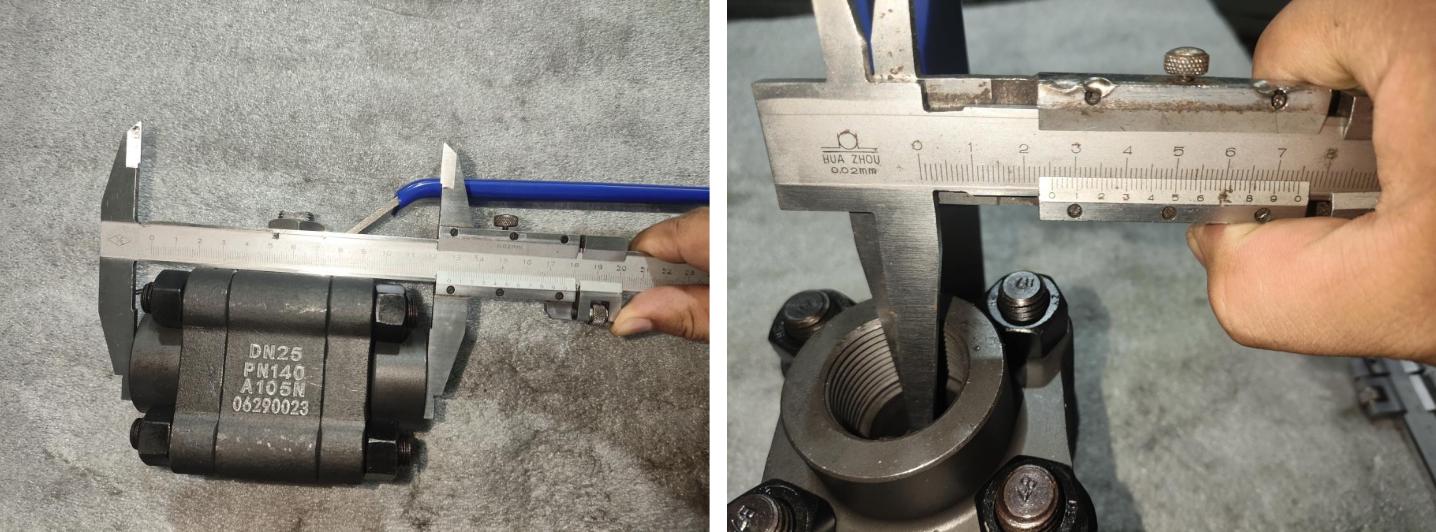

Dimension Checking

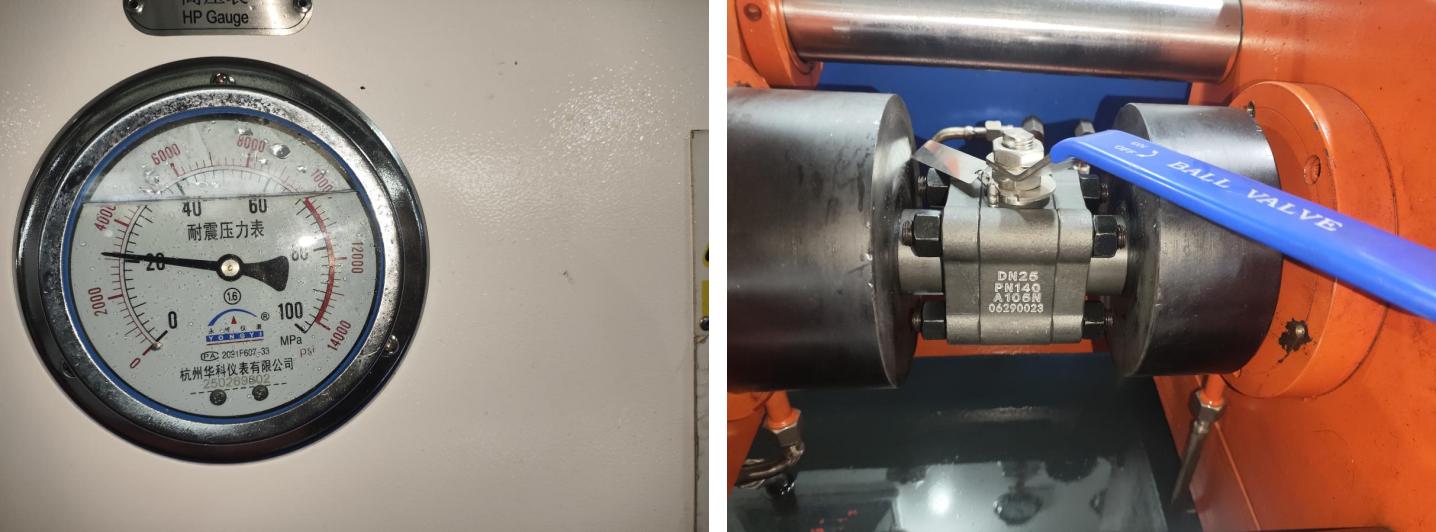

Pressure Testing

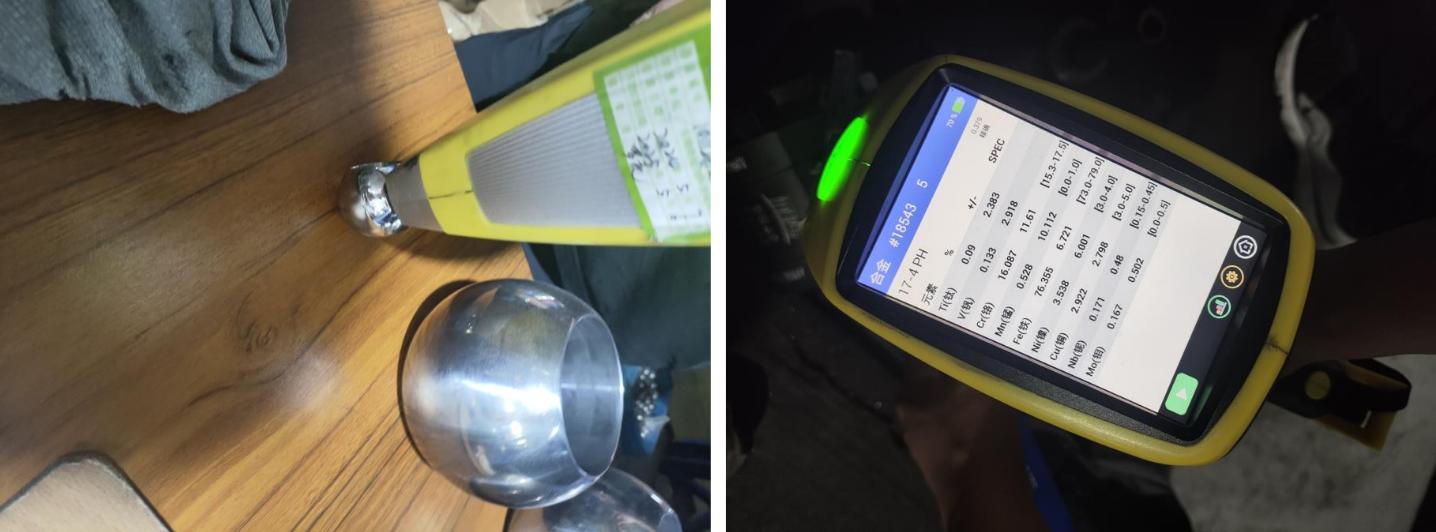

Spectrum

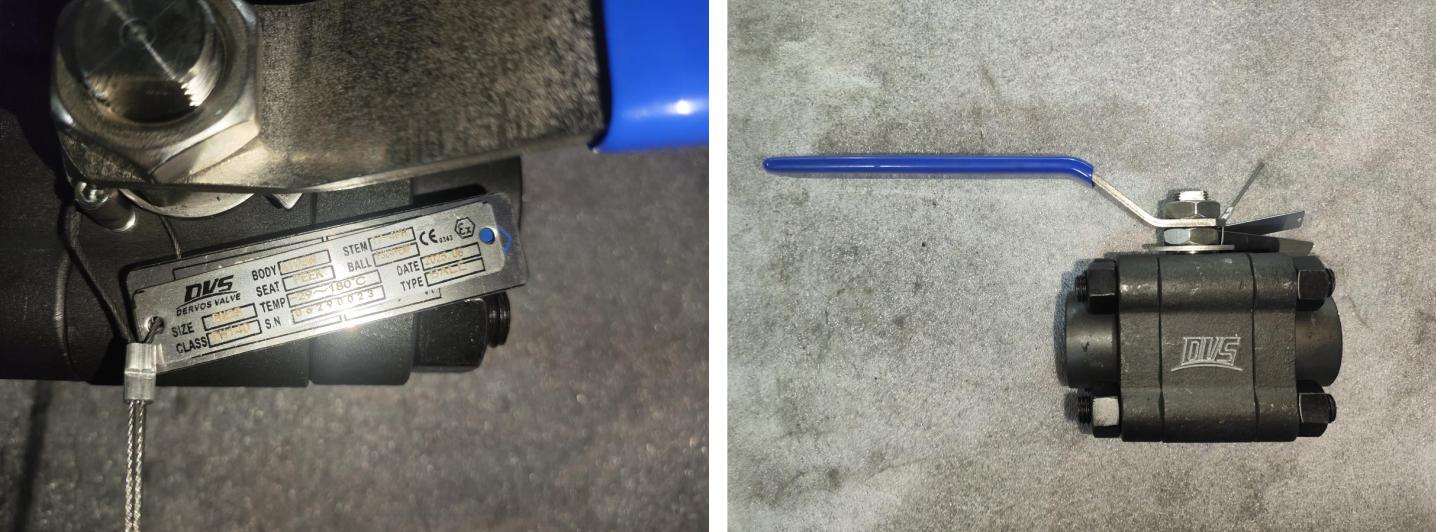

Nameplate & Packing
