DN15 PN63 Forged Steel Floating Ball Valve A105N FNPT
Key Specifications / Features
Model No.: Hits: 0
DN15 PN63 Forged Steel Ball Valve is made according to ASME B16.34 standard. The valve body is made of A105N. It has the structural characteristics of Floating Ball, Full Bore, Fire-safe and Anti-static. Its connection mode is FNPT. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Forged Steel Ball Valve |
| Size | DN15 |
| Pressure | PN63 |
| Connection | FNPT |
| Operation | H.W. |
| Body Material | A105N |
| Design Norm | ASME B16.34 |
| End to End | MFG'S |
| End connection | NPT |
| Pressure-temperature | ASME B16.34 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 200°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Forged A105N steel body ensures durability and high-pressure resistance.2. FNPT threaded ends provide easy installation and reliable sealing for small-diameter pipelines.

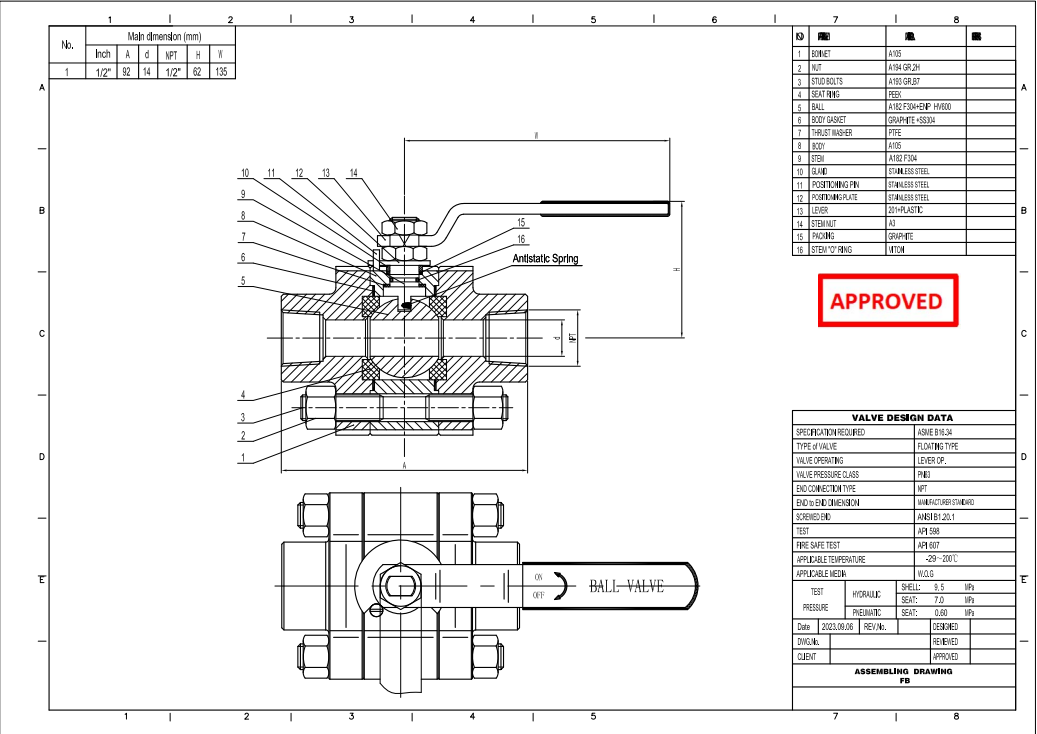

Technical Drawing

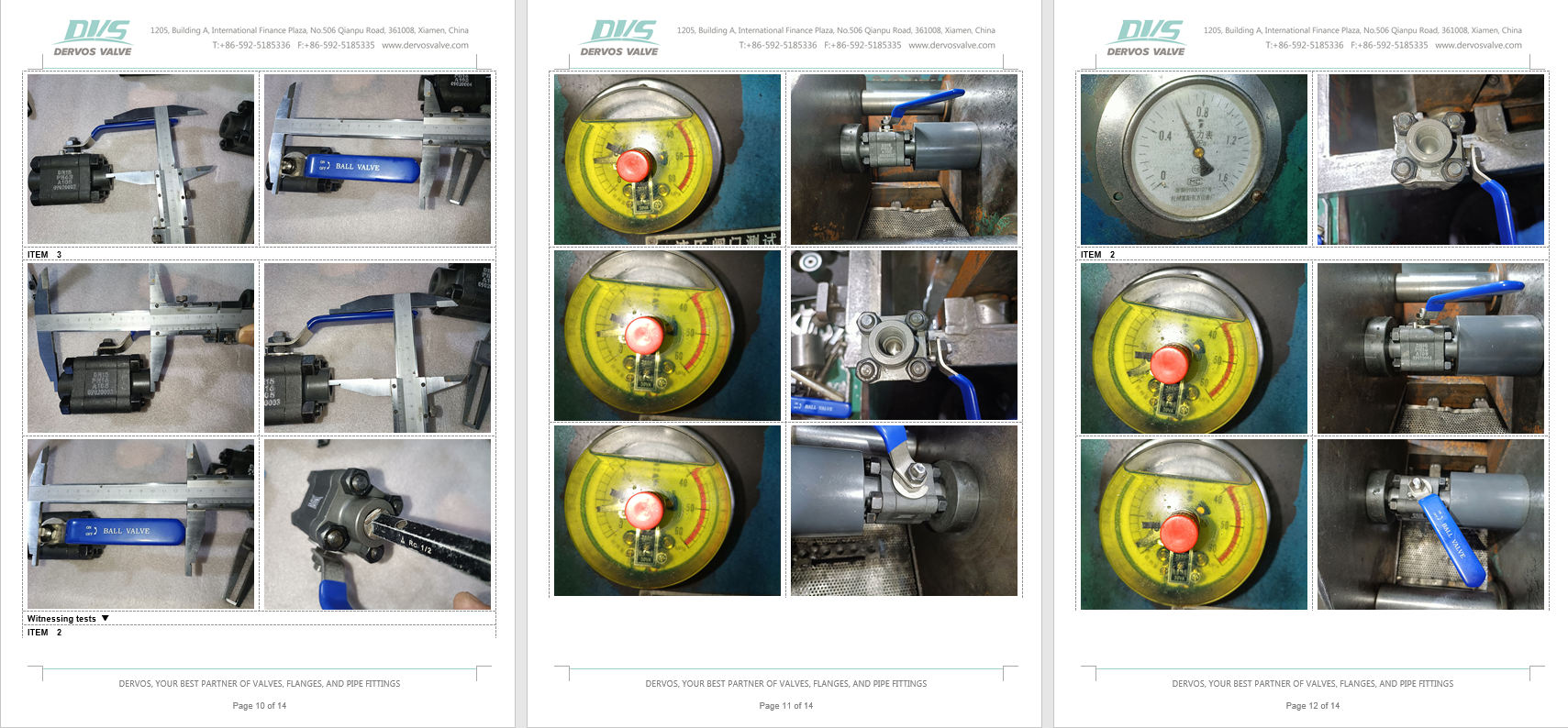

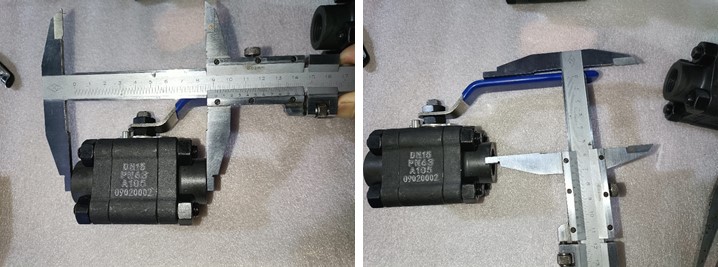

Dimension Checking

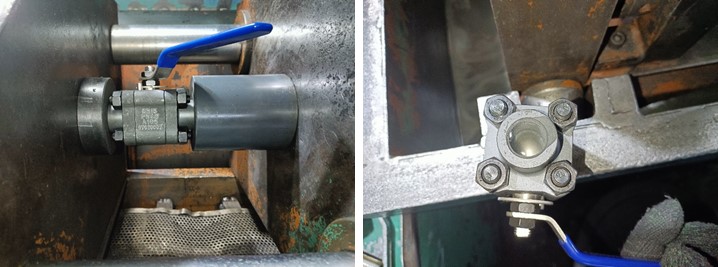

Pressure Testing

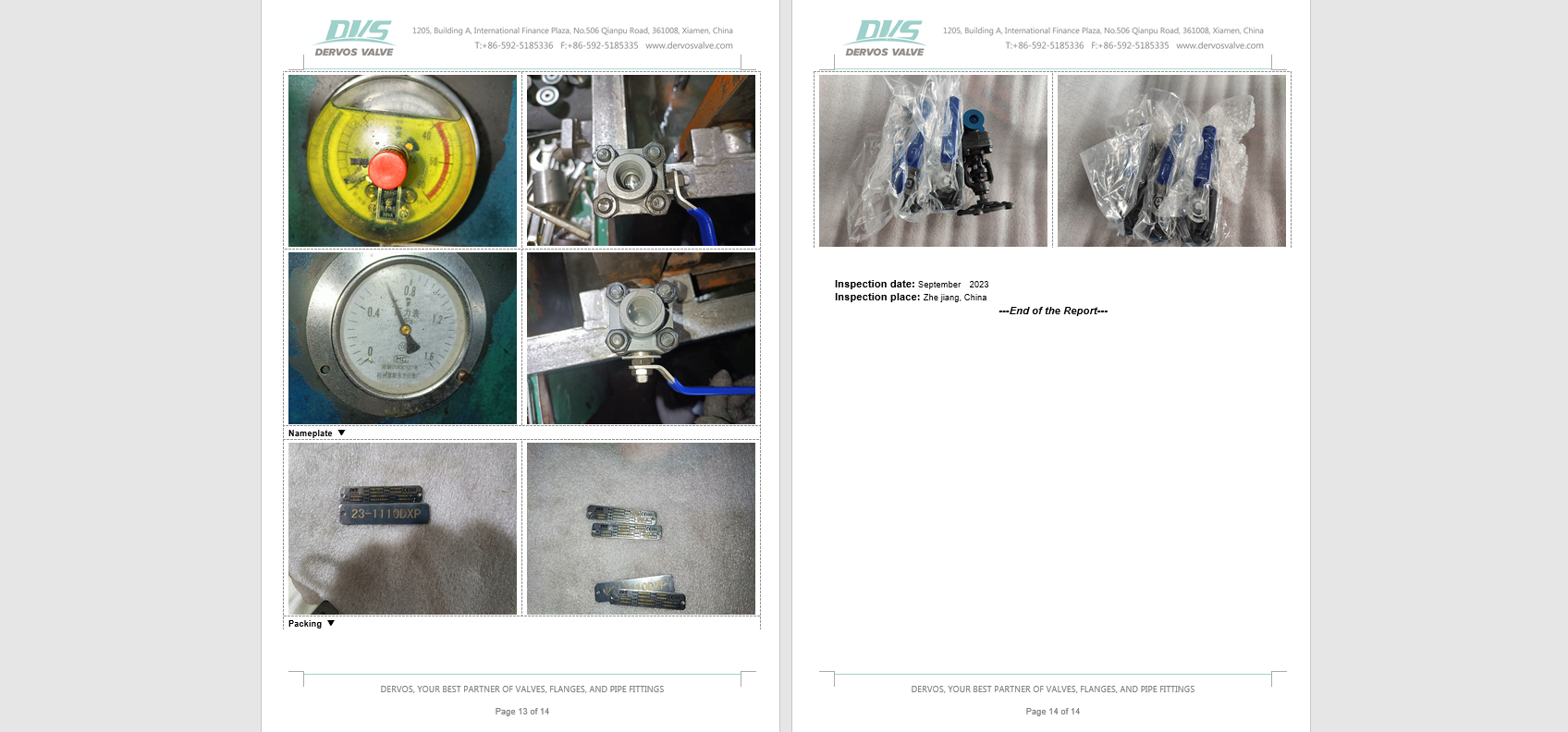

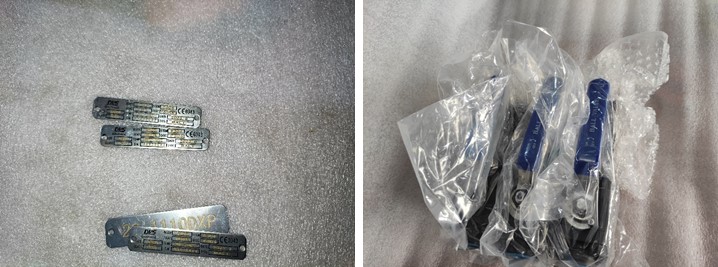

Nameplate & Packing

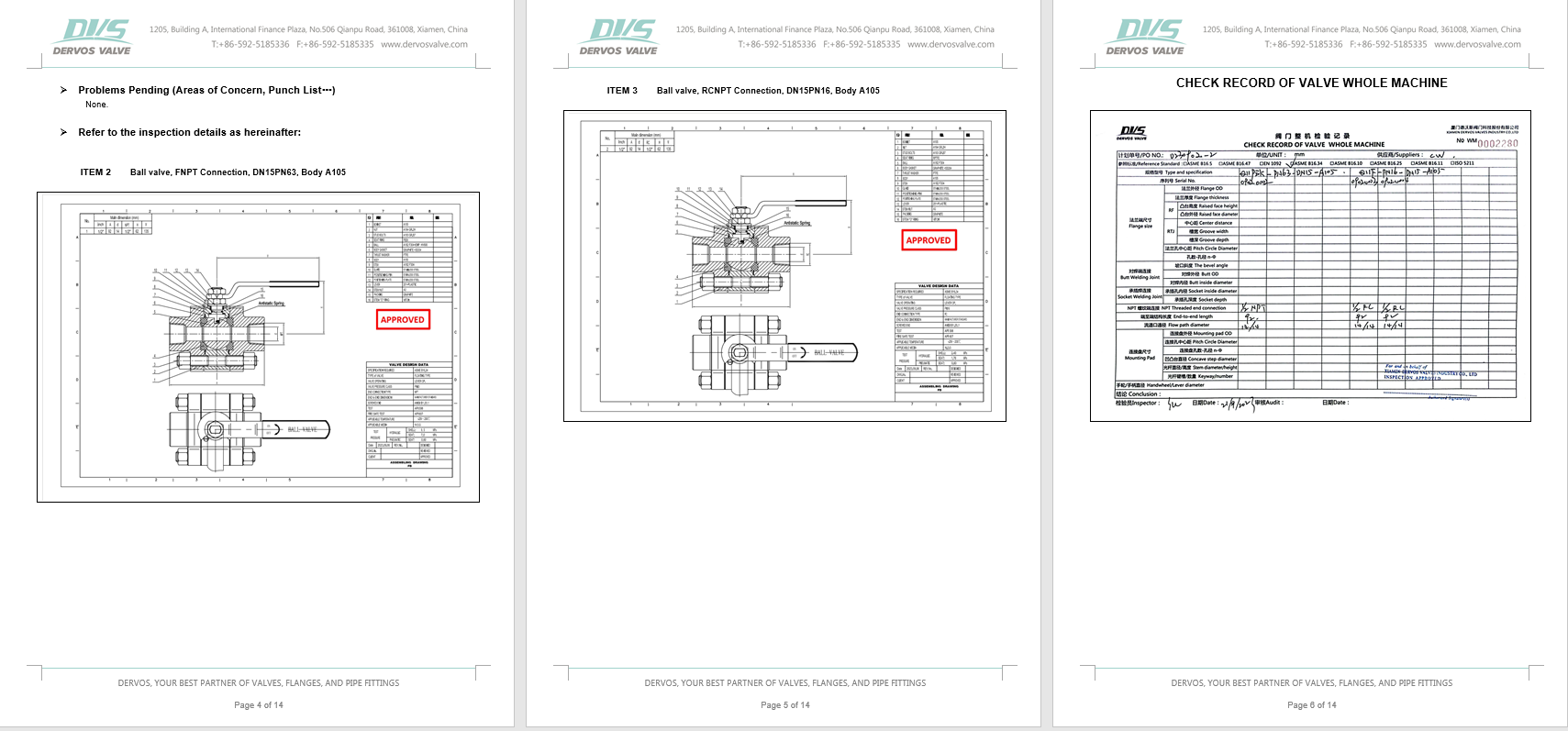

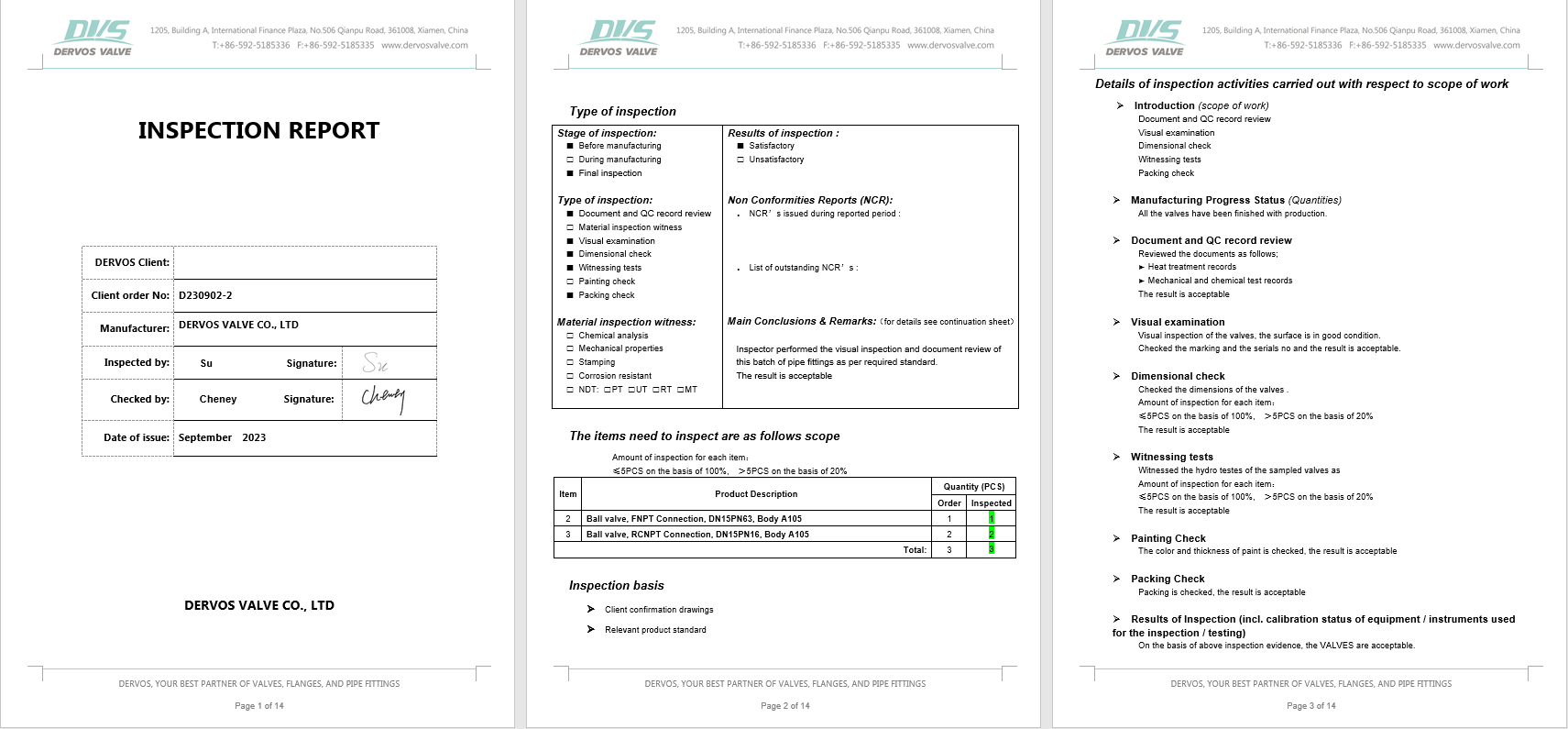

Inspection Report
