1-1/2"x1-1/4" 1500LB Forged Steel Floating Ball Valve A105 RTJ H.W.
Key Specifications / Features
Model No.: Hits: 0
1-1/2"x1-1/4" 1500LB Forged Steel Floating Ball Valve is made according to API 6D standard. The valve body is made of ASTM- A105. This reduced bore floating ball valve features a fire-safe design, anti-static protection, and a blow-out proof stem, ensuring reliable performance under demanding conditions. Its connection mode is RTJ. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Floating Ball Valve |
| Size | 1-1/2"x1-1/4" |
| Pressure | 800LB |
| Connection | RTJ |
| Operation | H.W. |
| Body Material | ASTM- A105 |
| Design Norm | API 6D |
| Face to Face | ASME B16.10 |
| Flange Ends Dimensions | ASME B16.5 |
| Pressure-temperature | API6D |
| Test & Inspection Code | API6D |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Forged A105 body provides excellent strength and durability for high-pressure applications.
2. RTJ end connection ensures tight sealing performance in demanding pipeline systems.

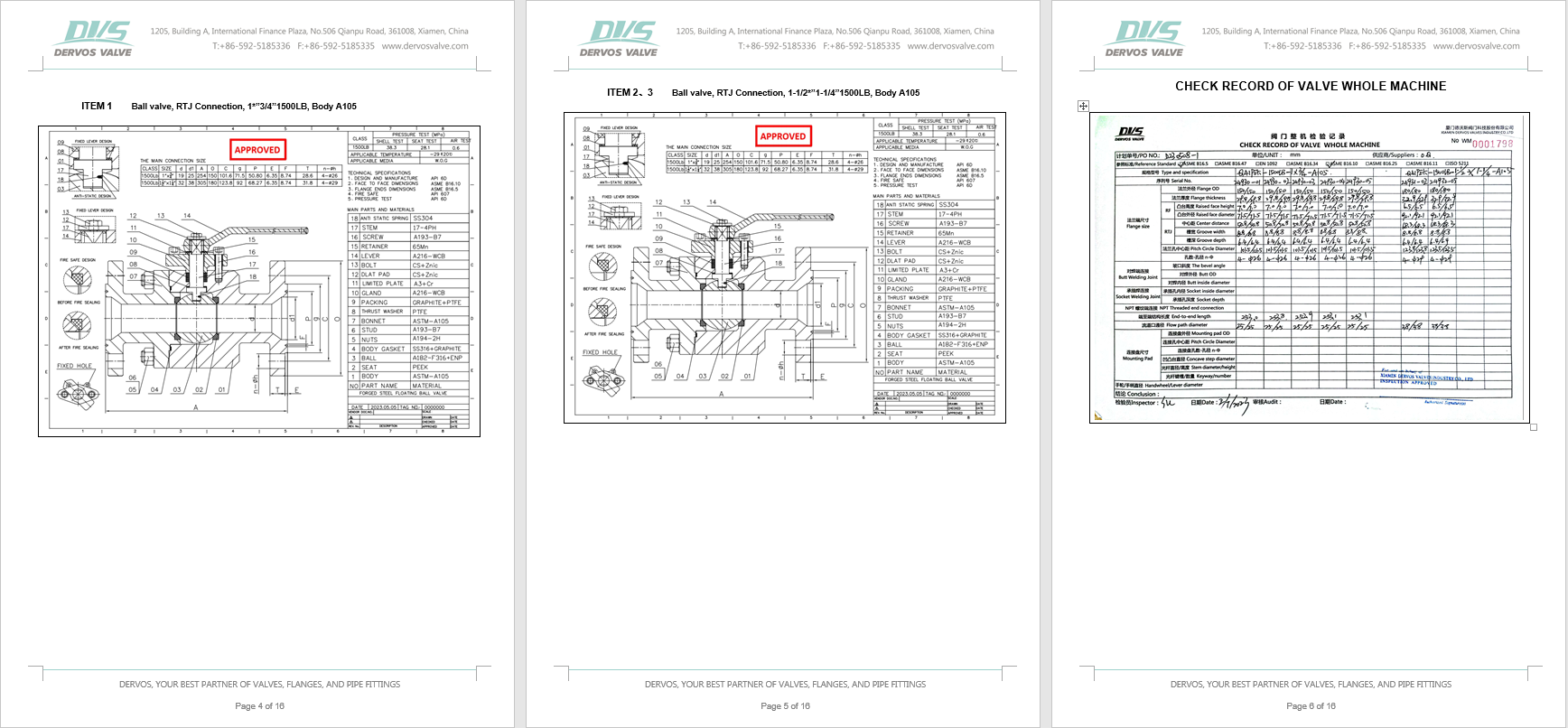

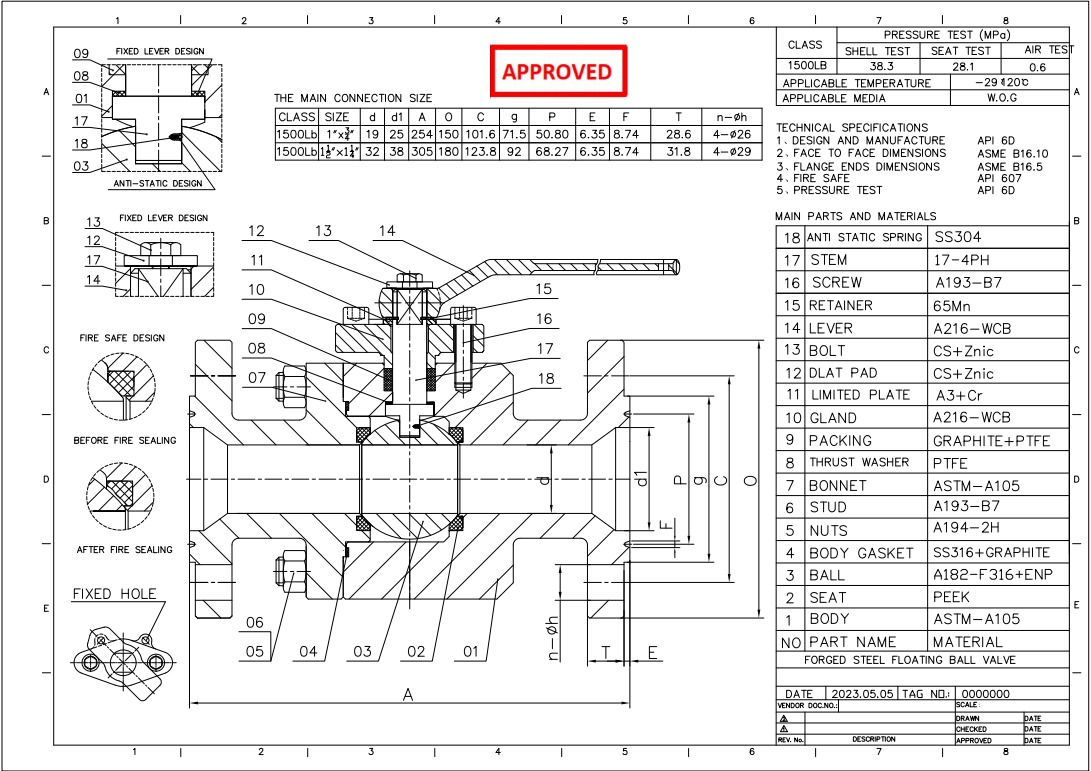

Floating Ball Valve Technical Drawing

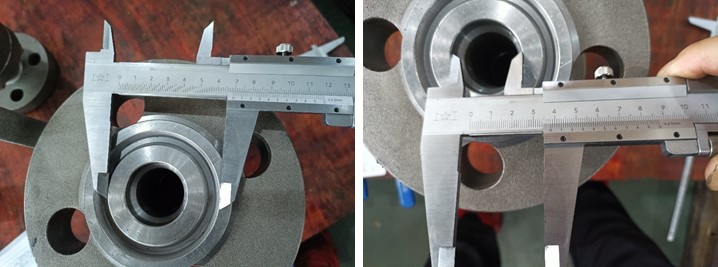

Dimension Checking

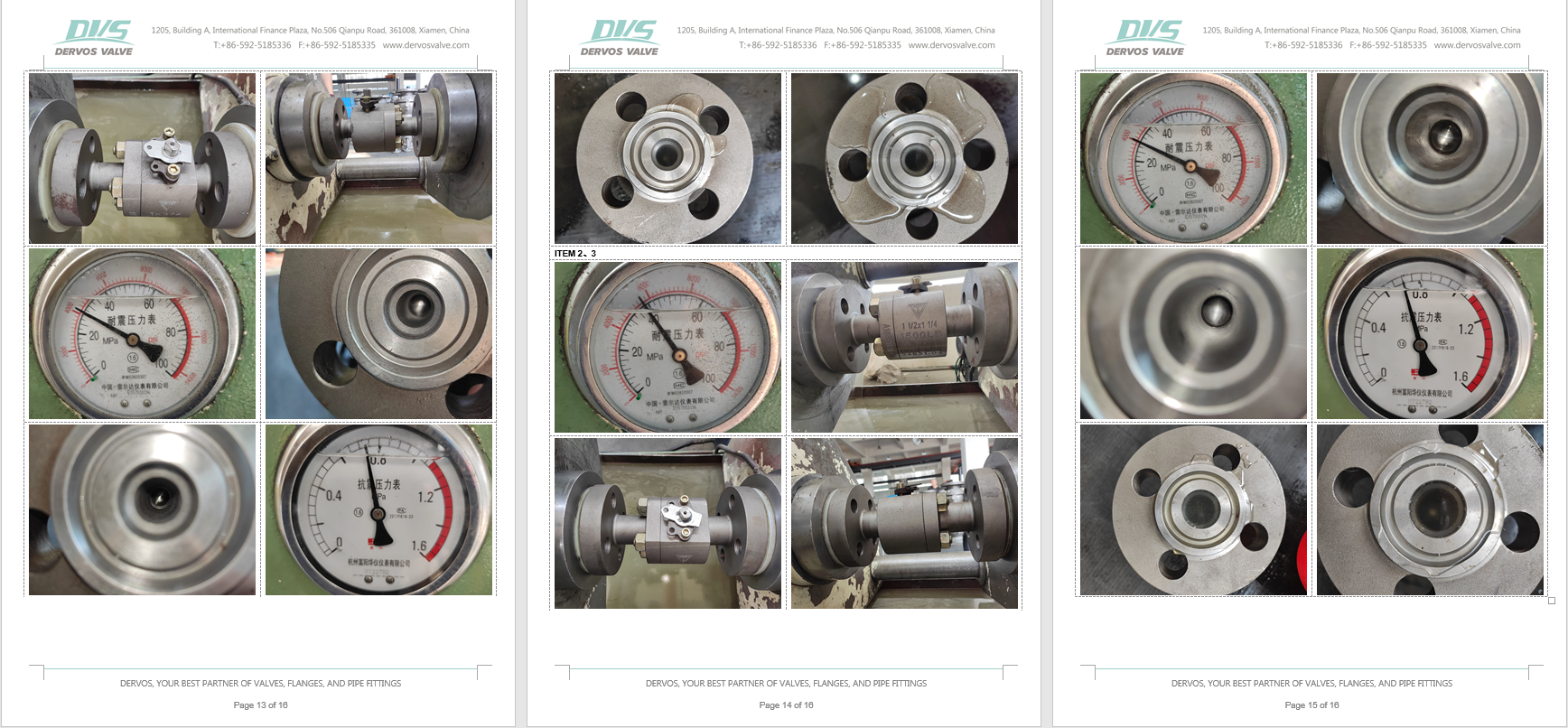

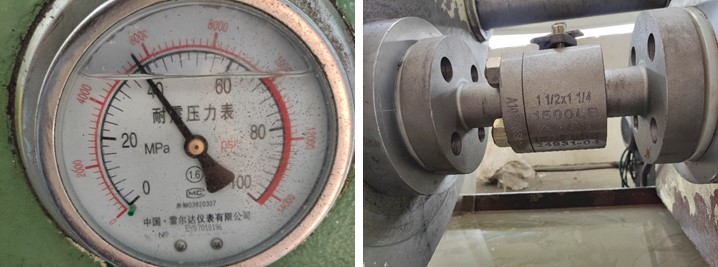

Pressure Testing

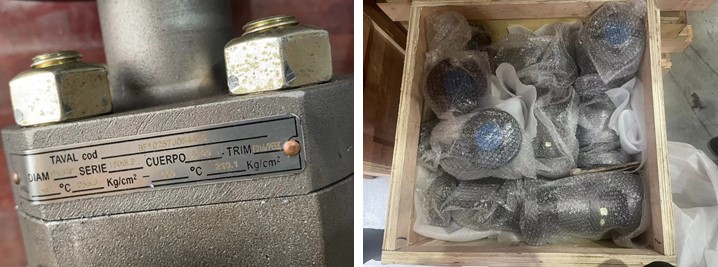

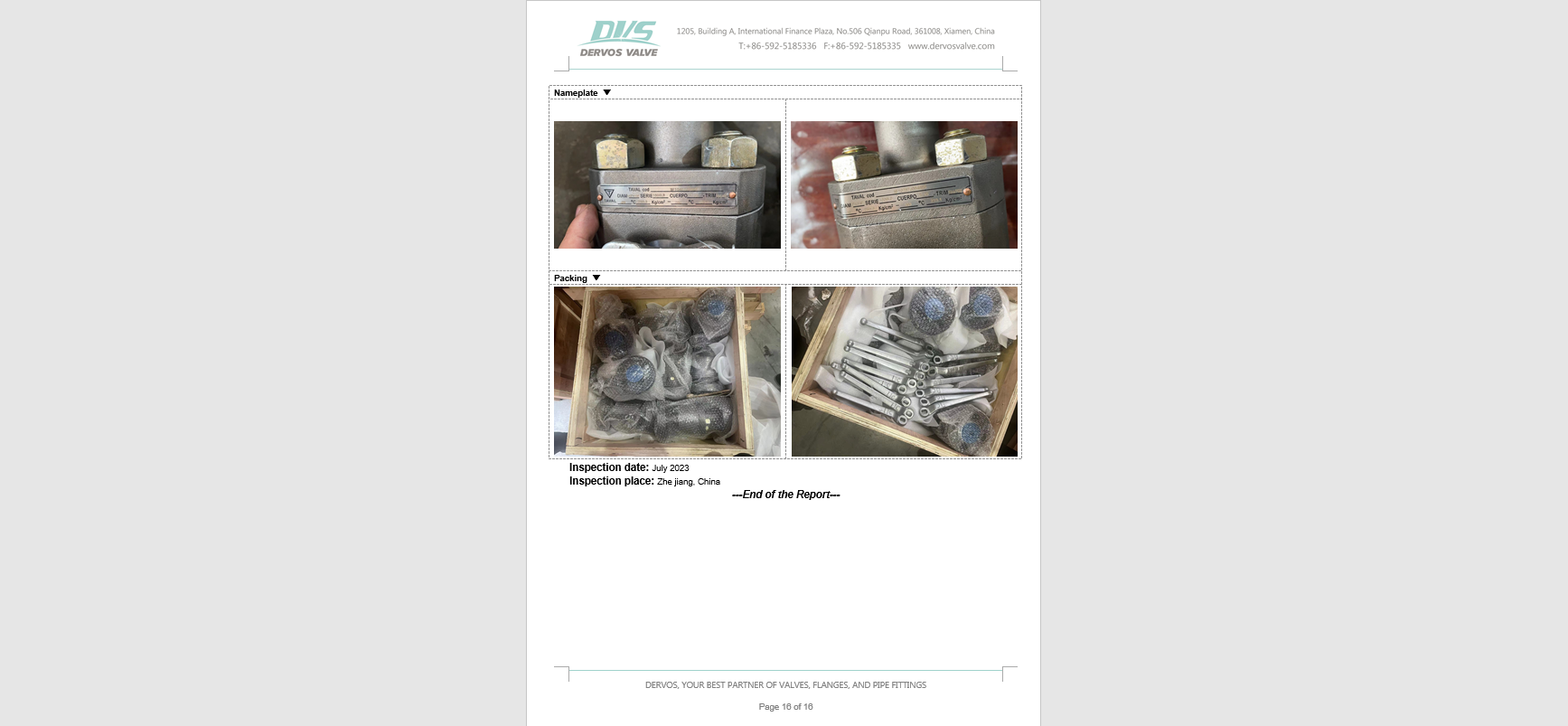

Nameplate & Packing

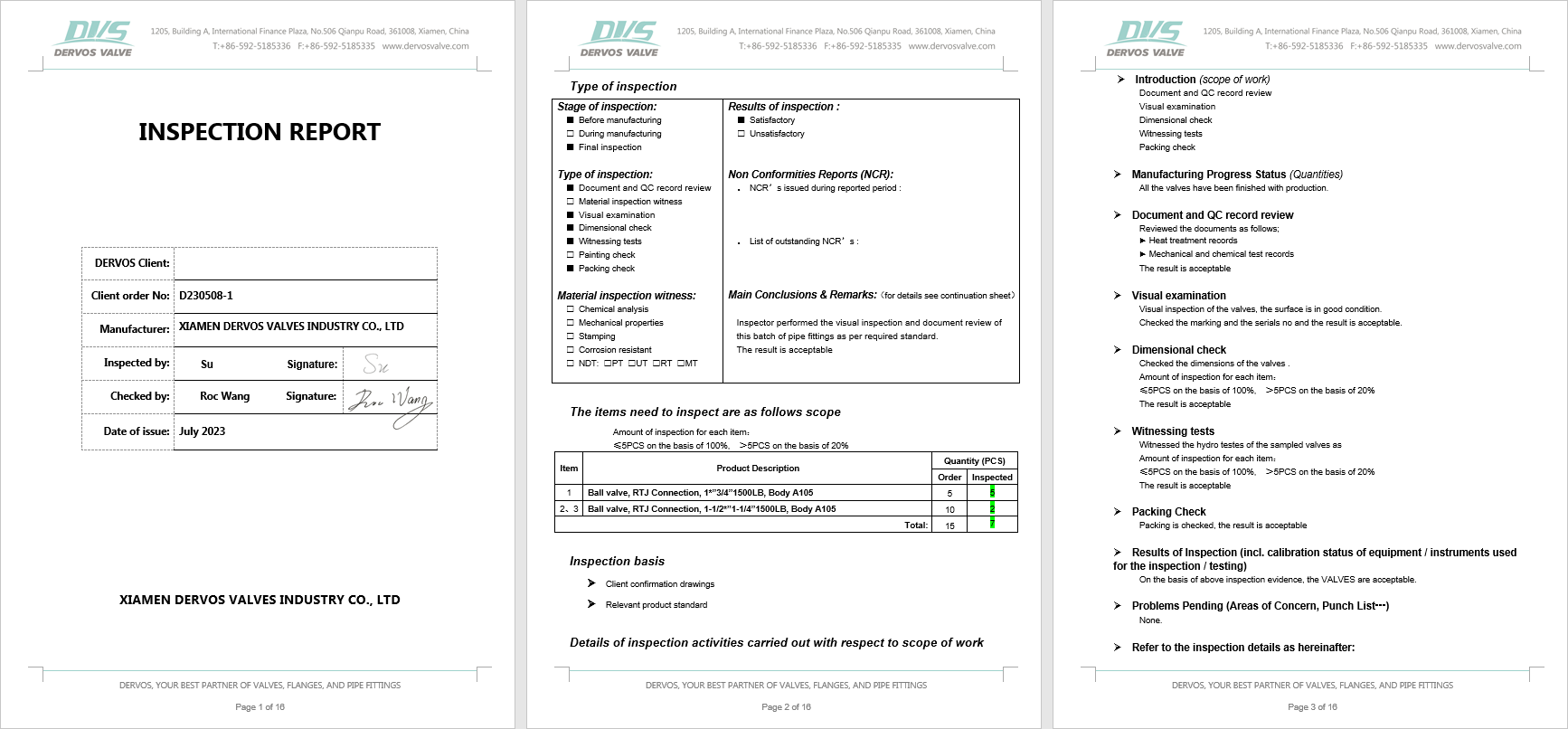

Inspection report
