1" 800LB Forged Steel Floating Ball Valve API 598 A105N H.W.
Key Specifications / Features
Model No.: Hits: 0
1" 800LB Forged Steel Floating Ball Valve is made according to ASME B16.34 standard. The valve body is made of ASTM A105N. A full bore floating ball valve with a threaded body connection, suitable for compact piping systems requiring reliable sealing. Its connection mode is FNPT. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Size | 1" |
| Pressure | 800LB |
| Connection | FNPT |
| Operation | H.W. |
| Body Material | A105N |
| Design Norm | ASME B16.34 |
| End to End | MFG'S |
| End connection | NPT |
| Pressure-temperature | ASME B16.34 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 150°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Made from A105N forged carbon steel, ensuring high strength and durability under elevated pressure conditions.
2. Floating ball design with handwheel operation, tested per API 598 for reliable sealing and tight shutoff.

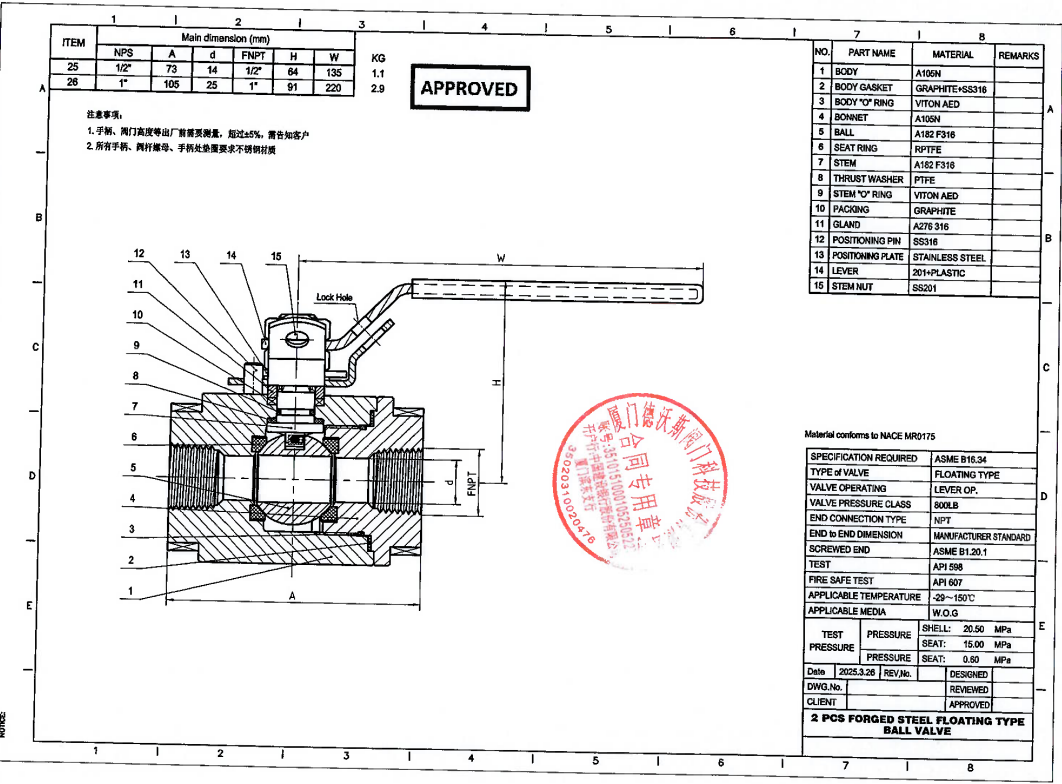

Forged Steel Floating Ball Valve Technical Drawing

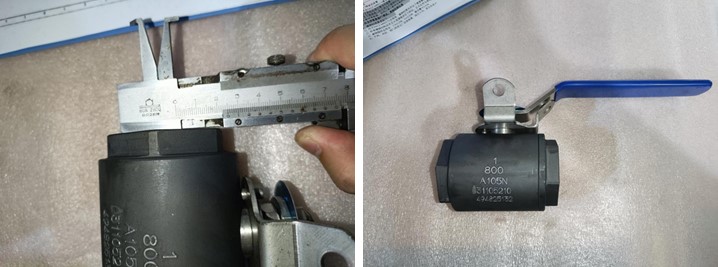

Dimension Checking

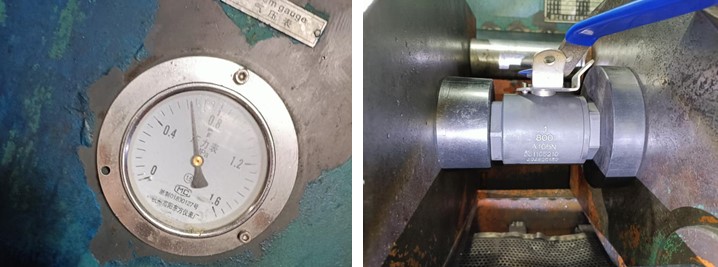

Pressure Testing

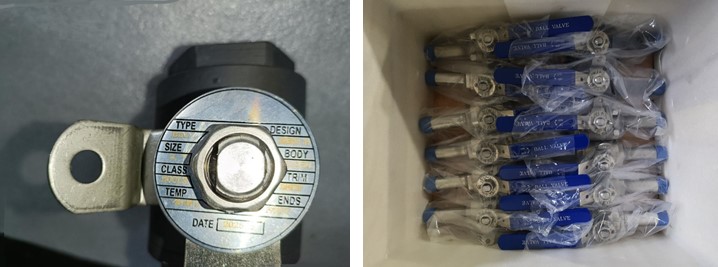

Nameplate & Packing
