2" 600LB Floating Ball Valve RTJ Body N08825 API6D
Key Specifications / Features
Model No.: Hits: 0
2" 600LB Floating Ball Valve is made according to API6D standard. The valve body is made of N08825. This valve features a full bore design, twin floating balls, fire-safe construction compliant with API 6FA, and incorporates both anti-static and blow-out proof protections. Its connection mode is RTJ. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Floating Ball Valve |
| Size | 2” |
| Pressure | 600LB |
| Connection | RTJ |
| Operation | H.W. |
| Body Material | N08825 |
| Design Norm | API6D |
| Face to Face | MANUF.STD |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API6D |
| Temperature | -35 ~ 160°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Precision-engineered from N08825 alloy, this valve offers excellent resistance to acids, chlorides, and high-pressure corrosion.2. Floating ball design with RTJ ends ensures secure sealing and compliance with API 6D standards for critical pipeline systems.

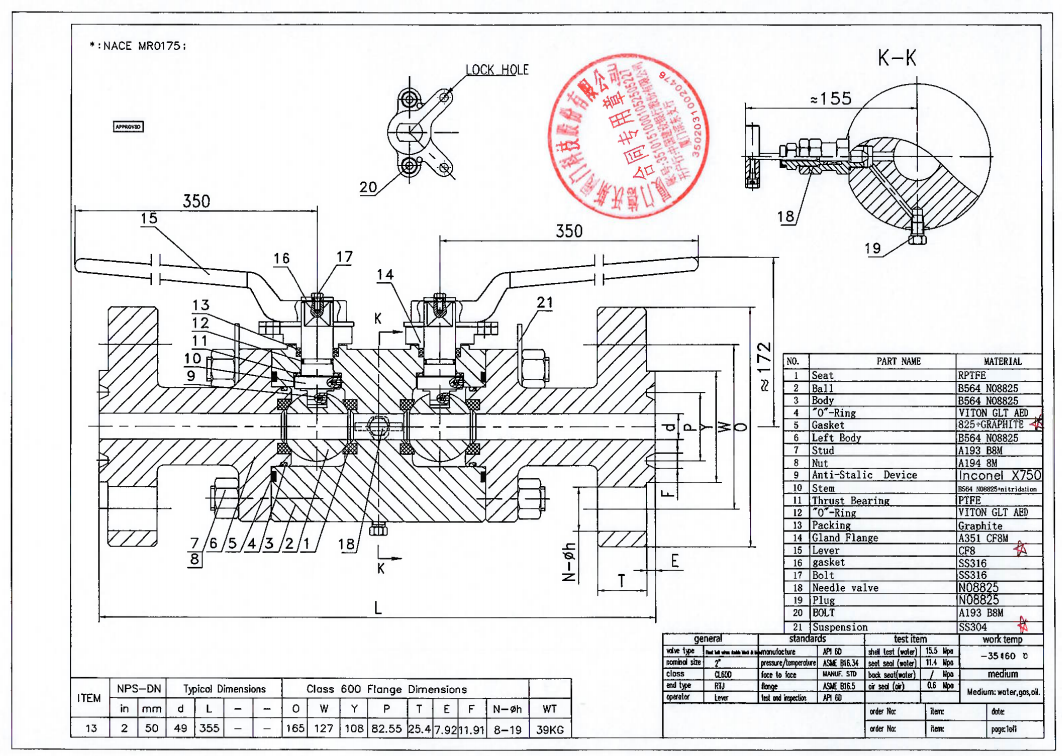

Floating Ball Valve Technical Drawing

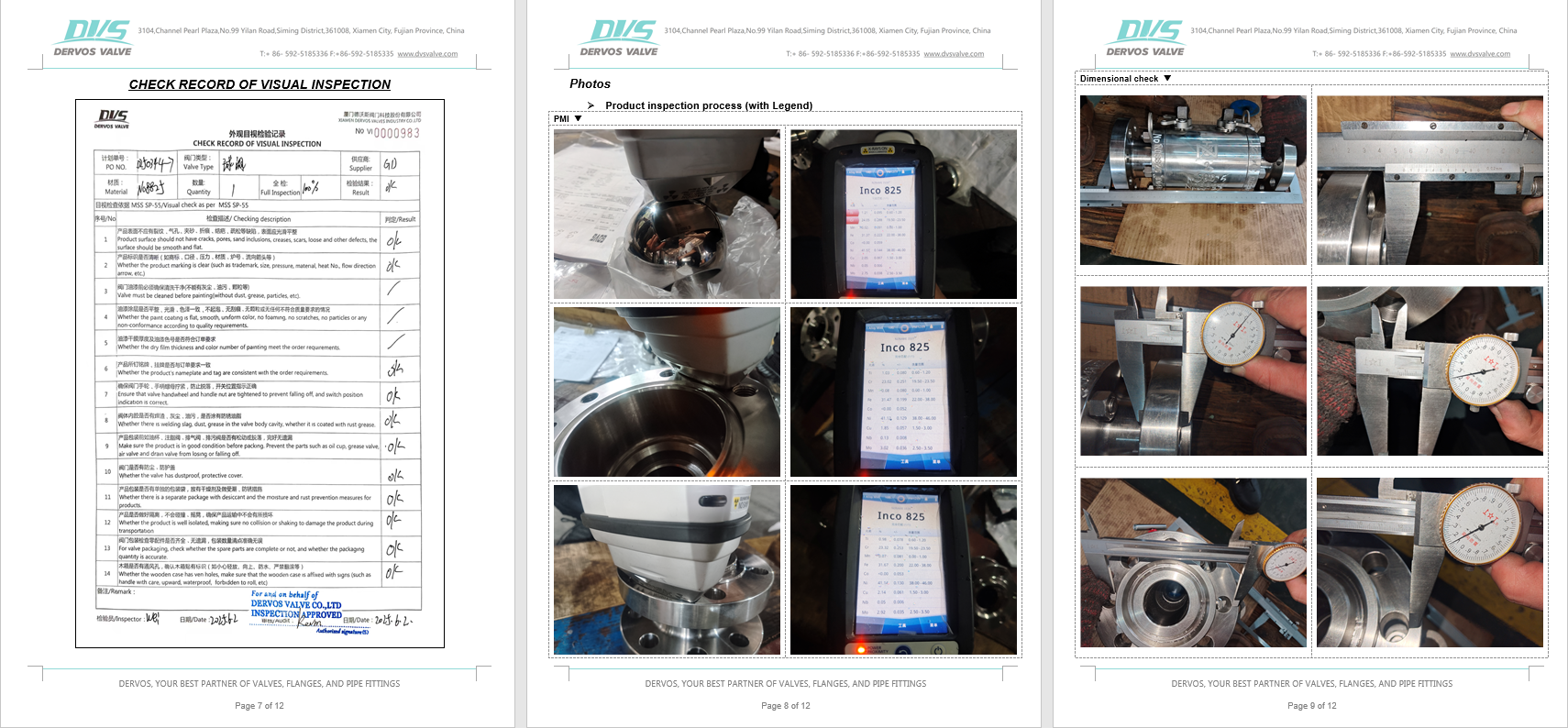

Dimension Checking

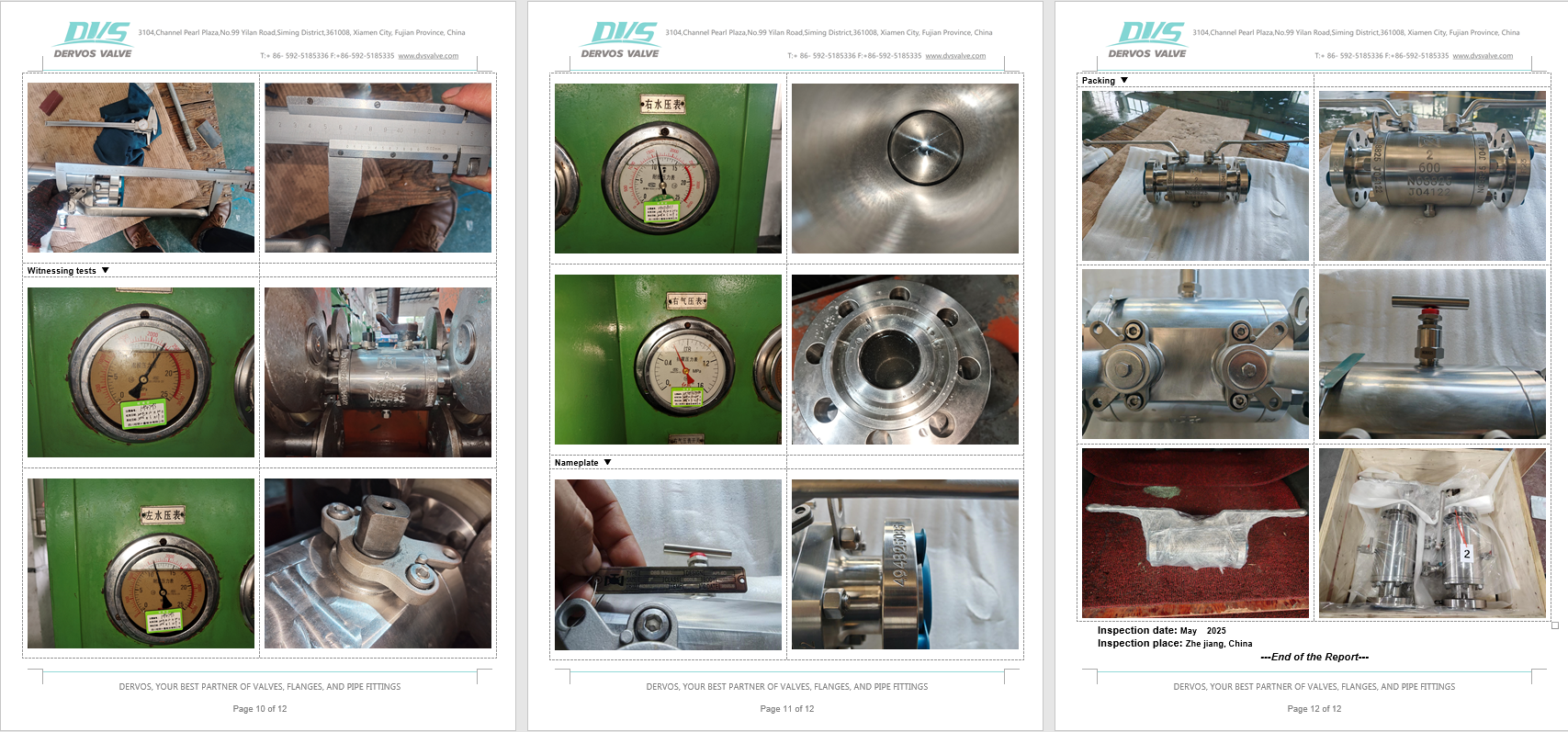

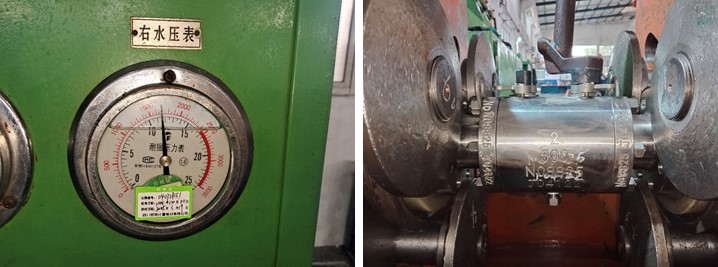

Pressure Testing

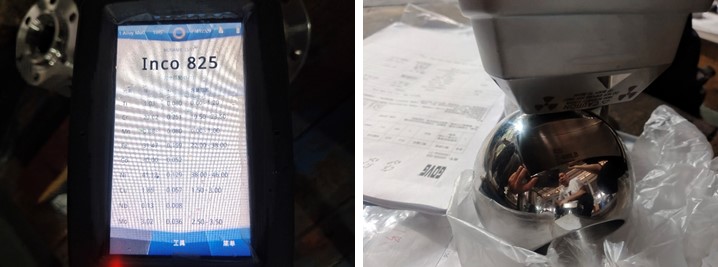

Spectrum

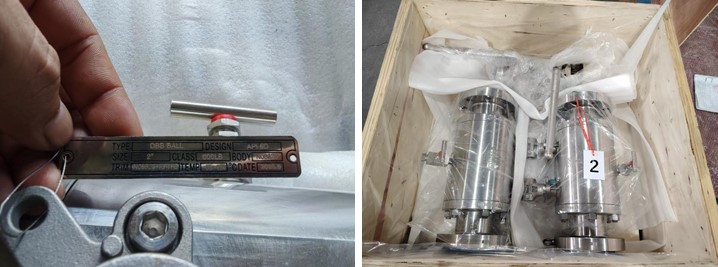

Nameplate & Packing

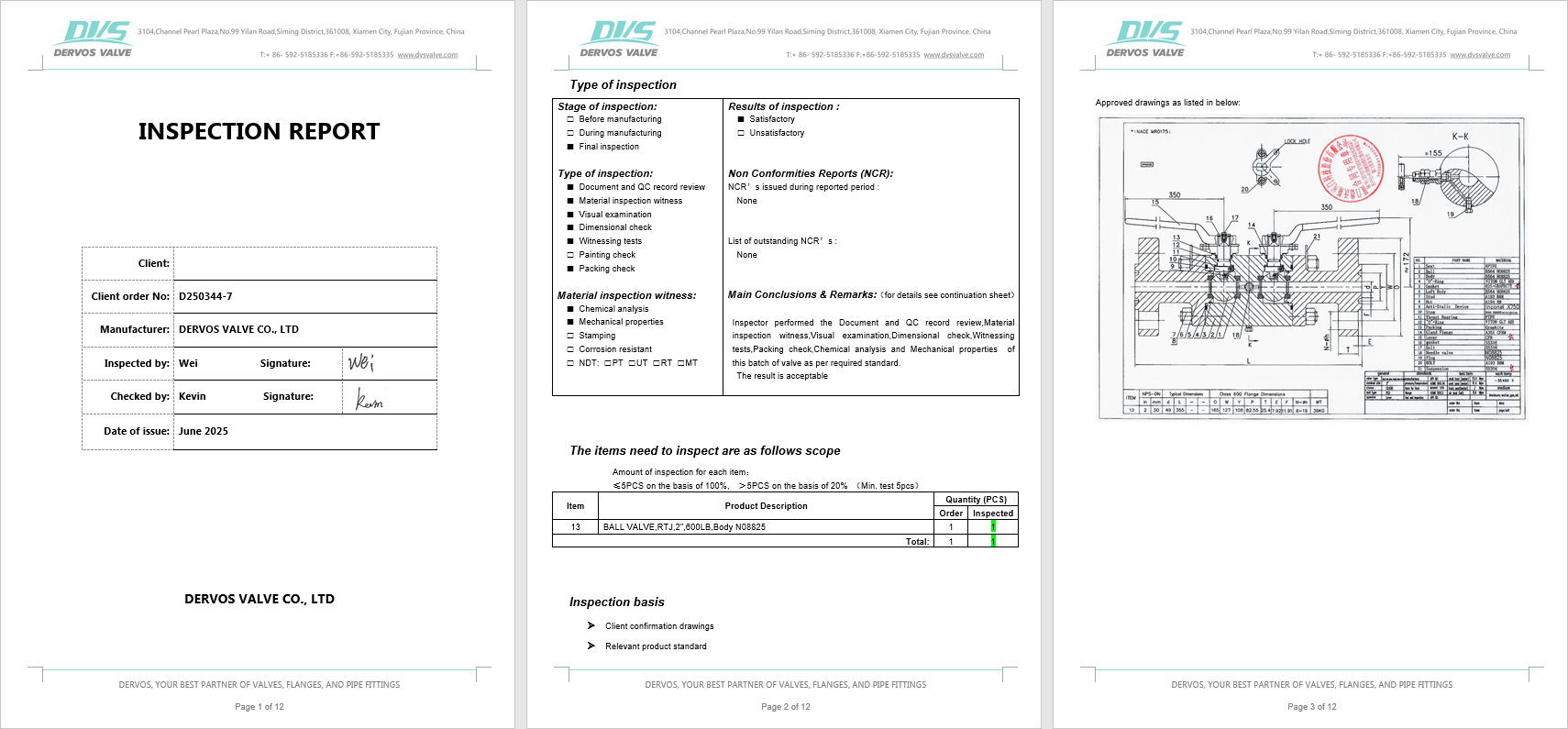

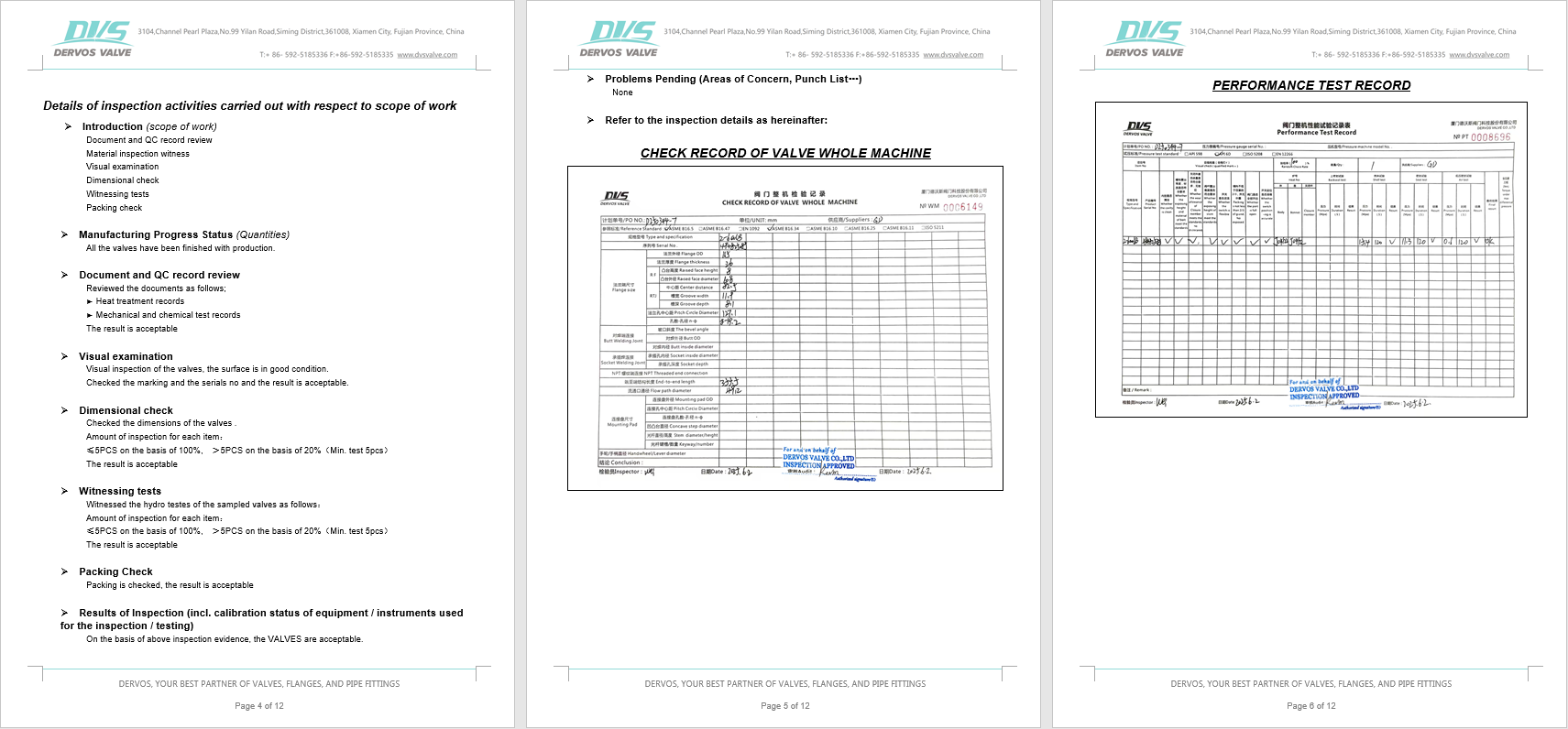

Inspection Report
