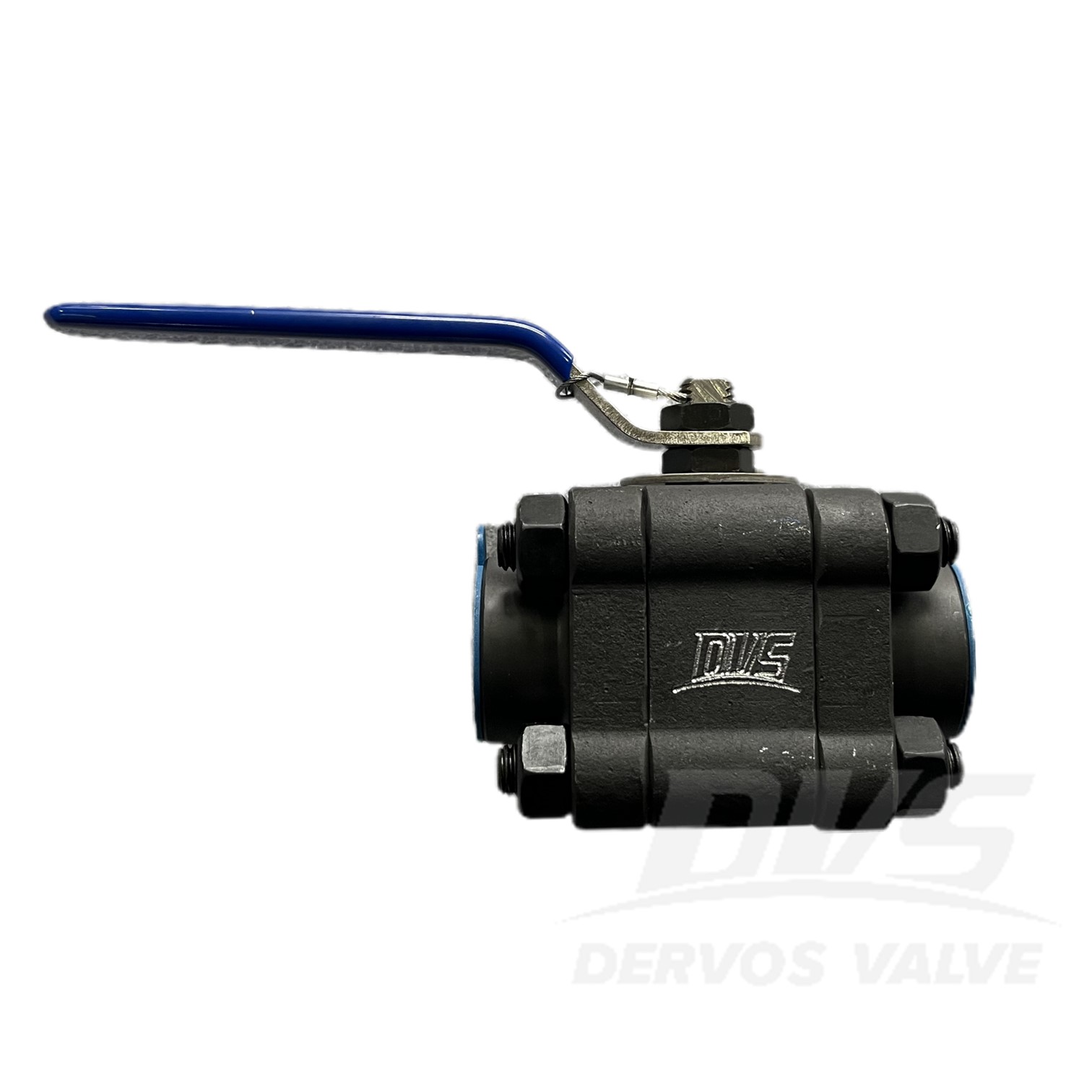

DN15 PN160 Floating Ball Valve A105 FNPT LEVER OP.
Key Specifications / Features
Model No.: Hits: 0
DN15 PN160 Floating Ball Valve is made according to ASME B16.34 standard. The valve body is made of A105. It has the structural characteristics of Full Port, Fire-safe and Anti-static. Its connection mode is LEVER OP..
Request a quote
Tags:
Detail Information
Product Description
| Type | Floating Ball Valve |
| Size | DN15 |
| Pressure | PN160 |
| Connection | FNPT |
| Body Material | A105 |
| Design Norm | ASME B16.34 |
| END to ENDA | MANUFACTURER STANDARD |
| END CONNECTION TYPE | NPT |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 150°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Made from A105 forged carbon steel, this DN15 floating ball valve supports up to PN160 pressure for high-performance flow control.
2. Featuring FNPT threaded ends and lever operation, it ensures secure installation and easy manual handling in compact pipelines.

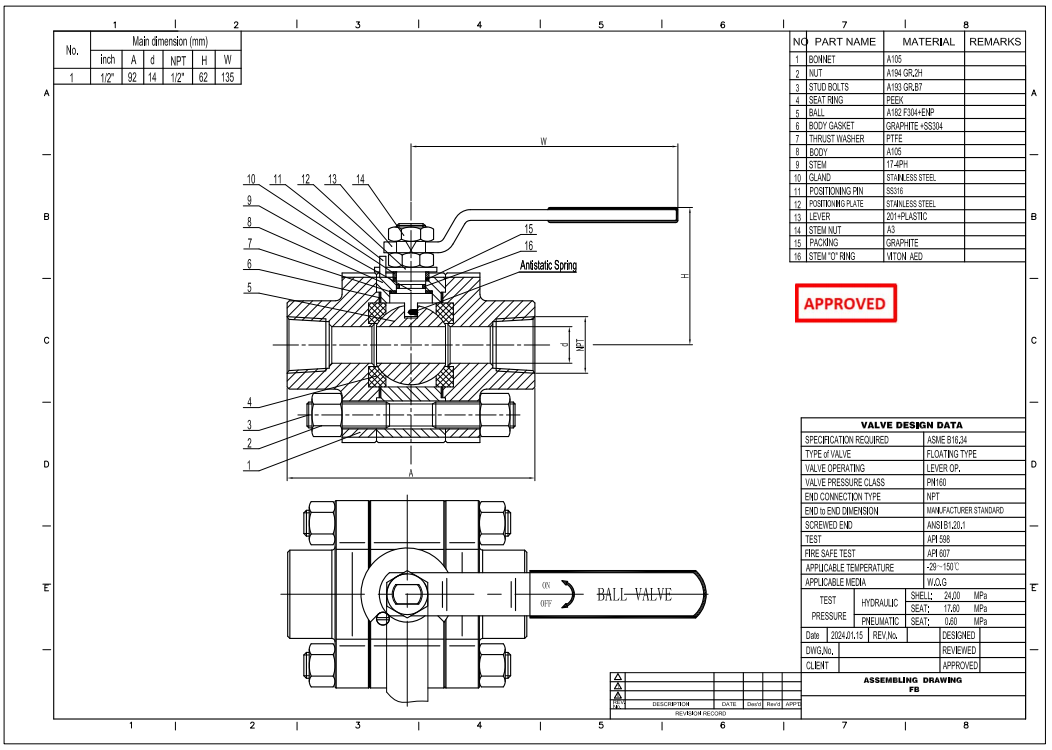

Floating Ball Valve Technical Drawing

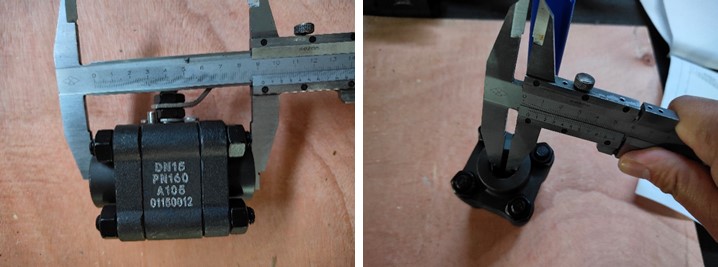

Dimension Checking

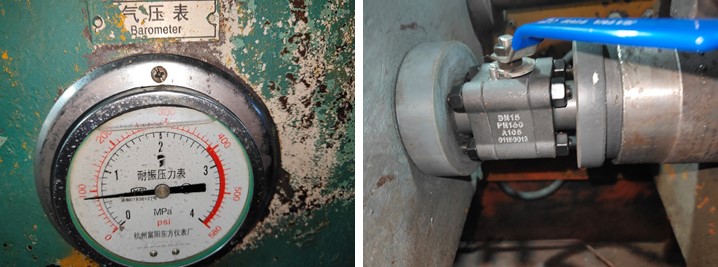

Pressure Testing

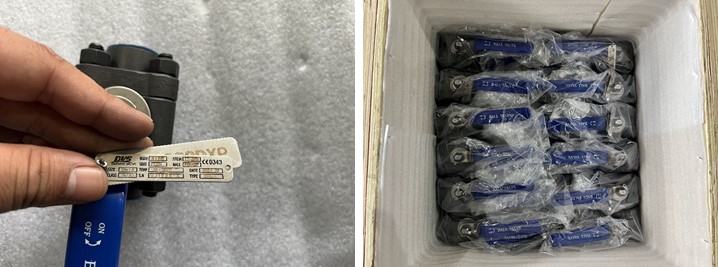

Nameplate & Packing

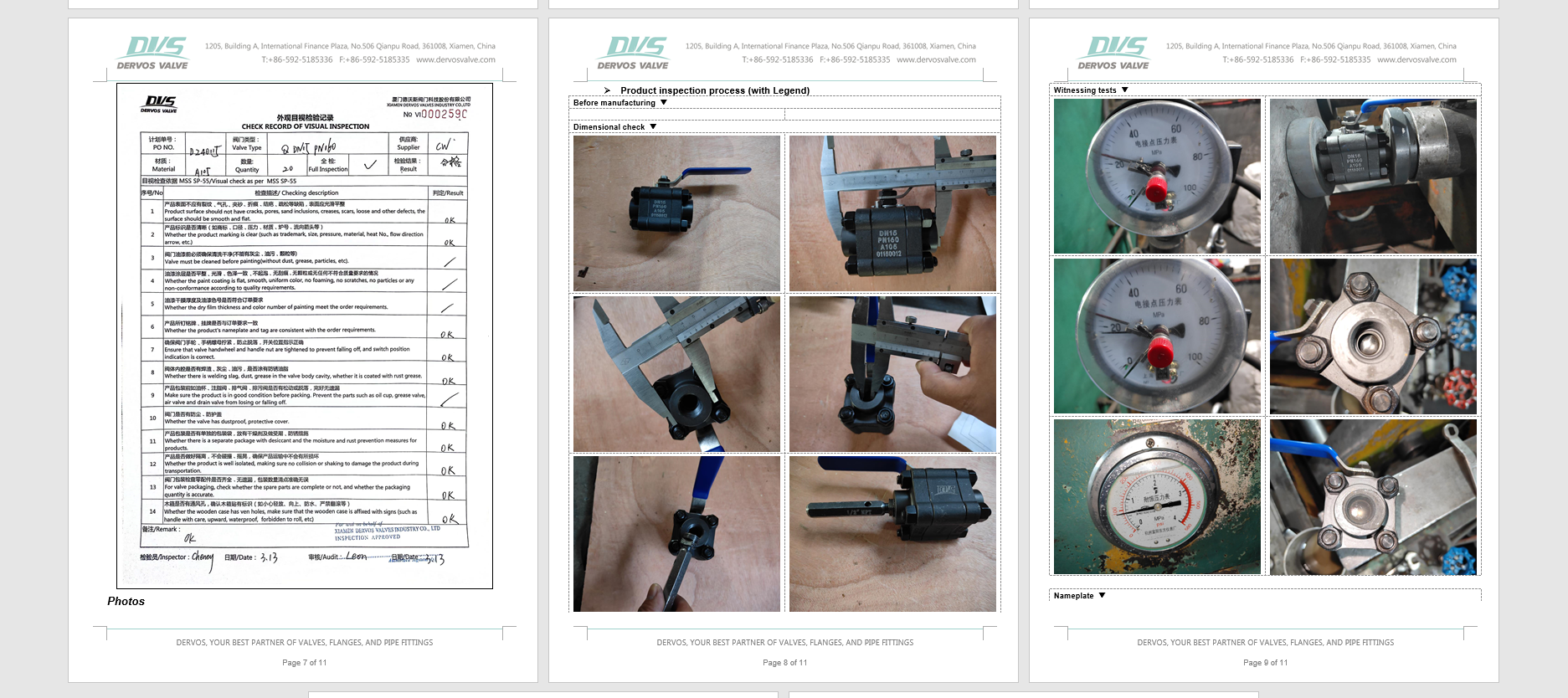

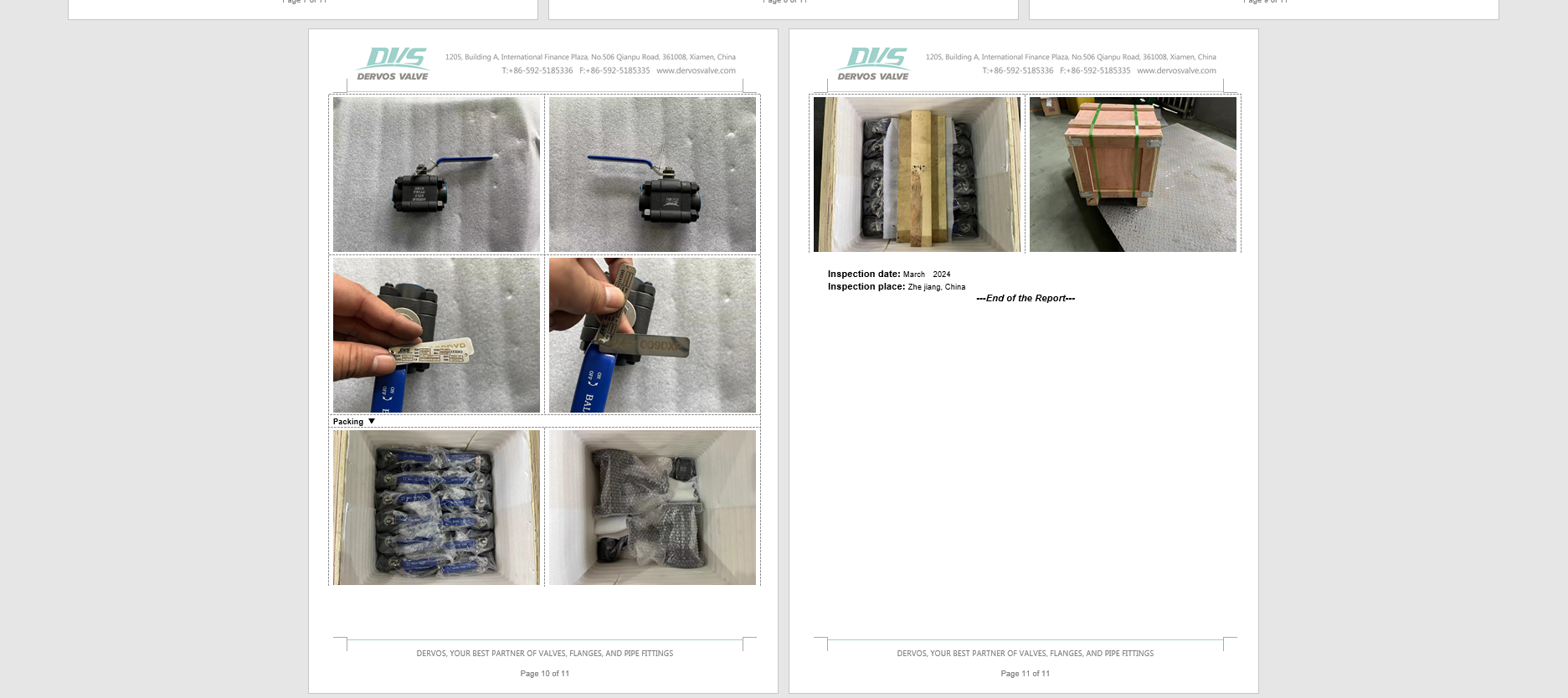

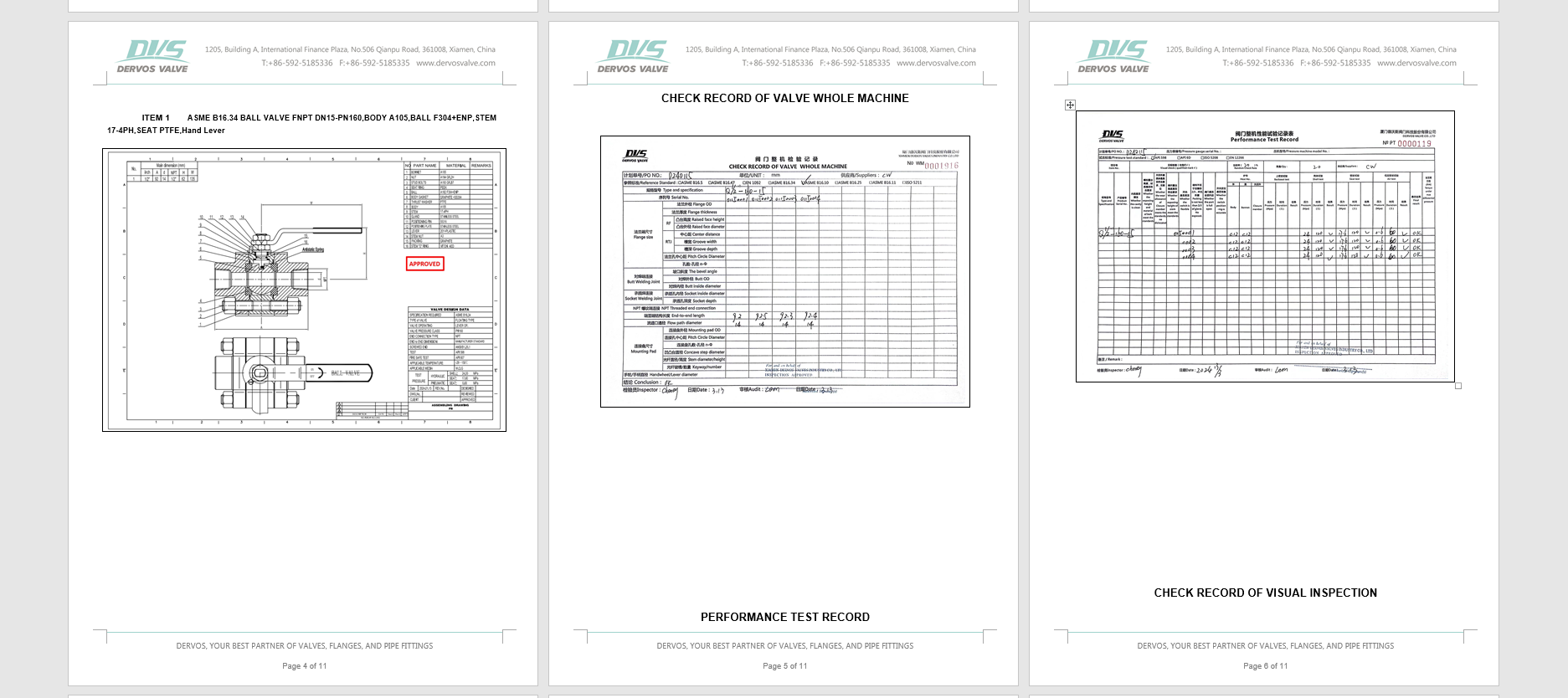

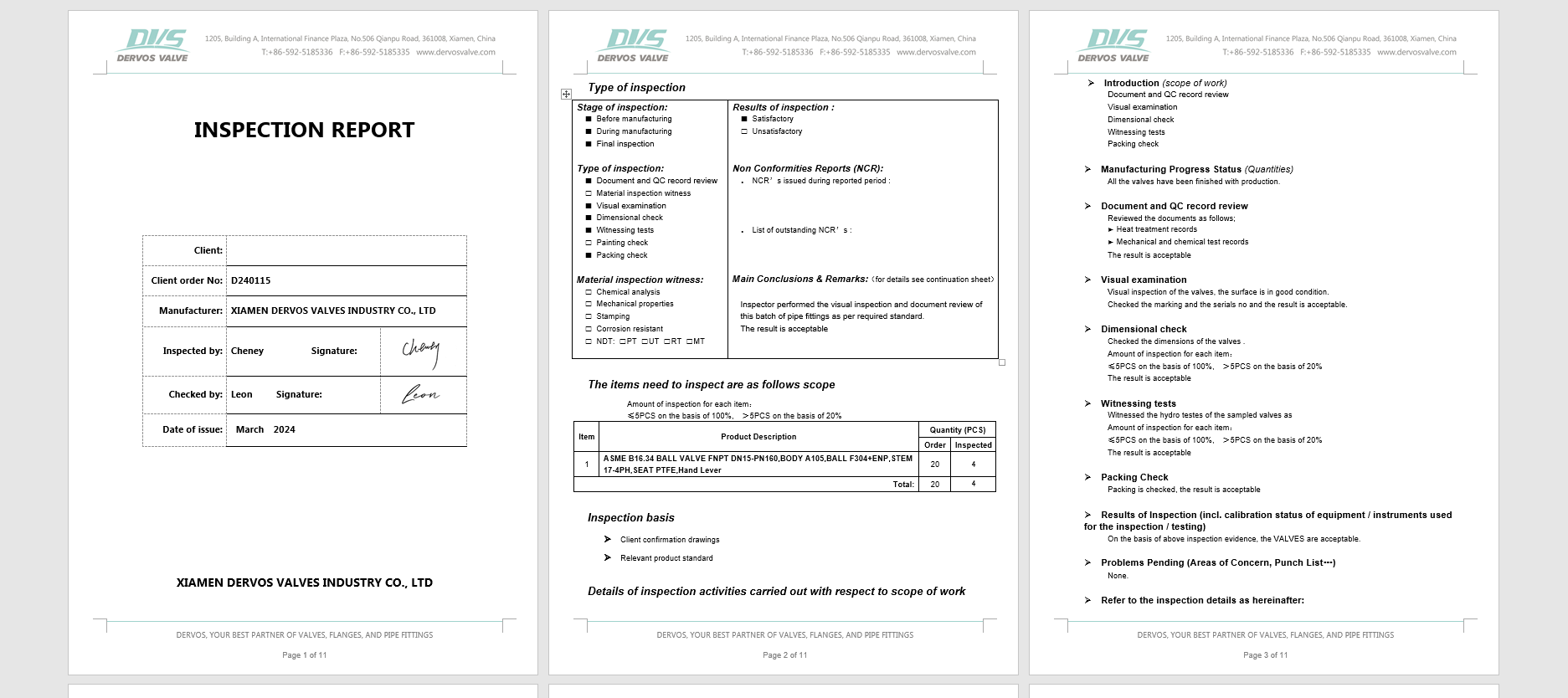

Inspection Report
