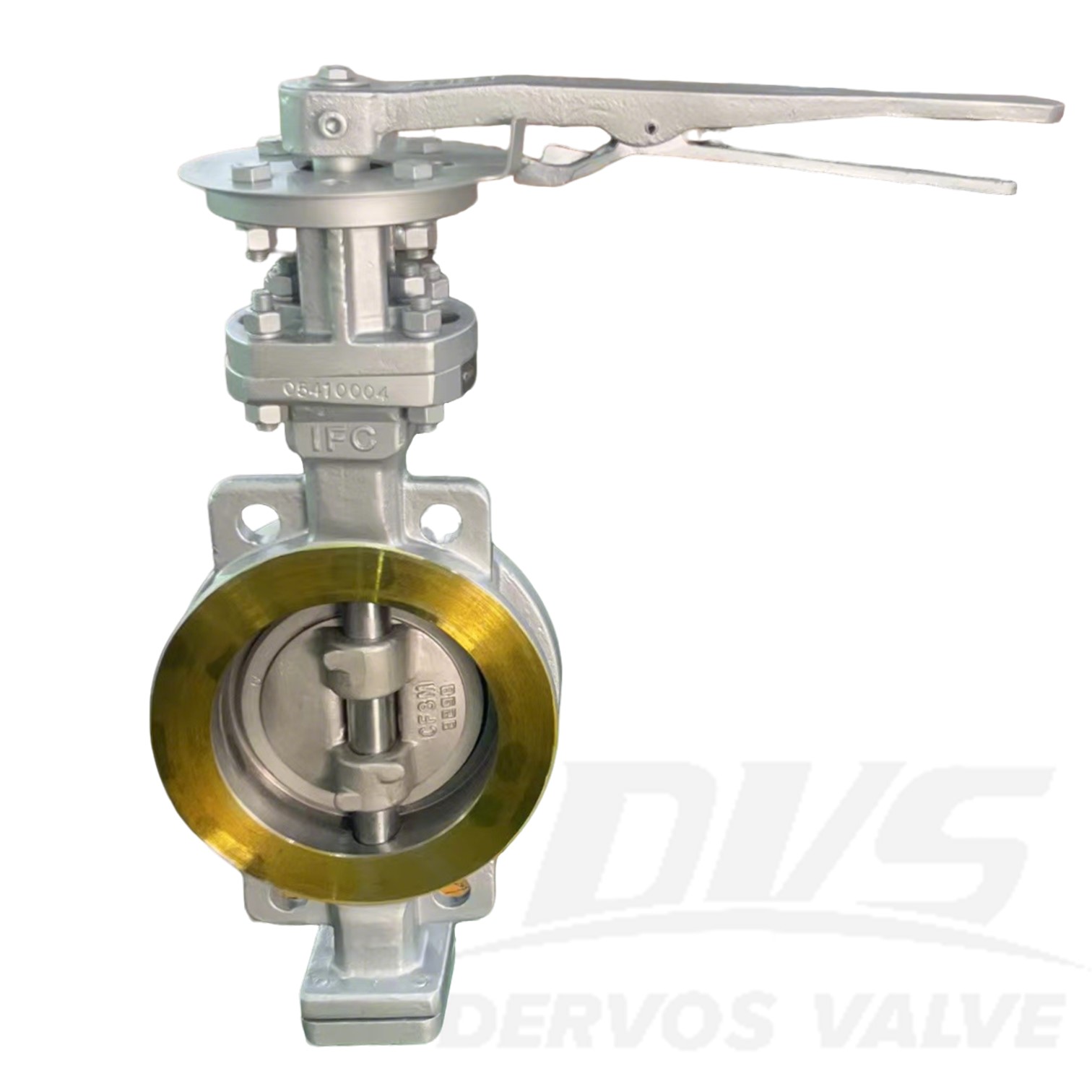

4” 150LB Cast Steel Three Eccentric Butterfly Valve WCB API609
Key Specifications / Features
Model No.: Hits: 0
4” 150LB Cast Steel Three Eccentric Butterfly Valve is made according to API609 standard. The valve body is made of A216 WCB. It has the structural characteristics of Triple Offset. Its connection mode is Wafer Type. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Three Eccentric Butterfly Valve |
| Size | 4” |
| Pressure | 150LB |
| Connection | Wafer |
| Operation | Hand wheel |
| Body Material | A216 WCB |
| Design Norm | API 609 |
| Face to Face | API609 |
| Flange Dimension | ASME B1.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 280°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Made from WCB cast steel, offering high strength and durability for 150LB pressure systems.2.Three-eccentric butterfly valve design compliant with API 609 ensures tight sealing, smooth operation, and reduced wear.

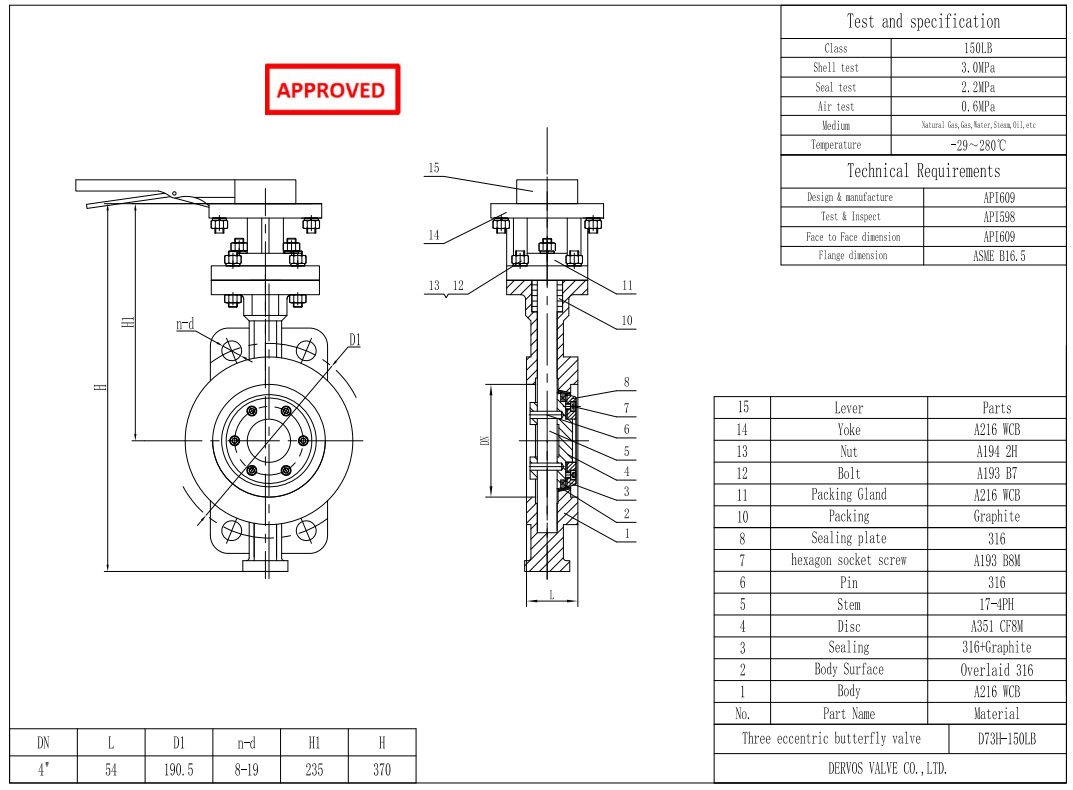

Technical Drawing

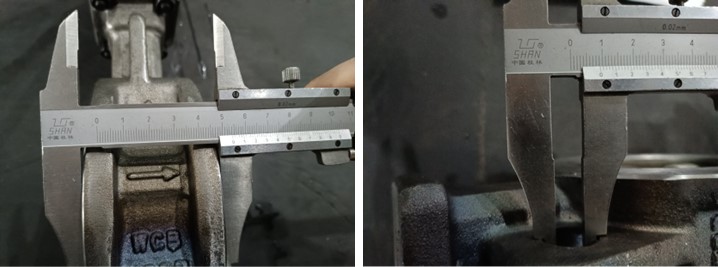

Dimension Checking

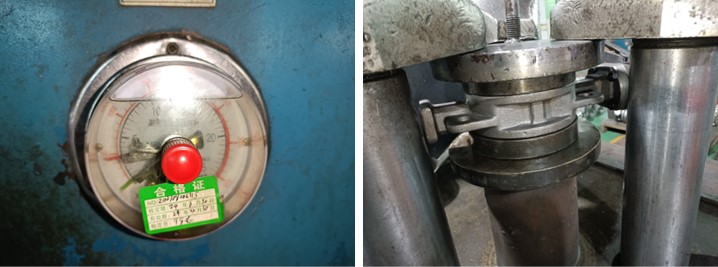

Pressure Testing
Painting
Spectrum

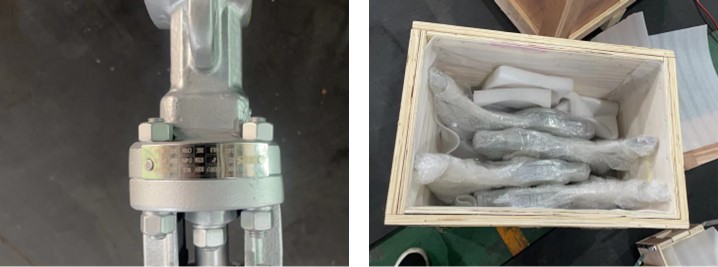

Nameplate & Packing

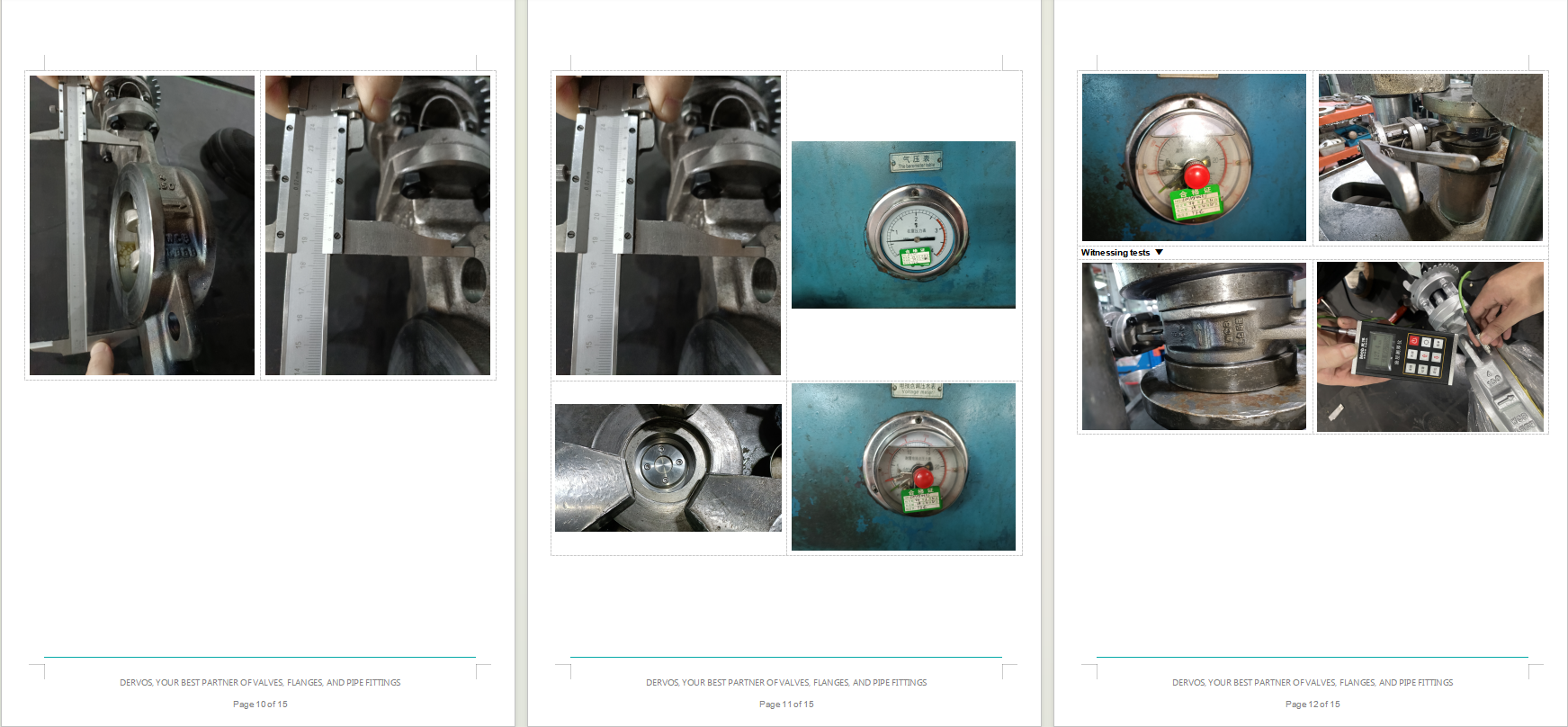

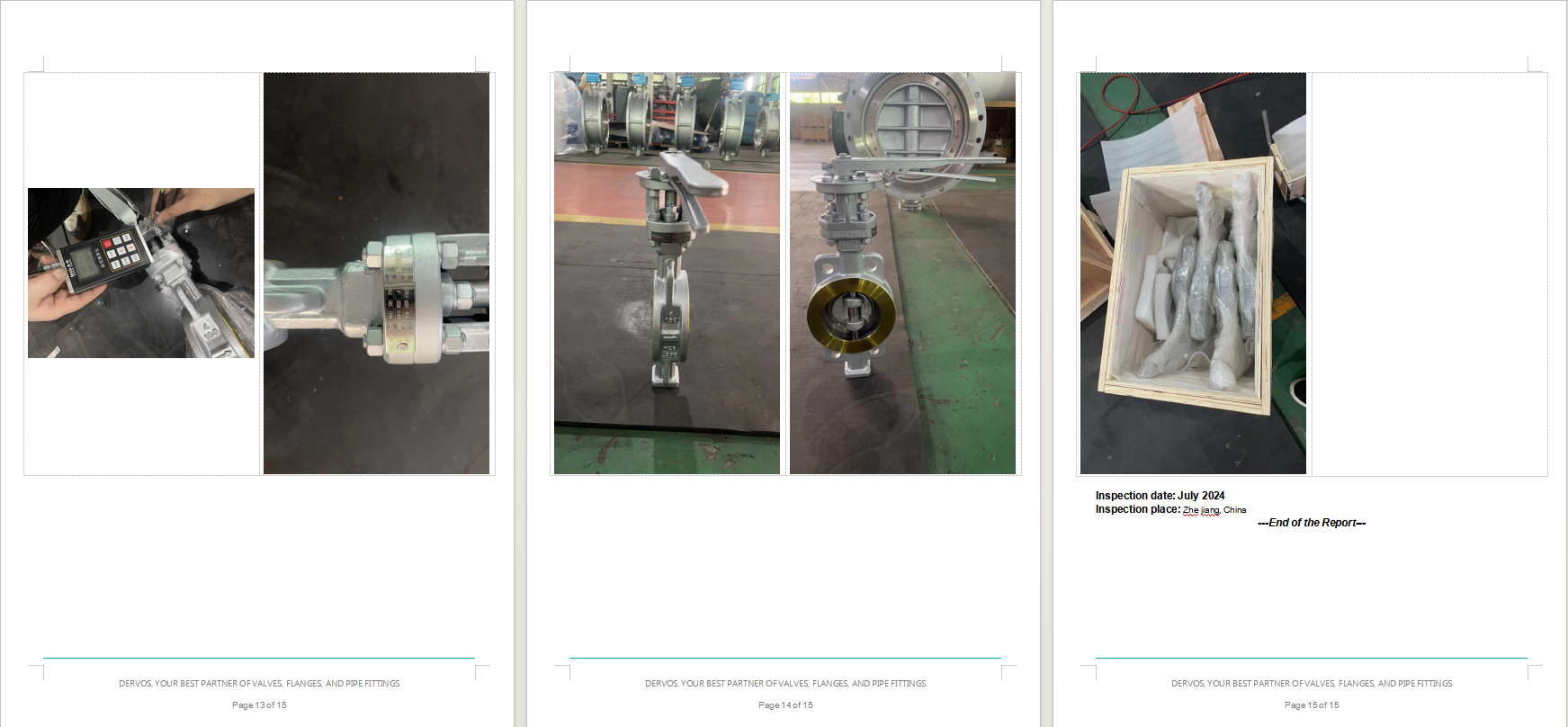

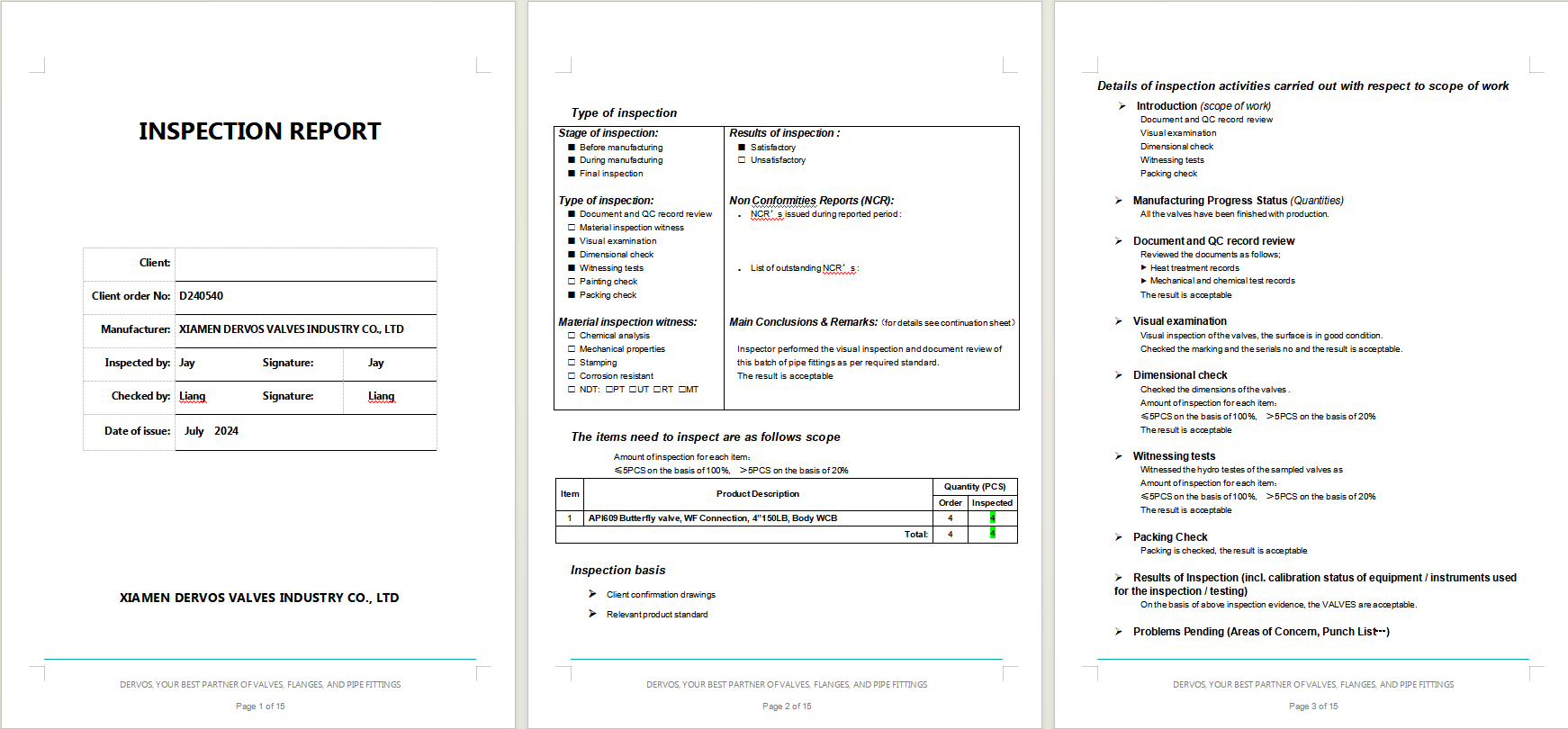

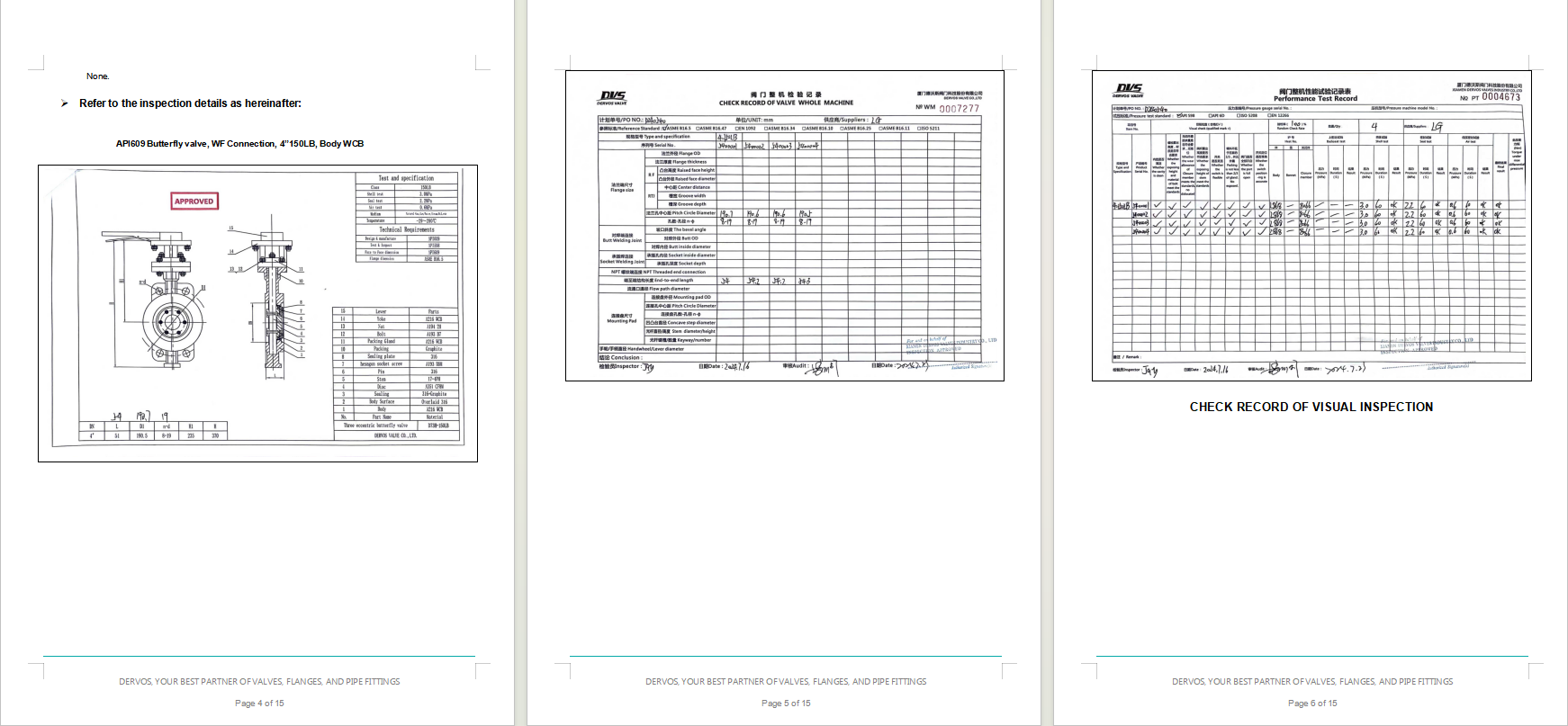

Inspection Report
