6" 150LB Wafer Centerline Butterfly Valve WCB API609 H.W.
Key Specifications / Features
Model No.: Hits: 0
6" 150LB Wafer Centerline Butterfly Valve is made according to API 609 standard. The valve body is made of WCB. The structural feature is a centerline design. Its connection mode is wafer. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Wafer Centerline Butterfly Valve |
| Size | 6" |
| Pressure | 150LB |
| Connection | wafer |
| Operation | H.W. |
| Body Material | WCB |
| Design Norm | API 609 |
| Face to Face | EN558-1 |
| Flange Ends | ASME B16.5 |
| Test & Inspection Code | EN12266 |
| Temperature | -20 ~ 110°C |
| Applicable Medium | Water, Oil and Steam |
Features
1. Constructed with WCB carbon steel body, suitable for general-purpose flow control in low to medium pressure systems.
2. Wafer-type centerline design with handwheel, compliant with API 609 for reliable bidirectional sealing and compact installation.

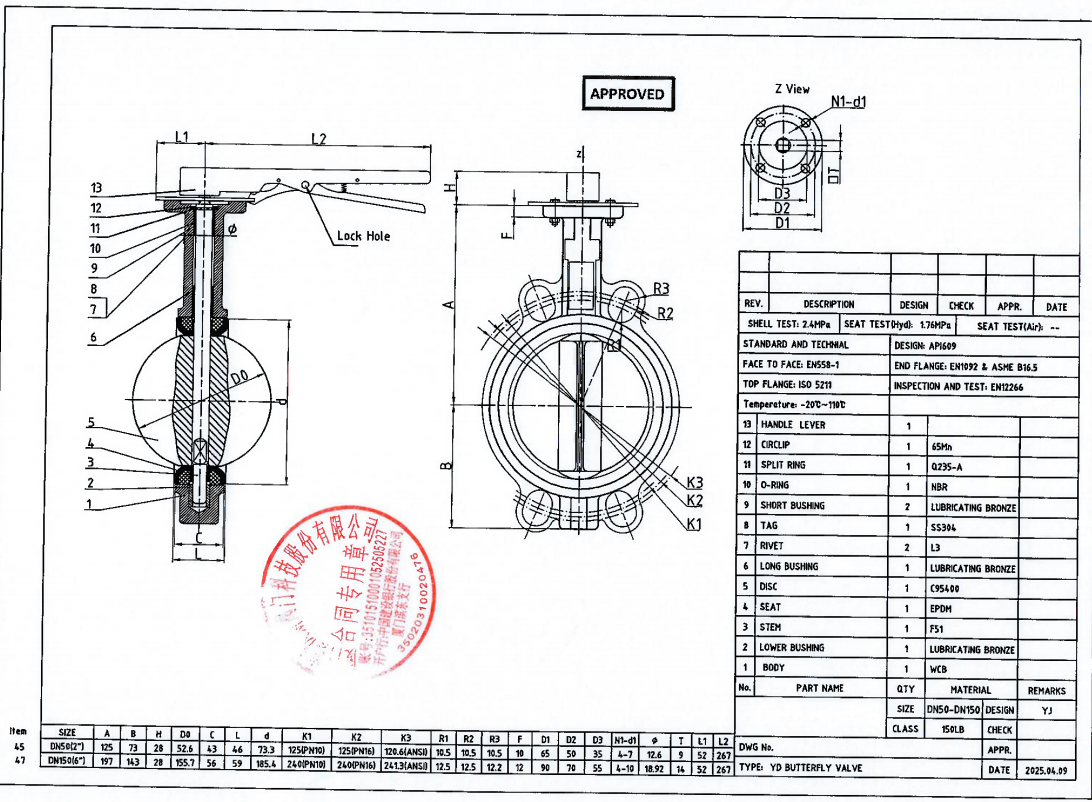

Butterfly Valve Technical Drawing

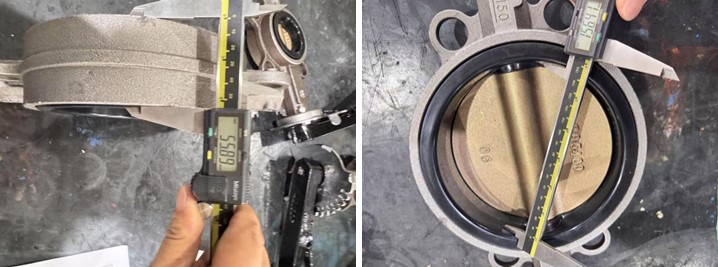

Dimension Checking

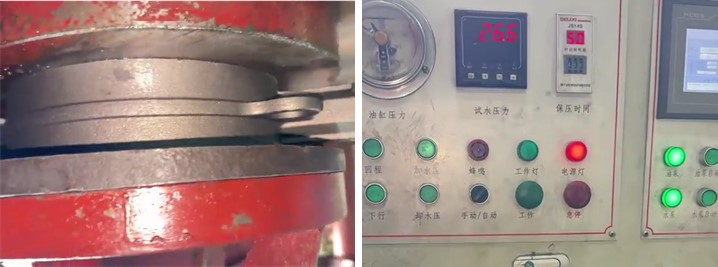

Pressure Testing

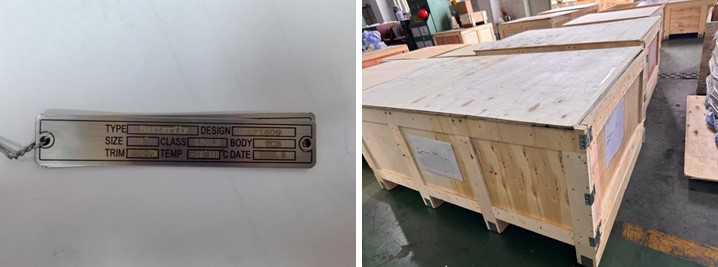

Nameplate & Packing
