4"x3" 150LB Forged Floating Ball Valve LF2 RF API6D
Key Specifications / Features
Model No.: Hits: 0
4"x3" 150LB Forged Floating Ball Valve is made according to API6D standard. The valve body is made of ASTM A350 LF2. It has the structural characteristics of Two-piece, Floating Ball, Reduced Bore, Fire-Safe Design. Its connection mode is RF. And it has Lever Handle operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Forged Floating Ball Valve |
| Size | 4"x3" |
| Pressure | 150LB |
| Connection | RF |
| Operation | Lever Handle |
| Body Material | ASTM A350 LF2 |
| Design Norm | API 6D |
| Face to Face | ASME B 16.10 |
| End connection | RF |
| Test & Inspection Code | API 6D |
| Temperature | -46 ~ 200°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Forged LF2 body provides superior strength and pressure resistance for industrial applications.2.Floating ball design ensures tight shut-off and smooth operation under varying flow conditions.

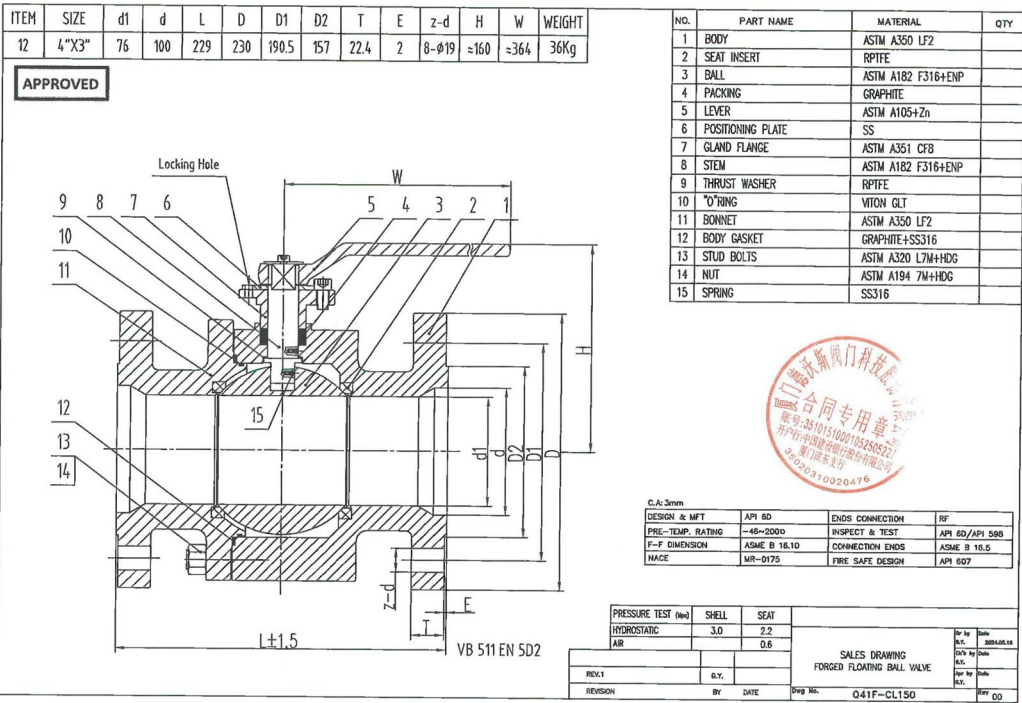

Technical Drawing

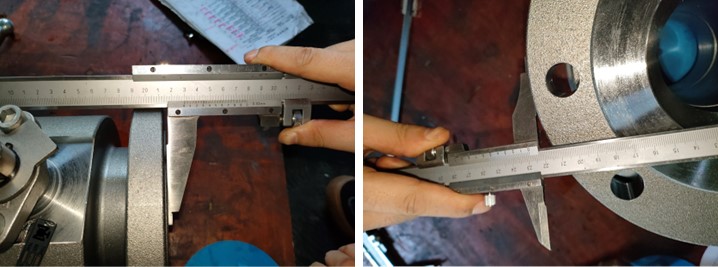

Dimension Checking

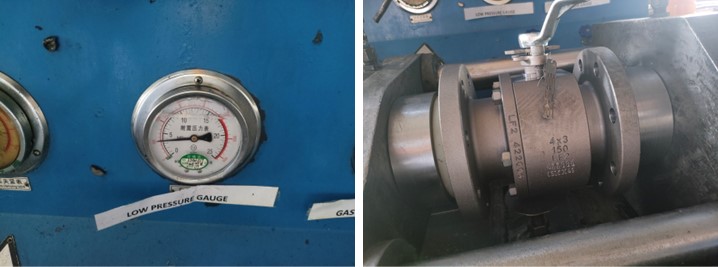

Pressure Testing

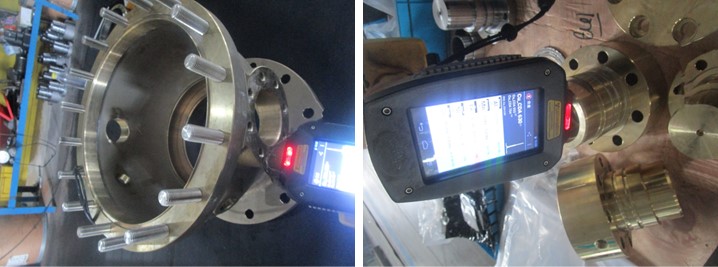

Spectrum
