ASME B16.34 Forged Steel Ball Valve F316L SW Connection 34”800LB
Key Specifications / Features
Model No.: Hits: 0
3/4”800LB forged steel ball valve is made according to ASME B16.34 standard. The valve body is made of F316L. Its connection mode is SW. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | forged steel ball valve |
| Size | 3/4” |
| Pressure | 800LB |
| Connection | SW |
| Operation | LEVER OP. |
| Body Material | B148 C95500 |
| Design Norm | ASME B16.34 |
| End to End | Manufacturer Standard |
| End connection | NPT |
| Test & Inspection Code | API598 |
| Temperature | -20 ~ 150°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Forged from F316L stainless steel, providing excellent corrosion resistance and reliable performance for 800LB pressure applications.2.Ball valve design with SW connection, compliant with ASME B16.34, ensures tight sealing and compact installation.

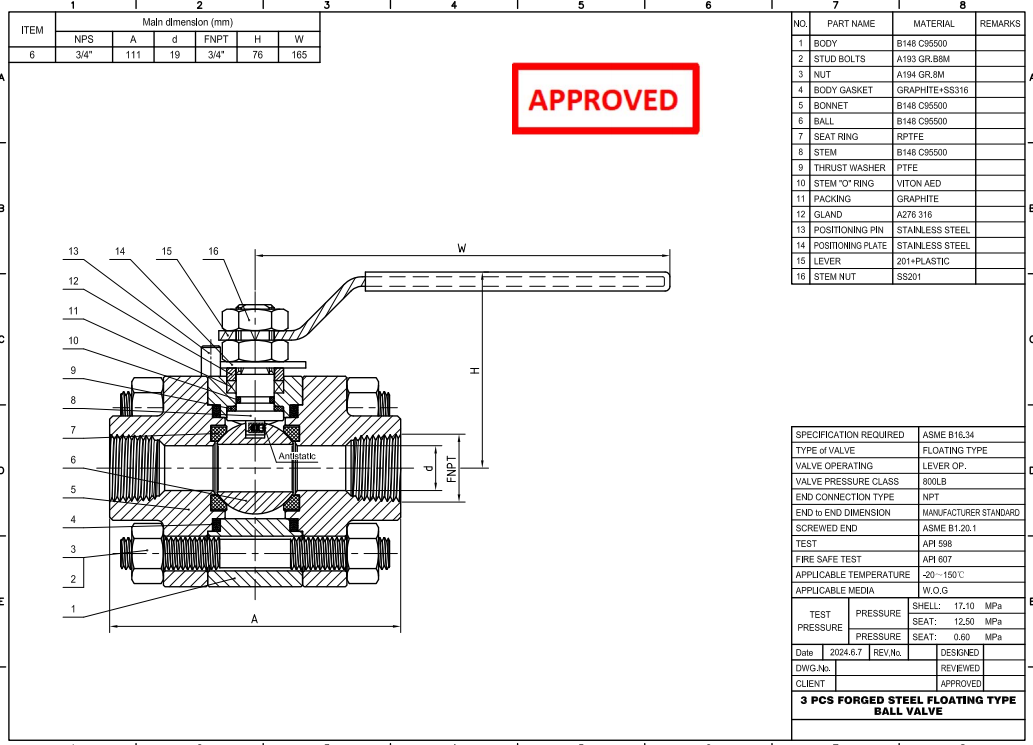

Technical Drawing

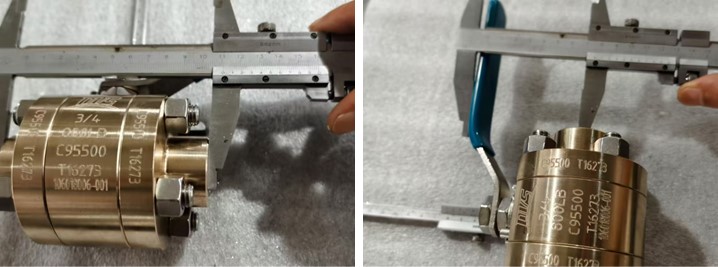

Dimension Checking

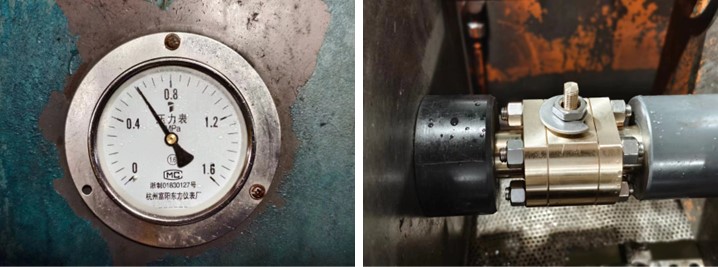

Pressure Testing

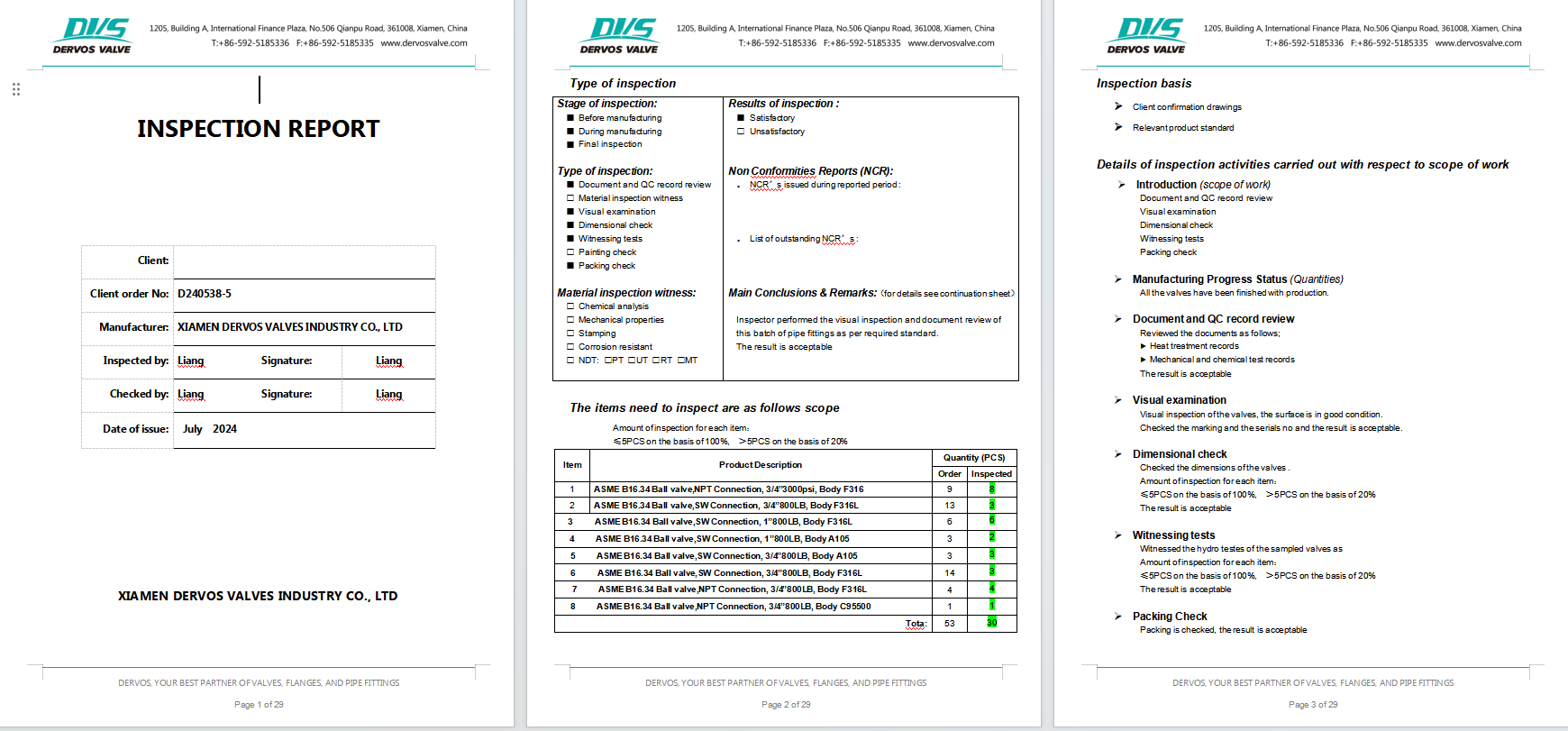

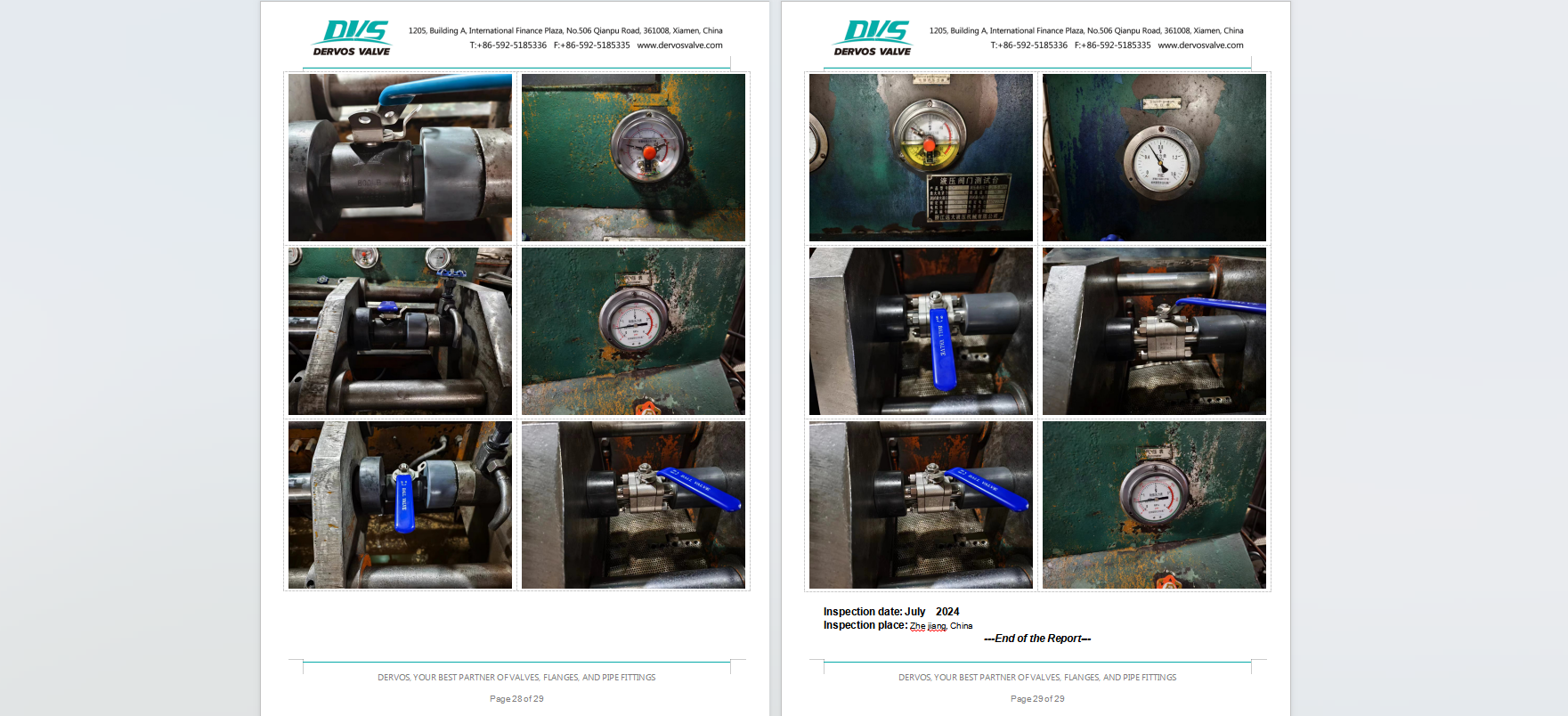

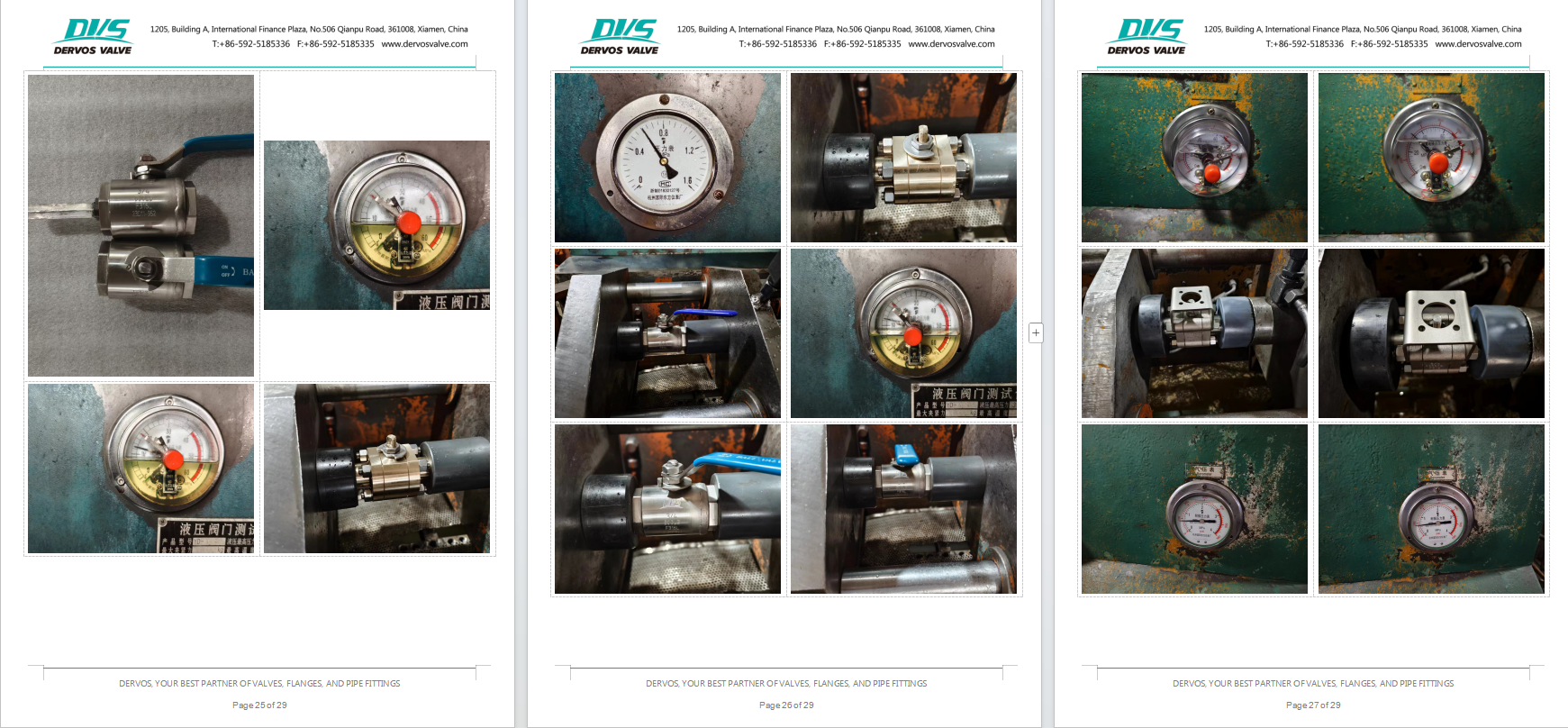

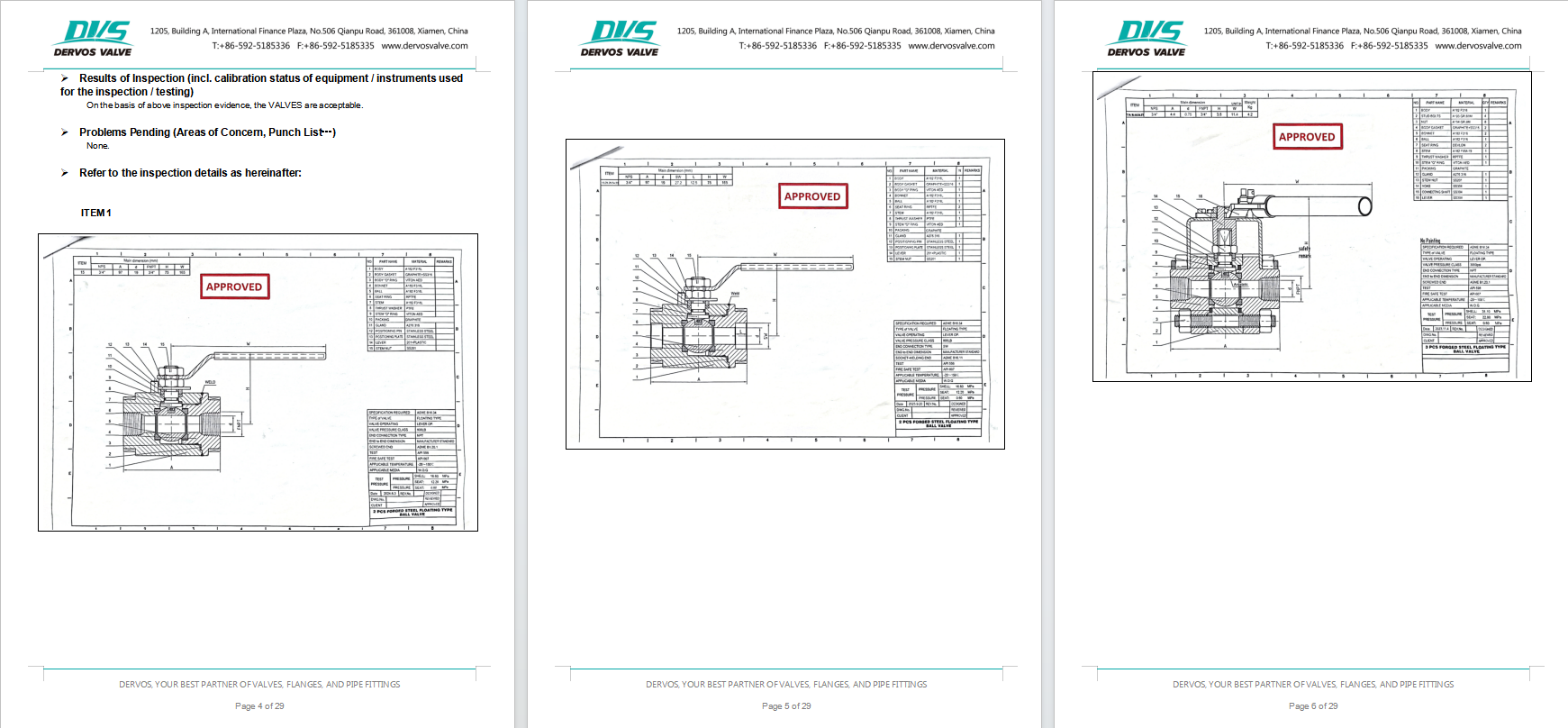

Inspection Report
