DN100 PN40 Forged Steel Ball Valve ASTM A105 EN1092-1 B1
Key Specifications / Features
Model No.: Hits: 0
DN100 PN40 Forged Steel Ball Valve is made according to ISO17292 standard. The valve body is made of ASTM A105. This three-way twin ball valve features an L-port flow path, full bore design, floating balls, and is equipped with fire-safe construction, anti-static protection, and a blow-out proof stem—ideal for demanding industrial flow control applications. Its connection mode is EN1092-1 B1. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Forged Steel Ball Valve |
| Size | DN100 |
| Pressure | PN40 |
| Connection | EN1092-1 B1 |
| Operation | H.W. |
| Body Material | ASTM A105 |
| Design Norm | ISO17292 |
| Face to Face | MFG |
| Flange dimension conforms | EN1092 |
| Test & Inspection Code | ISO 5208 |
| Temperature | -29 ~ 150°C |
| Applicable Medium | Water, Oil and Gas |
Features
1 . Forged from ASTM A105 carbon steel, designed for high-pressure industrial flow control applications.2. Flanged ends per EN1092-1 Type B1, ensuring secure installation and compatibility with European piping standards.

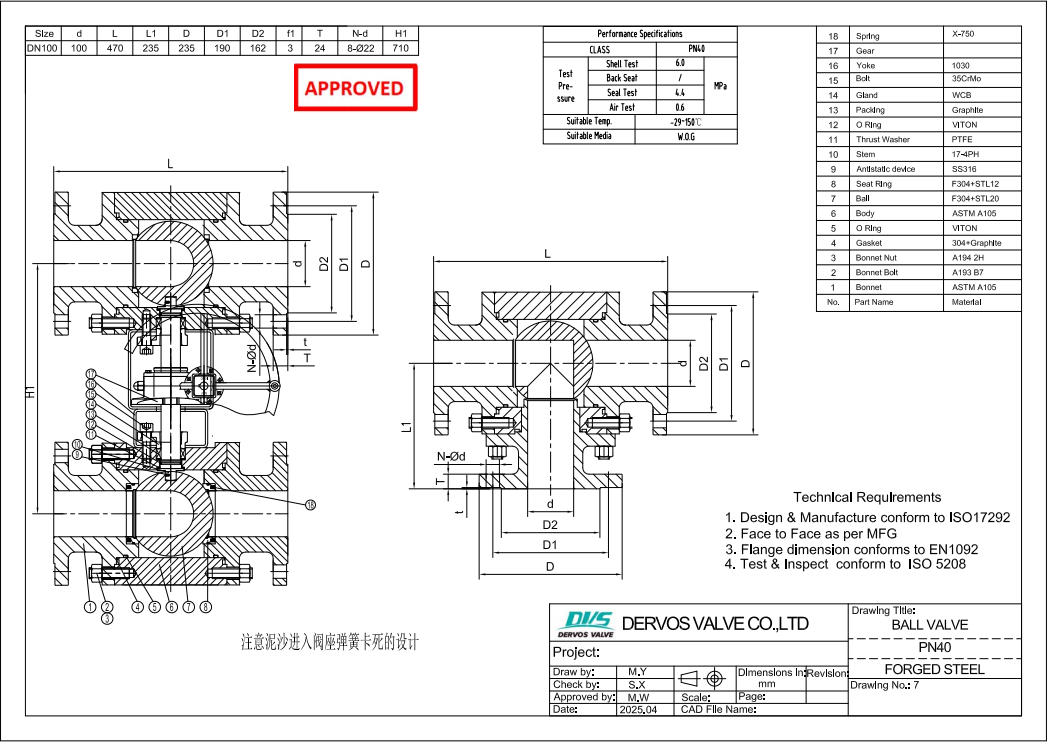

Forged Steel Ball Valve Technical Drawing

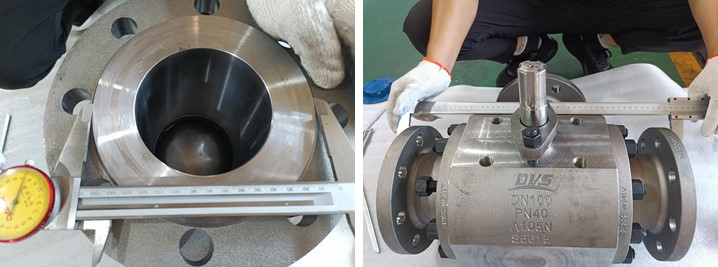

Dimension Checking

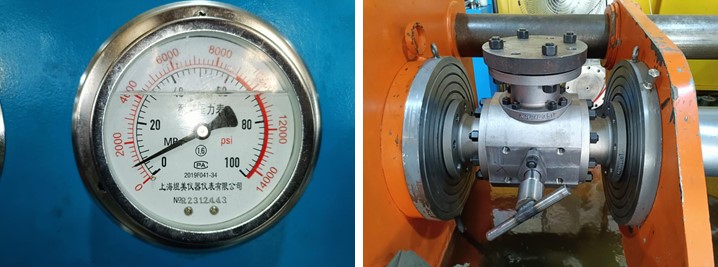

Pressure Testing

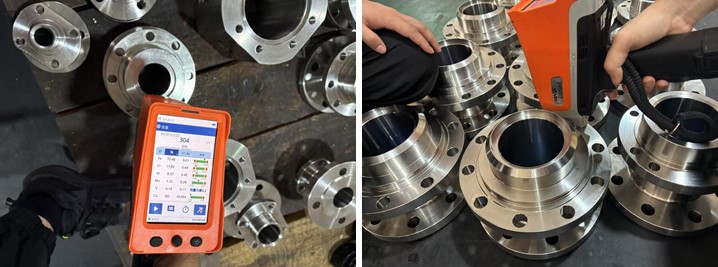

Spectrum
