Y-Type Strainer 3/4" 300 LB LCB RF ASME B16.34
Key Specifications / Features
Model No.: Hits: 0
3/4" 300 LB Y-Type Strainer is made according to ASME B16.34 standard. The valve body is made of LCB. It has the structural characteristics of Y Pattern Strainer, 44 μm (325 Mesh). Its connection mode is RF.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Y-Type Strainer |
| Size | 3/4" |
| Pressure | 600LB |
| Connection | RF |
| Body Material | ASTM A352 LCB |
| Design Norm | ASME B16.34 |
| Face to face | MFG’S STD |
| Flange ends dimensions | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -46 ~ 125°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. The Y-pattern body design efficiently captures debris and contaminants while maintaining low pressure loss across the system.2. The LCB cast steel construction provides excellent toughness for low-temperature service and complies with ASME B16.34 pressure-temperature requirements.

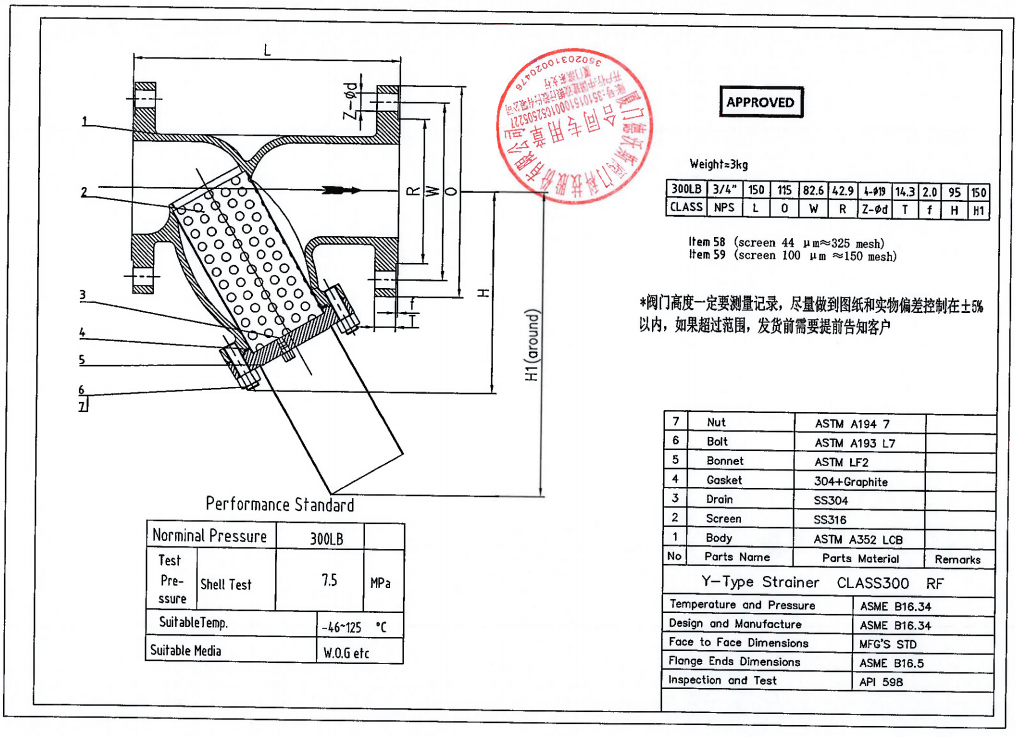

Technical Drawing

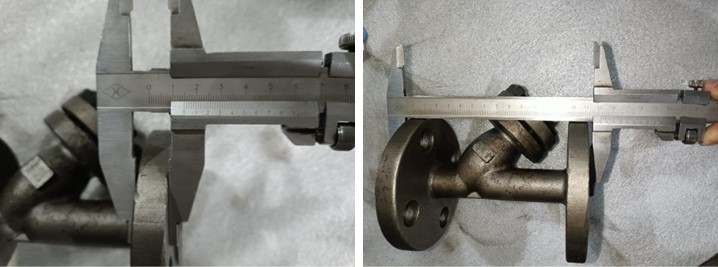

Dimension Checking

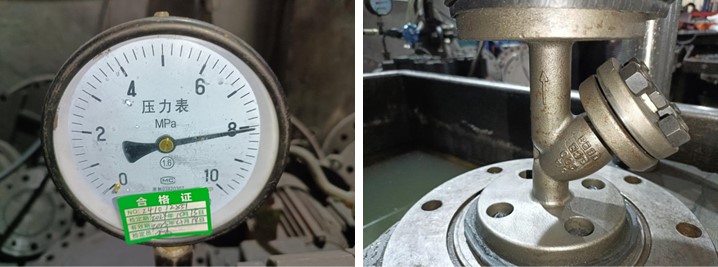

Pressure Testing
Painting

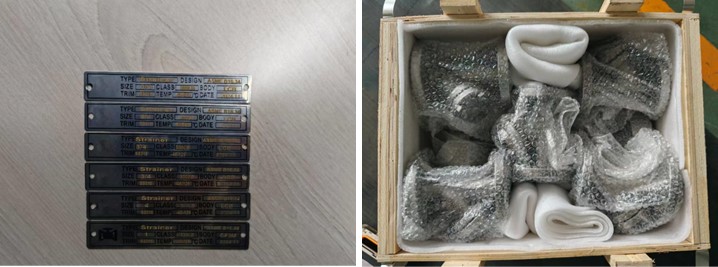

Nameplate & Packing

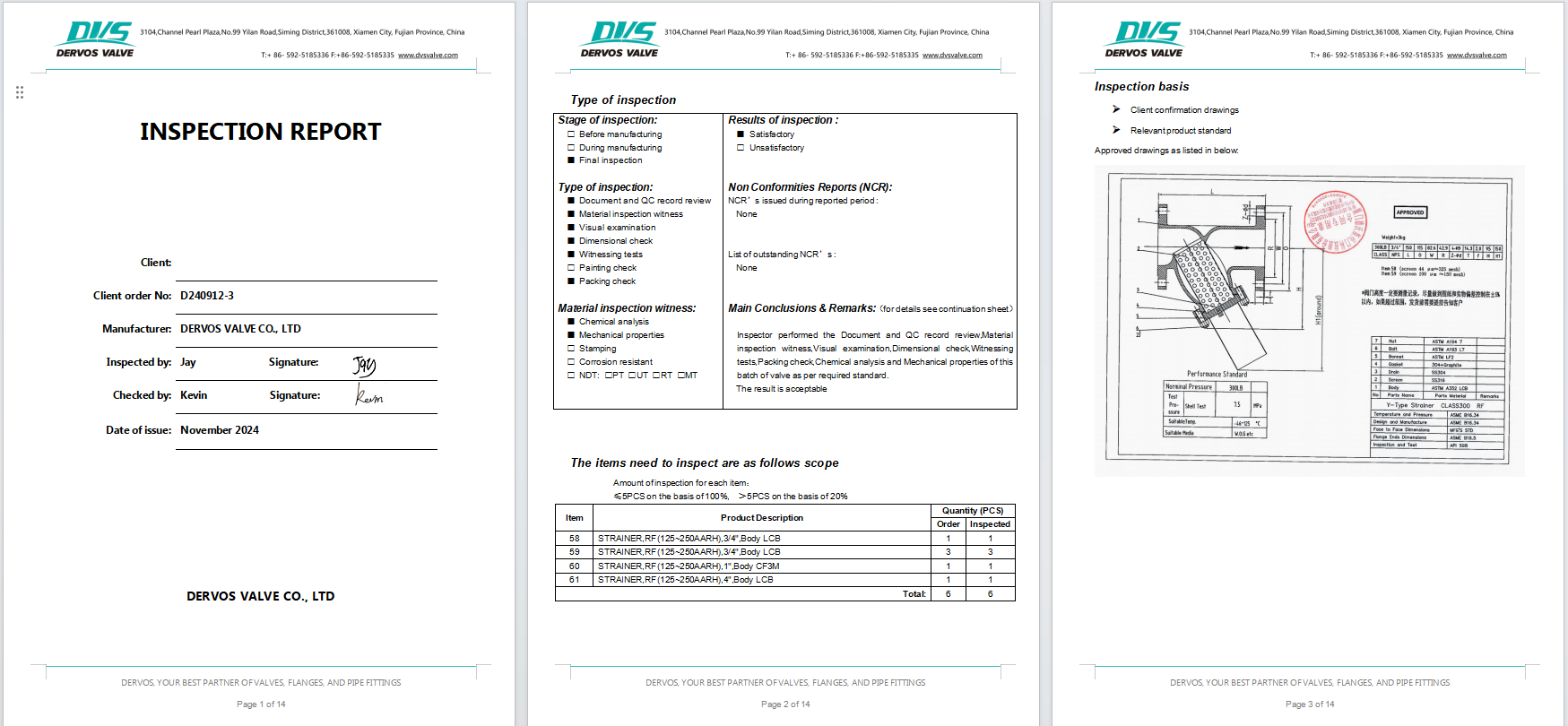

Inspection Report
